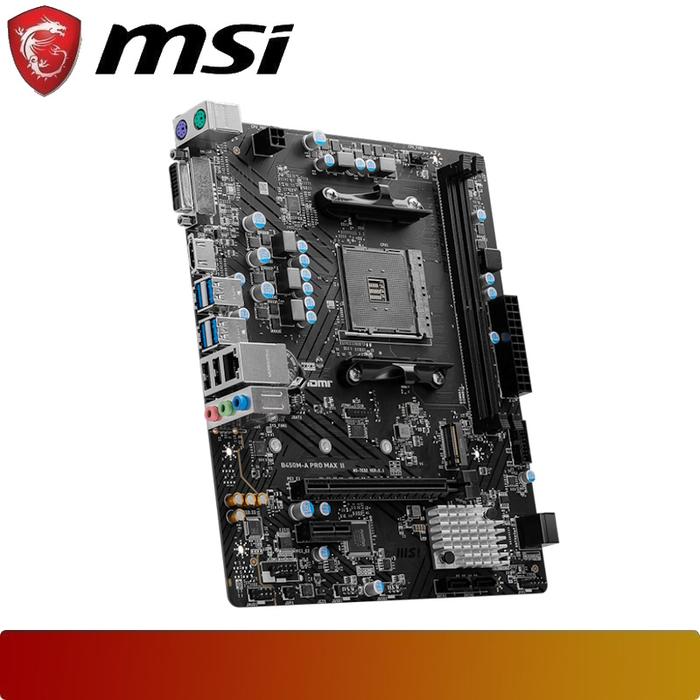

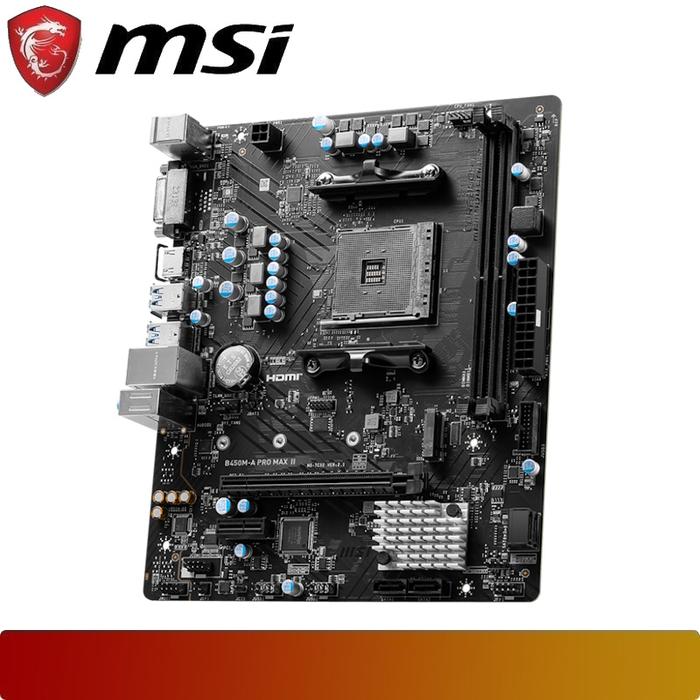

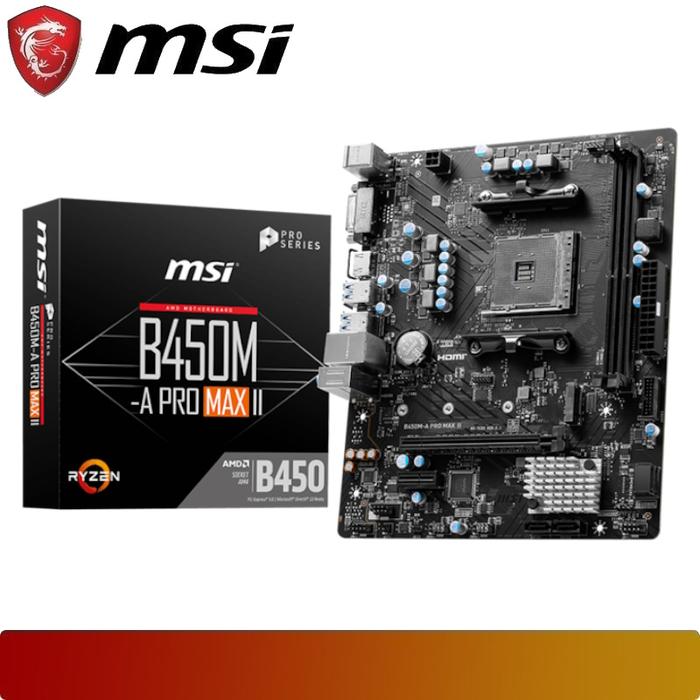

MSI B450M-A PRO MAX II
| SOCKET | AM4 |
| CHIPSET | AMD B450 |
| FORM FACTOR (PCB INFO) | mATX (200mm x 236mm) |
| CPU SUPPORT | Supports AMD Ryzen™ 5000, 5000 G-Series, 4000 G-Series, 3000, 3000 G-Series, 2000, 2000 G-Series and 1000 Series Desktop Processor and Athlon™ with Radeon™ Vega Graphics desktop processors |
| MEMORY SLOTS | 2x DDR4 DIMMs, Maximum Memory Capacity 64GB |
| MEMORY SUPPORT | DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE). Supports Dual-Channel, non-ECC UDIMM, and ECC UDIMM memory (non-ECC mode). |
| PCI-E X16 SLOT | 1 (PCIe 3.0, up to x16 from CPU) |
| PCI-E X1 SLOT | 1 (PCIe 2.0, up to x1 from Chipset) |
| M.2 SLOT | 1 (From CPU, supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices) |
| SATAIII PORTS | 4x SATA 6G |
| RAID SUPPORT | RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| ONBOARD GRAPHICS PORTS | HDMI™ 2.0b with HDR x 1 (Max. 4K @60Hz) DVI-D x 1 (Max. 1920x1200 60Hz) *Available only on processors featuring integrated graphics. |
| AUDIO | Realtek® ALC897 Codec, 7.1-Channel High Definition Audio |
| LAN | Realtek® 8125 2.5Gbps LAN controller |

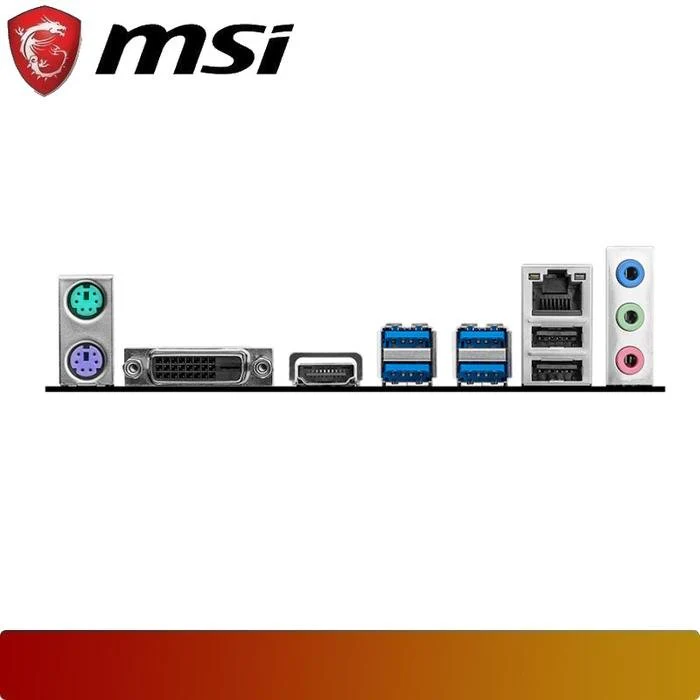

| REAR USB PORTS | 4x USB 5Gbps Type A (USB 3.2 Gen 1) 2x USB 2.0 |
| FRONT USB CONNECTORS | 1x USB 5Gbps Type A connector (supports 2 ports) 2x USB 2.0 connectors (supports 4 ports) |
| OPERATING SYSTEM SUPPORT | Windows® 11 64-bit, Windows® 10 64-bit |
$17.33
Original: $57.76
-70%MSI B450M-A PRO MAX II—
$57.76
$17.33Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| SOCKET | AM4 |
| CHIPSET | AMD B450 |
| FORM FACTOR (PCB INFO) | mATX (200mm x 236mm) |
| CPU SUPPORT | Supports AMD Ryzen™ 5000, 5000 G-Series, 4000 G-Series, 3000, 3000 G-Series, 2000, 2000 G-Series and 1000 Series Desktop Processor and Athlon™ with Radeon™ Vega Graphics desktop processors |
| MEMORY SLOTS | 2x DDR4 DIMMs, Maximum Memory Capacity 64GB |
| MEMORY SUPPORT | DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE). Supports Dual-Channel, non-ECC UDIMM, and ECC UDIMM memory (non-ECC mode). |
| PCI-E X16 SLOT | 1 (PCIe 3.0, up to x16 from CPU) |
| PCI-E X1 SLOT | 1 (PCIe 2.0, up to x1 from Chipset) |
| M.2 SLOT | 1 (From CPU, supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices) |
| SATAIII PORTS | 4x SATA 6G |
| RAID SUPPORT | RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| ONBOARD GRAPHICS PORTS | HDMI™ 2.0b with HDR x 1 (Max. 4K @60Hz) DVI-D x 1 (Max. 1920x1200 60Hz) *Available only on processors featuring integrated graphics. |
| AUDIO | Realtek® ALC897 Codec, 7.1-Channel High Definition Audio |
| LAN | Realtek® 8125 2.5Gbps LAN controller |
| REAR USB PORTS | 4x USB 5Gbps Type A (USB 3.2 Gen 1) 2x USB 2.0 |
| FRONT USB CONNECTORS | 1x USB 5Gbps Type A connector (supports 2 ports) 2x USB 2.0 connectors (supports 4 ports) |
| OPERATING SYSTEM SUPPORT | Windows® 11 64-bit, Windows® 10 64-bit |
