GIGABYTE A520M K V2

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5

GIGABYTE A520M K V2

Chipset AMD A520 Chipset
CPU Socket AMD AM4 Socket (Supports AMD Ryzen™ 5000/4000 G-Series/3000 Series Processors)
Form Factor Micro ATX (23.0cm x 20.0cm)
Memory (DDR4)
  1. 2 x DDR4 DIMM sockets, Dual Channel memory architecture
  2. Memory Speed Support: DDR4 up to 5100 (O.C.) MT/s
  3. Supports non-ECC Un-buffered DIMM and AMD XMP
  4. Max. capacity of system memory: 64 GB
Onboard Graphics
  1. 1x HDMI port (Max 4096x2160@60 Hz)
  2. 1x D-Sub port (Max 1920x1200@60 Hz)

*Requires a Ryzen™ Processor with integrated graphics (iGPU).
Expansion Slots
  1. 1x PCI Express x16 slot (**PCIe 3.0**, running at x16)
  2. 1x PCI Express x1 slot (PCIe 3.0, running at x1)
Audio Realtek® Audio CODEC, 8-Channel High Definition Audio
Storage
  1. 1x M.2 slot (PCIe 3.0 x4/x2)
  2. 4x SATA 6Gb/s ports
Networking
  1. LAN: Realtek® **1GbE** LAN chip

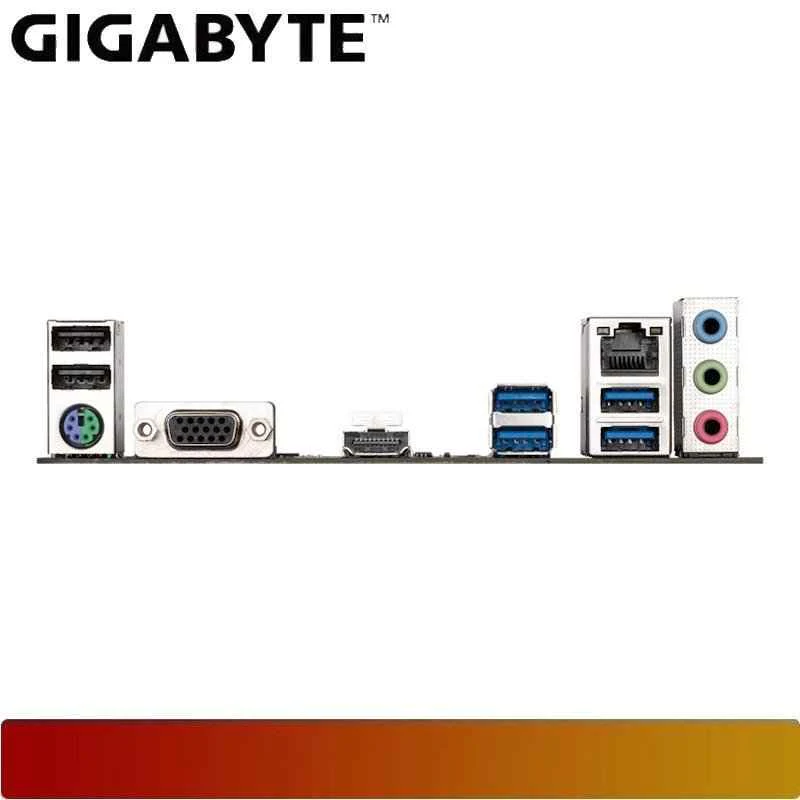

USB Ports
  1. Rear Panel: 4x USB 3.2 Gen 1 Type-A, 2x USB 2.0/1.1
  2. Internal Headers: 1x USB 3.2 Gen 1 header (supports 2 ports), 1x USB 2.0/1.1 header (supports 2 ports)
DIY Features GIGABYTE Control Center (GCC) Support
Operating System Supports Windows 11 64-bit / Windows 10 64-bit
$15.03

Original: $50.09

-70%
GIGABYTE A520M K V2—

$50.09

$15.03

Product Information

Shipping & Returns

Description

Chipset AMD A520 Chipset
CPU Socket AMD AM4 Socket (Supports AMD Ryzen™ 5000/4000 G-Series/3000 Series Processors)
Form Factor Micro ATX (23.0cm x 20.0cm)
Memory (DDR4)
  1. 2 x DDR4 DIMM sockets, Dual Channel memory architecture
  2. Memory Speed Support: DDR4 up to 5100 (O.C.) MT/s
  3. Supports non-ECC Un-buffered DIMM and AMD XMP
  4. Max. capacity of system memory: 64 GB
Onboard Graphics
  1. 1x HDMI port (Max 4096x2160@60 Hz)
  2. 1x D-Sub port (Max 1920x1200@60 Hz)

*Requires a Ryzen™ Processor with integrated graphics (iGPU).
Expansion Slots
  1. 1x PCI Express x16 slot (**PCIe 3.0**, running at x16)
  2. 1x PCI Express x1 slot (PCIe 3.0, running at x1)
Audio Realtek® Audio CODEC, 8-Channel High Definition Audio
Storage
  1. 1x M.2 slot (PCIe 3.0 x4/x2)
  2. 4x SATA 6Gb/s ports
Networking
  1. LAN: Realtek® **1GbE** LAN chip
USB Ports
  1. Rear Panel: 4x USB 3.2 Gen 1 Type-A, 2x USB 2.0/1.1
  2. Internal Headers: 1x USB 3.2 Gen 1 header (supports 2 ports), 1x USB 2.0/1.1 header (supports 2 ports)
DIY Features GIGABYTE Control Center (GCC) Support
Operating System Supports Windows 11 64-bit / Windows 10 64-bit
