ASUS Pro WS WRX90E-SAGE SE

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5

ASUS Pro WS WRX90E-SAGE SE

Model Pro WS WRX90E-SAGE SE
CPU AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series*
Chipset AMD WRX90 Chipset
Memory 8 x DIMM slots, DDR5, ECC Registered Memory*
8 Channel Memory Architecture
Expansion Slots 6 x PCIe 5.0 x16 slots
1 x PCIe 5.0 x16 slot (x8 mode)
Storage Total supports 4 x M.2 slots, 2 x SlimSAS ports, and 4 x SATA 6Gb/s ports.
M.2: 4 x slots (supports PCIe 5.0 x4 mode)
SlimSAS: 2 x ports (supports PCIe 4.0 x4 mode NVMe device)
SATA: 4 x SATA 6Gb/s ports

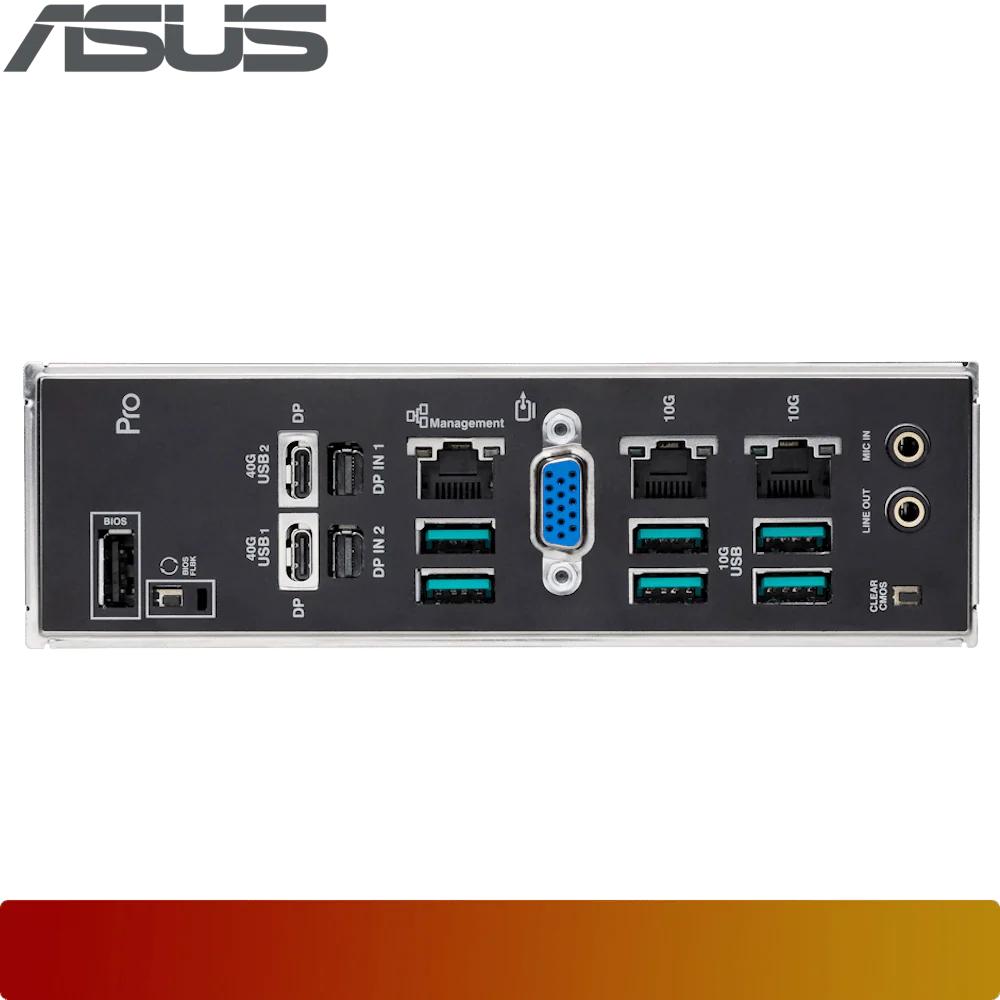

Ethernet 1 x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600)
1 x Intel® dual 10Gb Ethernet
ASUS LANGuard
USB (Total 16 Ports) Rear USB (Total 9 ports):
2 x USB 40Gbps (USB4® Type-C®) with ASMedia ASM4242 controller
6 x USB 10Gbps (Type-A)
1 x USB 2.0 (Type-A)
Front USB (Total 7 ports):
1 x USB 20Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header (supports 2 additional ports)
2 x USB 2.0 headers (supports 4 additional ports)
Audio Realtek ALC1220P Surround Sound High Definition Audio CODEC*
120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
Supports up to 32-Bit/192 kHz playback
Operating System Windows® 11
Windows® 10 64-bit
Form Factor EEB Form Factor
12 inch x 13 inch (30.5 cm x 33 cm)
$410.62

Original: $1,368.74

-70%
ASUS Pro WS WRX90E-SAGE SE—

$1,368.74

$410.62

Product Information

Shipping & Returns

Description

Model Pro WS WRX90E-SAGE SE
CPU AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series*
Chipset AMD WRX90 Chipset
Memory 8 x DIMM slots, DDR5, ECC Registered Memory*
8 Channel Memory Architecture
Expansion Slots 6 x PCIe 5.0 x16 slots
1 x PCIe 5.0 x16 slot (x8 mode)
Storage Total supports 4 x M.2 slots, 2 x SlimSAS ports, and 4 x SATA 6Gb/s ports.
M.2: 4 x slots (supports PCIe 5.0 x4 mode)
SlimSAS: 2 x ports (supports PCIe 4.0 x4 mode NVMe device)
SATA: 4 x SATA 6Gb/s ports
Ethernet 1 x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600)
1 x Intel® dual 10Gb Ethernet
ASUS LANGuard
USB (Total 16 Ports) Rear USB (Total 9 ports):
2 x USB 40Gbps (USB4® Type-C®) with ASMedia ASM4242 controller
6 x USB 10Gbps (Type-A)
1 x USB 2.0 (Type-A)
Front USB (Total 7 ports):
1 x USB 20Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header (supports 2 additional ports)
2 x USB 2.0 headers (supports 4 additional ports)
Audio Realtek ALC1220P Surround Sound High Definition Audio CODEC*
120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
Supports up to 32-Bit/192 kHz playback
Operating System Windows® 11
Windows® 10 64-bit
Form Factor EEB Form Factor
12 inch x 13 inch (30.5 cm x 33 cm)
