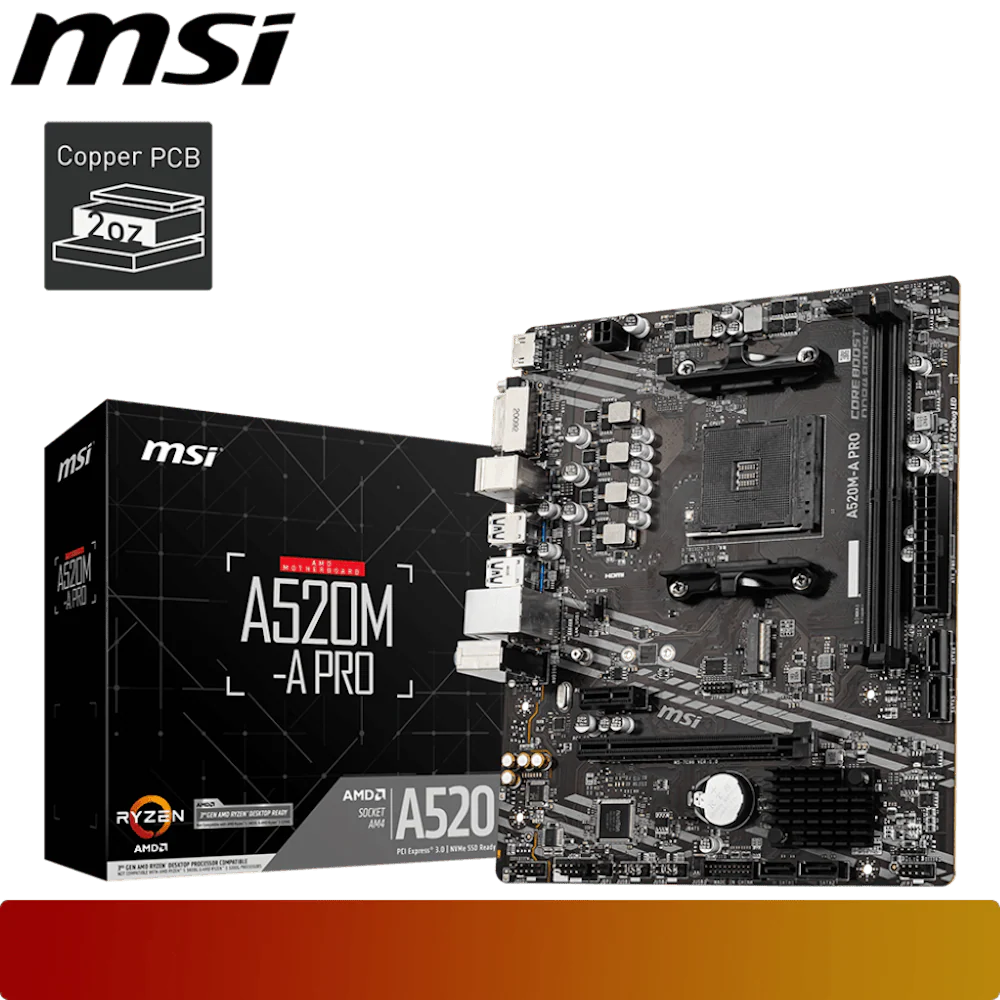

MSI A520M-A PRO
| SOCKET | AMD Socket AM4 |
| CHIPSET | AMD® A520 Chipset |
| FORM FACTOR | Micro-ATX (9.3 in. x 7.9 in.) (23.6 cm x 20 cm) |
| CPU SUPPORT | Supports AMD Ryzen™ 5000, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors |
| MEMORY CHANNELS | Dual |
| DIMM SLOTS | 2 |
| MAX MEMORY (GB) | 64 |
| PCI-E X16 | 1 (Gen3, from CPU) |
| PCI-E X1 | 1 (Gen3) |
| M.2 SLOT | 1 (Key M, Supports PCIe 3.0 x4 & SATA 6G/s, 2242/2260/2280) |
| SATAIII PORTS | 4 |
| RAID SUPPORT | RAID 0, RAID 1 and RAID 10 for SATA devices; RAID 0 and RAID 1 for M.2 NVMe devices |
| ONBOARD GRAPHICS PORTS | HDMI™ 2.1 x 1 (Max. 4096x2160 @60Hz) DVI-D x 1 (Max. 1920x1200@60Hz) |
| AUDIO | Realtek® ALC892/ALC897 Codec, 7.1-Channel High Definition Audio |
| LAN | 1x Realtek® RTL8111H Gigabit LAN controller |

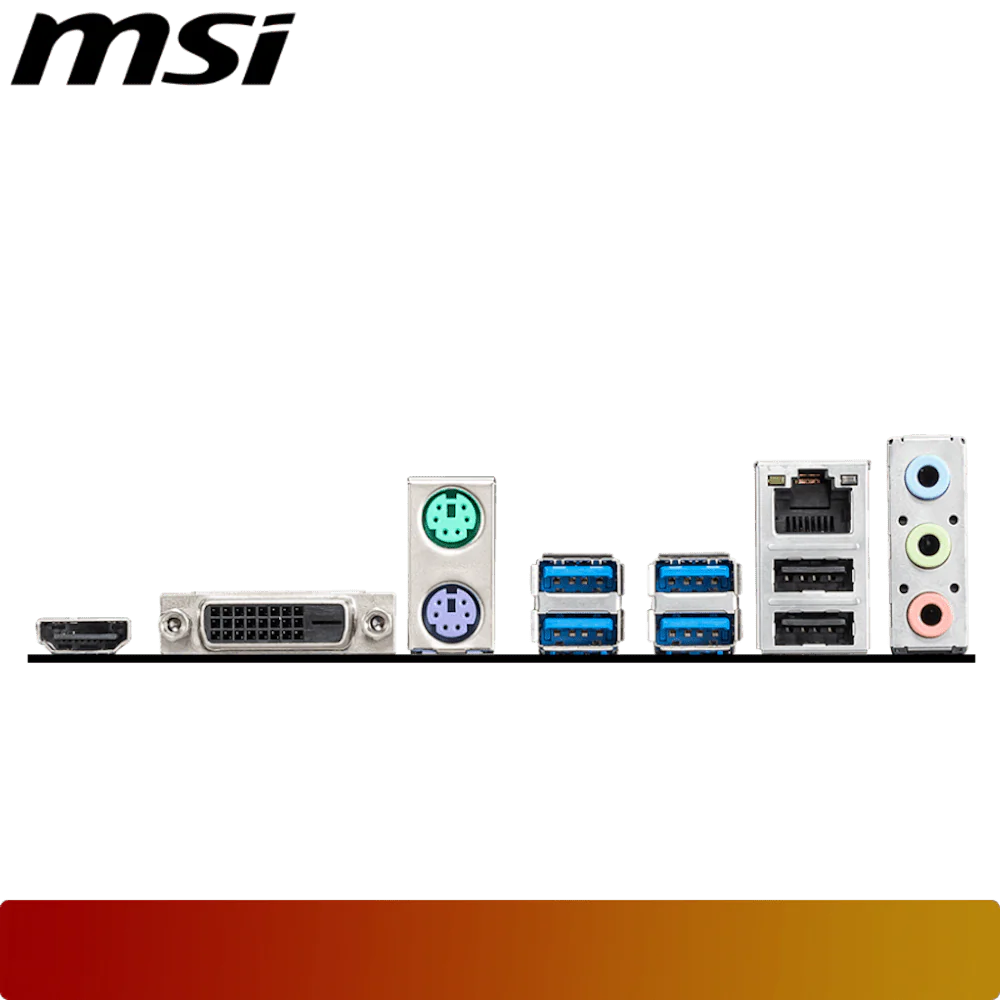

| REAR USB PORTS | 4x USB 3.2 Gen 1 5Gbps Type-A 2x USB 2.0 Type-A |
| FRONT USB CONNECTORS | 1x USB 3.2 Gen 1 5Gbps (supports 2 ports) 2x USB 2.0 (supports 4 ports) |
| DIRECTX SUPPORT | 12 |
| TPM (HEADER) | 1 |
| SERIAL PORTS (FRONT) | 1 |
$16.27
Original: $54.22
-70%MSI A520M-A PRO—
$54.22
$16.27Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| SOCKET | AMD Socket AM4 |
| CHIPSET | AMD® A520 Chipset |
| FORM FACTOR | Micro-ATX (9.3 in. x 7.9 in.) (23.6 cm x 20 cm) |
| CPU SUPPORT | Supports AMD Ryzen™ 5000, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors |
| MEMORY CHANNELS | Dual |
| DIMM SLOTS | 2 |
| MAX MEMORY (GB) | 64 |
| PCI-E X16 | 1 (Gen3, from CPU) |
| PCI-E X1 | 1 (Gen3) |
| M.2 SLOT | 1 (Key M, Supports PCIe 3.0 x4 & SATA 6G/s, 2242/2260/2280) |
| SATAIII PORTS | 4 |
| RAID SUPPORT | RAID 0, RAID 1 and RAID 10 for SATA devices; RAID 0 and RAID 1 for M.2 NVMe devices |
| ONBOARD GRAPHICS PORTS | HDMI™ 2.1 x 1 (Max. 4096x2160 @60Hz) DVI-D x 1 (Max. 1920x1200@60Hz) |
| AUDIO | Realtek® ALC892/ALC897 Codec, 7.1-Channel High Definition Audio |
| LAN | 1x Realtek® RTL8111H Gigabit LAN controller |
| REAR USB PORTS | 4x USB 3.2 Gen 1 5Gbps Type-A 2x USB 2.0 Type-A |
| FRONT USB CONNECTORS | 1x USB 3.2 Gen 1 5Gbps (supports 2 ports) 2x USB 2.0 (supports 4 ports) |
| DIRECTX SUPPORT | 12 |
| TPM (HEADER) | 1 |
| SERIAL PORTS (FRONT) | 1 |
