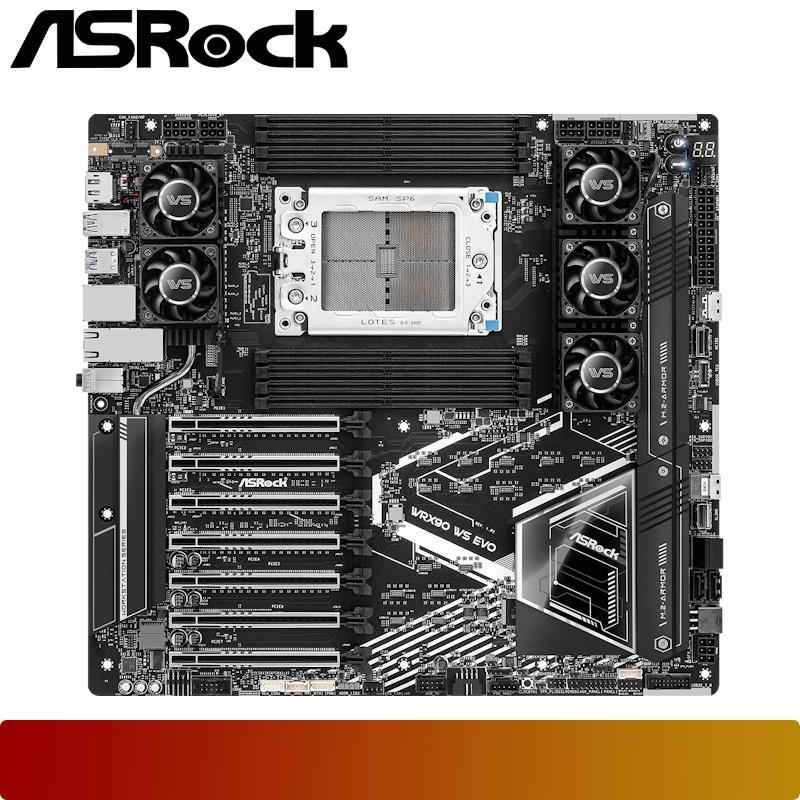

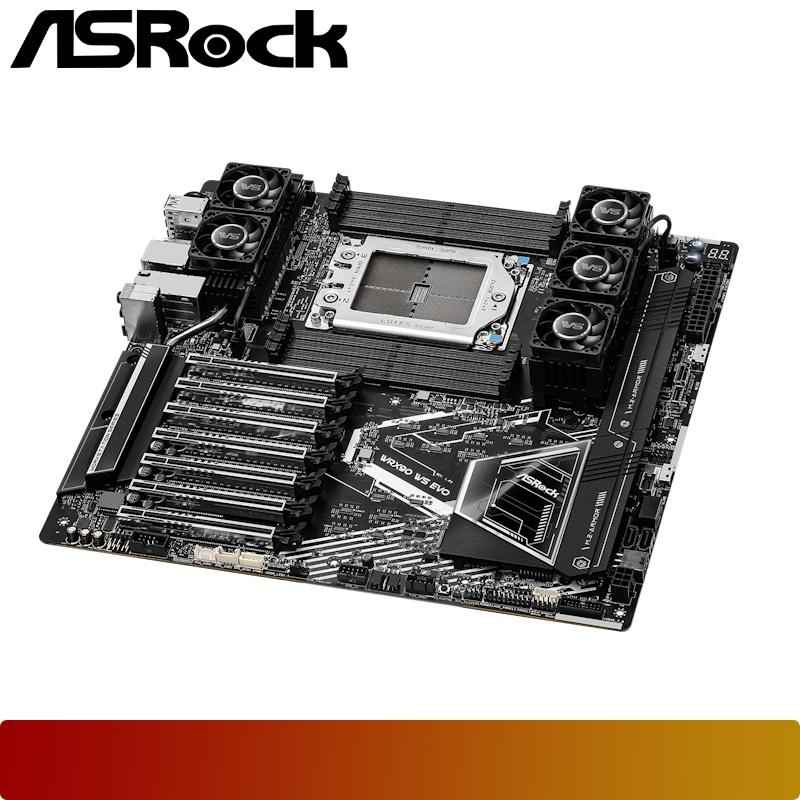

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5

ASROCK WRX90 WS EVO

CPU Supports AMD Ryzen™ Threadripper™ PRO 9000/7000 WX-Series Processors (AMD Socket sTR5)
Chipset AMD WRX90
Memory (RAM)
  • Eight Channel DDR5 Memory Technology
  • 8 x DDR5 DIMM Slots (Supports DDR5 ECC, buffered memory (RDIMM/ RDIMM-3DS) up to 7600+(OC))
  • Max. capacity of system memory: 2TB
Graphics
  • Aspeed AST2600 BMC Controller
  • 1 x DisplayPort 1.1a (Max. resolution up to 1920x1200 @ 60Hz)
Audio 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nahimic Audio
LAN
  • 2 x 10 Gigabit LAN (Intel® X710-AT2)
  • 1 x Dedicated IPMI LAN (Realtek RTL8211F)
Expansion Slots (CPU)
  • 7 x PCIe 5.0 x16 Slots (PCIE1/PCIE2/PCIE3/PCIE4/PCIE5/PCIE7 at x16; PCIE6 at x8)
Storage
  • **CPU:** 1 x Blazing M.2 (PCIe Gen5x4), 2 x MCIO Connectors (PCIe Gen5x4 / 4 x SATA3), 1 x SlimSAS SFF-8654 (PCIe Gen4x4 / 4 x SATA3)
  • **Chipset:** 1 x Hyper M.2 (PCIe Gen4x4), 1 x SlimSAS SFF-8654 (PCIe Gen4x4), 4 x SATA3 6.0 Gb/s Connectors
  • Supports RAID 0, RAID 1 and RAID 10 for SATA and M.2 NVMe storage devices
USB
  • **Rear:** 2 x USB4 Type-C (40 Gb/s), 4 x USB 3.2 Gen2 Type-A (10 Gb/s), 2 x USB 3.2 Gen1 Type-A
  • **Internal (Front):** 1 x USB 3.2 Gen2x2 Type-C Header (20 Gb/s), 1 x USB 3.2 Gen1 Header (2 ports), 2 x USB 2.0 Headers (4 ports)
Internal I/O Connectors
  • Power: 1 x 24 pin ATX, 2 x 8 pin ATX 12V, 2 x 6 pin PCIe 12V
  • Fan/Pump: 1 x CPU Fan (4-pin), 1 x CPU/Water Pump Fan (4-pin), 3 x Chassis/Water Pump Fan (4-pin)
  • LED: 2 x Addressable LED Headers

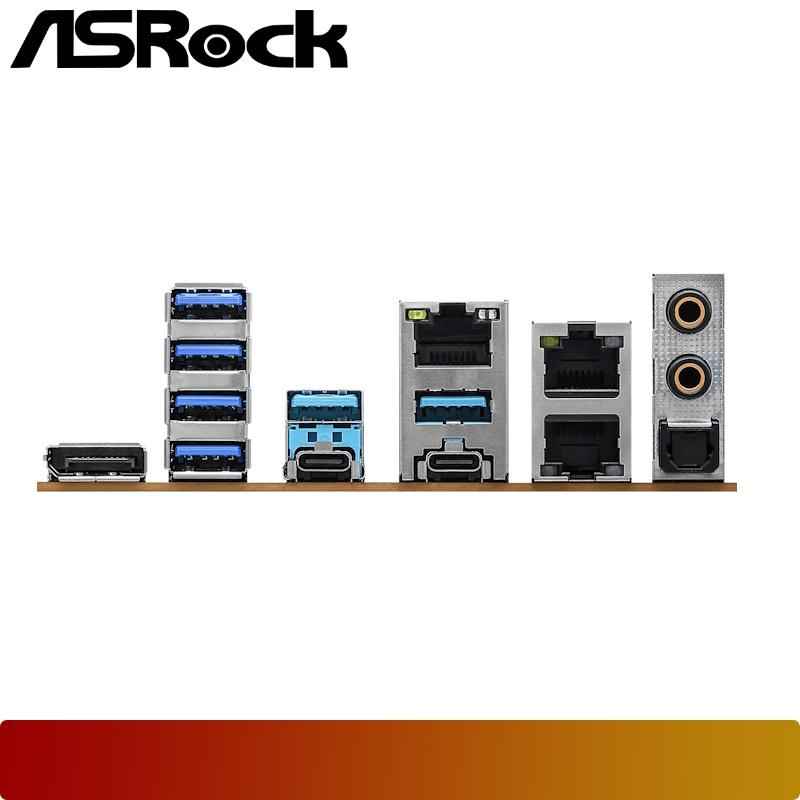

Rear Panel I/O 1 x DisplayPort 1.1a, 1 x Optical SPDIF Out, 2 x USB4 Type-C, 4 x USB 3.2 Gen2 Type-A, 2 x USB 3.2 Gen1 Type-A, 2 x RJ-45 LAN (10G), 1 x RJ45 Dedicated IPMI LAN, Audio Jacks (Line Out, Mic In)
OS Support Microsoft Windows® 11 64-bit
Form Factor
  • EEB Form Factor: 12.0-in x 13.0-in, 30.5 cm x 33.0cm
  • 14 Layer PCB
  • 2oz Copper PCB
$1,174.04
ASROCK WRX90 WS EVO—
$1,174.04
