ASROCK TRX50 WS

CPU Supports AMD Ryzen™ Threadripper™ PRO 9000/7000 WX-Series and AMD Ryzen™ Threadripper™ 9000/7000 Series Processors (AMD Socket sTR5)
Chipset AMD TRX50
Memory (RAM)
  • Quad Channel DDR5 Memory Technology
  • 4 x DDR5 DIMM Slots (Supports DDR5 ECC, buffered memory (RDIMM/ RDIMM-3DS) up to 7600+(OC))
  • Max. capacity of system memory: 1TB
Graphics n/a (No onboard graphics controller listed in specifications)
Audio 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nahimic Audio
LAN
  • 1 x 10 Gigabit LAN (Marvell AQC113)
  • 1 x 2.5 Gigabit LAN (Dragon RTL8125BG)
Wireless LAN 802.11ax Wi-Fi 6E Module, Supports Bluetooth 5.2
Expansion Slots (CPU)
  • 3 x PCIe 5.0 x16 Slots (PCIE1/PCIE3 at x16; PCIE4 at x8)
  • 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode
  • 1 x PCIe 4.0 x16 Slot (PCIE5), supports x8 mode
  • 1 x M.2 Socket (Key E) for WiFi/BT module (Chipset)
Storage
  • **CPU:** 1 x Blazing M.2 (PCIe Gen5x4), 1 x MCIO PCIe Gen5x4 Connector, 2 x SlimSAS SFF-8654 (PCIe Gen4x4 / 4 x SATA3)
  • **Chipset:** 1 x Hyper M.2 (PCIe Gen4x4), 4 x SATA3 6.0 Gb/s Connectors
  • Supports RAID 0, RAID 1 and RAID 10 for SATA and M.2 NVMe storage devices
USB
  • **Rear:** 1 x USB 3.2 Gen2x2 Type-C (20 Gb/s), 1 x USB 3.2 Gen2 Type-C (10 Gb/s), 4 x USB 3.2 Gen2 Type-A (10 Gb/s), 2 x USB 3.2 Gen1 Type-A
  • **Internal (Front):** 1 x USB 3.2 Gen2 Type-C Header (10 Gb/s), 1 x USB 3.2 Gen1 Header (2 ports), 2 x USB 2.0 Headers (4 ports)
Internal I/O Connectors
  • Power: 1 x 24 pin ATX, 2 x 8 pin ATX 12V, 2 x 6 pin PCIe 12V
  • Fan/Pump: 1 x CPU Fan (4-pin), 1 x CPU/Water Pump Fan (4-pin), 3 x Chassis/Water Pump Fan (4-pin)
  • LED: 2 x Addressable LED Headers

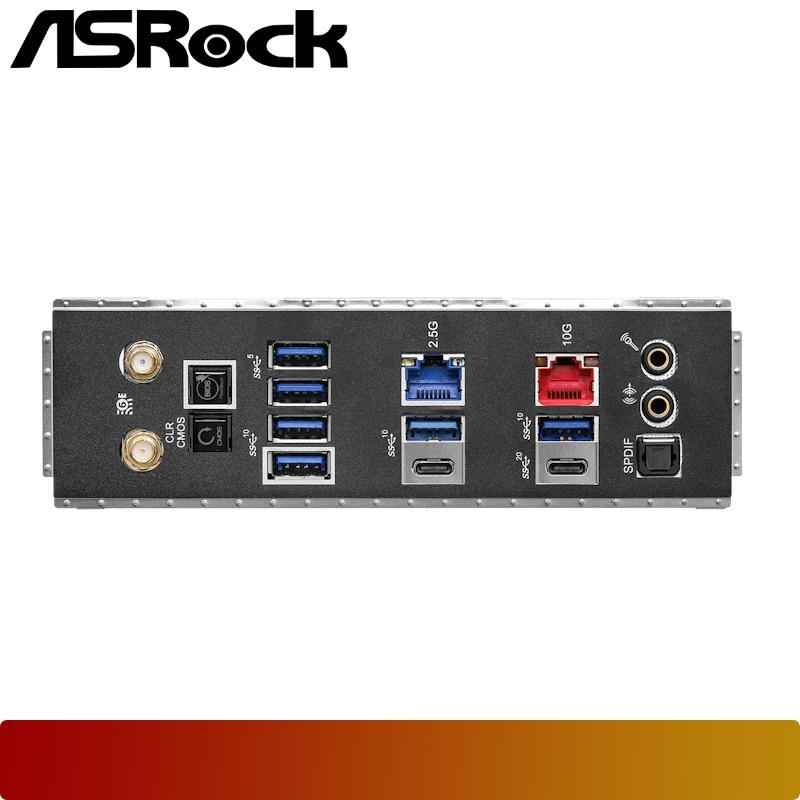

Rear Panel I/O 2 x Antenna Ports, 1 x Optical SPDIF Out, 1 x USB 3.2 Gen2x2 Type-C, 1 x USB 3.2 Gen2 Type-C, 4 x USB 3.2 Gen2 Type-A, 2 x USB 3.2 Gen1 Type-A, 2 x RJ-45 LAN, Clear CMOS Button, BIOS Flashback Button, Audio Jacks (Line Out, Mic In)
OS Support Microsoft Windows® 11 64-bit
Form Factor
  • EATX Form Factor: 12.0-in x 10.9-in, 30.5 cm x 27.7cm
  • 12 Layer PCB
  • 2oz Copper PCB
$870.78
