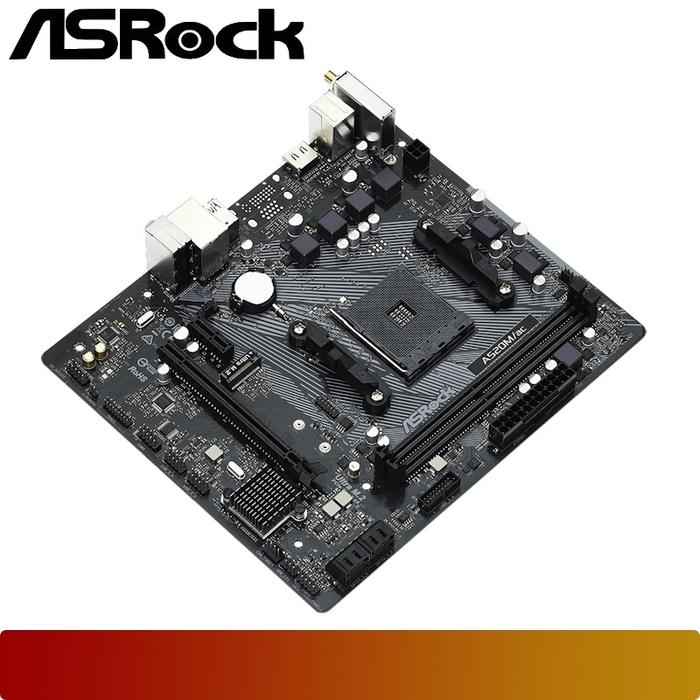

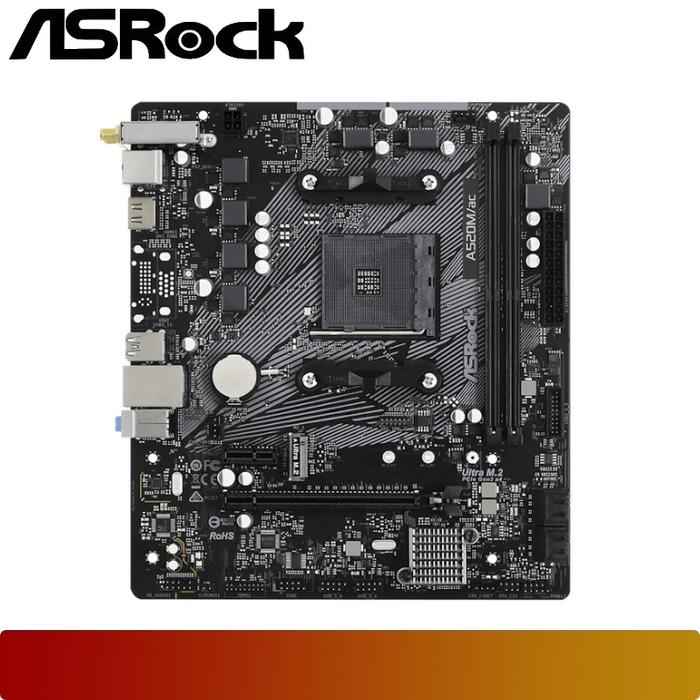

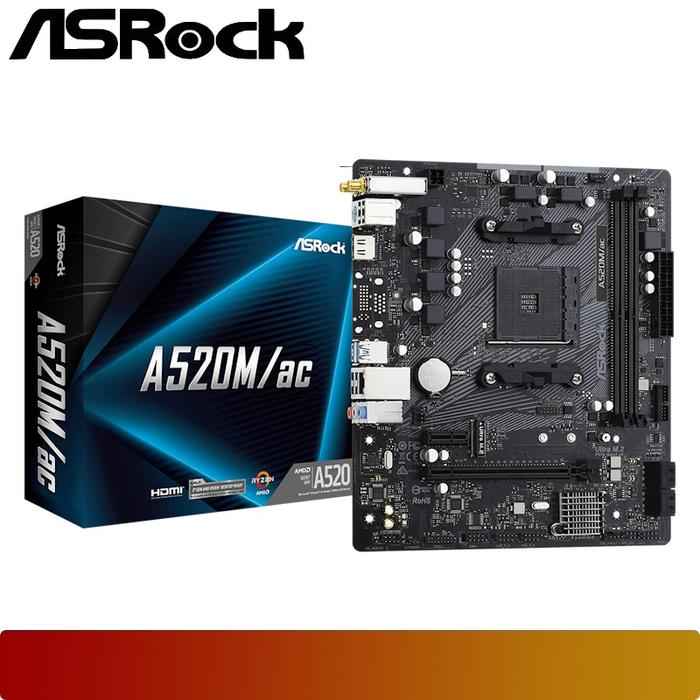

ASROCK A520M/ac
| CPU | Supports AMD Socket AM4 Ryzen™ 5000, 5000 G-Series, 4000 G-Series, and 3000 Series Processors |
| Chipset | AMD A520 |
| Memory (RAM) | Dual Channel DDR4 Memory Technology 4 x DDR4 DIMM Slots, max. 128GB Supports DDR4 ECC/non-ECC, un-buffered up to 4733+(OC) Supports XMP memory modules |
| Onboard Graphics | Integrated AMD Radeon™ Graphics (CPU dependent): 1 x HDMI 2.1 (max. 4K 60Hz) 1 x DisplayPort 1.4 (max. 4K 60Hz) |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Codec) |
| LAN & WiFi | Gigabit LAN (Realtek RTL8111H) Wi-Fi 802.11ac + Bluetooth 4.2 Module |
| Expansion Slots | 1 x PCIe 3.0 x16 Slot (x16 mode) - From CPU 1 x PCIe 3.0 x1 Slot 1 x M.2 Socket (Key E) for Wi-Fi Module (sudah terisi) |
| Storage Interface | 1 x Ultra M.2 Socket (PCIe Gen3x4 & SATA3) (M2_1) - Dari CPU/Chipset 4 x SATA3 6.0 Gb/s Connectors Mendukung RAID 0/1/10 (SATA) |
| USB Ports | Rear - 4 x USB 3.2 Gen1 Type-A, 2 x USB 2.0 Front Header - 1 x USB 3.2 Gen1 Header (mendukung 2 port), 2 x USB 2.0 Headers (mendukung 4 port) |
| Rear I/O Ports | 1 x PS/2 Mouse/Keyboard, 1 x HDMI, 1 x DisplayPort 1.4 2 x Antenna Ports, 1 x RJ-45 LAN 4 x USB 3.2 Gen1 Type-A, 2 x USB 2.0 Audio Jacks |
| Form Factor | Micro ATX (9.0-in x 7.9-in, 23.0 cm x 20.1 cm) |
| Operating System | Microsoft Windows® 10 64-bit / 11 64-bit |
$17.68
Original: $58.94
-70%ASROCK A520M/ac—
$58.94
$17.68Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| CPU | Supports AMD Socket AM4 Ryzen™ 5000, 5000 G-Series, 4000 G-Series, and 3000 Series Processors |
| Chipset | AMD A520 |
| Memory (RAM) | Dual Channel DDR4 Memory Technology 4 x DDR4 DIMM Slots, max. 128GB Supports DDR4 ECC/non-ECC, un-buffered up to 4733+(OC) Supports XMP memory modules |
| Onboard Graphics | Integrated AMD Radeon™ Graphics (CPU dependent): 1 x HDMI 2.1 (max. 4K 60Hz) 1 x DisplayPort 1.4 (max. 4K 60Hz) |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Codec) |
| LAN & WiFi | Gigabit LAN (Realtek RTL8111H) Wi-Fi 802.11ac + Bluetooth 4.2 Module |
| Expansion Slots | 1 x PCIe 3.0 x16 Slot (x16 mode) - From CPU 1 x PCIe 3.0 x1 Slot 1 x M.2 Socket (Key E) for Wi-Fi Module (sudah terisi) |
| Storage Interface | 1 x Ultra M.2 Socket (PCIe Gen3x4 & SATA3) (M2_1) - Dari CPU/Chipset 4 x SATA3 6.0 Gb/s Connectors Mendukung RAID 0/1/10 (SATA) |
| USB Ports | Rear - 4 x USB 3.2 Gen1 Type-A, 2 x USB 2.0 Front Header - 1 x USB 3.2 Gen1 Header (mendukung 2 port), 2 x USB 2.0 Headers (mendukung 4 port) |
| Rear I/O Ports | 1 x PS/2 Mouse/Keyboard, 1 x HDMI, 1 x DisplayPort 1.4 2 x Antenna Ports, 1 x RJ-45 LAN 4 x USB 3.2 Gen1 Type-A, 2 x USB 2.0 Audio Jacks |
| Form Factor | Micro ATX (9.0-in x 7.9-in, 23.0 cm x 20.1 cm) |
| Operating System | Microsoft Windows® 10 64-bit / 11 64-bit |
