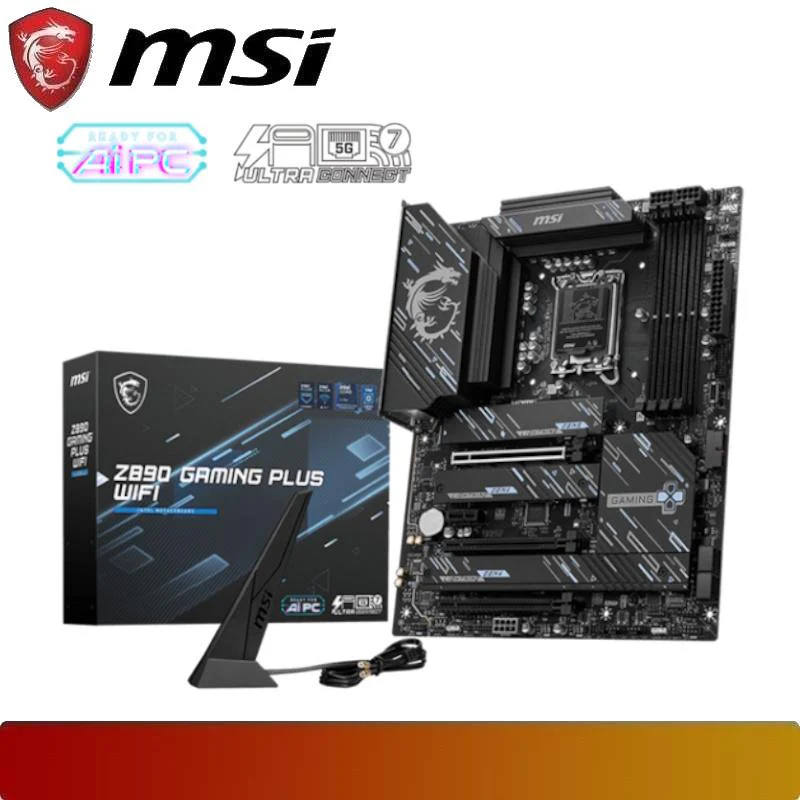

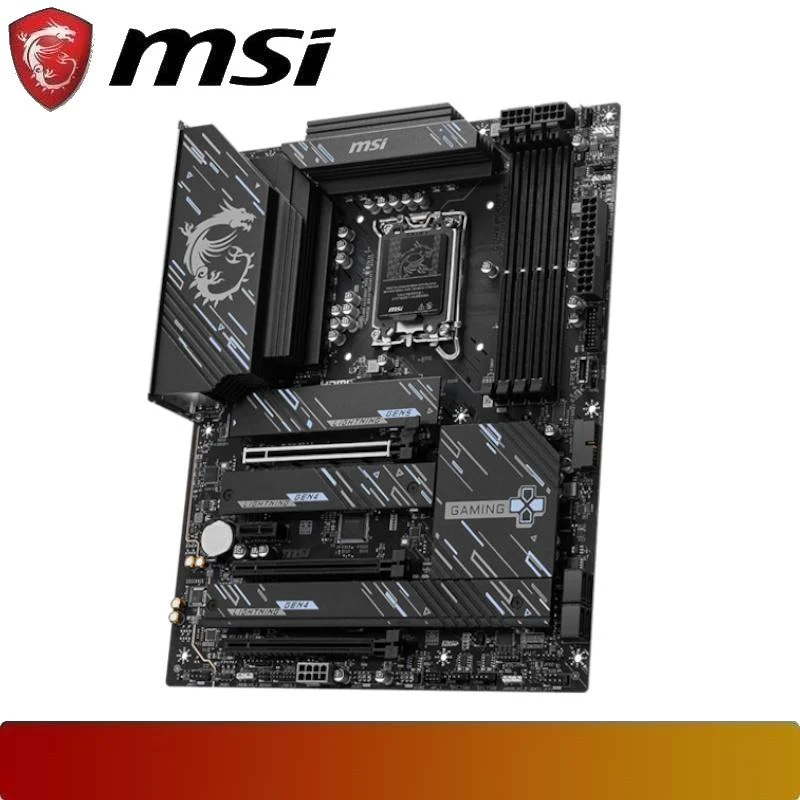

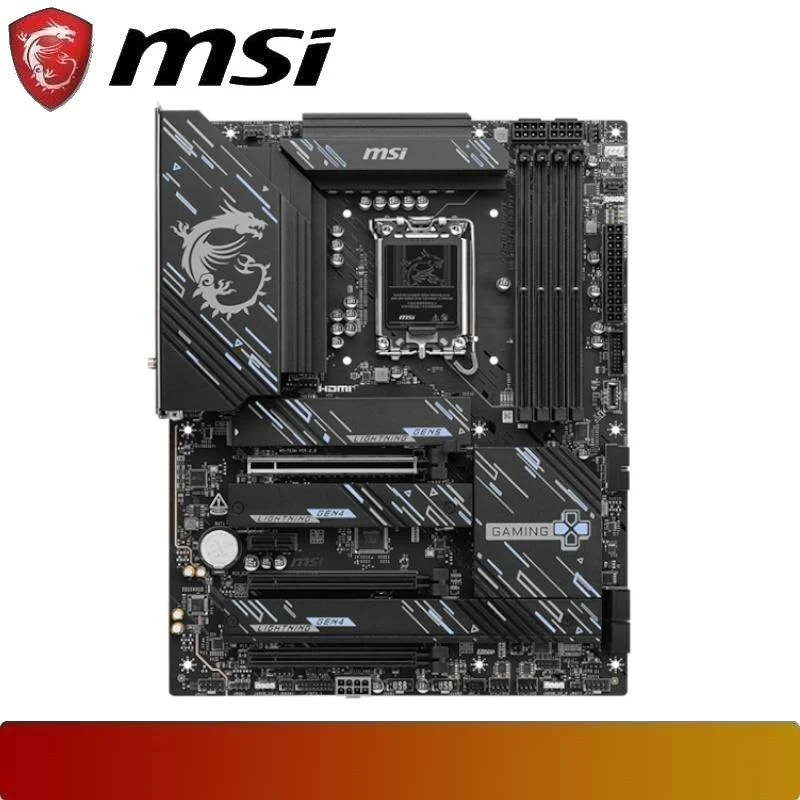

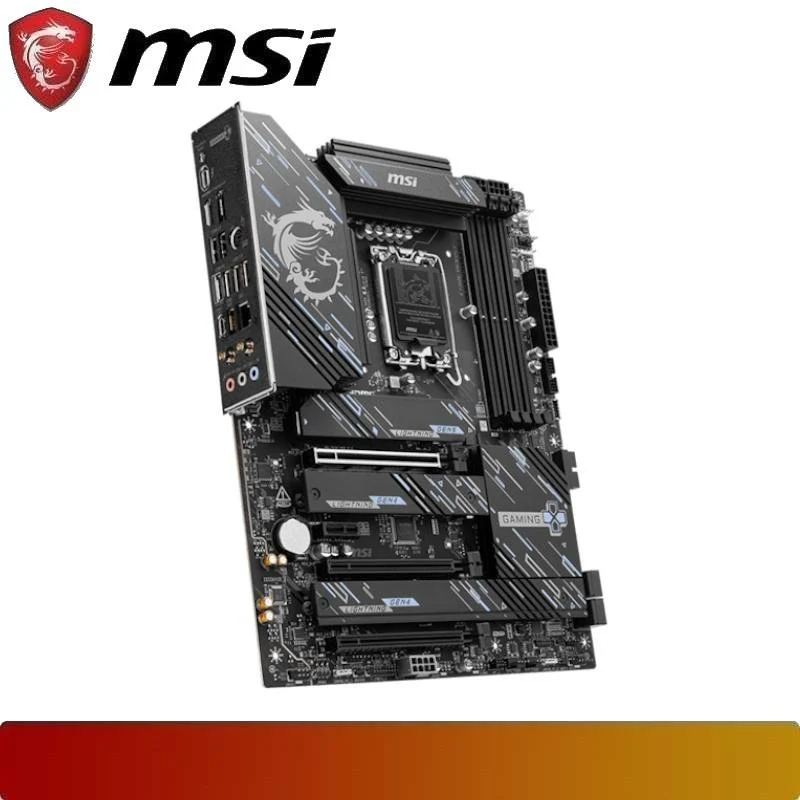

MSI Z890 GAMING PLUS WIFI

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀 :

Chipset
- INTEL Z890

CPU
- Supports Intel Core Ultra Processors (Series 2)
- LGA 1851

Memory
- 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
- Supports Memory Overclocking and Intel XMP 3.0
- Supports Dual-Controller Dual-Channel mode

Onboard Graphics
- 1x HDMI
Support HDMI 2.1, maximum resolution of 4K 60Hz*
- 1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
- 1x Type-C DisplayPort
Thunderbolt 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*

Slot
- 3x PCI-E x16 slot
- 1x PCI-E x1 slot

Audio
- Realtek ALC897 Codec
- 7.1-Channel High Definition Audio

Storage
- 4x M.2
- 4x SATA 6G

Onboard Thunderbolt
- 1x Thunderbolt4 ports (Rear)
- Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
- Supports up to 8K display

LAN
- Intel Killer E5000 5Gbps LAN

WIRELESS LAN & BLUETOOTH
- Intel Killer BE1750x Wi-Fi 7
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

LED FEATURE
- 4x EZ Debug LED

OPERATING SYSTEM
- Support for Windows 11 64-bit

PCB Info
- ATX
- 243.84mmx304.8mm
