GIGABYTE B860M AORUS ELITE WIFI6E ICE

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6

GIGABYTE B860M AORUS ELITE WIFI6E ICE

Chipset Intel® B860 Express Chipset
CPU Socket LGA1851 (Supports Intel® Core™ Ultra Desktop Processors, Series 2)
Form Factor Micro-ATX
Memory (DDR5)
  1. 4 x DDR5 DIMM sockets, Supports Dual Channel memory architecture
  2. Memory Speed Support: DDR5 up to 9200+(O.C) MT/s (via D5 Bionic Corsa Technology)
  3. Supports non-ECC Un-buffered DIMM, ECC Un-buffered DIMM (non-ECC mode), and Extreme Memory Profile (XMP)
Onboard Graphics
  1. 1x **USB4®** Type-C® port (with DisplayPort Alt Mode)
  2. 1x DisplayPort
  3. 1x HDMI port

*Requires a processor with integrated graphics (iGPU).
Expansion Slots
  1. 1x PCI Express x16 slot (PCI_E1 Gen **PCIe 5.0**, running at x16 with PCIe UD Slot)
  2. 1x PCI Express x4 slot (Gen PCIe 4.0, running at x4)
Audio High Definition Audio CODEC, 7.1-Channel Audio
Storage
  1. 3x M.2 slots total: 1x M.2 (**PCIe 5.0** x4) + 2x M.2 (PCIe 4.0 x4)
  2. 4x SATA 6Gb/s ports
Networking
  1. LAN: Realtek® **2.5GbE** LAN chip
  2. Wireless/Bluetooth: Wi-Fi 6E (802.11ax) & BLUETOOTH
RAID Support *Informasi RAID untuk chipset B860 tidak tersedia; biasanya terbatas pada RAID SATA/NVMe tertentu.*
USB Ports

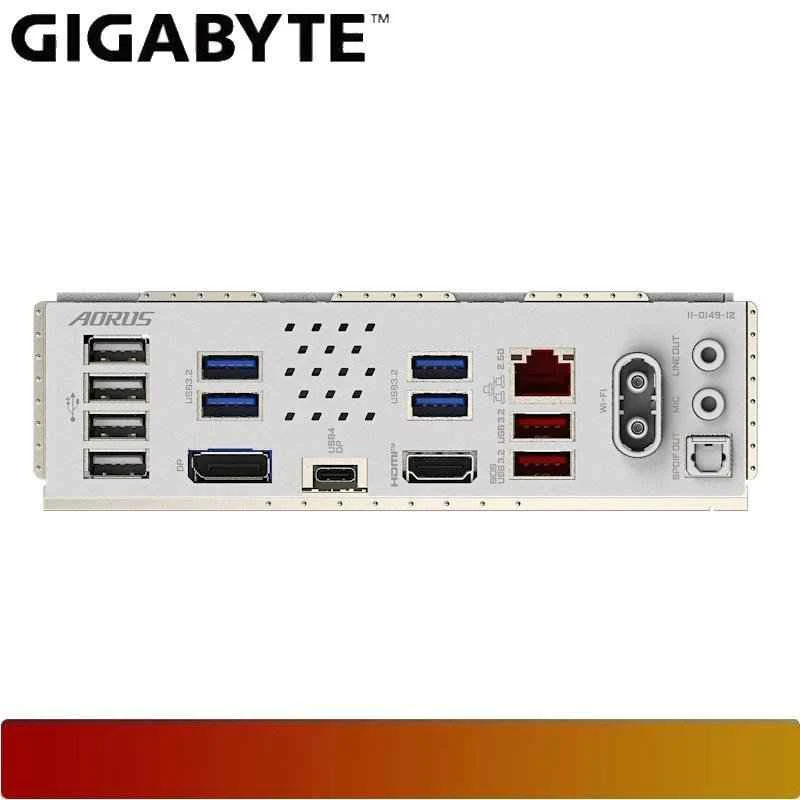

  1. Rear Panel: 1x **USB4** Type-C® (with DP-Alt), 2x USB 3.2 Gen 2, 4x USB 3.2 Gen 1, 4x USB 2.0/1.1
  2. Internal Headers: 1x **Front USB Type-C® header (10Gbps)**, USB 3.2 Gen 1 headers, USB 2.0/1.1 headers
LED Feature Q-Flash Plus Button, Sensor Panel Link, EZ-Latch Plus/Click (PCIe & M.2), H/W Monitoring
Operating System Supports Windows 11 64-bit
$58.57

Original: $195.23

-70%
GIGABYTE B860M AORUS ELITE WIFI6E ICE—

$195.23

$58.57

Product Information

Shipping & Returns

Description

Chipset Intel® B860 Express Chipset
CPU Socket LGA1851 (Supports Intel® Core™ Ultra Desktop Processors, Series 2)
Form Factor Micro-ATX
Memory (DDR5)
  1. 4 x DDR5 DIMM sockets, Supports Dual Channel memory architecture
  2. Memory Speed Support: DDR5 up to 9200+(O.C) MT/s (via D5 Bionic Corsa Technology)
  3. Supports non-ECC Un-buffered DIMM, ECC Un-buffered DIMM (non-ECC mode), and Extreme Memory Profile (XMP)
Onboard Graphics
  1. 1x **USB4®** Type-C® port (with DisplayPort Alt Mode)
  2. 1x DisplayPort
  3. 1x HDMI port

*Requires a processor with integrated graphics (iGPU).
Expansion Slots
  1. 1x PCI Express x16 slot (PCI_E1 Gen **PCIe 5.0**, running at x16 with PCIe UD Slot)
  2. 1x PCI Express x4 slot (Gen PCIe 4.0, running at x4)
Audio High Definition Audio CODEC, 7.1-Channel Audio
Storage
  1. 3x M.2 slots total: 1x M.2 (**PCIe 5.0** x4) + 2x M.2 (PCIe 4.0 x4)
  2. 4x SATA 6Gb/s ports
Networking
  1. LAN: Realtek® **2.5GbE** LAN chip
  2. Wireless/Bluetooth: Wi-Fi 6E (802.11ax) & BLUETOOTH
RAID Support *Informasi RAID untuk chipset B860 tidak tersedia; biasanya terbatas pada RAID SATA/NVMe tertentu.*
USB Ports
  1. Rear Panel: 1x **USB4** Type-C® (with DP-Alt), 2x USB 3.2 Gen 2, 4x USB 3.2 Gen 1, 4x USB 2.0/1.1
  2. Internal Headers: 1x **Front USB Type-C® header (10Gbps)**, USB 3.2 Gen 1 headers, USB 2.0/1.1 headers
LED Feature Q-Flash Plus Button, Sensor Panel Link, EZ-Latch Plus/Click (PCIe & M.2), H/W Monitoring
Operating System Supports Windows 11 64-bit
