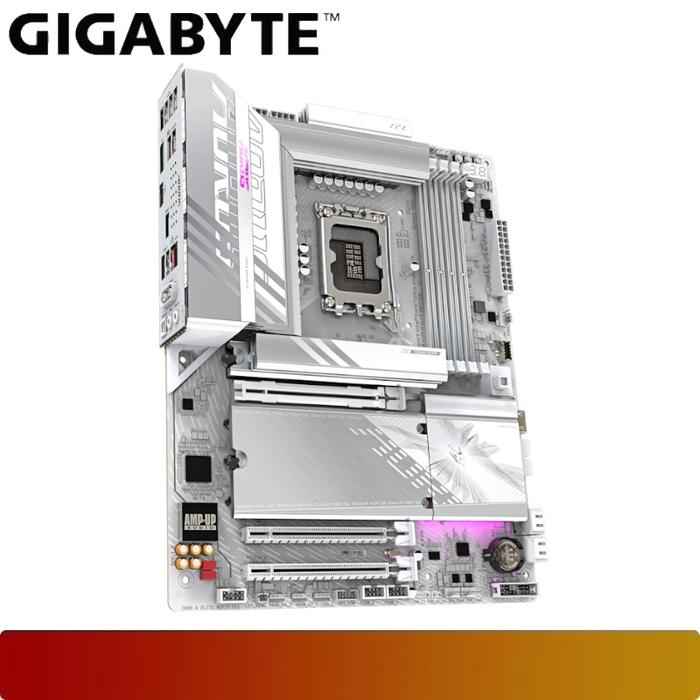

GIGABYTE Z890 AORUS ELITE WIFI7 ICE

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6

GIGABYTE Z890 AORUS ELITE WIFI7 ICE

Chipset Intel® Z890 Express Chipset
CPU Socket LGA1851 (Mendukung Prosesor Desktop Intel® Core™ Ultra Seri 2)
Form Factor ATX (30.5cm x 24.4cm)
Memory (DDR5)
  1. 4 x DDR5 DIMM sockets, Kapasitas Memori Maksimum 256 GB
  2. Mendukung kecepatan memori: DDR5 hingga 9200+(OC) MT/s
  3. Mendukung arsitektur memori Dual Channel
  4. Mendukung non-ECC Un-buffered DIMM, ECC Un-buffered DIMM (mode non-ECC), XMP, dan CUDIMM
Onboard Graphics
  1. 1x Intel® **Thunderbolt™ 4** connector (USB4® USB Type-C® port)
  2. 1x DisplayPort (Panel Belakang)
  3. 1x HDMI port (Header Internal)

*Membutuhkan prosesor dengan grafis terintegrasi (iGPU) untuk fungsionalitas output grafis.
Expansion Slots
  1. 1x PCI Express x16 slot (PCI_E1 Gen **PCIe 5.0**, berjalan pada x16 dengan PCIe UD Slot X)
  2. 2x PCI Express x4 slot (Gen PCIe 4.0, berjalan pada x4)
Audio Realtek® Audio CODEC (ALC1220), 7.1-Channel High Definition Audio, Mendukung S/PDIF Out
Storage
  1. 4x M.2 slots total: 1x M.2 (**PCIe 5.0** x4) + 3x M.2 (PCIe 4.0 x4)
  2. 4x SATA 6Gb/s ports
Networking
  1. LAN: Realtek® **2.5GbE** LAN chip
  2. Wireless/Bluetooth: Wi-Fi 7 (MediaTek MT7925 / Realtek RTL8922AE) & **BLUETOOTH 5.4**
RAID Support Mendukung RAID 0, RAID 1, RAID 5, dan RAID 10 untuk perangkat penyimpanan M.2 NVMe dan SATA.
USB Ports
  1. Panel Belakang: 1x **Thunderbolt™ 4** (Type-C), 2x USB 3.2 Gen 2 Type-A (merah), 3x USB 3.2 Gen 1 Type-A, 4x USB 2.0/1.1
  2. Header Internal: 1x **USB Type-C® header (USB 3.2 Gen 2)**, 1x USB 3.2 Gen 1 header (mendukung 2 port), 2x USB 2.0/1.1 headers (mendukung 4 port)
LED Feature Q-Flash Plus Button, H/W Monitoring (Tegangan, Suhu, Kecepatan Kipas), Integrated IO Shield
Operating System Mendukung Windows 11 64-bit
$330.93
GIGABYTE Z890 AORUS ELITE WIFI7 ICE—
$330.93
