GIGABYTE B860M AORUS ELITE

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5

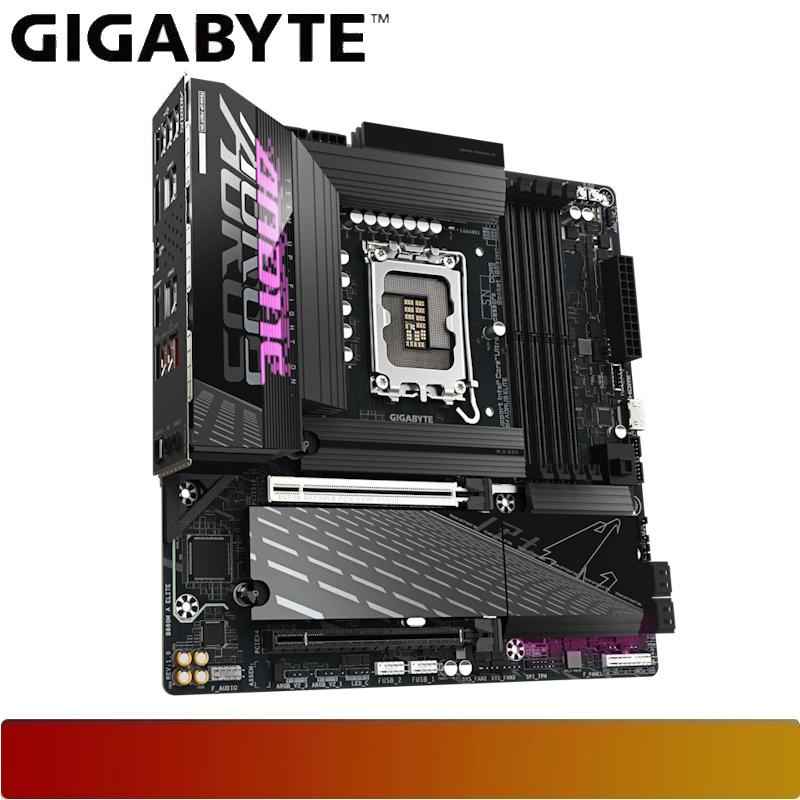

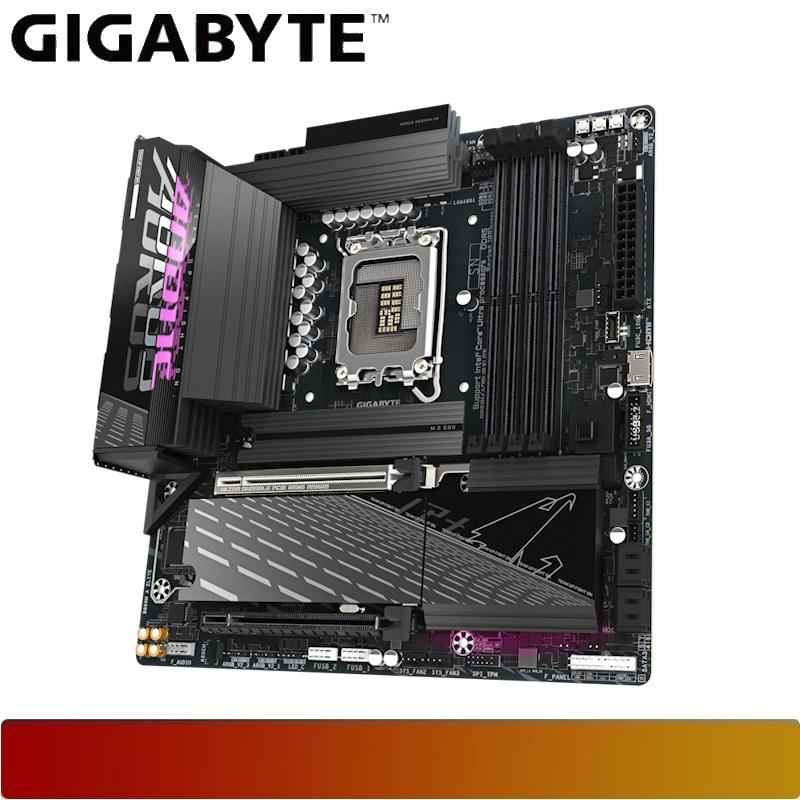

GIGABYTE B860M AORUS ELITE

Chipset Intel® B860 Express Chipset
CPU Socket LGA1851 (Mendukung Prosesor Intel® Core™ Ultra Desktop, Seri 2)
Form Factor Micro-ATX
Memory (DDR5)
  1. 4 x soket DIMM DDR5, Mendukung arsitektur memori Dual Channel
  2. Dukungan Kecepatan Memori: DDR5 hingga 9200+(O.C) MT/s (melalui D5 Bionic Corsa Technology)
  3. Mendukung DIMM non-ECC Un-buffered, ECC Un-buffered DIMM (mode non-ECC), dan Extreme Memory Profile (XMP)
Onboard Graphics
  1. 1x port USB4® Type-C® (dengan DisplayPort Alt Mode)
  2. 1x port DisplayPort
  3. 1x port HDMI (HDMI 2.1)
  4. 1x port HDMI depan (Front HDMI 1.4)

*Membutuhkan prosesor dengan grafis terintegrasi (iGPU). Mendukung hingga empat tampilan.
Expansion Slots
  1. 1x slot PCI Express x16 (PCIe 5.0, berjalan pada x16)
  2. 1x slot PCI Express x16 (PCIe 4.0, berjalan pada x4)
Audio Realtek® Audio CODEC, Audio Definisi Tinggi 7.1-Channel, Mendukung S/PDIF Out
Storage
  1. 3x slot M.2 total: 1x M.2 (PCIe 5.0 x4) + 2x M.2 (PCIe 4.0 x4)
  2. 4x port SATA 6Gb/s
Networking
  1. LAN: Realtek® **2.5GbE** LAN chip
  2. Wireless/Bluetooth: Tidak tersedia (Untuk model **B860M AORUS ELITE WIFI6E** yang memiliki Wi-Fi 6E)
USB Ports

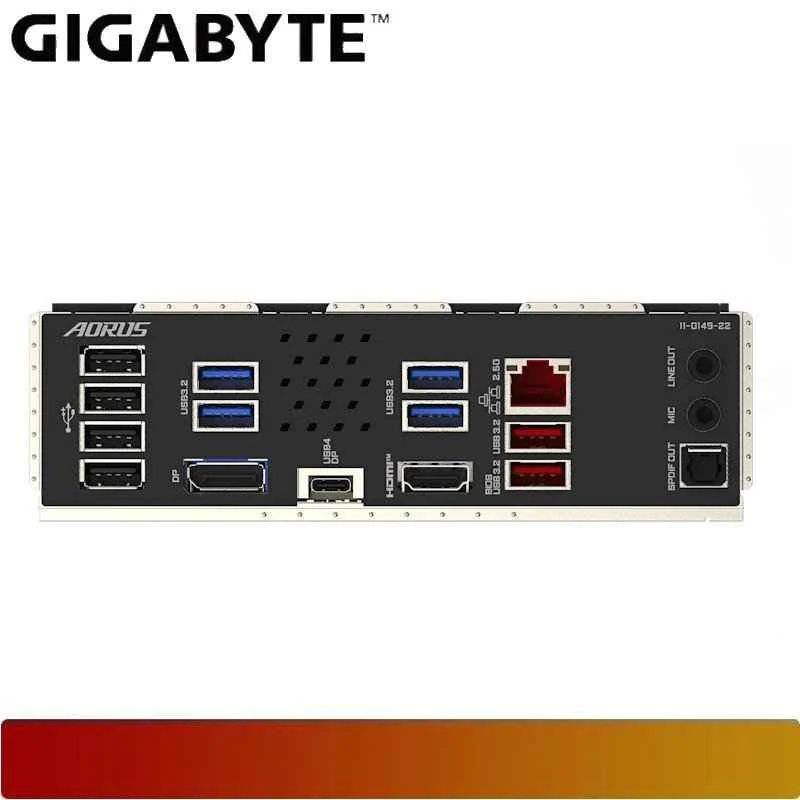

  1. Panel Belakang: 1x USB4 Type-C® (dengan DP-Alt), 2x USB 3.2 Gen 2, 4x USB 3.2 Gen 1, 4x USB 2.0/1.1
  2. Internal Headers: 1x Header USB Type-C® Depan (10Gbps)
DIY Features Q-Flash Plus Button, M.2 EZ-Latch Plus/Click, PCIe EZ-Latch Plus, Sensor Panel Link
Operating System Mendukung Windows 11 64-bit
$51.31

Original: $171.04

-70%
GIGABYTE B860M AORUS ELITE—

$171.04

$51.31

Product Information

Shipping & Returns

Description

Chipset Intel® B860 Express Chipset
CPU Socket LGA1851 (Mendukung Prosesor Intel® Core™ Ultra Desktop, Seri 2)
Form Factor Micro-ATX
Memory (DDR5)
  1. 4 x soket DIMM DDR5, Mendukung arsitektur memori Dual Channel
  2. Dukungan Kecepatan Memori: DDR5 hingga 9200+(O.C) MT/s (melalui D5 Bionic Corsa Technology)
  3. Mendukung DIMM non-ECC Un-buffered, ECC Un-buffered DIMM (mode non-ECC), dan Extreme Memory Profile (XMP)
Onboard Graphics
  1. 1x port USB4® Type-C® (dengan DisplayPort Alt Mode)
  2. 1x port DisplayPort
  3. 1x port HDMI (HDMI 2.1)
  4. 1x port HDMI depan (Front HDMI 1.4)

*Membutuhkan prosesor dengan grafis terintegrasi (iGPU). Mendukung hingga empat tampilan.
Expansion Slots
  1. 1x slot PCI Express x16 (PCIe 5.0, berjalan pada x16)
  2. 1x slot PCI Express x16 (PCIe 4.0, berjalan pada x4)
Audio Realtek® Audio CODEC, Audio Definisi Tinggi 7.1-Channel, Mendukung S/PDIF Out
Storage
  1. 3x slot M.2 total: 1x M.2 (PCIe 5.0 x4) + 2x M.2 (PCIe 4.0 x4)
  2. 4x port SATA 6Gb/s
Networking
  1. LAN: Realtek® **2.5GbE** LAN chip
  2. Wireless/Bluetooth: Tidak tersedia (Untuk model **B860M AORUS ELITE WIFI6E** yang memiliki Wi-Fi 6E)
USB Ports
  1. Panel Belakang: 1x USB4 Type-C® (dengan DP-Alt), 2x USB 3.2 Gen 2, 4x USB 3.2 Gen 1, 4x USB 2.0/1.1
  2. Internal Headers: 1x Header USB Type-C® Depan (10Gbps)
DIY Features Q-Flash Plus Button, M.2 EZ-Latch Plus/Click, PCIe EZ-Latch Plus, Sensor Panel Link
Operating System Mendukung Windows 11 64-bit
