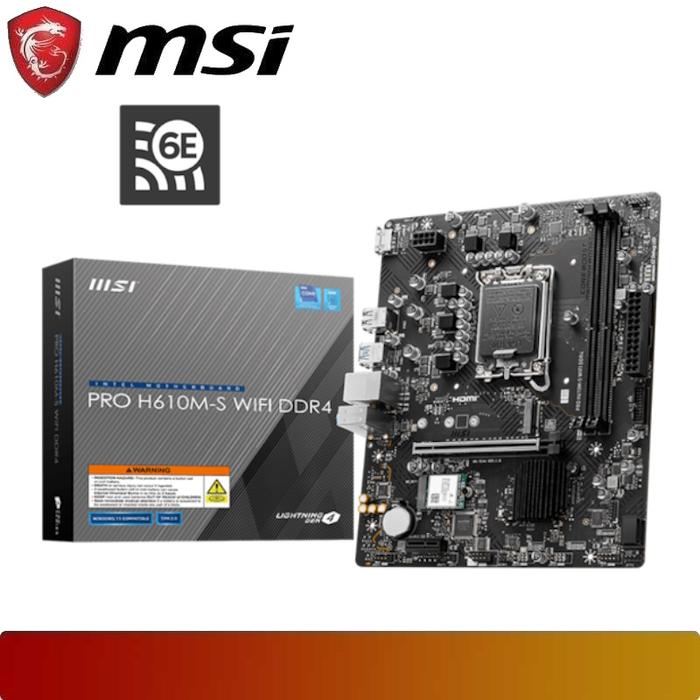

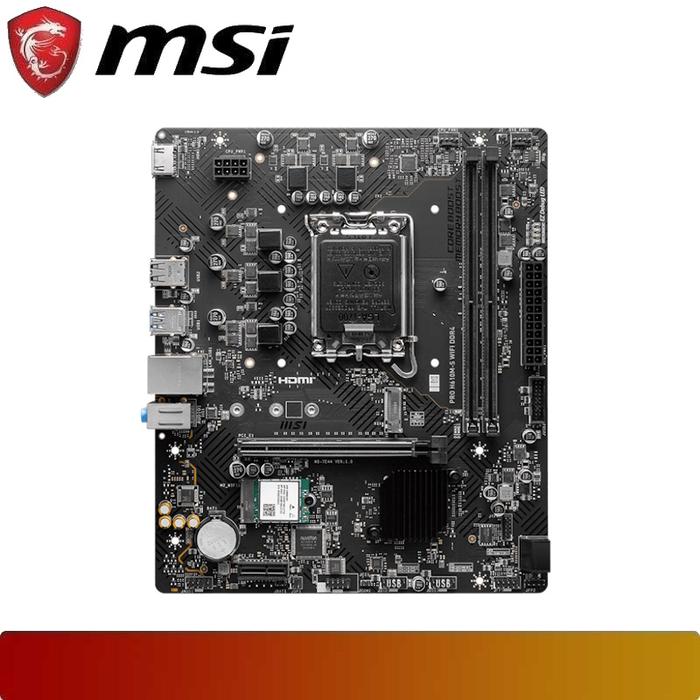

MSI PRO H610M-S WIFI DDR4
| Chipset | INTEL H610 |
| CPU Support | Supports Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors Processor socket LGA 1700 |
| Memory (RAM) | 2x DDR4 DIMM slots, Maximum Memory Capacity 64GB Memory Support: DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz (by JEDEC) Supports Dual-Channel mode Supports non-ECC, un-buffered memory |
| Onboard Graphics | 1x HDMI™ 1.4 port, supporting a maximum resolution of 4K 30Hz* *Available only on processors featuring integrated graphics. |
| Expansion Slots | 1x PCIe 4.0 x16 slot (From CPU) 1x PCIe 3.0 x1 slot (From Chipset) |
| Storage Interface | 1x M.2 slot (Key M) (From Chipset), supports up to PCIe 3.0 x4 (2242/ 2260/ 2280 devices) 2x SATA 6Gb/s ports |
| Audio | Realtek® ALC897 Codec, 7.1-Channel High Definition Audio |
| LAN | Realtek® RTL8111H Gigabit LAN Controller (1Gbps) |
| USB (External) | 2x USB 5Gbps Type-A ports (Rear) 4x USB 2.0 ports (Rear) |
| USB (Internal Headers) | 1x USB 3.2 Gen 1 5Gbps connector (supports 2 additional ports) 2x USB 2.0 Type-A connectors (supports 4 additional ports) |
| Back Panel Ports | HDMI™ VGA (D-Sub) Keyboard / Mouse port USB 5Gbps Type-A LAN port Audio Connectors USB 2.0 |
| Internal I/O | 1x 24-pin ATX main power connector 1x 8-pin +12V CPU power connector 1x CPU Fan connector 2x System Fan connectors Front Panel, Front Audio, Chassis Intrusion, TPM module, Serial port connectors |
| LED Features | 4x EZ Debug LED |
| Operating System | Supports Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor | mATX (23.6 cm x 20 cm) |
$23.35
Original: $77.82
-70%MSI PRO H610M-S WIFI DDR4—
$77.82
$23.35Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Chipset | INTEL H610 |
| CPU Support | Supports Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors Processor socket LGA 1700 |
| Memory (RAM) | 2x DDR4 DIMM slots, Maximum Memory Capacity 64GB Memory Support: DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz (by JEDEC) Supports Dual-Channel mode Supports non-ECC, un-buffered memory |
| Onboard Graphics | 1x HDMI™ 1.4 port, supporting a maximum resolution of 4K 30Hz* *Available only on processors featuring integrated graphics. |
| Expansion Slots | 1x PCIe 4.0 x16 slot (From CPU) 1x PCIe 3.0 x1 slot (From Chipset) |
| Storage Interface | 1x M.2 slot (Key M) (From Chipset), supports up to PCIe 3.0 x4 (2242/ 2260/ 2280 devices) 2x SATA 6Gb/s ports |
| Audio | Realtek® ALC897 Codec, 7.1-Channel High Definition Audio |
| LAN | Realtek® RTL8111H Gigabit LAN Controller (1Gbps) |
| USB (External) | 2x USB 5Gbps Type-A ports (Rear) 4x USB 2.0 ports (Rear) |
| USB (Internal Headers) | 1x USB 3.2 Gen 1 5Gbps connector (supports 2 additional ports) 2x USB 2.0 Type-A connectors (supports 4 additional ports) |
| Back Panel Ports | HDMI™ VGA (D-Sub) Keyboard / Mouse port USB 5Gbps Type-A LAN port Audio Connectors USB 2.0 |
| Internal I/O | 1x 24-pin ATX main power connector 1x 8-pin +12V CPU power connector 1x CPU Fan connector 2x System Fan connectors Front Panel, Front Audio, Chassis Intrusion, TPM module, Serial port connectors |
| LED Features | 4x EZ Debug LED |
| Operating System | Supports Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor | mATX (23.6 cm x 20 cm) |
