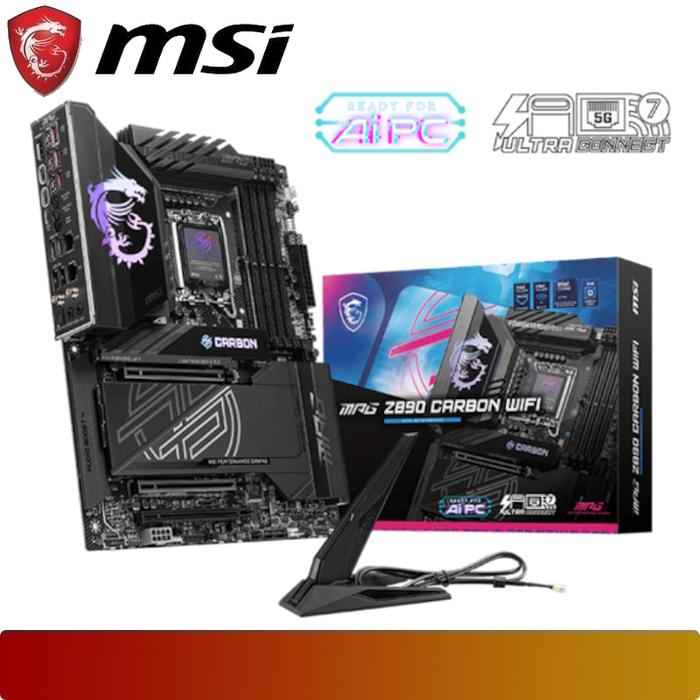

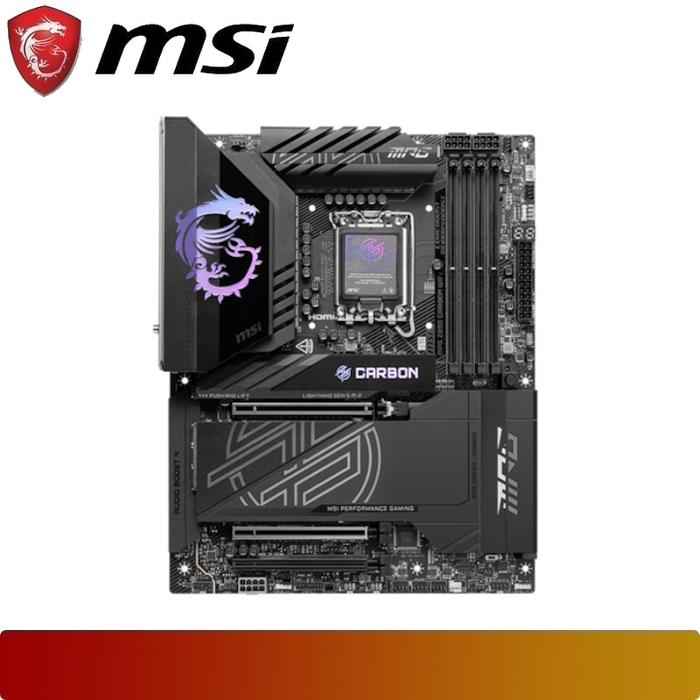

MSI MPG Z890 CARBON WIFI
| Chipset | INTEL Z890 |
| CPU Socket | LGA 1851 |
| CPU Support | Intel® Core™ Ultra Processors (Series 2) |
| Memory | 4x DDR5 DIMMs, Max. 256GB, up to 9400+(OC) MT/s |
| Form Factor | ATX (Standard Size) |
| Onboard Graphics | 1. 1x HDMI™ 2.1 (8K @ 60Hz) 2. 2x Thunderbolt™ 4 Type-C (Supports DisplayPort 2.1, 8K @ 60Hz) |
| Expansion Slots | 1. 1x PCI-E x16 slot (PCIe 5.0, from CPU) 2. 2x PCI-E x16 slots (PCIe 4.0, from Chipset) |
| M.2 Storage | 5x M.2 slots (1. PCIe 5.0 x4 from CPU; 2. PCIe 5.0 x4 from Chipset; 3-5. PCIe 4.0 x4 from Chipset) |
| SATA Storage | 6x SATA 6G |
| LAN | Intel® Killer™ E5000 5Gbps LAN |
| Wireless & Bluetooth | 1. Intel® Killer™ Wi-Fi 7 2. Bluetooth® 5.4 |

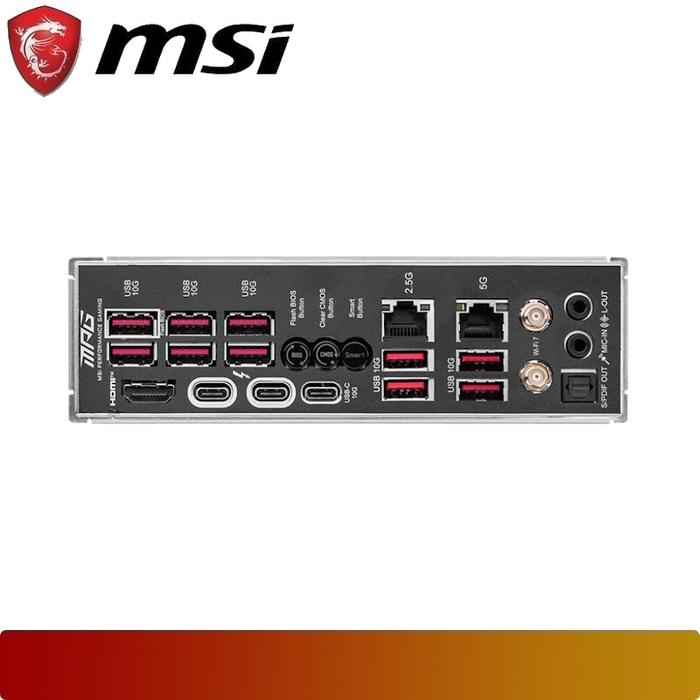

| Rear USB | 1. 2x Thunderbolt™ 4 Type-C (40Gbps) 2. 5x USB 10Gbps Type A 3. 2x USB 5Gbps Type A |
| Front USB | 1. 1x USB 20Gbps Type C (with 27W PD support) 2. 2x USB 5Gbps connectors (supports 4 ports) 3. 2x USB 2.0 connectors (supports 4 ports) |
| Audio | Realtek® ALC4080 Codec, 7.1-Channel HD Audio |
| Operating System | 1. Supports Windows® 11 64-bit |
$543.33
MSI MPG Z890 CARBON WIFI—
$543.33
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Chipset | INTEL Z890 |
| CPU Socket | LGA 1851 |
| CPU Support | Intel® Core™ Ultra Processors (Series 2) |
| Memory | 4x DDR5 DIMMs, Max. 256GB, up to 9400+(OC) MT/s |
| Form Factor | ATX (Standard Size) |
| Onboard Graphics | 1. 1x HDMI™ 2.1 (8K @ 60Hz) 2. 2x Thunderbolt™ 4 Type-C (Supports DisplayPort 2.1, 8K @ 60Hz) |
| Expansion Slots | 1. 1x PCI-E x16 slot (PCIe 5.0, from CPU) 2. 2x PCI-E x16 slots (PCIe 4.0, from Chipset) |
| M.2 Storage | 5x M.2 slots (1. PCIe 5.0 x4 from CPU; 2. PCIe 5.0 x4 from Chipset; 3-5. PCIe 4.0 x4 from Chipset) |
| SATA Storage | 6x SATA 6G |
| LAN | Intel® Killer™ E5000 5Gbps LAN |
| Wireless & Bluetooth | 1. Intel® Killer™ Wi-Fi 7 2. Bluetooth® 5.4 |
| Rear USB | 1. 2x Thunderbolt™ 4 Type-C (40Gbps) 2. 5x USB 10Gbps Type A 3. 2x USB 5Gbps Type A |
| Front USB | 1. 1x USB 20Gbps Type C (with 27W PD support) 2. 2x USB 5Gbps connectors (supports 4 ports) 3. 2x USB 2.0 connectors (supports 4 ports) |
| Audio | Realtek® ALC4080 Codec, 7.1-Channel HD Audio |
| Operating System | 1. Supports Windows® 11 64-bit |
