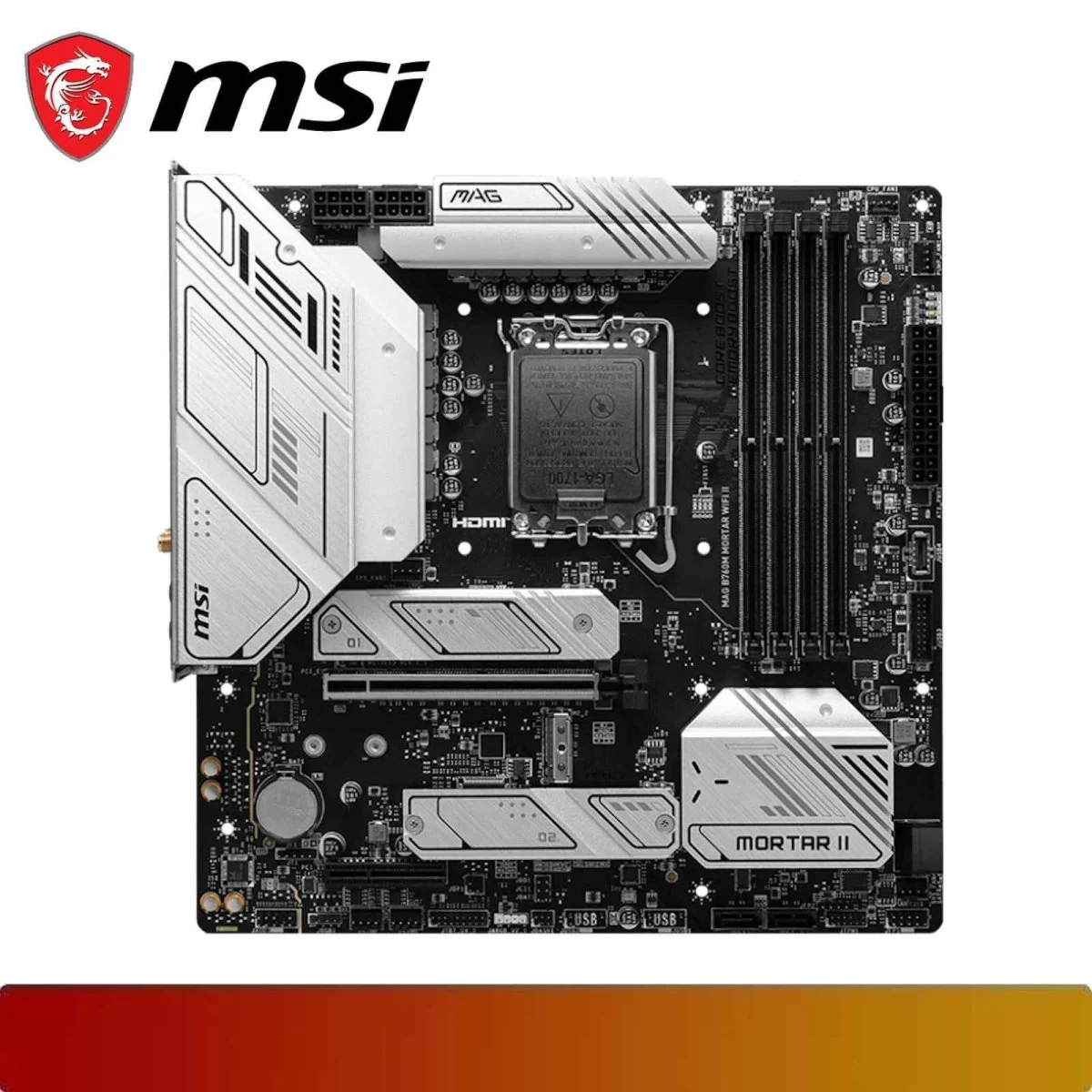

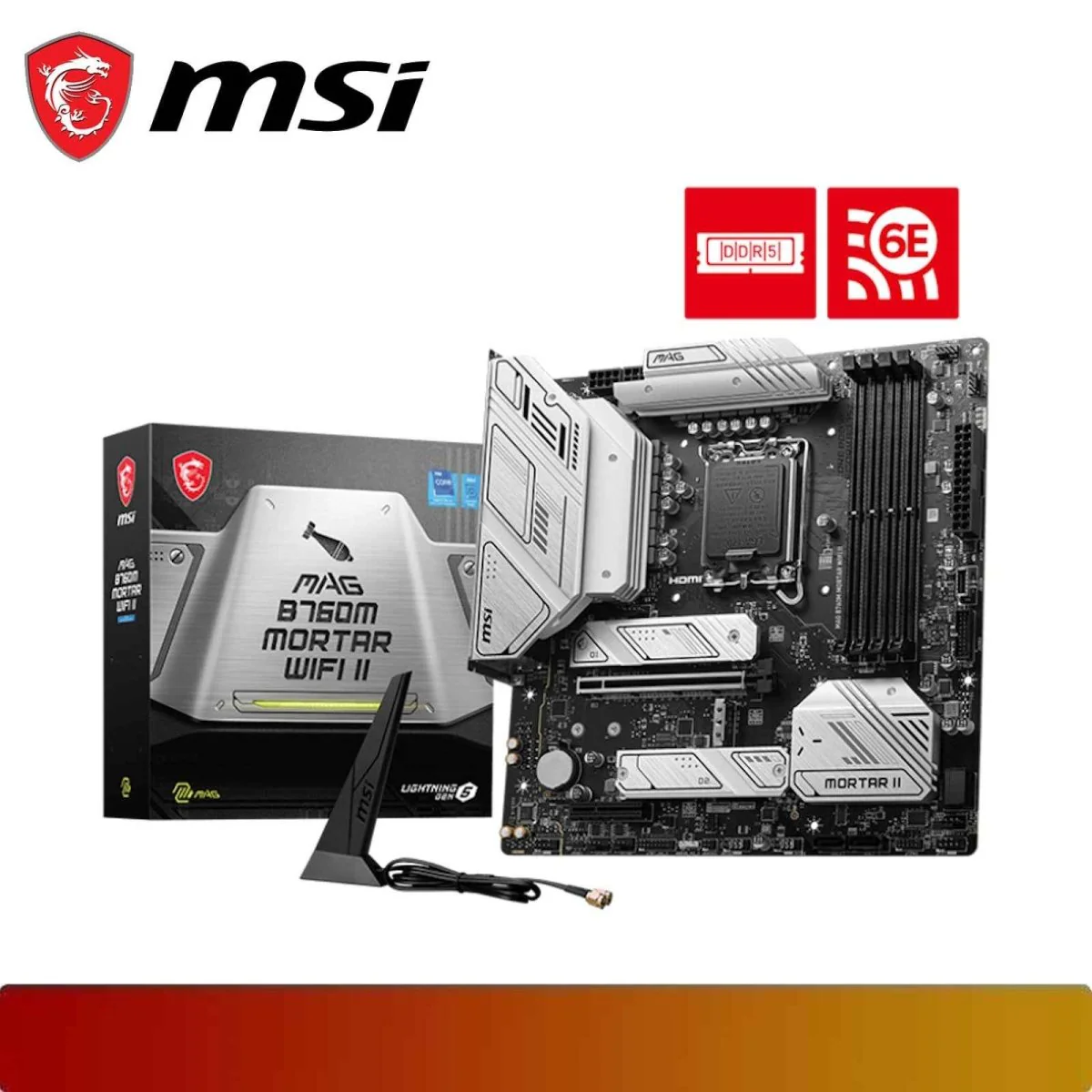

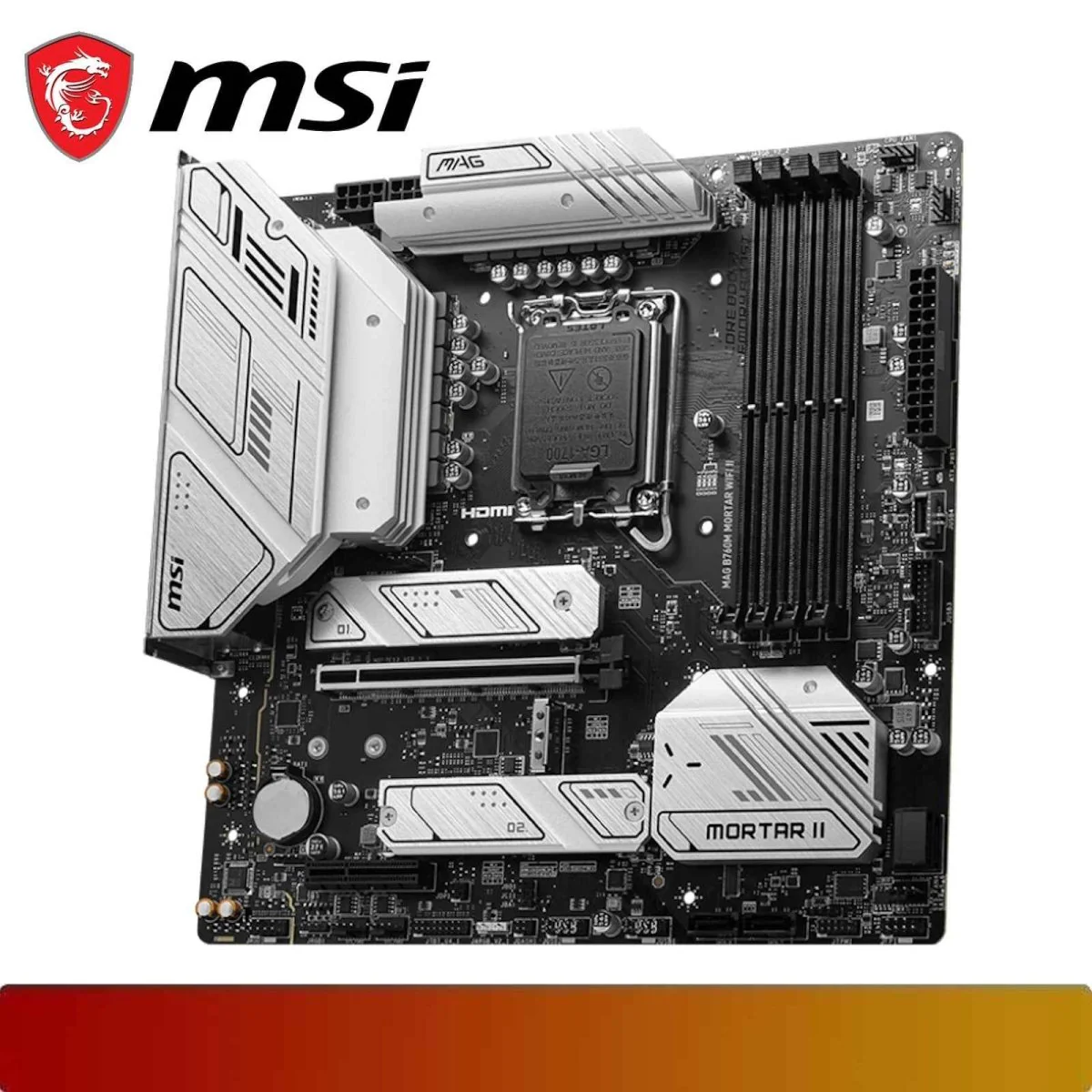

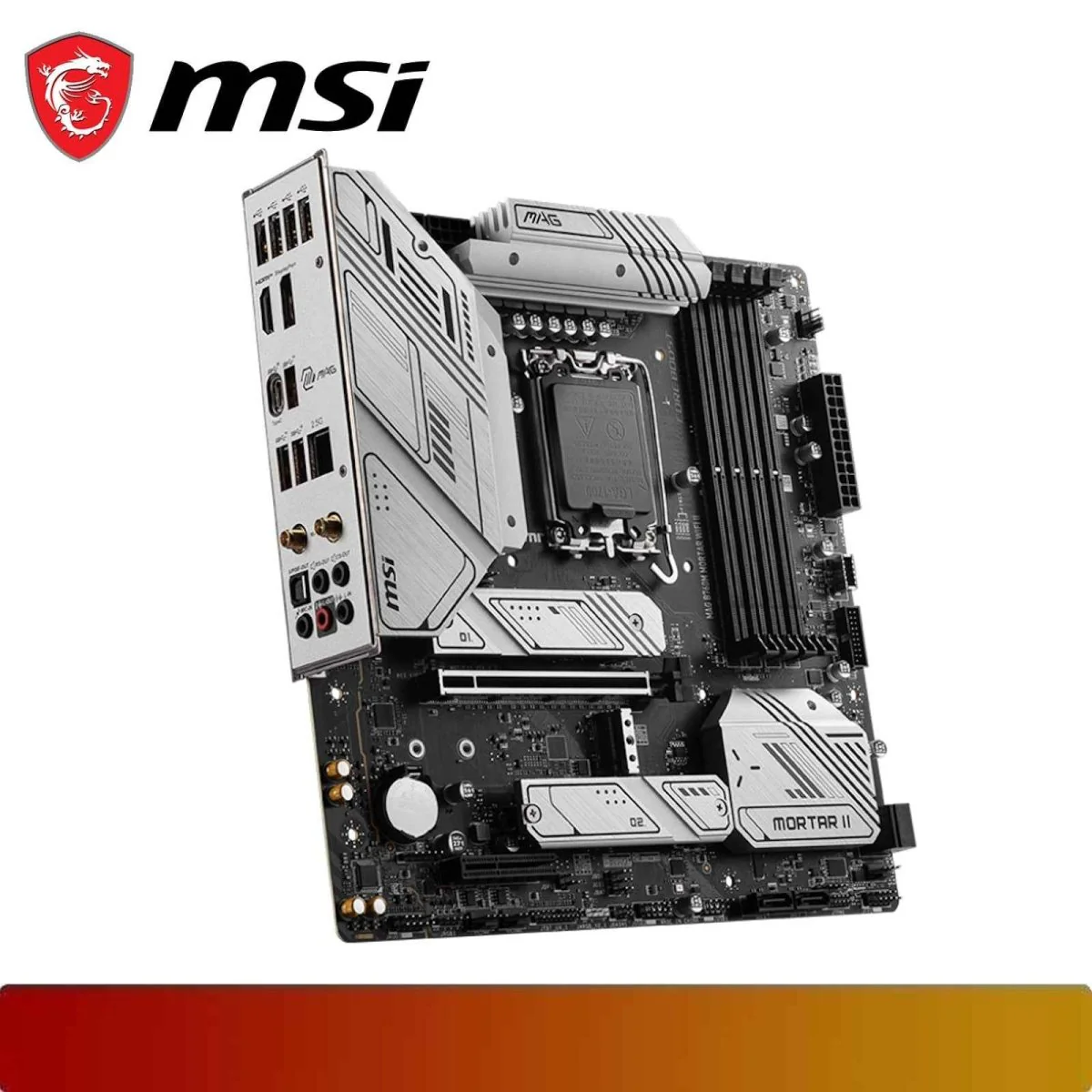

MSI MAG B760M MORTAR WIFI II

CHIPSET
- INTEL B760

CPU
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
- LGA1700

MEMORY
- 4x DDR5, Maximum Memory Capacity 192GB
- Supports Dual-Channel mode

ONBOARD GRAPHICS
- 1x HDMI™
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
- 1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*

SLOT
- 1x PCI-E x16 slot
- Supports x16/x4

STORAGE
- 3x M.2
- 4x SATA 6G

LAN
- Realtek® 2.5Gbps LAN

WIRELESS LAN & BLUETOOTH
- Intel® Wi-Fi 6E
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax

AUDIO
- Realtek® ALC897 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output

OPERATING SYSTEM
- Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB INFO
- mATX
- 243.84mmx243.84mm
