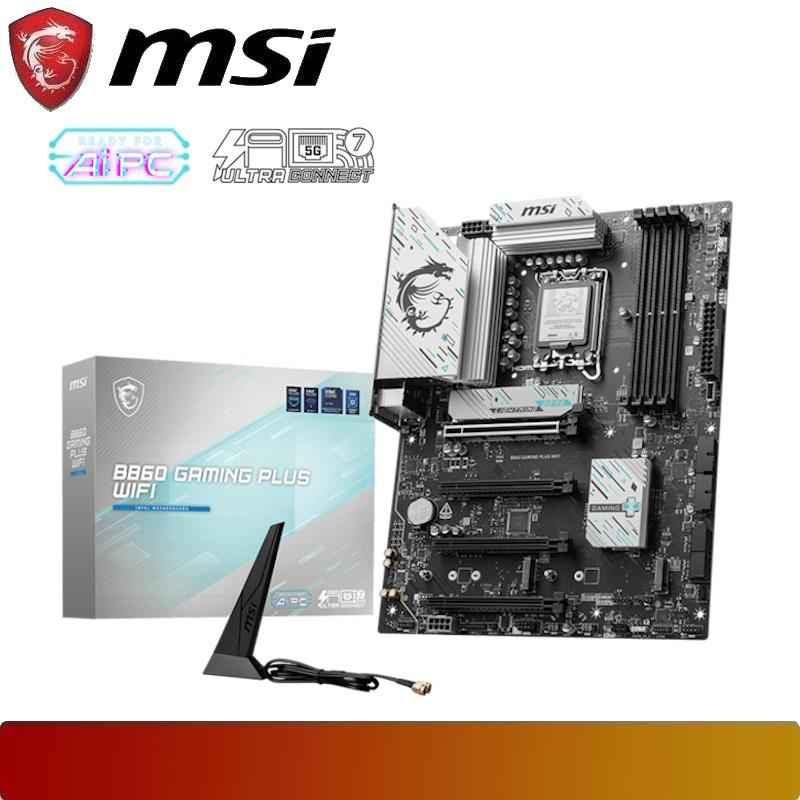

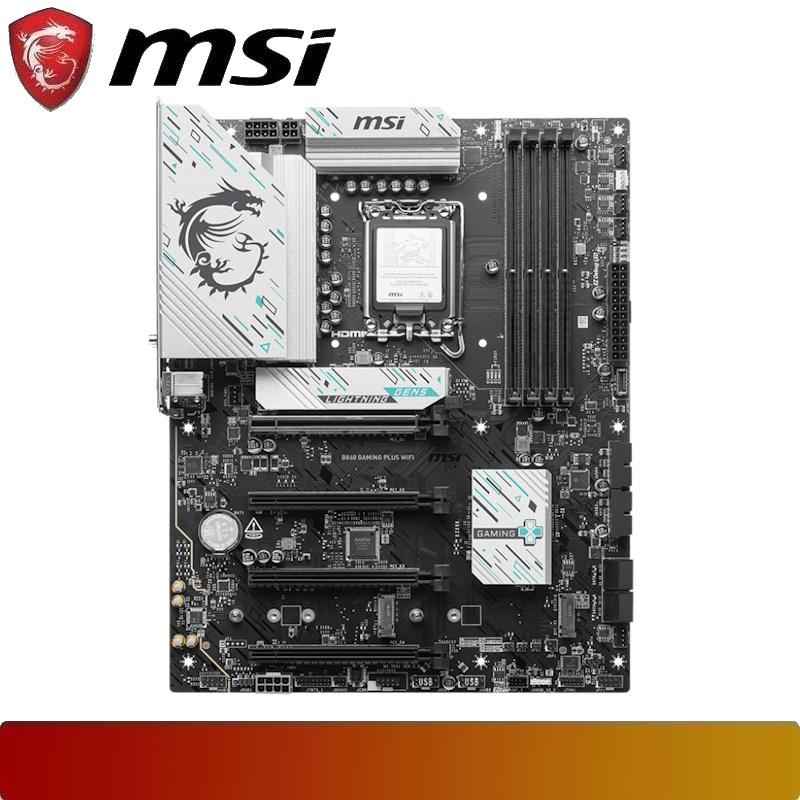

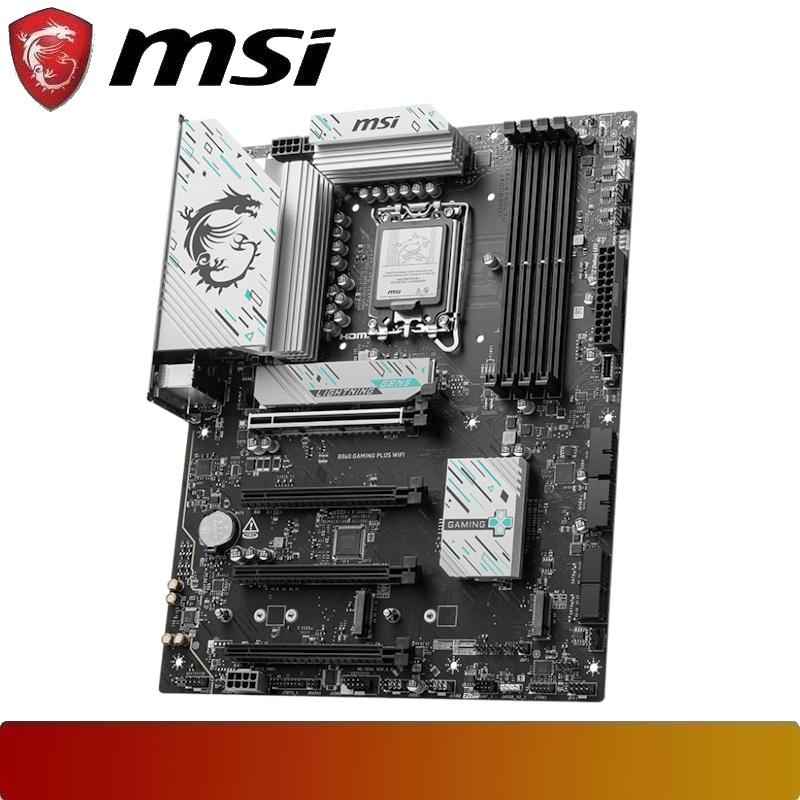

MSI B860 GAMING PLUS WIFI
| Chipset | INTEL B860 |
| CPU Support | Intel® Core™ 14th/ 13th/ 12th Gen Processors, Pentium® Gold, Celeron® (LGA 1700) |
| Memory | 4x DDR5 DIMMs, Max. 256GB, up to 6800+(OC) MHz |
| Form Factor | ATX |
| Onboard Graphics | 1. 1x HDMI™ 2.1 (4K @ 60Hz) 2. 1x DisplayPort 1.4 (4K @ 60Hz) |
| Expansion Slots | 1. 1x PCI-E x16 slot (PCIe 4.0, from CPU) 2. 1x PCI-E x4 slot (PCIe 4.0, from Chipset) 3. 1x PCI-E x1 slot (PCIe 3.0, from Chipset) |
| M.2 Storage | 2x M.2 slots (1. PCIe 4.0 x4 from CPU; 2. PCIe 4.0 x4 / SATA from Chipset) |
| SATA Storage | 4x SATA 6G |
| LAN | Realtek® 2.5Gbps LAN |
| Wireless & Bluetooth | 1. Intel® Wi-Fi 6E (2.4GHz / 5GHz / 6GHz) 2. Bluetooth® 5.3 |
| Rear USB | 1. 1x USB 10Gbps Type C 2. 2x USB 10Gbps Type A 3. 4x USB 2.0 Type A |
| Front USB | 1. 1x USB 5Gbps Type C 2. 2x USB 5Gbps Type A (supports 4 ports) 3. 2x USB 2.0 (supports 4 ports) |
| Audio | 7.1-Channel High Definition Audio (Supports S/PDIF output) |
| Operating System | 1. Supports Windows® 11 64-bit 2. Supports Windows® 10 64-bit |
$213.52
MSI B860 GAMING PLUS WIFI—
$213.52
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Chipset | INTEL B860 |
| CPU Support | Intel® Core™ 14th/ 13th/ 12th Gen Processors, Pentium® Gold, Celeron® (LGA 1700) |
| Memory | 4x DDR5 DIMMs, Max. 256GB, up to 6800+(OC) MHz |
| Form Factor | ATX |
| Onboard Graphics | 1. 1x HDMI™ 2.1 (4K @ 60Hz) 2. 1x DisplayPort 1.4 (4K @ 60Hz) |
| Expansion Slots | 1. 1x PCI-E x16 slot (PCIe 4.0, from CPU) 2. 1x PCI-E x4 slot (PCIe 4.0, from Chipset) 3. 1x PCI-E x1 slot (PCIe 3.0, from Chipset) |
| M.2 Storage | 2x M.2 slots (1. PCIe 4.0 x4 from CPU; 2. PCIe 4.0 x4 / SATA from Chipset) |
| SATA Storage | 4x SATA 6G |
| LAN | Realtek® 2.5Gbps LAN |
| Wireless & Bluetooth | 1. Intel® Wi-Fi 6E (2.4GHz / 5GHz / 6GHz) 2. Bluetooth® 5.3 |
| Rear USB | 1. 1x USB 10Gbps Type C 2. 2x USB 10Gbps Type A 3. 4x USB 2.0 Type A |
| Front USB | 1. 1x USB 5Gbps Type C 2. 2x USB 5Gbps Type A (supports 4 ports) 3. 2x USB 2.0 (supports 4 ports) |
| Audio | 7.1-Channel High Definition Audio (Supports S/PDIF output) |
| Operating System | 1. Supports Windows® 11 64-bit 2. Supports Windows® 10 64-bit |
