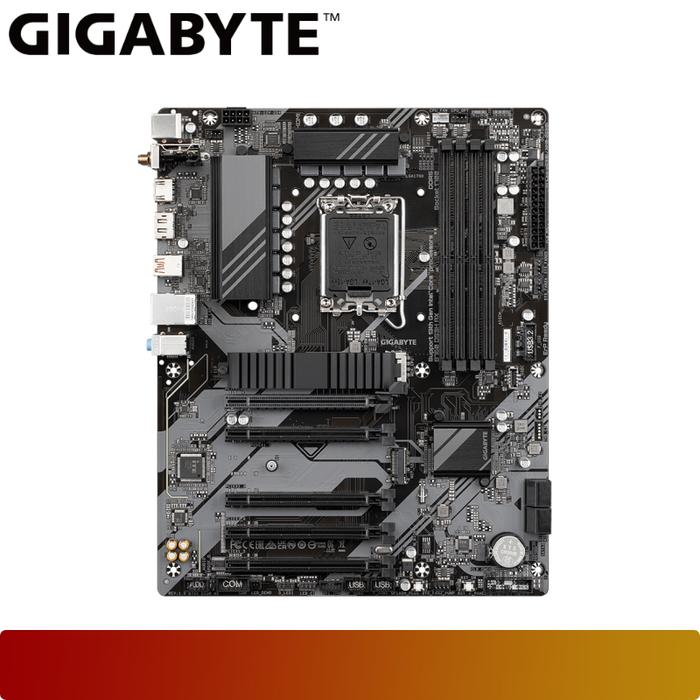

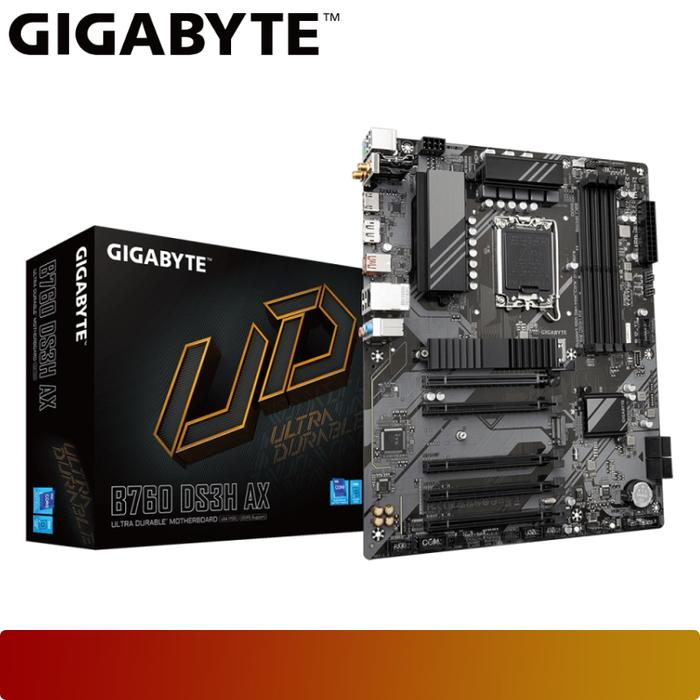

GIGABYTE B760 DS3H AX

CPU
- LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

Chipset
- Intel® B760 Express Chipset

Memory
- 4 x DDR5 DIMM sockets supporting up to 192 GB
- Dual channel memory architecture
- Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

Audio
- Realtek® Audio CODEC
- High Definition Audio

LAN
- Realtek® GbE LAN chip (1 Gbps/100 Mbps)

Wireless Communication module
- Intel® Wi-Fi 6E AX211 (PCB rev. 1.1)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Expansion Slots
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
- 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1

Operating System
- Support for Windows 11 64-bit
- Support for Windows 10 64-bit

Form Factor
- ATX Form Factor; 30.5cm x 24.4cm
