ASUS ROG STRIX Z890-E GAMING WIFI
| Model | ROG STRIX Z890-E GAMING WIFI |
|---|---|
| CPU | Intel® Socket LGA1851 For Intel® Core™ Ultra Processors (Series 2) |
| Chipset | Intel® Z890 Chipset |
| Memory | 4 x DIMM slots, max. 256GB, DDR5 Supports up to 9200+ MT/s (OC) Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) memory module NitroPath DRAM Technology, DIMM FIT, AEMP III, DIMM FLEX |
| Graphics | 1 x DisplayPort 1 x HDMI™ Port 2 x Thunderbolt™ 4 USB Type-C® ports (support DisplayPort and Thunderbolt™ video outputs) |
| Expansion Slots | 1 x PCIe 5.0 x16 SafeSlot (from CPU) 1 x PCIe 4.0 x16 Slot (supports x4 mode, from Chipset) |
| Storage | Total supports 7 x M.2 slots and 4 x SATA 6Gb/s ports 1 x M.2 22110 (PCIe 5.0 x4, from CPU) 2 x M.2 2280 (PCIe 5.0 x4, from CPU) 3 x M.2 2280 (PCIe 4.0 x4, from Chipset) 1 x M.2 2280 (PCIe 4.0 x4 & SATA, from Chipset) 4 x SATA 6Gb/s Ports |
| Ethernet | 1 x Realtek 5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (2x2 802.11be) Supports 2.4/5/6GHz frequency band Bluetooth® v5.4 |
| USB (Rear) | 2 x Thunderbolt™ 4 USB Type-C® ports 9 x USB 10 Gbps Ports (7 x Type-A + 2 x USB Type-C®) 3 x USB 5Gbps ports (Type-A) |
| USB (Front) | 1 x USB 20Gbps Connector (supports USB Type-C®) 1 x USB Type-C® with up to 30W PD Fast-charge (part of Rear I/O ports in some descriptions, check specification details) 2 x USB 5Gbps Headers (Supports 4 additional ports) |
| Audio | ROG SupremeFX ALC4080 Codec + Savitech SV3H712 AMP Impedance sense for headphone outputs 120 dB SNR stereo playback output, 110 dB SNR recording input SupremeFX Shielding, DOLBY ATMOS® |

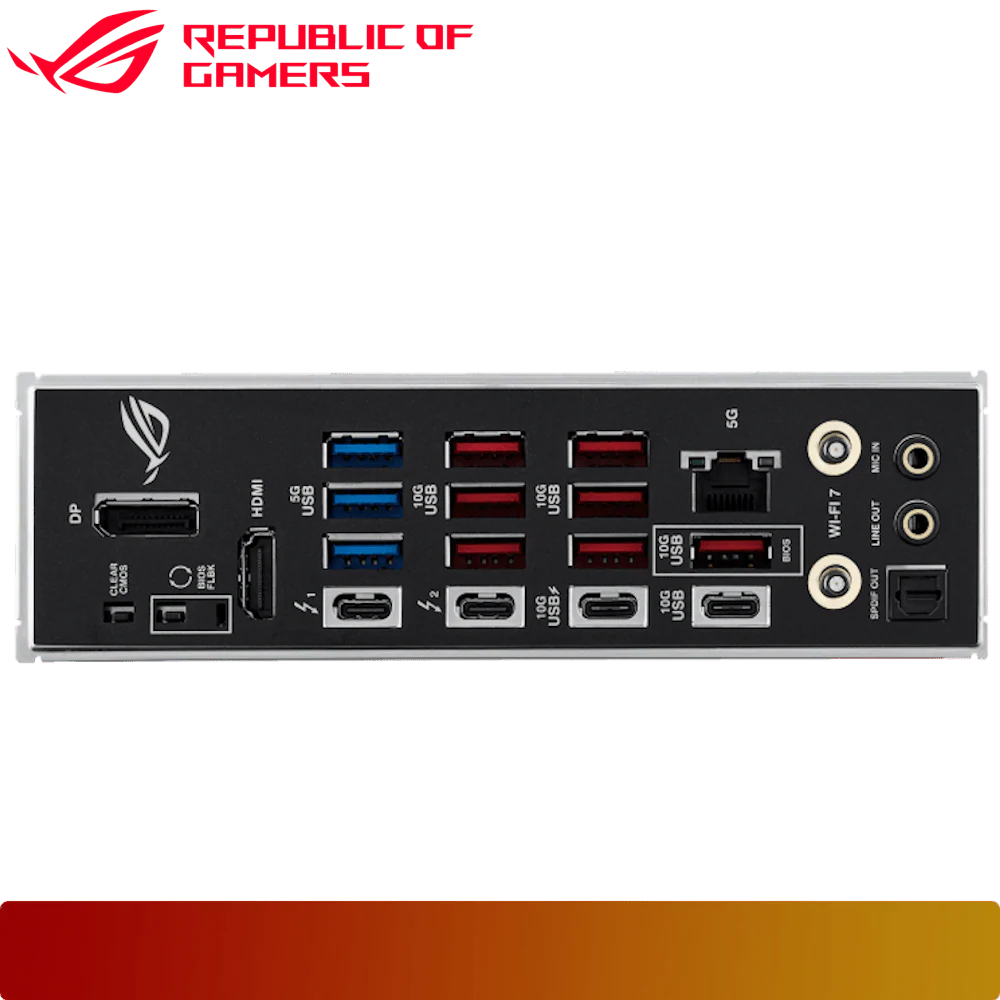

| Back Panel I/O Ports | 2 x Thunderbolt™ 4 USB Type-C® ports 1 x Display Port 1 x HDMI™ Port 1 x Realtek 5Gb Ethernet port 1 x Wi-Fi Module 9 x USB 10 Gbps Ports 3 x USB 5Gbps ports (Type-A) 2 x Gold-plated audio jacks 1 x Optical S/PDIF Out Port 1 x BIOS FlashBack™ Button 1 x Clear CMOS Button |
| Operating System | Windows 11 (22H2 & later) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | ATX Form Factor (30.5 cm x 24.4 cm) |
$175.21
Original: $584.04
-70%ASUS ROG STRIX Z890-E GAMING WIFI—
$584.04
$175.21Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Model | ROG STRIX Z890-E GAMING WIFI |
|---|---|
| CPU | Intel® Socket LGA1851 For Intel® Core™ Ultra Processors (Series 2) |
| Chipset | Intel® Z890 Chipset |
| Memory | 4 x DIMM slots, max. 256GB, DDR5 Supports up to 9200+ MT/s (OC) Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) memory module NitroPath DRAM Technology, DIMM FIT, AEMP III, DIMM FLEX |
| Graphics | 1 x DisplayPort 1 x HDMI™ Port 2 x Thunderbolt™ 4 USB Type-C® ports (support DisplayPort and Thunderbolt™ video outputs) |
| Expansion Slots | 1 x PCIe 5.0 x16 SafeSlot (from CPU) 1 x PCIe 4.0 x16 Slot (supports x4 mode, from Chipset) |
| Storage | Total supports 7 x M.2 slots and 4 x SATA 6Gb/s ports 1 x M.2 22110 (PCIe 5.0 x4, from CPU) 2 x M.2 2280 (PCIe 5.0 x4, from CPU) 3 x M.2 2280 (PCIe 4.0 x4, from Chipset) 1 x M.2 2280 (PCIe 4.0 x4 & SATA, from Chipset) 4 x SATA 6Gb/s Ports |
| Ethernet | 1 x Realtek 5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (2x2 802.11be) Supports 2.4/5/6GHz frequency band Bluetooth® v5.4 |
| USB (Rear) | 2 x Thunderbolt™ 4 USB Type-C® ports 9 x USB 10 Gbps Ports (7 x Type-A + 2 x USB Type-C®) 3 x USB 5Gbps ports (Type-A) |
| USB (Front) | 1 x USB 20Gbps Connector (supports USB Type-C®) 1 x USB Type-C® with up to 30W PD Fast-charge (part of Rear I/O ports in some descriptions, check specification details) 2 x USB 5Gbps Headers (Supports 4 additional ports) |
| Audio | ROG SupremeFX ALC4080 Codec + Savitech SV3H712 AMP Impedance sense for headphone outputs 120 dB SNR stereo playback output, 110 dB SNR recording input SupremeFX Shielding, DOLBY ATMOS® |
| Back Panel I/O Ports | 2 x Thunderbolt™ 4 USB Type-C® ports 1 x Display Port 1 x HDMI™ Port 1 x Realtek 5Gb Ethernet port 1 x Wi-Fi Module 9 x USB 10 Gbps Ports 3 x USB 5Gbps ports (Type-A) 2 x Gold-plated audio jacks 1 x Optical S/PDIF Out Port 1 x BIOS FlashBack™ Button 1 x Clear CMOS Button |
| Operating System | Windows 11 (22H2 & later) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | ATX Form Factor (30.5 cm x 24.4 cm) |
