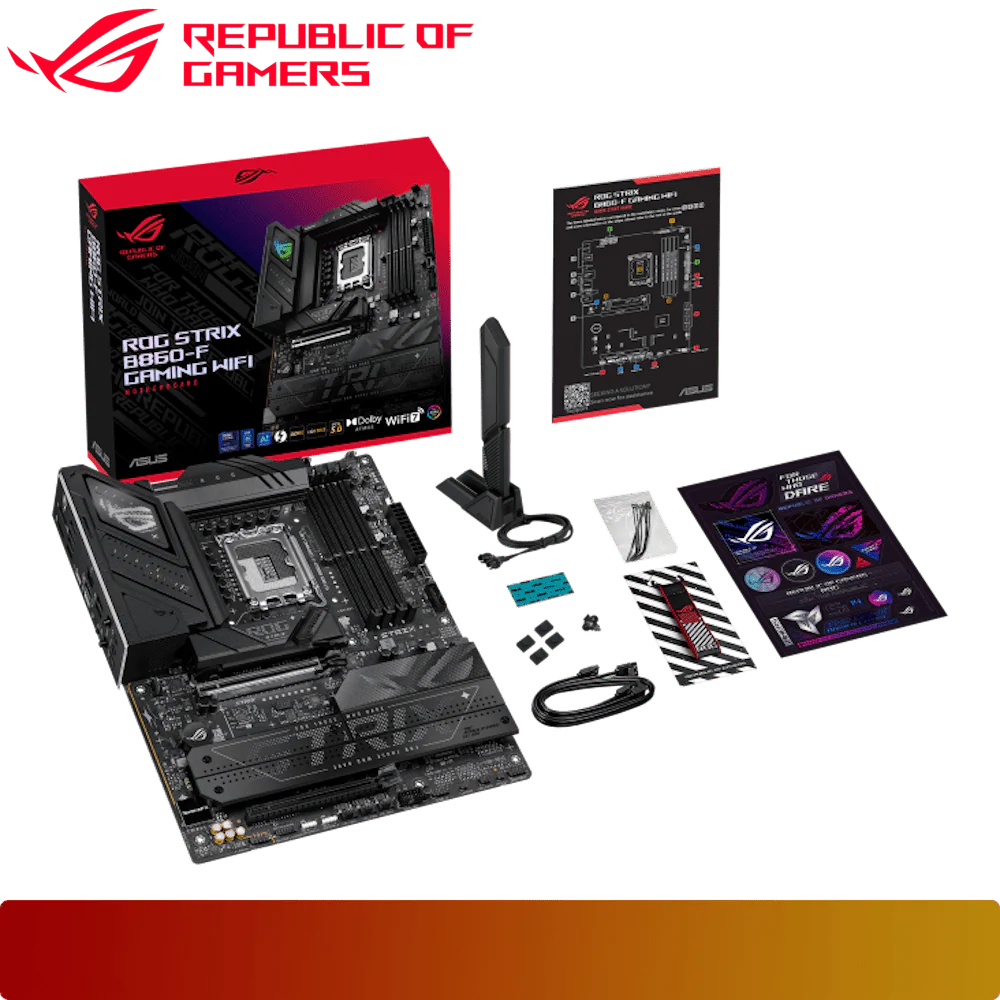

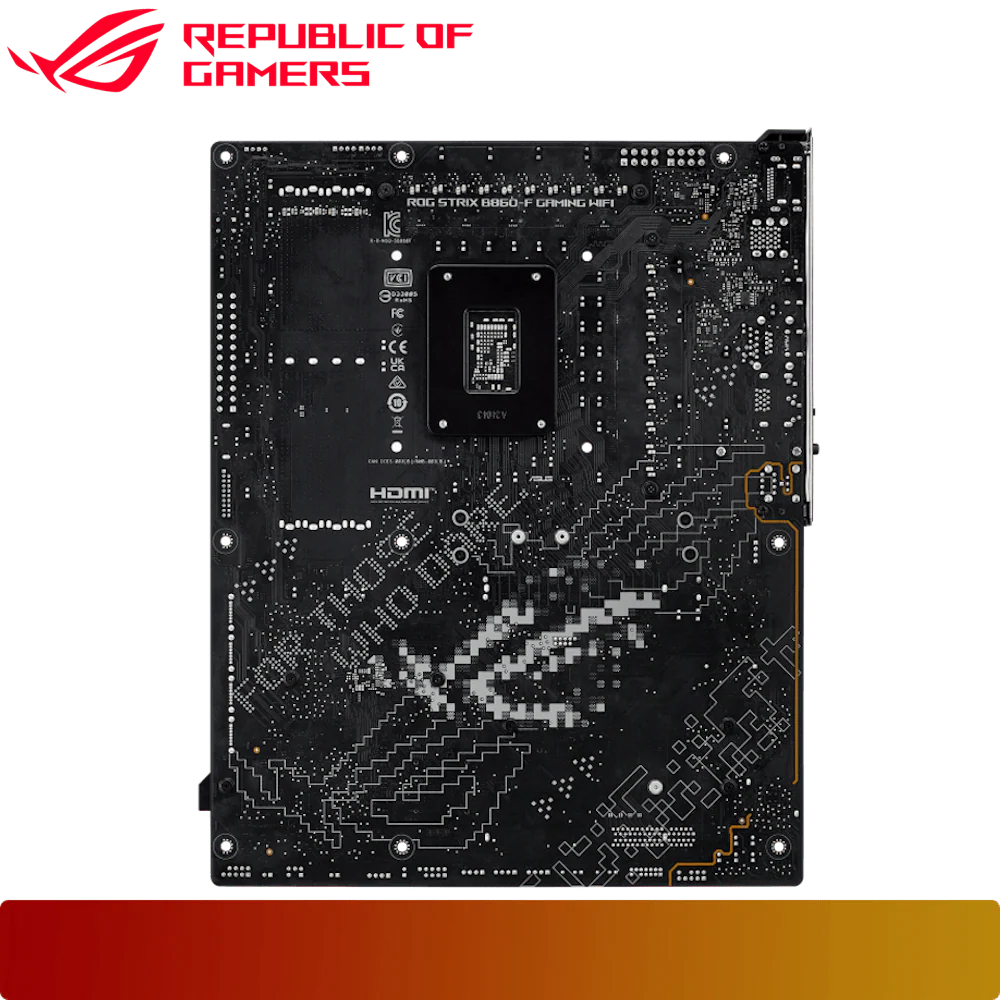

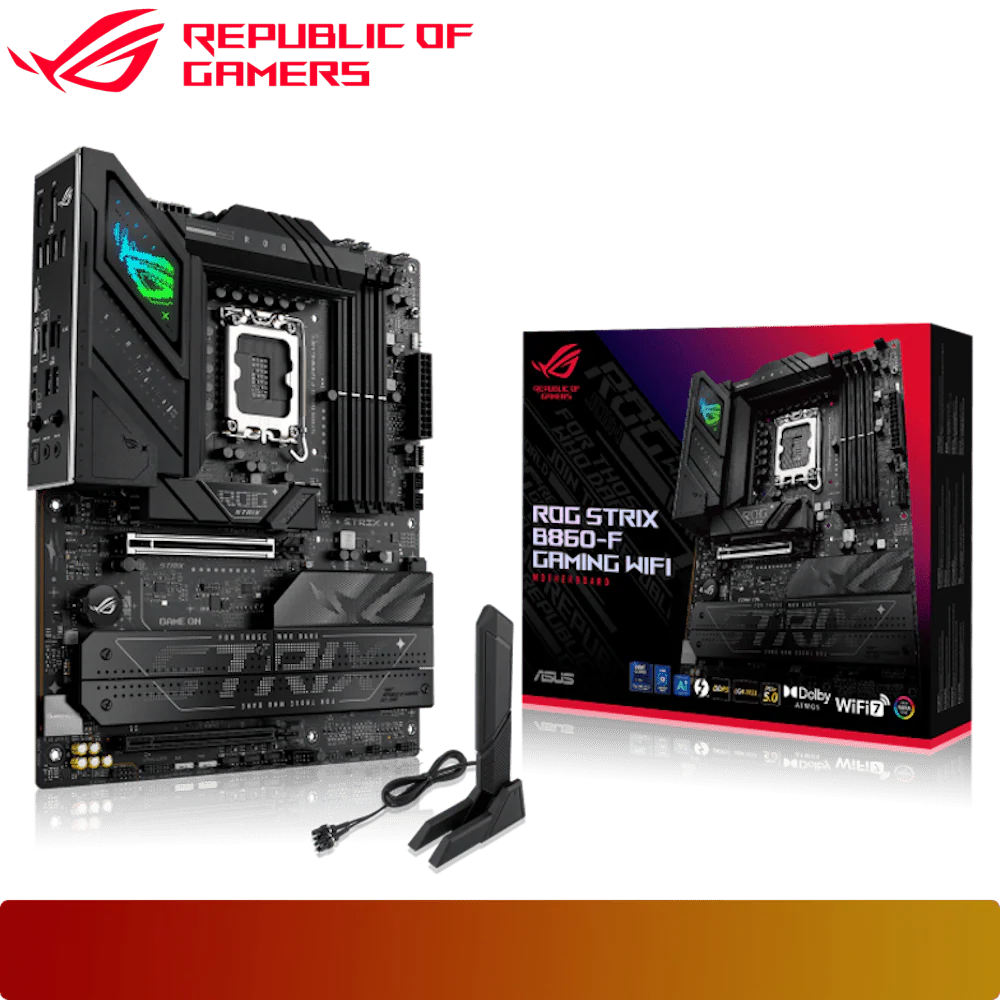

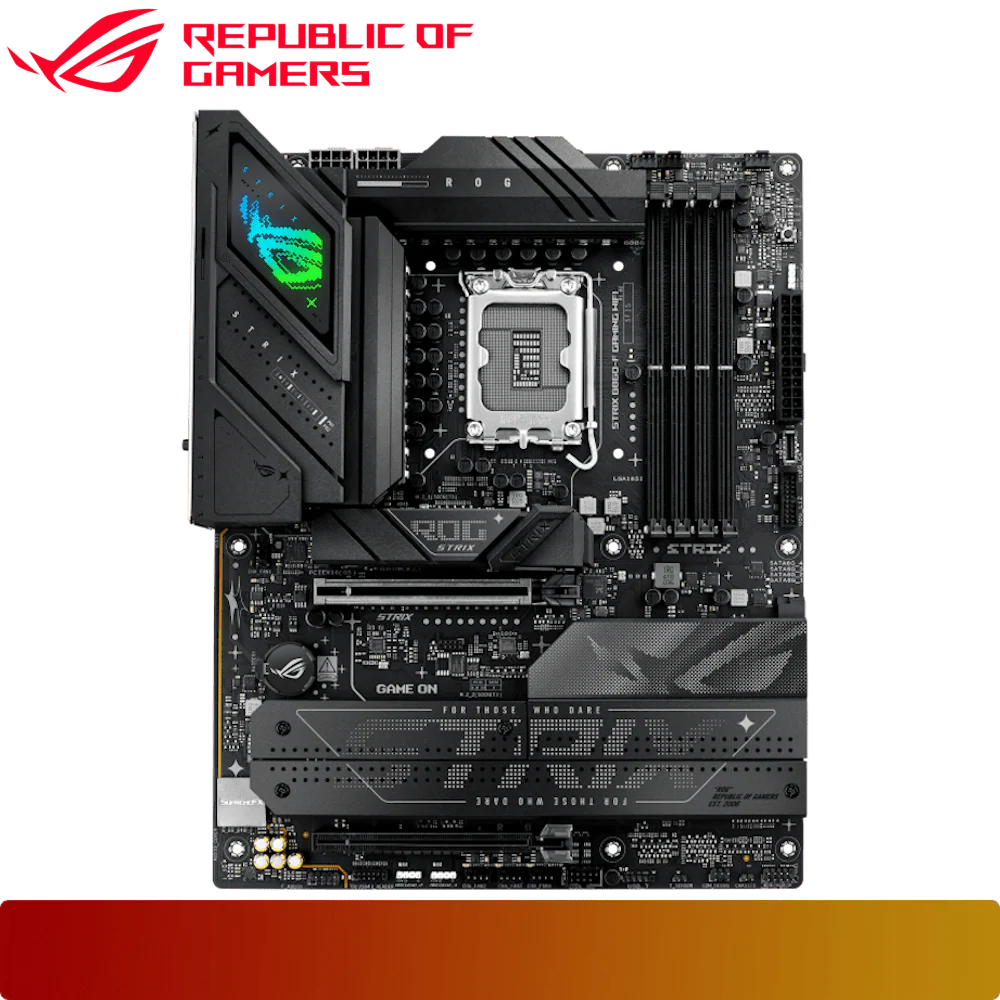

ASUS ROG STRIX B860-F GAMING WIFI
| Model | ROG STRIX B860-F GAMING WIFI |
|---|---|
| CPU Support | Intel Socket LGA1851 for Intel Core Ultra Processors (Series 2) |
| Chipset | Intel B860 Chipset |
| Memory | 4 x DIMM slots, max. 256GB, DDR5 support up to 9066+ MT/s (OC), Dual Channel architecture, Intel Extreme Memory Profile (XMP), AEMP III |
| Graphics | 1 x DisplayPort 1.4 (Max. 8K 60Hz) 1 x HDMI 2.1 (Max. 8K 60Hz) 1 x Thunderbolt 4 port (USB Type-C supports DisplayPort video output) |
| Expansion Slots | 1 x PCIe 5.0 x16 slot (from CPU) 1 x PCIe 4.0 x16 slot (supports x4 mode, from Chipset) |
| Storage | Total 4 x M.2 slots and 4 x SATA 6Gb/s ports: M.2_1: PCIe 5.0 x4 mode (Type 2242/2260/2280) M.2_2: PCIe 4.0 x4 mode (Type 2280) M.2_3: PCIe 4.0 x4 mode (Type 2280/22110) M.2_4: PCIe 4.0 x4 mode (Type 2280) |
| Ethernet | 1 x Intel 2.5Gb Ethernet with ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency bands, Bluetooth v5.4 |

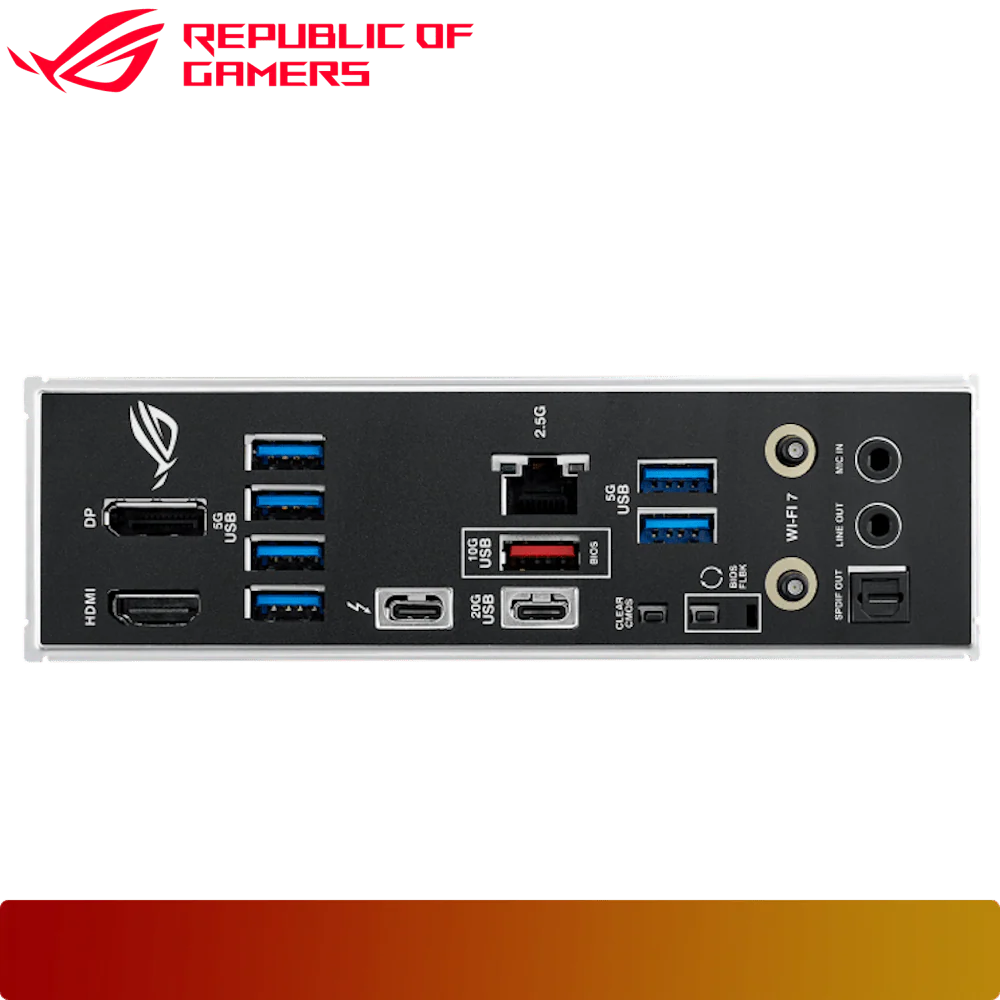

| Rear USB Ports | 1 x Thunderbolt 4 port (USB Type-C) 1 x USB 20Gbps port (USB Type-C) 1 x USB 10Gbps port (Type-A) 6 x USB 5Gbps ports (Type-A) |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080, Savitech SV3H712 AMP, 120 dB SNR playback, 110 dB SNR recording |
| Internal I/O Connectors | 1 x Thunderbolt (USB4) header, 1 x USB 10Gbps connector (Type-C), 1 x USB 5Gbps header, 2 x USB 2.0 headers, 3 x Addressable Gen 2 headers |
| Special Features | PCIe Slot Q-Release Slim, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, BIOS FlashBack button, Clear CMOS button |
| Form Factor | ATX (30.5 cm x 24.4 cm) |
$316.77
ASUS ROG STRIX B860-F GAMING WIFI—
$316.77
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Model | ROG STRIX B860-F GAMING WIFI |
|---|---|
| CPU Support | Intel Socket LGA1851 for Intel Core Ultra Processors (Series 2) |
| Chipset | Intel B860 Chipset |
| Memory | 4 x DIMM slots, max. 256GB, DDR5 support up to 9066+ MT/s (OC), Dual Channel architecture, Intel Extreme Memory Profile (XMP), AEMP III |
| Graphics | 1 x DisplayPort 1.4 (Max. 8K 60Hz) 1 x HDMI 2.1 (Max. 8K 60Hz) 1 x Thunderbolt 4 port (USB Type-C supports DisplayPort video output) |
| Expansion Slots | 1 x PCIe 5.0 x16 slot (from CPU) 1 x PCIe 4.0 x16 slot (supports x4 mode, from Chipset) |
| Storage | Total 4 x M.2 slots and 4 x SATA 6Gb/s ports: M.2_1: PCIe 5.0 x4 mode (Type 2242/2260/2280) M.2_2: PCIe 4.0 x4 mode (Type 2280) M.2_3: PCIe 4.0 x4 mode (Type 2280/22110) M.2_4: PCIe 4.0 x4 mode (Type 2280) |
| Ethernet | 1 x Intel 2.5Gb Ethernet with ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency bands, Bluetooth v5.4 |
| Rear USB Ports | 1 x Thunderbolt 4 port (USB Type-C) 1 x USB 20Gbps port (USB Type-C) 1 x USB 10Gbps port (Type-A) 6 x USB 5Gbps ports (Type-A) |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080, Savitech SV3H712 AMP, 120 dB SNR playback, 110 dB SNR recording |
| Internal I/O Connectors | 1 x Thunderbolt (USB4) header, 1 x USB 10Gbps connector (Type-C), 1 x USB 5Gbps header, 2 x USB 2.0 headers, 3 x Addressable Gen 2 headers |
| Special Features | PCIe Slot Q-Release Slim, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, BIOS FlashBack button, Clear CMOS button |
| Form Factor | ATX (30.5 cm x 24.4 cm) |
