ASUS ROG MAXIMUS Z890 APEX
| Model | ROG MAXIMUS Z890 APEX |
|---|---|
| CPU | Support Intel® Core™ Ultra Processors (Series 2), LGA1851 |
| Chipset | Intel® Z890 Chipset |
| Memory | 2 x DIMM slots, max. 128GB, DDR5 Supports up to 9600+ MT/s (OC), Non-ECC, Un-buffered Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) memory module Supports DIMM Flex, DIMM Fit ASUS Enhanced Memory Profile III (AEMP III) |
| Graphics | 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs *Requires discrete graphics card (No onboard HDMI) |
| Expansion Slots | Intel® Core™ Ultra Processors (Series 2): 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes) Intel® Z890 Chipset: 2 x PCIe 4.0 x4 slots |
| Storage | Total supports 6 x M.2 slots and 4 x SATA 6Gb/s ports M.2_1 slot: PCIe 5.0 x4 mode (from CPU) M.2_2 slot: PCIe 4.0 x4 mode (from CPU) M.2_3, M.2_4 slots: PCIe 5.0 x4 mode (from CPU) DIMM.2_1, DIMM.2_2 slots: PCIe 4.0 x4 mode (via ROG DIMM.2, from Chipset) 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (2x2 802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate Bluetooth® v5.4 |
| USB (Rear) | 2 x Thunderbolt™ 4 ports (USB Type-C®) 1 x USB 20Gbps port (USB Type-C®) 4 x USB 10Gbps ports (Type-A) 4 x USB 5Gbps ports (Type-A) |
| USB (Front) | 1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+) 1 x USB 10Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional ports 2 x USB 2.0 headers support 4 additional ports |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 SupremeFX Shielding Technology Savitech SV3H712 AMP Gold-plated audio jacks Rear optical S/PDIF out port Premium audio capacitors |

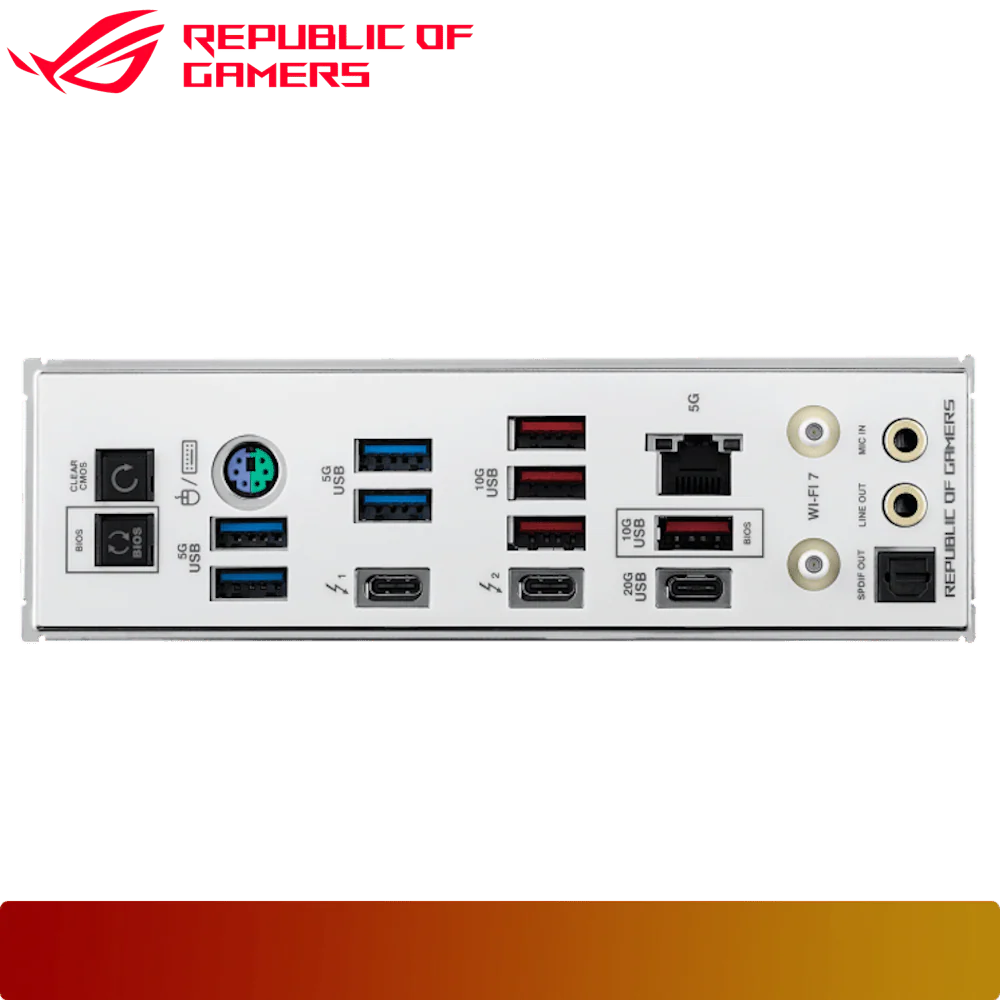

| Back Panel I/O Ports | 2 x Thunderbolt™ 4 ports (USB Type-C®) 1 x USB 20Gbps port (USB Type-C®) 4 x USB 10Gbps ports (Type-A) 4 x USB 5Gbps ports (Type-A) 1 x Wi-Fi Module 1 x Realtek 5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button 1 x PS/2 keyboard/mouse combo port |
| Operating System | Windows 11 (22H2 & later) |
| BIOS | 2 x 256 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | ATX Form Factor (30.5 cm x 24.4 cm) |
$813.55
ASUS ROG MAXIMUS Z890 APEX—
$813.55
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Model | ROG MAXIMUS Z890 APEX |
|---|---|
| CPU | Support Intel® Core™ Ultra Processors (Series 2), LGA1851 |
| Chipset | Intel® Z890 Chipset |
| Memory | 2 x DIMM slots, max. 128GB, DDR5 Supports up to 9600+ MT/s (OC), Non-ECC, Un-buffered Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) memory module Supports DIMM Flex, DIMM Fit ASUS Enhanced Memory Profile III (AEMP III) |
| Graphics | 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs *Requires discrete graphics card (No onboard HDMI) |
| Expansion Slots | Intel® Core™ Ultra Processors (Series 2): 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes) Intel® Z890 Chipset: 2 x PCIe 4.0 x4 slots |
| Storage | Total supports 6 x M.2 slots and 4 x SATA 6Gb/s ports M.2_1 slot: PCIe 5.0 x4 mode (from CPU) M.2_2 slot: PCIe 4.0 x4 mode (from CPU) M.2_3, M.2_4 slots: PCIe 5.0 x4 mode (from CPU) DIMM.2_1, DIMM.2_2 slots: PCIe 4.0 x4 mode (via ROG DIMM.2, from Chipset) 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 7 (2x2 802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate Bluetooth® v5.4 |
| USB (Rear) | 2 x Thunderbolt™ 4 ports (USB Type-C®) 1 x USB 20Gbps port (USB Type-C®) 4 x USB 10Gbps ports (Type-A) 4 x USB 5Gbps ports (Type-A) |
| USB (Front) | 1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+) 1 x USB 10Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional ports 2 x USB 2.0 headers support 4 additional ports |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 SupremeFX Shielding Technology Savitech SV3H712 AMP Gold-plated audio jacks Rear optical S/PDIF out port Premium audio capacitors |
| Back Panel I/O Ports | 2 x Thunderbolt™ 4 ports (USB Type-C®) 1 x USB 20Gbps port (USB Type-C®) 4 x USB 10Gbps ports (Type-A) 4 x USB 5Gbps ports (Type-A) 1 x Wi-Fi Module 1 x Realtek 5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button 1 x PS/2 keyboard/mouse combo port |
| Operating System | Windows 11 (22H2 & later) |
| BIOS | 2 x 256 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | ATX Form Factor (30.5 cm x 24.4 cm) |
