ASUS PRIME Z790-P WIFI-CSM

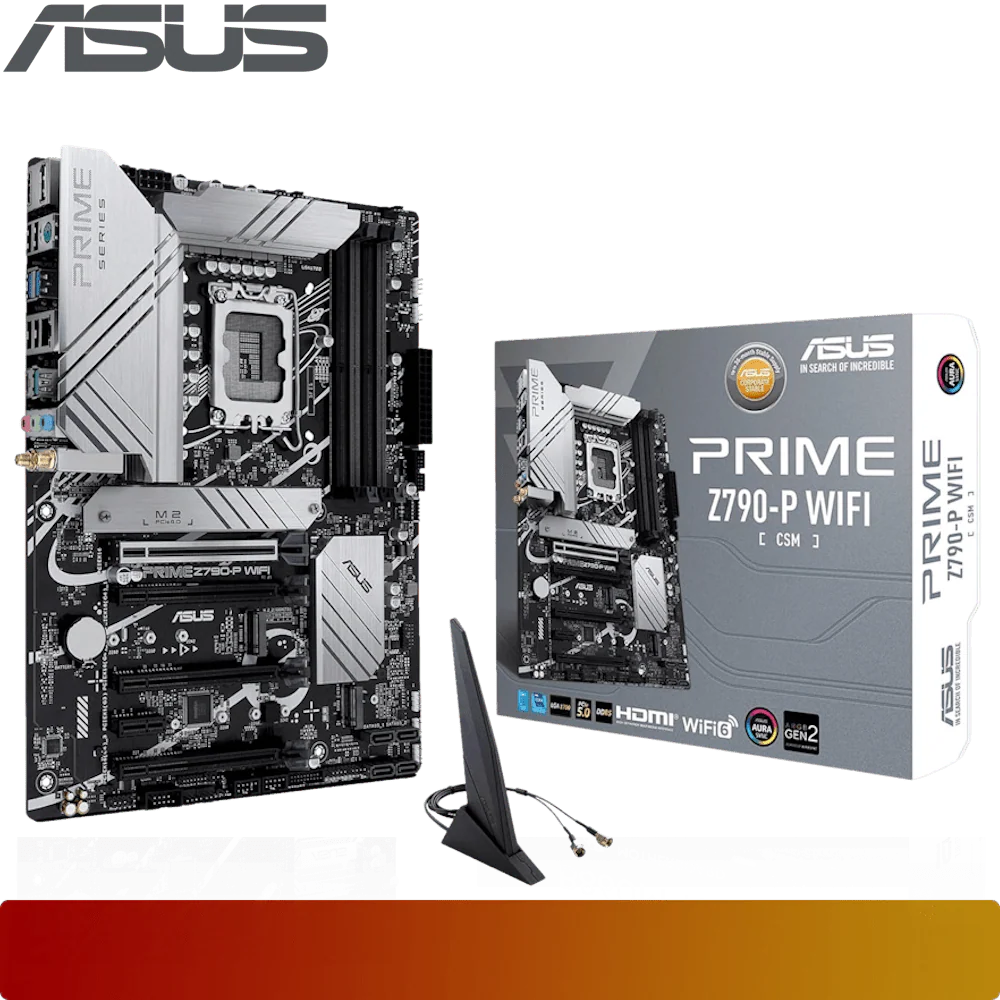

Product image 1
Product image 2
Product image 3

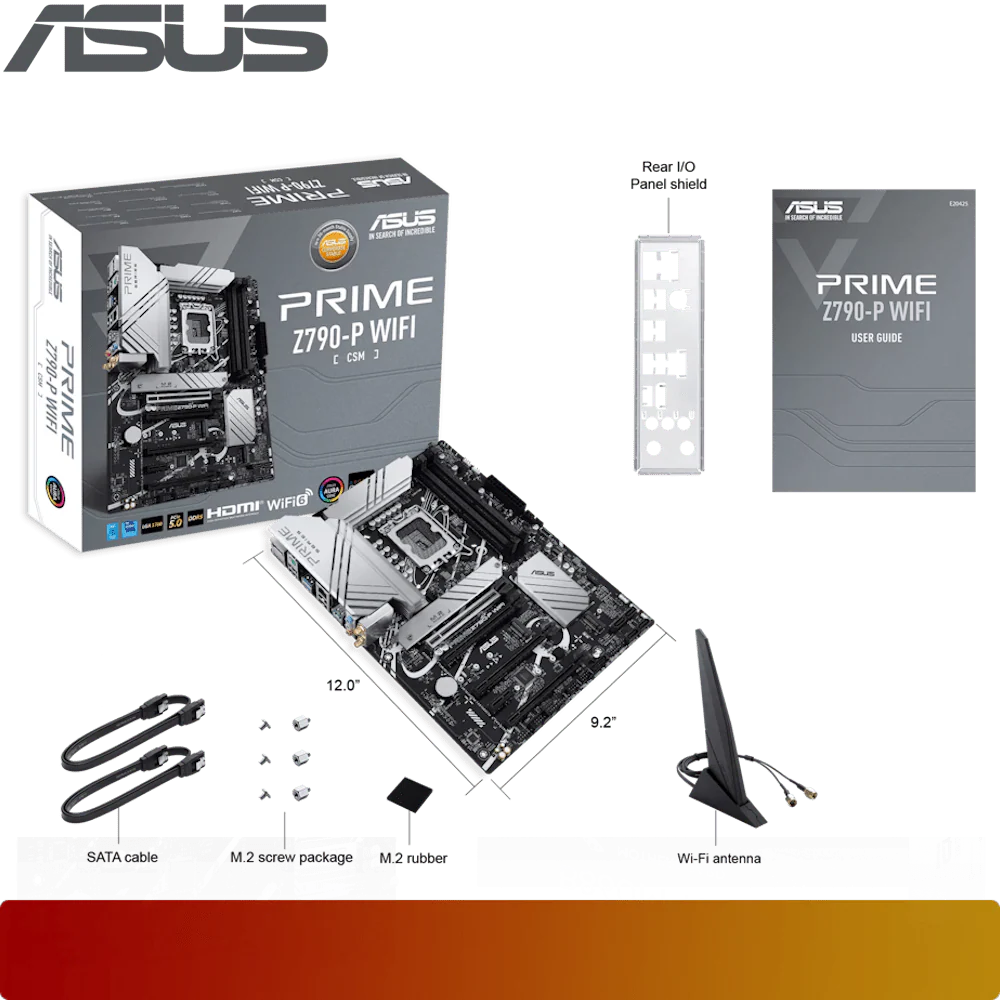

Product image 4

ASUS PRIME Z790-P WIFI-CSM

Model PRIME Z790-P WIFI-CSM
CPU Intel® Socket LGA1700 for Intel® Core™ 14th, 13th & 12th Gen Processors, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and 3.0
Chipset Intel® Z790 Chipset
Memory 4 x DIMM slots, Max. 192GB, DDR5
Supports up to 7200+(OC) MT/s, Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP), OptiMem II
Graphics 1 x DisplayPort (Supports max. 4K@60Hz)
1 x HDMI® port (Supports 4K@60Hz)
Expansion Slots Intel® Core™ Processors (14th & 13th & 12th Gen):
1 x PCIe 5.0 x16 slot
Intel® Z790 Chipset:
3 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot
Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
M.2_1 slot: PCIe 4.0 x4 mode (from CPU)
M.2_2 slot: PCIe 4.0 x4 mode (from Chipset)
M.2_3 slot: PCIe 4.0 x4 & SATA modes (from Chipset)
4 x SATA 6Gb/s ports
Ethernet 1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth Wi-Fi 6 (2x2 802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.2
USB (Rear) 1 x USB 3.2 Gen 2x2 port (USB Type-C®)
1 x USB 3.2 Gen 2 port (Type-A)
2 x USB 3.2 Gen 1 ports (Type-A)
4 x USB 2.0 ports (Type-A)
USB (Front) 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support 4 additional ports
2 x USB 2.0 headers support 4 additional ports
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers

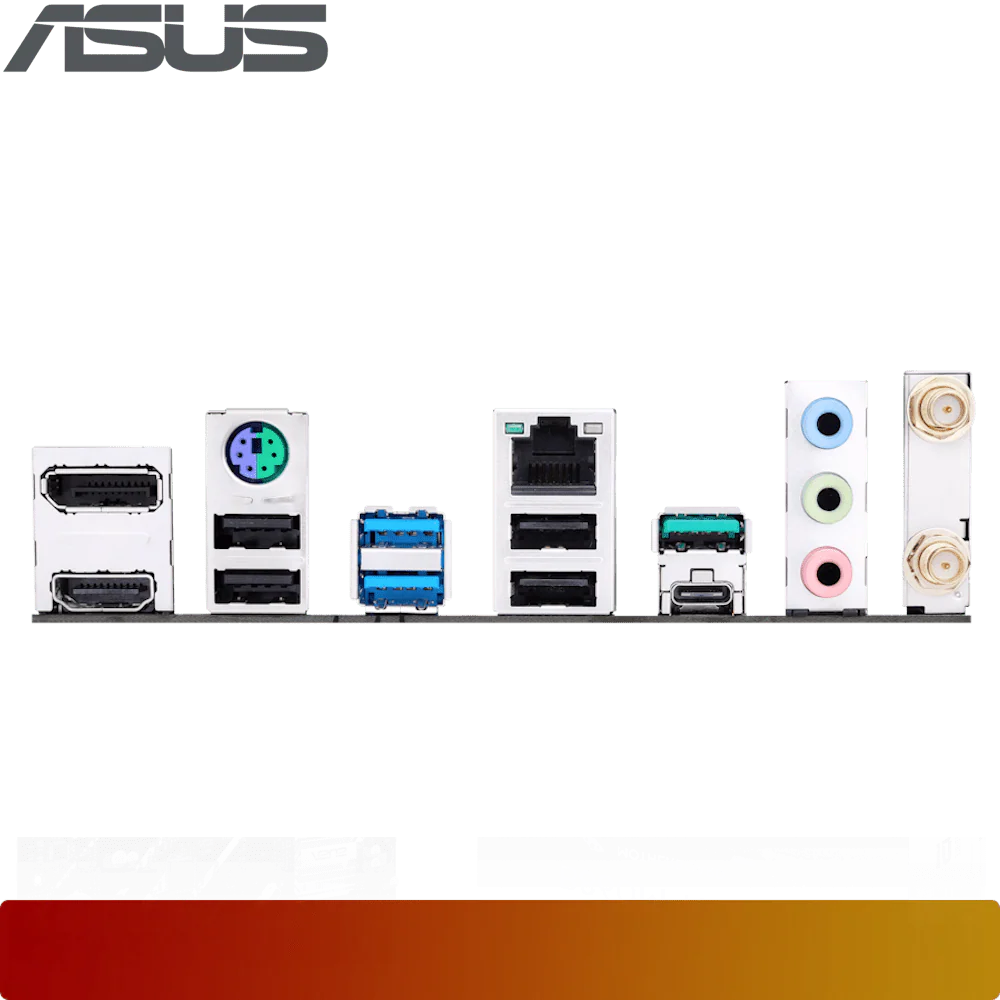

Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (USB Type-C®)
1 x USB 3.2 Gen 2 port (Type-A)
2 x USB 3.2 Gen 1 ports (Type-A)
4 x USB 2.0 ports (Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Operating System Windows® 11, Windows® 10 64-bit
BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor (30.5 cm x 23.4 cm / 12 inch x 9.2 inch)
$81.40

Original: $271.34

-70%
ASUS PRIME Z790-P WIFI-CSM—

$271.34

$81.40

Product Information

Shipping & Returns

Description

Model PRIME Z790-P WIFI-CSM
CPU Intel® Socket LGA1700 for Intel® Core™ 14th, 13th & 12th Gen Processors, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and 3.0
Chipset Intel® Z790 Chipset
Memory 4 x DIMM slots, Max. 192GB, DDR5
Supports up to 7200+(OC) MT/s, Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP), OptiMem II
Graphics 1 x DisplayPort (Supports max. 4K@60Hz)
1 x HDMI® port (Supports 4K@60Hz)
Expansion Slots Intel® Core™ Processors (14th & 13th & 12th Gen):
1 x PCIe 5.0 x16 slot
Intel® Z790 Chipset:
3 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot
Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
M.2_1 slot: PCIe 4.0 x4 mode (from CPU)
M.2_2 slot: PCIe 4.0 x4 mode (from Chipset)
M.2_3 slot: PCIe 4.0 x4 & SATA modes (from Chipset)
4 x SATA 6Gb/s ports
Ethernet 1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth Wi-Fi 6 (2x2 802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.2
USB (Rear) 1 x USB 3.2 Gen 2x2 port (USB Type-C®)
1 x USB 3.2 Gen 2 port (Type-A)
2 x USB 3.2 Gen 1 ports (Type-A)
4 x USB 2.0 ports (Type-A)
USB (Front) 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
2 x USB 3.2 Gen 1 headers support 4 additional ports
2 x USB 2.0 headers support 4 additional ports
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers
Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (USB Type-C®)
1 x USB 3.2 Gen 2 port (Type-A)
2 x USB 3.2 Gen 1 ports (Type-A)
4 x USB 2.0 ports (Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Operating System Windows® 11, Windows® 10 64-bit
BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor (30.5 cm x 23.4 cm / 12 inch x 9.2 inch)
