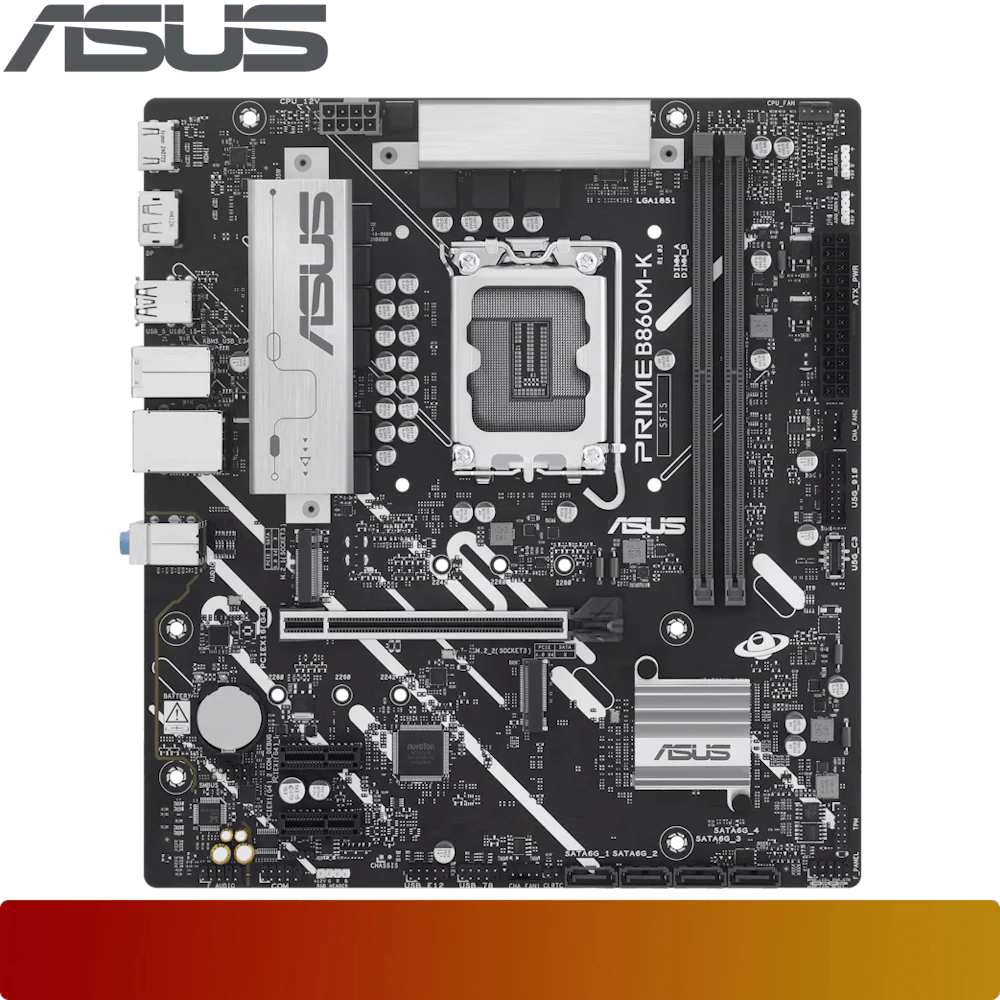

ASUS PRIME B860M-K-CSM
| Model | PRIME B860M-K CSM |
|---|---|
| CPU | Supports Intel® Core™ Ultra Processors (Series 2), LGA1851 Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Chipset | Intel® B860 Chipset |
| Memory | 2 x DIMM slots, max. 128GB, DDR5 Supports up to 8800+ MT/s (OC), Non-ECC, Un-buffered DIMM Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMP III) support |
| Graphics | 1 x DisplayPort (Supports max. 4K@60Hz, DisplayPort 1.4) 1 x HDMI™ port (Supports max. 4K@60Hz, HDMI 2.1) |
| Expansion Slots | Intel® Core™ Ultra Processors (Series 2): 1 x PCIe 4.0 x16 slot Intel® B860 Chipset: 2 x PCIe 4.0 x1 slots |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports M.2_1 slot: PCIe 5.0 x4 mode M.2_2 slot: PCIe 4.0 x4 mode 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
| USB (Rear) | 1 x USB 10Gbps Type-A port 2 x USB 5Gbps Type-A ports 3 x USB 2.0 Type-A ports |
| USB (Front) | 1 x USB 5Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional ports 2 x USB 2.0 headers support 4 additional ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback |

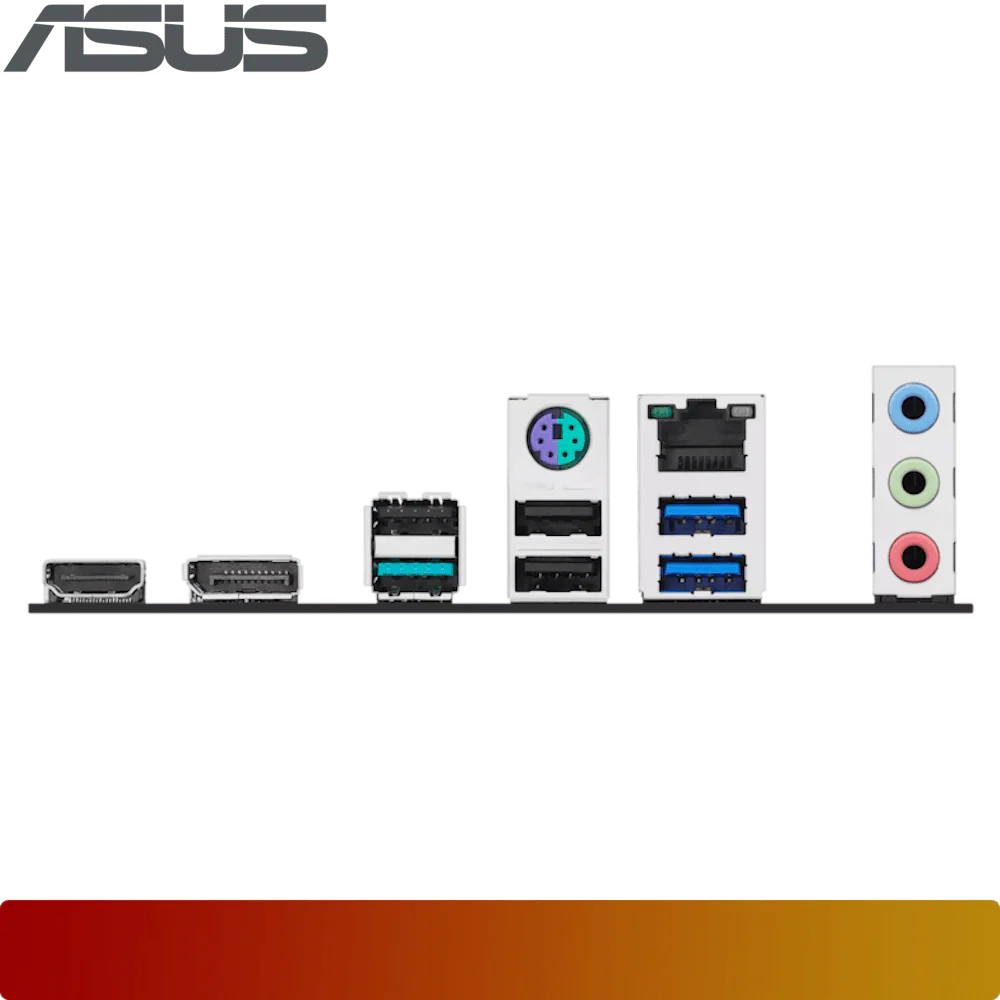

| Back Panel I/O Ports | 1 x DisplayPort 1 x HDMI™ port 1 x Realtek 2.5Gb Ethernet port 1 x USB 10Gbps Type-A port 2 x USB 5Gbps Type-A ports 3 x USB 2.0 Type-A ports 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| Operating System | Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | Micro-ATX Form Factor (24.4 cm x 22.2 cm / 9.6 inch x 8.75 inch) |
$52.90
Original: $176.35
-70%ASUS PRIME B860M-K-CSM—
$176.35
$52.90Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Model | PRIME B860M-K CSM |
|---|---|
| CPU | Supports Intel® Core™ Ultra Processors (Series 2), LGA1851 Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Chipset | Intel® B860 Chipset |
| Memory | 2 x DIMM slots, max. 128GB, DDR5 Supports up to 8800+ MT/s (OC), Non-ECC, Un-buffered DIMM Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMP III) support |
| Graphics | 1 x DisplayPort (Supports max. 4K@60Hz, DisplayPort 1.4) 1 x HDMI™ port (Supports max. 4K@60Hz, HDMI 2.1) |
| Expansion Slots | Intel® Core™ Ultra Processors (Series 2): 1 x PCIe 4.0 x16 slot Intel® B860 Chipset: 2 x PCIe 4.0 x1 slots |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports M.2_1 slot: PCIe 5.0 x4 mode M.2_2 slot: PCIe 4.0 x4 mode 4 x SATA 6Gb/s ports |
| Ethernet | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
| USB (Rear) | 1 x USB 10Gbps Type-A port 2 x USB 5Gbps Type-A ports 3 x USB 2.0 Type-A ports |
| USB (Front) | 1 x USB 5Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional ports 2 x USB 2.0 headers support 4 additional ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback |
| Back Panel I/O Ports | 1 x DisplayPort 1 x HDMI™ port 1 x Realtek 2.5Gb Ethernet port 1 x USB 10Gbps Type-A port 2 x USB 5Gbps Type-A ports 3 x USB 2.0 Type-A ports 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| Operating System | Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | Micro-ATX Form Factor (24.4 cm x 22.2 cm / 9.6 inch x 8.75 inch) |
