ASROCK Z890 Taichi Lite

Unique Feature
  • **Superb Productivity:** PCIe Gen5 (Graphics, M.2), Dual Channel DDR5, Thunderbolt™ 4/USB4 Type-C Ports (40 Gb/s)
  • **Rock-Solid Durability:** Server-Grade Low-Loss PCB, 20+1+2+1+1 Power Phase (110A SPS for VCore), Memory OC Shield, 20K Long-lasting Black Caps
  • **Ultrafast Connectivity:** 5G LAN, 2.5G LAN, 802.11be Wi-Fi 7 Module
CPU Supports **Intel® Core™ Ultra Processors (Series 2)** (LGA1851)
Chipset Intel® Z890
Power Design 20+1+2+1+1 Power Phase, 110A SPS for VCore
Memory Dual Channel DDR5 Memory Technology
4 x DDR5 DIMM Slots
Max. capacity of system memory: **256GB**
Supports up to **DDR5 9600+(OC)**
Expansion Slots 1 x **PCIe 5.0 x16** Slot (PCIE1)
1 x **PCIe 4.0 x16** Slot (PCIE2, supports x4 mode)
Graphics Output 1 x **HDMI**
2 x **Thunderbolt™ 4/USB4 Type-C**
Storage (M.2 & SATA) 4 x SATA3 6.0 Gb/s Connectors
1 x **Blazing M.2** Socket (**PCIe Gen5x4**)
4 x **Hyper M.2** Socket (**PCIe Gen4x4**)
1 x **Hyper M.2** Socket (PCIe Gen4x4 & SATA3)
Audio Realtek ALC4082 5.1 CH HD Audio Codec, **ESS SABRE9219 DAC**, WIMA Audio Cap, **Nahimic Audio**
LAN **5Gbps LAN** (Realtek RTL8126) + **2.5G LAN** (Realtek RTL8125)
Wireless LAN **802.11be Wi-Fi 7 + Bluetooth**

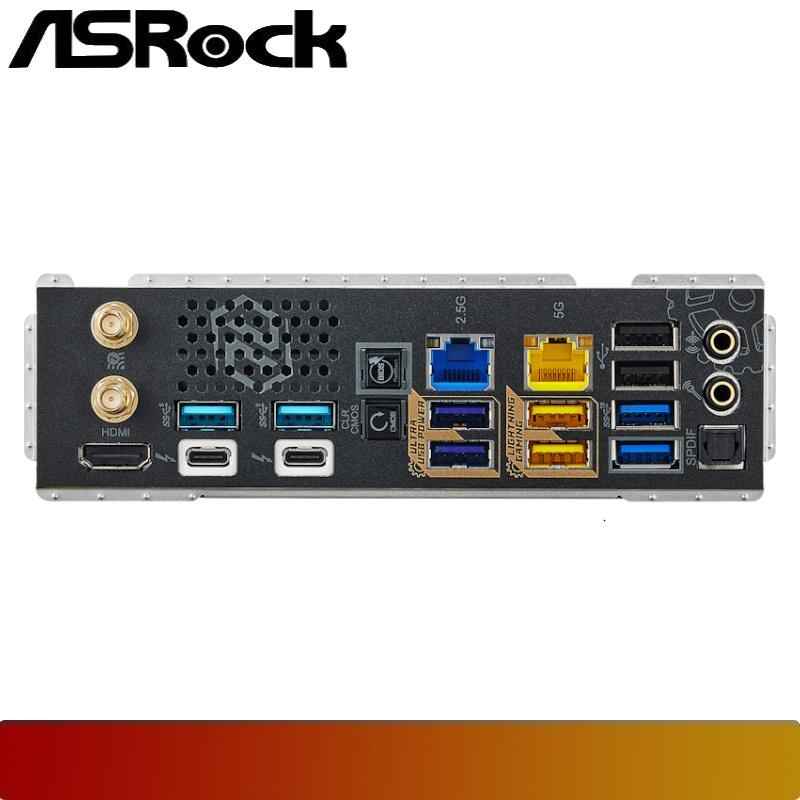

Rear Panel I/O 2x Antenna Ports, 1x HDMI, 1x Optical SPDIF Out
**2x Thunderbolt™ 4 Type-C** (40 Gb/s)
4x USB 3.2 Gen2 Type-A (10 Gb/s), 4x USB 3.2 Gen1, 2x USB 2.0
2x RJ-45 LAN, Clear CMOS Button, BIOS Flashback Button, Audio Jacks.
Form Factor **ATX** Form Factor (30.5 cm x 24.4 cm), 8 Layer PCB
OS Microsoft Windows® 11 64-bit
Accessories SATA Cables (4), Wi-Fi Antenna (1), ARGB Splitter Cable (1), Thermistor Cables (3), M.2 Screws/Standoffs.
$368.69
