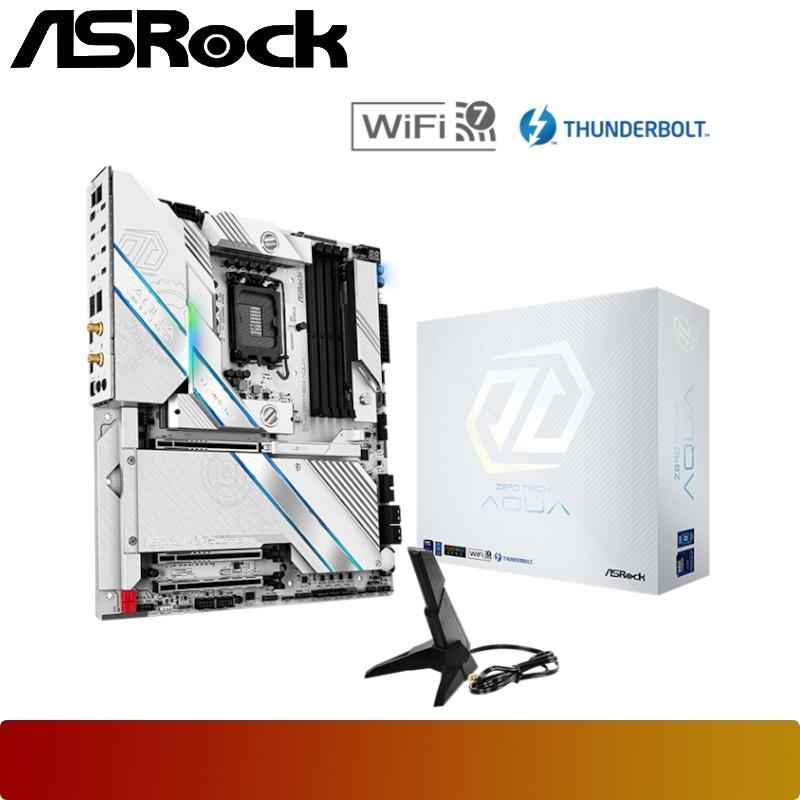

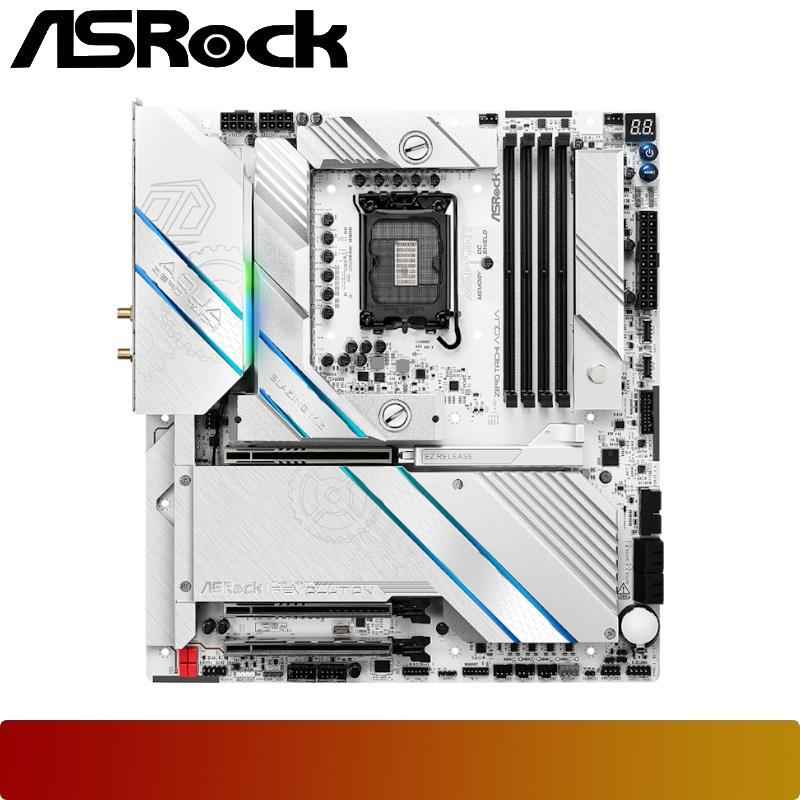

ASROCK Z890 TAICHI AQUA
| Unique Features | Detachable VRM & M.2 Water Block 28+1+2+1+1 Power Phase, 110A SPS for VCore All USB Type-C Rear I/O Configuration (Dual Thunderbolt 4) |
| CPU | Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851) |
| Chipset | Intel® Z890 |
| Memory (RAM) | Dual Channel DDR5 Memory Technology 4 x DDR5 DIMM Slots, max. 256GB Supports up to DDR5 9600+(OC) Supports XMP 3.0 |
| Onboard Graphics | Integrated Graphics Outputs (CPU Dependent): 2 x Thunderbolt™ 4/USB4 Type-C (max. 8K 60Hz) [NO OTHER DEDICATED DISPLAY PORTS] |
| Audio | 5.1 CH HD Audio (Realtek ALC4082 Codec, ESS SABRE9219 DAC) |
| LAN & WiFi | 2 x RJ-45 LAN (Marvell 10G & Realtek 5G) Killer 802.11be Wi-Fi 7 + Bluetooth 5.4 |
| Expansion Slots | 2 x PCIe 5.0 x16 Slots (From CPU) 1 x PCIe 4.0 x16 Slot (x4 mode) [NO OPEN M.2 (Key E) SLOTS; WiFi is integrated] |
| Storage Interface | 2 x Blazing M.2 (PCIe Gen5x4) up to 128 Gb/s 4 x Hyper M.2 (PCIe Gen4x4) up to 64 Gb/s (Total 6 M.2 Slots) 4 x SATA3 6.0 Gb/s Connectors Supports RAID 0/1/5/10 (SATA), RAID 0/1/5 (M.2) |
| USB Ports | Rear: - 2x Thunderbolt™ 4 Type-C, 4x USB 3.2 Gen2 Type-C, 4x USB 3.2 Gen1 Type-C Front Header: - 1 x USB 3.2 Gen2x2 Type-C, 1 x USB 3.2 Gen1 Header, 2 x USB 2.0 Headers |

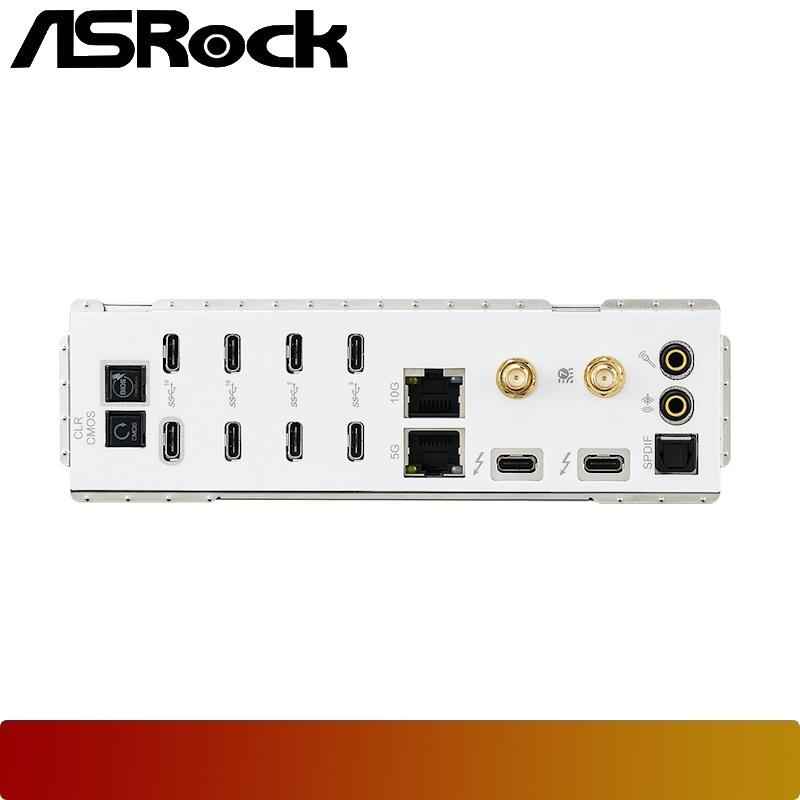

| Rear I/O Ports | Video/Data Ports: 2x Thunderbolt™ 4/USB4 Type-C LAN & Antenna Ports: 2x RJ-45 LAN, ASRock WiFi 7 Antenna Ports Audio Ports: Optical SPDIF Out, HD Audio Jacks |
| Form Factor | Extended ATX (30.5 cm x 27.4 cm) |
| Operating System | Microsoft Windows 11 64-bit |
$261.94
Original: $873.14
-70%ASROCK Z890 TAICHI AQUA—
$873.14
$261.94Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Unique Features | Detachable VRM & M.2 Water Block 28+1+2+1+1 Power Phase, 110A SPS for VCore All USB Type-C Rear I/O Configuration (Dual Thunderbolt 4) |
| CPU | Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851) |
| Chipset | Intel® Z890 |
| Memory (RAM) | Dual Channel DDR5 Memory Technology 4 x DDR5 DIMM Slots, max. 256GB Supports up to DDR5 9600+(OC) Supports XMP 3.0 |
| Onboard Graphics | Integrated Graphics Outputs (CPU Dependent): 2 x Thunderbolt™ 4/USB4 Type-C (max. 8K 60Hz) [NO OTHER DEDICATED DISPLAY PORTS] |
| Audio | 5.1 CH HD Audio (Realtek ALC4082 Codec, ESS SABRE9219 DAC) |
| LAN & WiFi | 2 x RJ-45 LAN (Marvell 10G & Realtek 5G) Killer 802.11be Wi-Fi 7 + Bluetooth 5.4 |
| Expansion Slots | 2 x PCIe 5.0 x16 Slots (From CPU) 1 x PCIe 4.0 x16 Slot (x4 mode) [NO OPEN M.2 (Key E) SLOTS; WiFi is integrated] |
| Storage Interface | 2 x Blazing M.2 (PCIe Gen5x4) up to 128 Gb/s 4 x Hyper M.2 (PCIe Gen4x4) up to 64 Gb/s (Total 6 M.2 Slots) 4 x SATA3 6.0 Gb/s Connectors Supports RAID 0/1/5/10 (SATA), RAID 0/1/5 (M.2) |
| USB Ports | Rear: - 2x Thunderbolt™ 4 Type-C, 4x USB 3.2 Gen2 Type-C, 4x USB 3.2 Gen1 Type-C Front Header: - 1 x USB 3.2 Gen2x2 Type-C, 1 x USB 3.2 Gen1 Header, 2 x USB 2.0 Headers |
| Rear I/O Ports | Video/Data Ports: 2x Thunderbolt™ 4/USB4 Type-C LAN & Antenna Ports: 2x RJ-45 LAN, ASRock WiFi 7 Antenna Ports Audio Ports: Optical SPDIF Out, HD Audio Jacks |
| Form Factor | Extended ATX (30.5 cm x 27.4 cm) |
| Operating System | Microsoft Windows 11 64-bit |
