ASROCK Z790 PG-ITX/TB4

Unique Features
  • 2 x USB4 Thunderbolt™ 4 Type-C Ports (40 Gb/s)
  • 10+1+1 Power Phase Design, 105A SPS
  • Killer 2.5G LAN & Killer 802.11ax Wi-Fi 6E Module
  • Killer DoubleShot™ Pro
  • PCIe Gen5 (Graphic)
CPU (Soket) Mendukung Prosesor Intel® Core™ Generasi ke-14, ke-13, & ke-12 (LGA1700).
Chipset Intel® Z790
Memory Dual Channel DDR5 Memory Technology
2 x DDR5 DIMM Slots
Kapasitas Maksimal: 128GB
Mendukung DDR5 non-ECC, un-buffered memory hingga 7000+(OC)
Expansion Slots 1 x PCIe 5.0 x16 Slot (mode x16) (Dari CPU)
1 x Vertical M.2 Socket (Key E) untuk Modul WiFi/BT (Dari Chipset)
Storage (M.2 & SATA) Total 3x M.2 Slots:
1 x Hyper M.2 (PCIe Gen4x4 - 64 Gb/s) (Dari CPU)
2 x Hyper M.2 (PCIe Gen4x4, 1 slot juga mendukung SATA3) (Dari Chipset)
3 x SATA3 6.0 Gb/s Connectors
Graphics Output 2 x USB4 Thunderbolt™ 4 Type-C Ports (Max. 8K 60Hz)
1 x HDMI 2.1 Port (Max. 4K 60Hz)
1 x DisplayPort 1.4 (Max. 8K 60Hz / 5K 120Hz dengan DSC)
*Memerlukan CPU dengan Grafis Terintegrasi.
Audio 7.1 CH HD Audio (Realtek ALC4082 Audio Codec)
Nahimic Audio
LAN & Wireless LAN Kabel: Killer™ E3100X 2.5 Gigabit LAN
Nirkabel: 802.11ax Wi-Fi 6E + Bluetooth 5.3

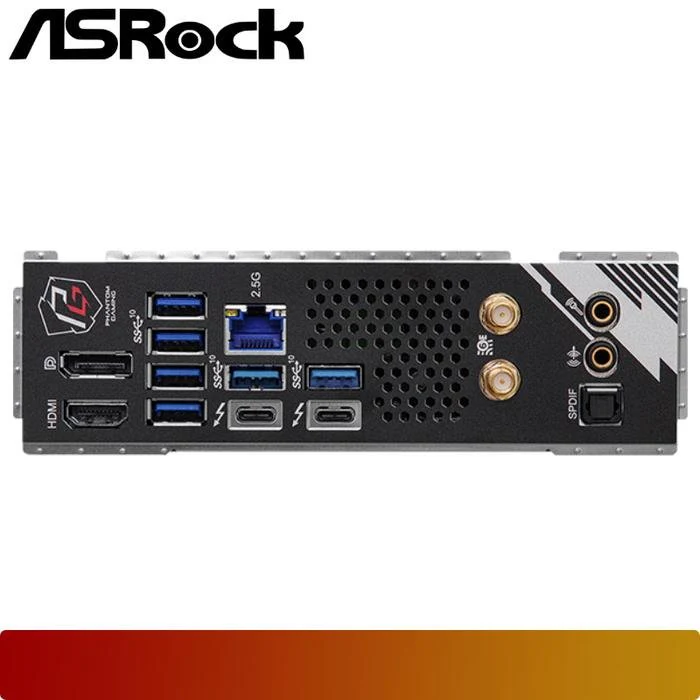

Rear Panel I/O 2x Antenna Ports, 1x HDMI, 1x DisplayPort 1.4
2x USB4 Thunderbolt™ 4 Type-C Ports (40 Gb/s)
6x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
1x RJ-45 LAN Port, 1x Optical SPDIF Out Port
1x Line Out Jack (Gold), 1x Microphone Input Jack (Gold)
Form Factor Mini-ITX Form Factor (17.0 cm x 17.0 cm)
OS Microsoft Windows® 11 64-bit / Windows 10 64-bit
$105.30

Original: $350.99

-70%
ASROCK Z790 PG-ITX/TB4—

$350.99

$105.30
