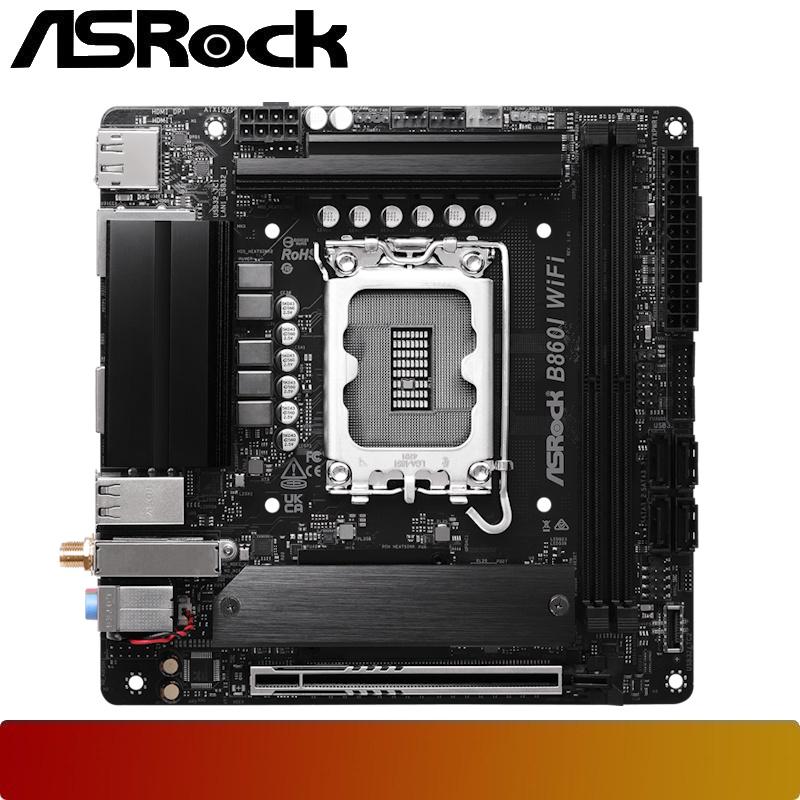

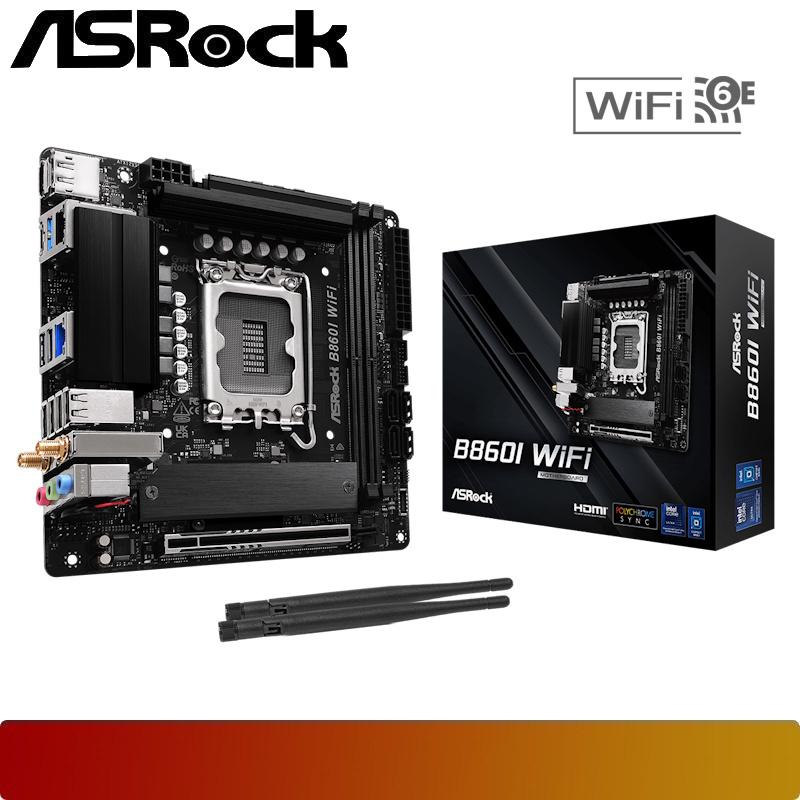

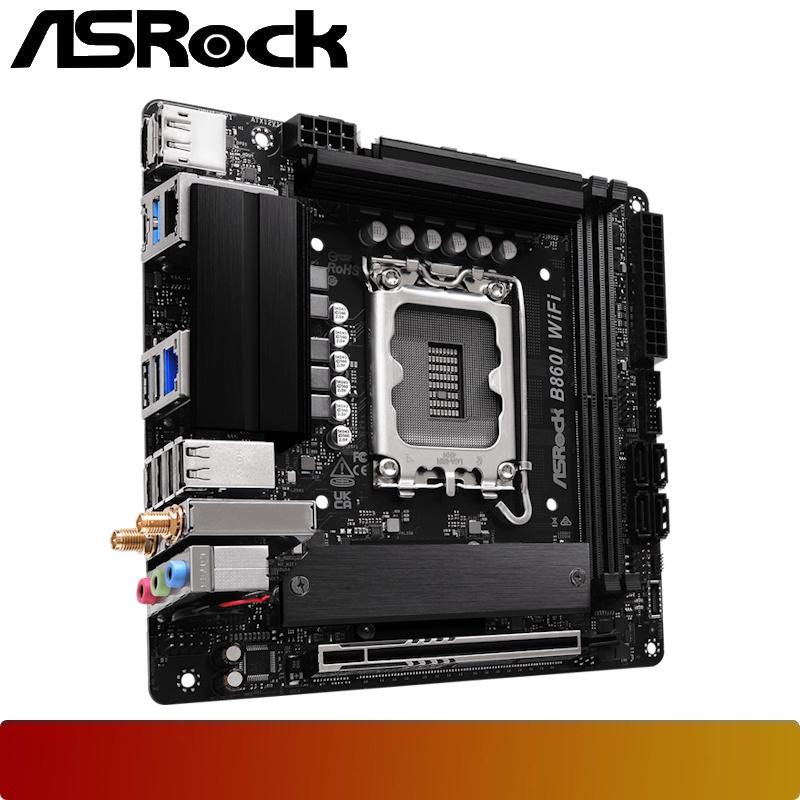

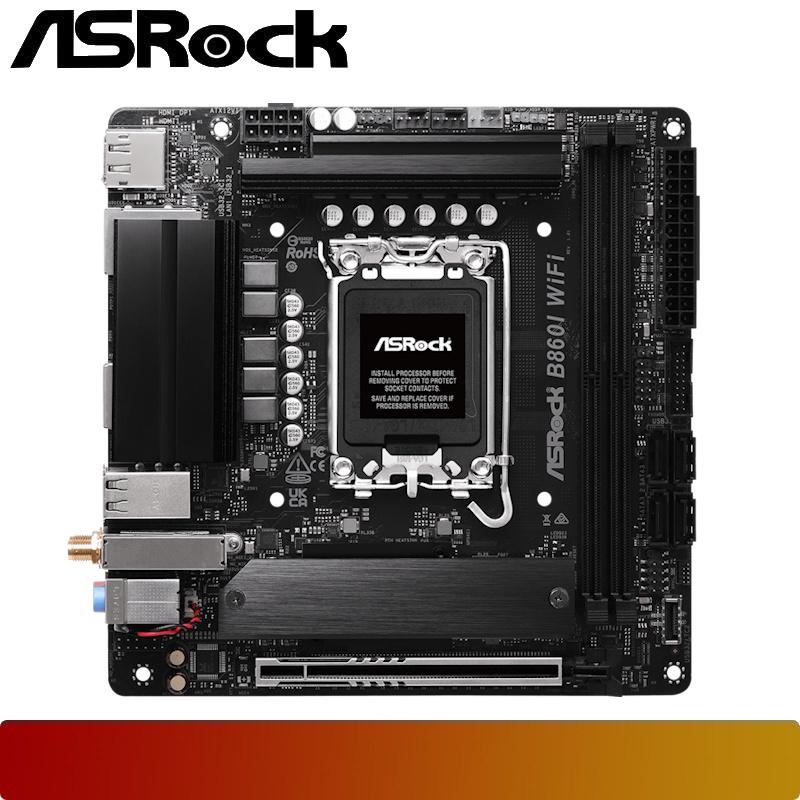

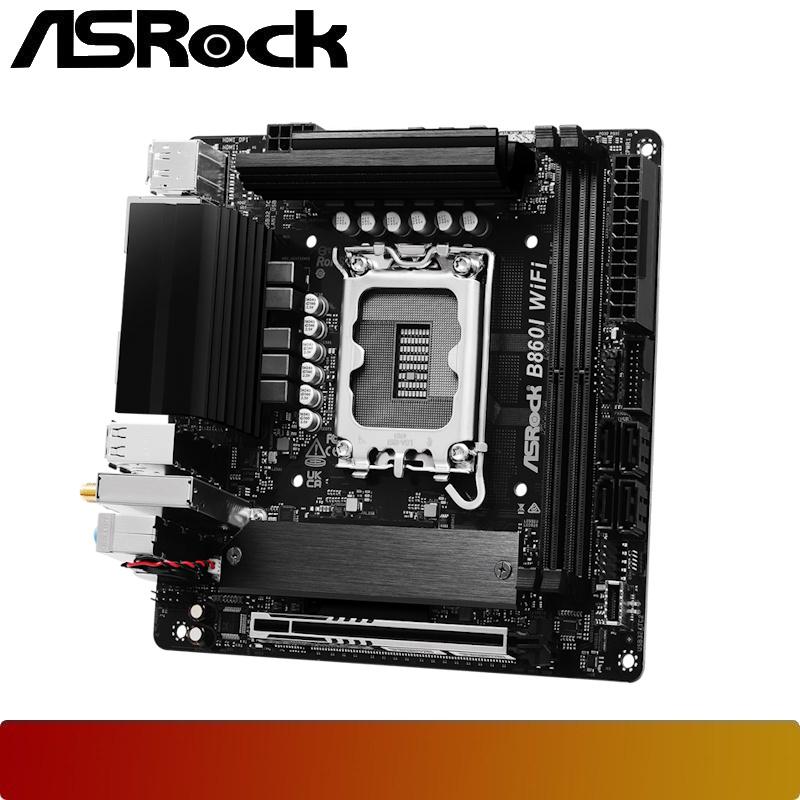

ASROCK B860I WiFi

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6

ASROCK B860I WiFi

Unique Features
  • 8+1+1+1+1 Power Phase Design, SPS (Smart Power Stage)
  • 8 Layer PCB
  • PCIe Gen5 Blazing M.2 (128 Gb/s)
  • USB 3.2 Gen2x2 Type-C (20 Gb/s)
  • Dual LAN (2.5G & Gigabit) and Wi-Fi 6E 802.11axe
  • Nahimic Audio
CPU Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851).
Chipset Intel® B860
Memory Dual Channel DDR5 Memory Technology
2 x DDR5 DIMM Slots
Max. capacity: 128GB
Supports up to 8933+(OC)
Expansion Slots 1 x PCIe 5.0 x16 Slot (PCIE1)
1 x Vertical M.2 Socket (Key E) for WiFi/BT Module
Storage (M.2 & SATA) 1 x Blazing M.2 Socket (PCIe Gen5x4 - 128 Gb/s)
1 x Hyper M.2 Socket (PCIe Gen4x4 - 64 Gb/s)
4 x SATA3 6.0 Gb/s Connectors
Graphics Output 1 x HDMI 2.1 Port (up to 4K 120Hz)
1 x DisplayPort 1.4 (up to 8K 60Hz / 5K 120Hz)
*Requires CPU with Integrated Graphics.
Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Nahimic Audio
LAN 1 x 2.5 Gigabit LAN (Dragon RTL8125BG)
1 x Gigabit LAN (Intel® I219V)
Wireless LAN 802.11axe Wi-Fi 6E Module
Bluetooth 5.3

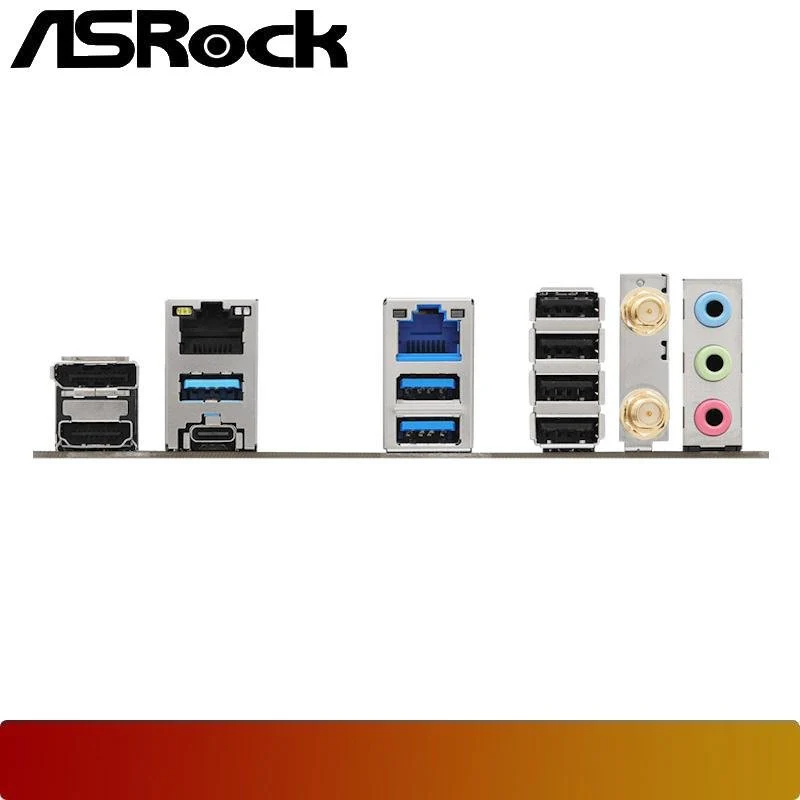

Rear Panel I/O 2x Antenna Ports, HDMI, DisplayPort, 1x USB 3.2 Gen2x2 Type-C, 1x USB 3.2 Gen2 Type-A, 2x USB 3.2 Gen1, 4x USB 2.0, 2x RJ-45 LAN Ports, HD Audio Jacks.
Form Factor Mini-ITX Form Factor (17.0 cm x 17.0 cm)
OS Microsoft Windows® 11 64-bit
$50.25

Original: $167.50

-70%
ASROCK B860I WiFi—

$167.50

$50.25

Product Information

Shipping & Returns

Description

Unique Features
  • 8+1+1+1+1 Power Phase Design, SPS (Smart Power Stage)
  • 8 Layer PCB
  • PCIe Gen5 Blazing M.2 (128 Gb/s)
  • USB 3.2 Gen2x2 Type-C (20 Gb/s)
  • Dual LAN (2.5G & Gigabit) and Wi-Fi 6E 802.11axe
  • Nahimic Audio
CPU Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851).
Chipset Intel® B860
Memory Dual Channel DDR5 Memory Technology
2 x DDR5 DIMM Slots
Max. capacity: 128GB
Supports up to 8933+(OC)
Expansion Slots 1 x PCIe 5.0 x16 Slot (PCIE1)
1 x Vertical M.2 Socket (Key E) for WiFi/BT Module
Storage (M.2 & SATA) 1 x Blazing M.2 Socket (PCIe Gen5x4 - 128 Gb/s)
1 x Hyper M.2 Socket (PCIe Gen4x4 - 64 Gb/s)
4 x SATA3 6.0 Gb/s Connectors
Graphics Output 1 x HDMI 2.1 Port (up to 4K 120Hz)
1 x DisplayPort 1.4 (up to 8K 60Hz / 5K 120Hz)
*Requires CPU with Integrated Graphics.
Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Nahimic Audio
LAN 1 x 2.5 Gigabit LAN (Dragon RTL8125BG)
1 x Gigabit LAN (Intel® I219V)
Wireless LAN 802.11axe Wi-Fi 6E Module
Bluetooth 5.3
Rear Panel I/O 2x Antenna Ports, HDMI, DisplayPort, 1x USB 3.2 Gen2x2 Type-C, 1x USB 3.2 Gen2 Type-A, 2x USB 3.2 Gen1, 4x USB 2.0, 2x RJ-45 LAN Ports, HD Audio Jacks.
Form Factor Mini-ITX Form Factor (17.0 cm x 17.0 cm)
OS Microsoft Windows® 11 64-bit
