ASROCK B860 Pro RS WiFi

Unique Features
  • 10+1+1+1+1 Power Phase Design, Dr.MOS
  • PCIe Gen5 Blazing M.2 (128 Gb/s)
  • USB 3.2 Gen2x2 Type-C (20 Gb/s)
  • Dragon 2.5G LAN and Wi-Fi 6E 802.11axe
  • Pre-Installed I/O Shield
  • Nahimic Audio
CPU Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851).
Chipset Intel® B860
Memory Dual Channel DDR5 Memory Technology
4 x DDR5 DIMM Slots
Max. capacity: 256GB
Supports up to 8666+(OC)
Expansion Slots 1 x PCIe 5.0 x16 Slot (PCIE1)
1 x PCIe 4.0 x16 Slot (PCIE2, x4 mode)
1 x M.2 Socket (Key E) for WiFi/BT Module
Storage (M.2 & SATA) 1 x Blazing M.2 Socket (PCIe Gen5x4 - 128 Gb/s)
2 x Hyper M.2 Socket (PCIe Gen4x4 - 64 Gb/s)
4 x SATA3 6.0 Gb/s Connectors
Graphics Output 1 x HDMI 2.1 Port (up to 4K 120Hz)
1 x DisplayPort 1.4 (up to 8K 60Hz / 5K 120Hz)
*Requires CPU with Integrated Graphics.
Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Nahimic Audio
LAN 2.5 Gigabit LAN (Dragon RTL8125BG)
Wireless LAN 802.11axe Wi-Fi 6E Module
Bluetooth 5.3

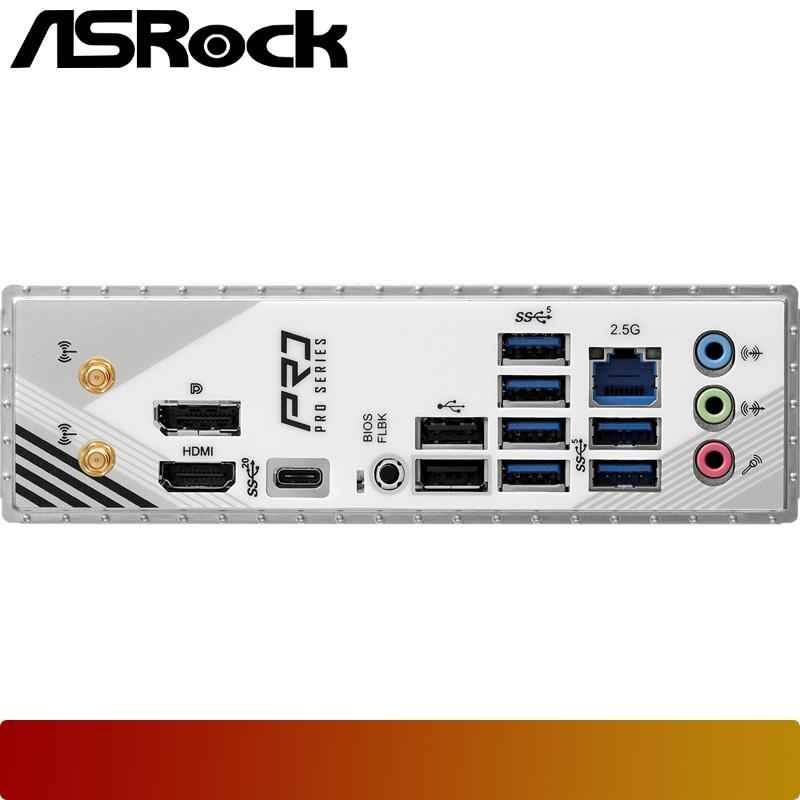

Rear Panel I/O 2x Antenna Ports, HDMI, DisplayPort, 1x USB 3.2 Gen2x2 Type-C, 6x USB 3.2 Gen1, 2x USB 2.0, RJ-45 LAN, BIOS Flashback Button, HD Audio Jacks.
Form Factor ATX Form Factor (30.5 cm x 24.4 cm)
OS Microsoft Windows® 11 64-bit
$52.02

Original: $173.40

-70%
ASROCK B860 Pro RS WiFi—

$173.40

$52.02
