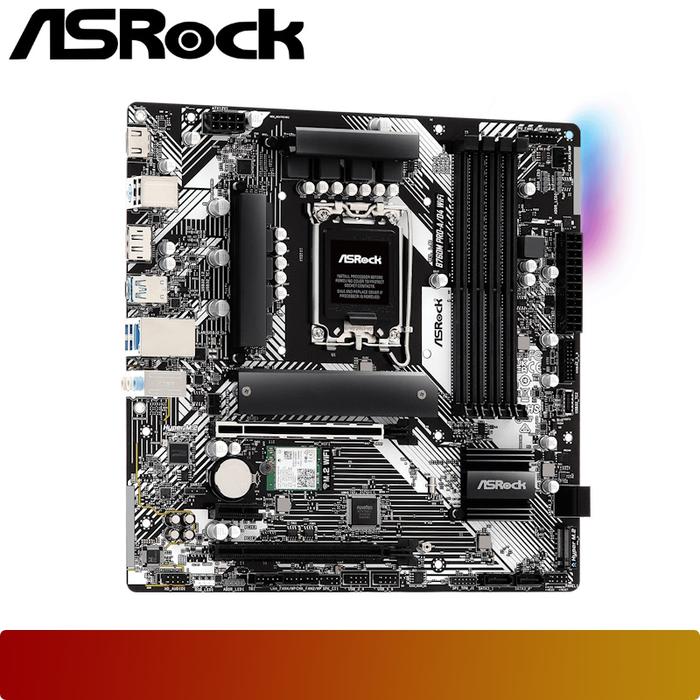

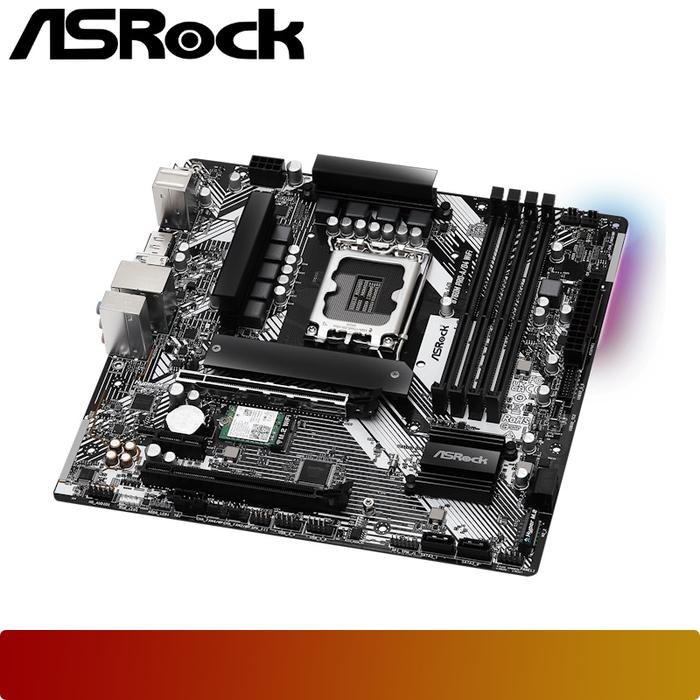

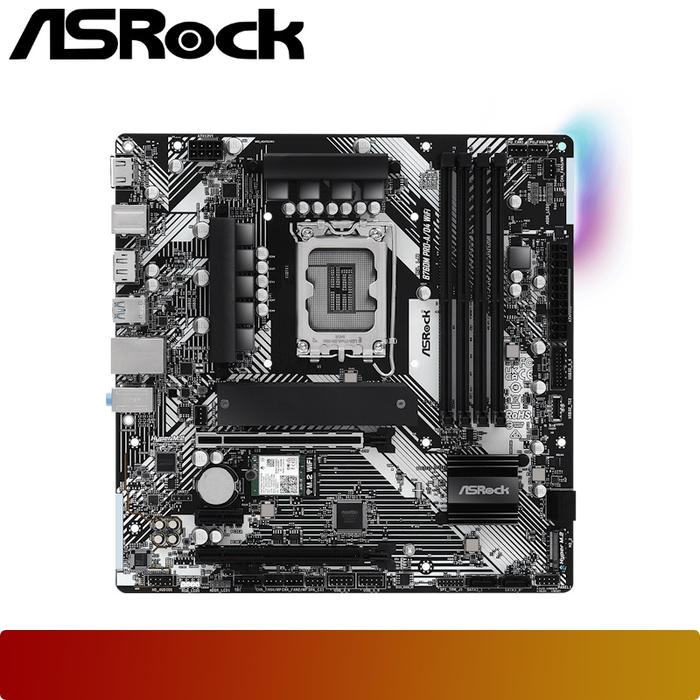

ASROCK B760M Pro-A/D4 WiFi

Unique Feature
Rock-Solid Durability
- 7+1+1 Power Phase, Dr.MOS for VCore+GT
-ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology

CPU
- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)

Chipset
- Intel® B760

Memory
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots)
- Max. capacity of system memory: 128GB**

Graphics
- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

LAN
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Dragon 2.5G LAN Software

Wireless LAN
- 802.11axe Wi-Fi 6E Module
- Supports IEEE 802.11a/b/g/n/ac/ax/axe
- Supports Dual-Band 2x2 160MHz with extended 6GHz band* support

Slots
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
- 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*
- 1 x PCIe 4.0 x1 Slot (PCIE2)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Storage
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4
- 4 x SATA3 6.0 Gb/s Connectors

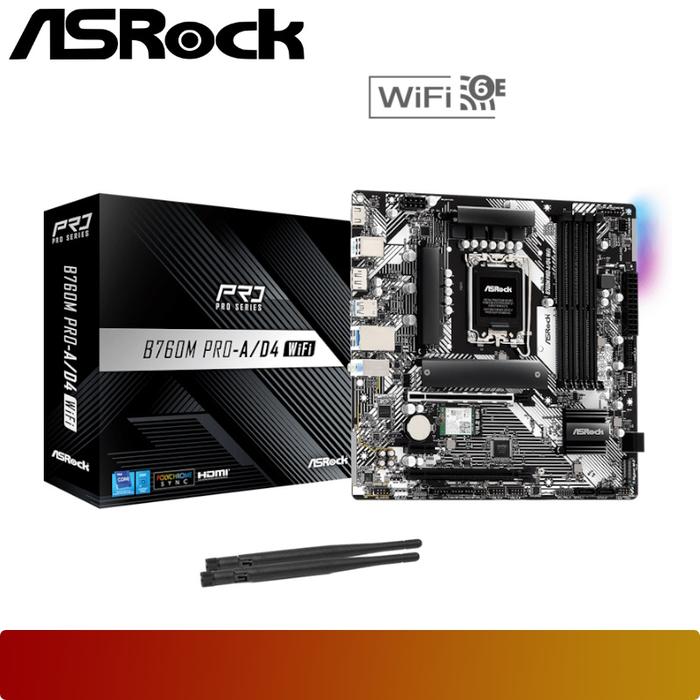

Accessories
- 1 x User Manual
- 1 x I/O Shield
- 2 x SATA Data Cables
- 2 x SMA WiFi Antenna Cables
- 2 x ASRock WiFi 2.4/5/6 GHz Antennas
- 1 x Plastic Cover for Wi-Fi Module
- 2 x Screws for M.2 Sockets
- 1 x Standoff for M.2 Socket

Form Factor
- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

OS
- Microsoft Windows® 10 64-bit / 11 64-bit
