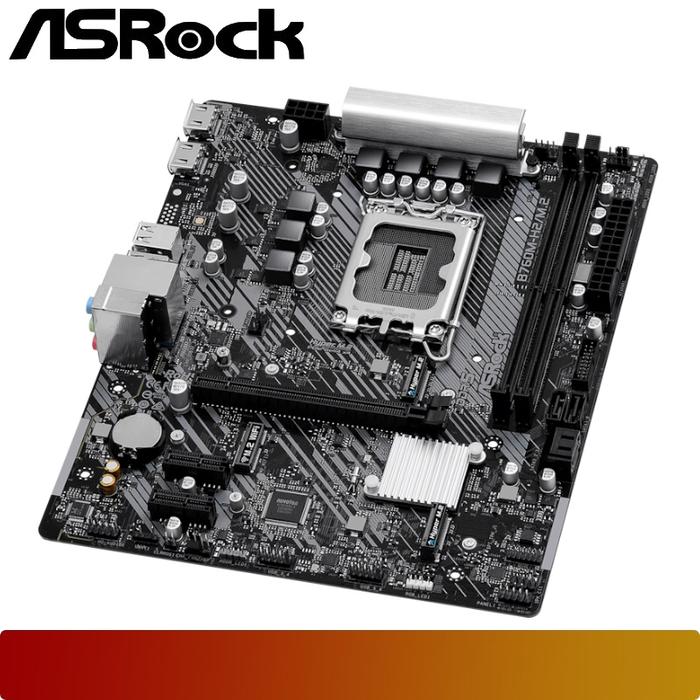

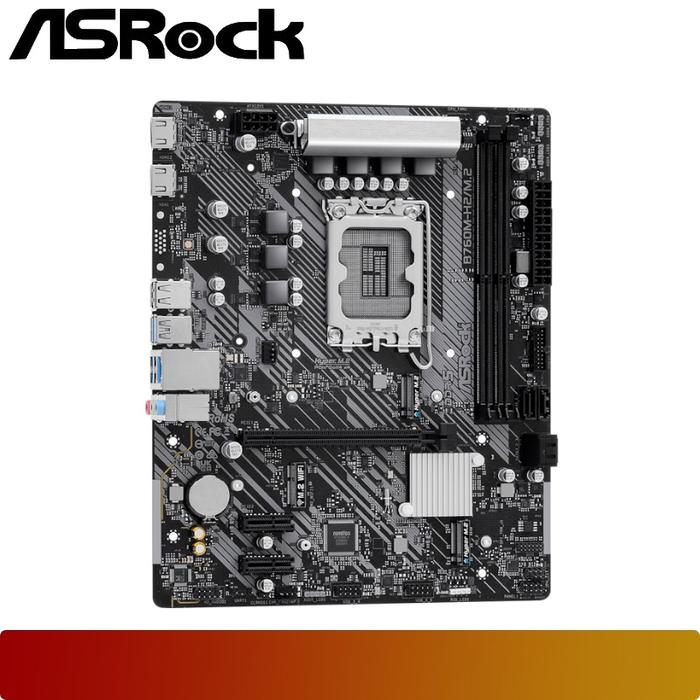

ASROCK B760M-H2/M.2
| Unique Features |
|
|---|---|
| CPU (Soket) | Mendukung Prosesor Intel® Core™ Generasi ke-14, ke-13, & ke-12 (LGA1700). |
| Chipset | Intel® B760 |
| Memory | Dual Channel DDR4 Memory Technology 2 x DDR4 DIMM Slots Kapasitas Maksimal: 64GB Mendukung DDR4 non-ECC, un-buffered memory hingga 5333+(OC) |
| Expansion Slots | 1 x PCIe 4.0 x16 Slot (mode x16) 1 x PCIe 3.0 x1 Slot 1 x M.2 Socket (Key E) untuk Modul WiFi/BT* *Modul WiFi dijual terpisah. |
| Storage (M.2 & SATA) | Total 2x M.2 Slots: 1 x Hyper M.2 (PCIe Gen4x4 - 64 Gb/s) 1 x M.2 (PCIe Gen3x4 & SATA3 - 32 Gb/s) 4 x SATA3 6.0 Gb/s Connectors |
| Graphics Output | 1 x HDMI 2.1 Port (Max. 4K 60Hz) 1 x D-Sub (VGA) Port (Max. 1920x1200 60Hz) *Memerlukan CPU dengan Grafis Terintegrasi. |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| LAN | Realtek Gigabit LAN (10/100/1000 Mb/s) |

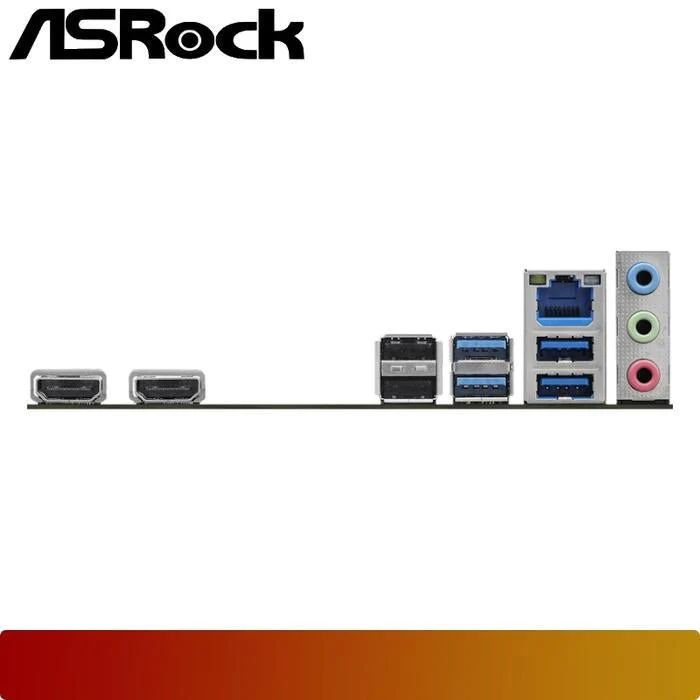

| Rear Panel I/O | 1x PS/2 Keyboard/Mouse Port 1x D-Sub, 1x HDMI 2x USB 3.2 Gen1 Type-A Ports (5 Gb/s) 4x USB 2.0 Ports 1x RJ-45 LAN Port HD Audio Jacks |
| Form Factor | Micro ATX Form Factor (20.3 cm x 22.9 cm) |
| OS | Microsoft Windows® 11 64-bit / Windows 10 64-bit |
$32.02
Original: $106.73
-70%ASROCK B760M-H2/M.2—
$106.73
$32.02Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Unique Features |
|
|---|---|
| CPU (Soket) | Mendukung Prosesor Intel® Core™ Generasi ke-14, ke-13, & ke-12 (LGA1700). |
| Chipset | Intel® B760 |
| Memory | Dual Channel DDR4 Memory Technology 2 x DDR4 DIMM Slots Kapasitas Maksimal: 64GB Mendukung DDR4 non-ECC, un-buffered memory hingga 5333+(OC) |
| Expansion Slots | 1 x PCIe 4.0 x16 Slot (mode x16) 1 x PCIe 3.0 x1 Slot 1 x M.2 Socket (Key E) untuk Modul WiFi/BT* *Modul WiFi dijual terpisah. |
| Storage (M.2 & SATA) | Total 2x M.2 Slots: 1 x Hyper M.2 (PCIe Gen4x4 - 64 Gb/s) 1 x M.2 (PCIe Gen3x4 & SATA3 - 32 Gb/s) 4 x SATA3 6.0 Gb/s Connectors |
| Graphics Output | 1 x HDMI 2.1 Port (Max. 4K 60Hz) 1 x D-Sub (VGA) Port (Max. 1920x1200 60Hz) *Memerlukan CPU dengan Grafis Terintegrasi. |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| LAN | Realtek Gigabit LAN (10/100/1000 Mb/s) |
| Rear Panel I/O | 1x PS/2 Keyboard/Mouse Port 1x D-Sub, 1x HDMI 2x USB 3.2 Gen1 Type-A Ports (5 Gb/s) 4x USB 2.0 Ports 1x RJ-45 LAN Port HD Audio Jacks |
| Form Factor | Micro ATX Form Factor (20.3 cm x 22.9 cm) |
| OS | Microsoft Windows® 11 64-bit / Windows 10 64-bit |
