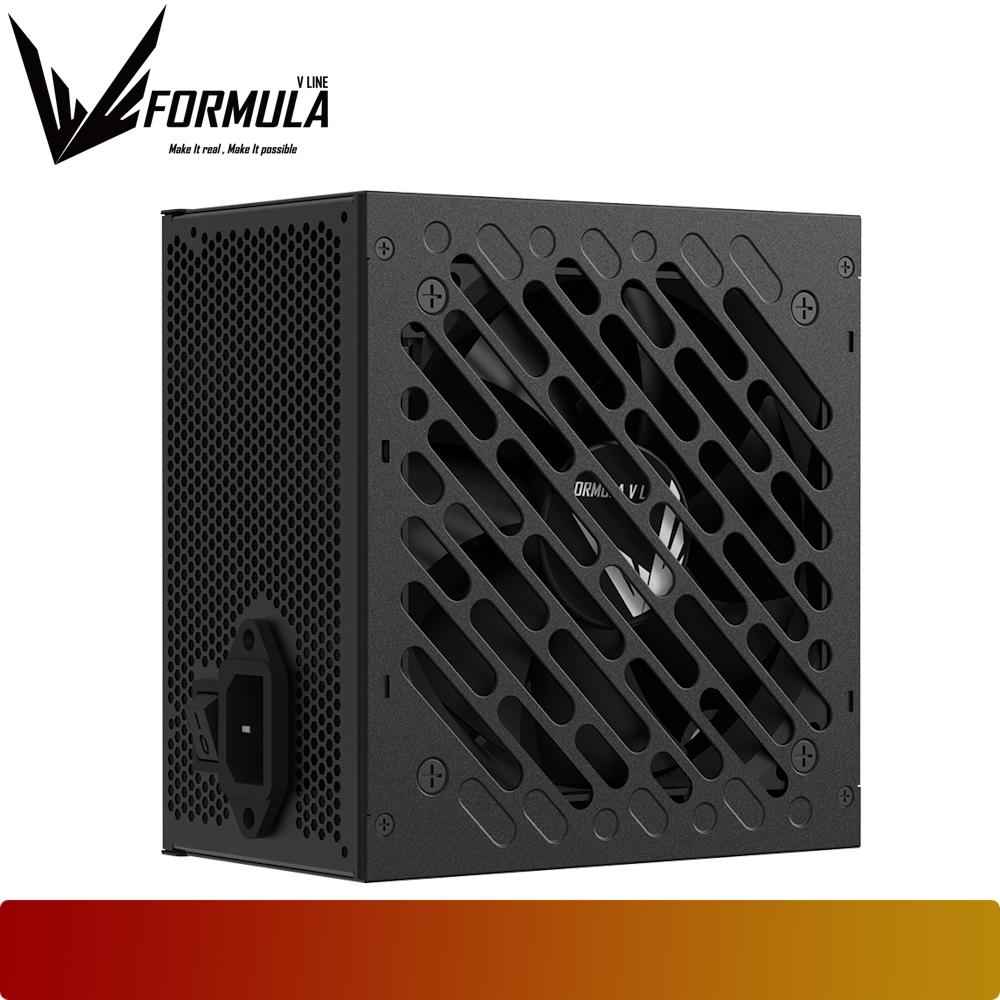

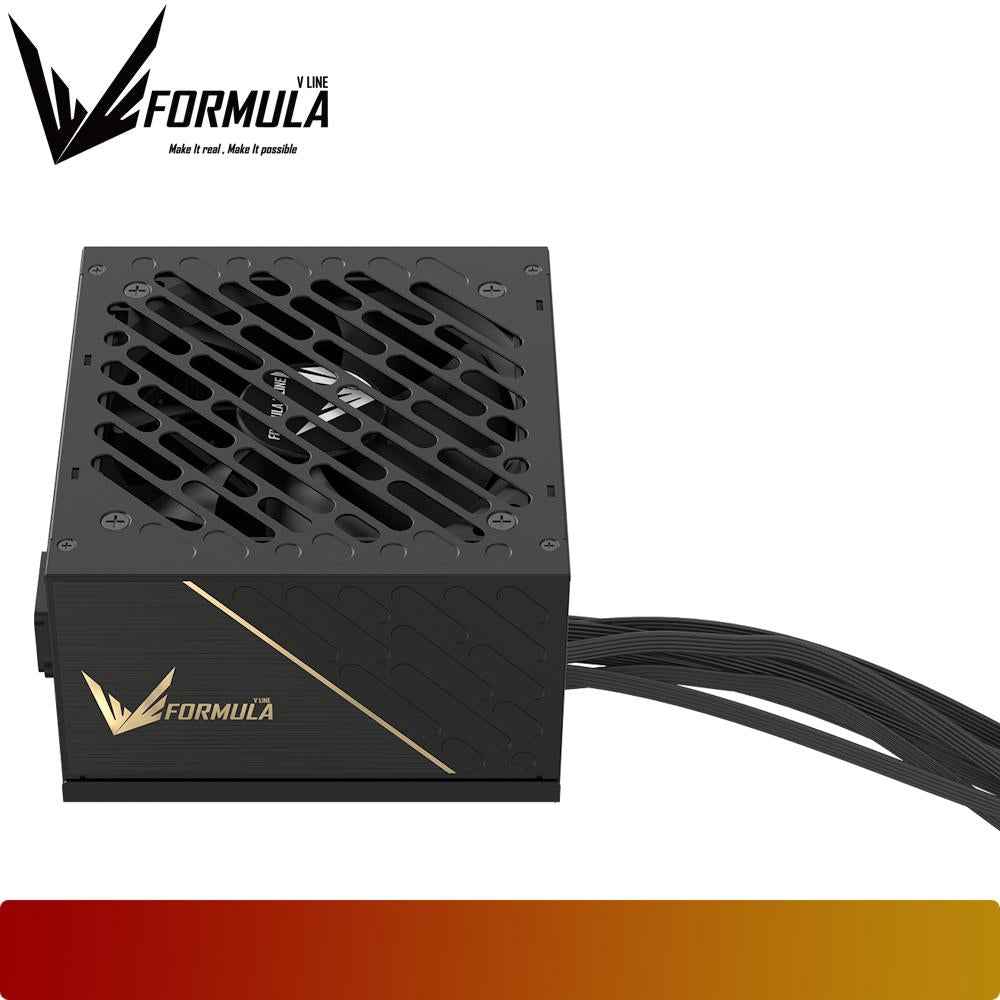

FORMULA V LINE FV-650GD
| General | |
| Model | FV-650GD |
| Dimension | 140 x 150 x 86mm |
| Real Watts | 650W |
| Efficiency | 80Plus Gold |
| Input Voltage | Full range |
| Type | ATX3.1 |
| Main Capacitor | Japanese Capacitor |
| PFC | APFC |
| Fan | 120mm |
| Modular | Direct Cable |
| AC Input | |
| AC | 100-240V~, 8-4A / 50-60Hz |
| DC Output | |
| 3.3V | 18A |
| 5V | 18A |
| +12V | 54.1A |
| -12V | 0.3A |
| +5Vsb | 3.0A |
| Total Power | 650W |
| Cable SPEC | |
| Mainboard | 24P(550mm) x1 |
| CPU | P8(P8)(650mm)to(P4+4)(150mm) x1 |
| PCI-E | P8(6+2)(500mm)to(6+2)(150mm) x1 |
| SATA / IDE | SATA(500mm)/SATA(150mm)/SATA(150mm)/PATA(150mm) x2 |
$42.42
FORMULA V LINE FV-650GD—
$42.42
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| General | |
| Model | FV-650GD |
| Dimension | 140 x 150 x 86mm |
| Real Watts | 650W |
| Efficiency | 80Plus Gold |
| Input Voltage | Full range |
| Type | ATX3.1 |
| Main Capacitor | Japanese Capacitor |
| PFC | APFC |
| Fan | 120mm |
| Modular | Direct Cable |
| AC Input | |
| AC | 100-240V~, 8-4A / 50-60Hz |
| DC Output | |
| 3.3V | 18A |
| 5V | 18A |
| +12V | 54.1A |
| -12V | 0.3A |
| +5Vsb | 3.0A |
| Total Power | 650W |
| Cable SPEC | |
| Mainboard | 24P(550mm) x1 |
| CPU | P8(P8)(650mm)to(P4+4)(150mm) x1 |
| PCI-E | P8(6+2)(500mm)to(6+2)(150mm) x1 |
| SATA / IDE | SATA(500mm)/SATA(150mm)/SATA(150mm)/PATA(150mm) x2 |
