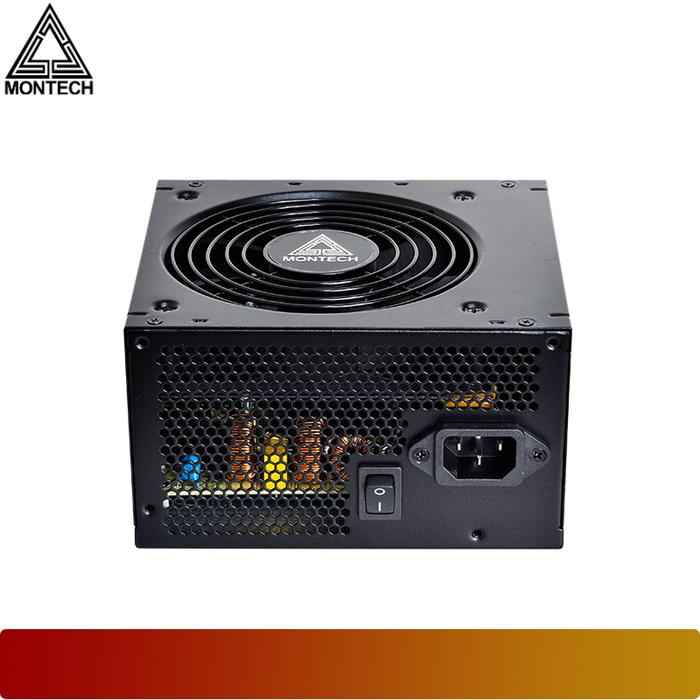

MONTECH BETA 650 BRONZE
| Product Name | BETA 650 |
| ATX Version | ATX12V |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240Vac |
| Input Current | 10A |
| Input Frequency | 47-63Hz |
| Dimensions (L*B*H) | 140*150*86mm |
| Fan Size | 120mm |
| Hold Up Time | 10msec (minimum) at 80% of full load at 230Vac input. |
| Efficiency | 83% Typically |
| MTBF | >100,000 Hours |
| Operating Temperature | 0-45°C |
| Protections | OVP / OPP / UVP / SCP |
| Regulatory | cTUVus / TUV / CB / CE / CCC / RoHS / FCC |

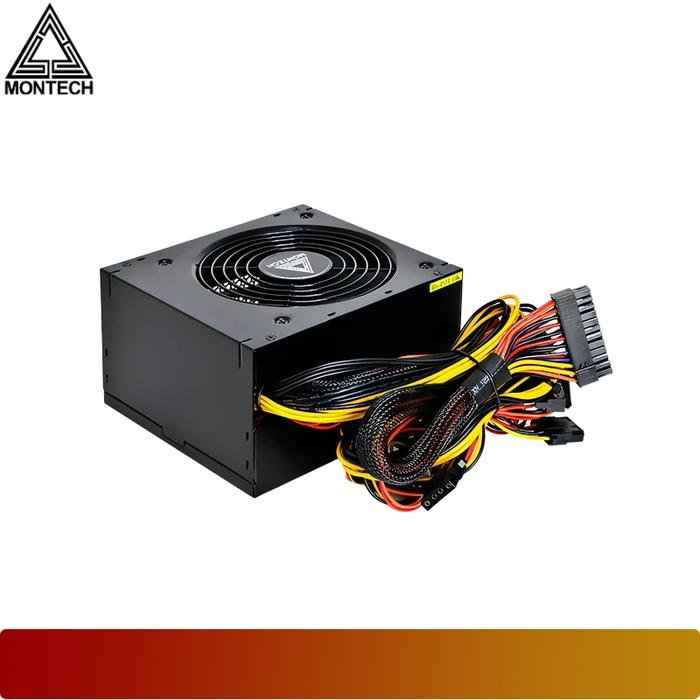

| Connectors | |
| M/B 20+4Pin | 1 |
| CPU 4+4Pin | 2 |
| PCIE 6+2 | 2 |
| SATA | 6 |
| Molex 4Pin | 2 |

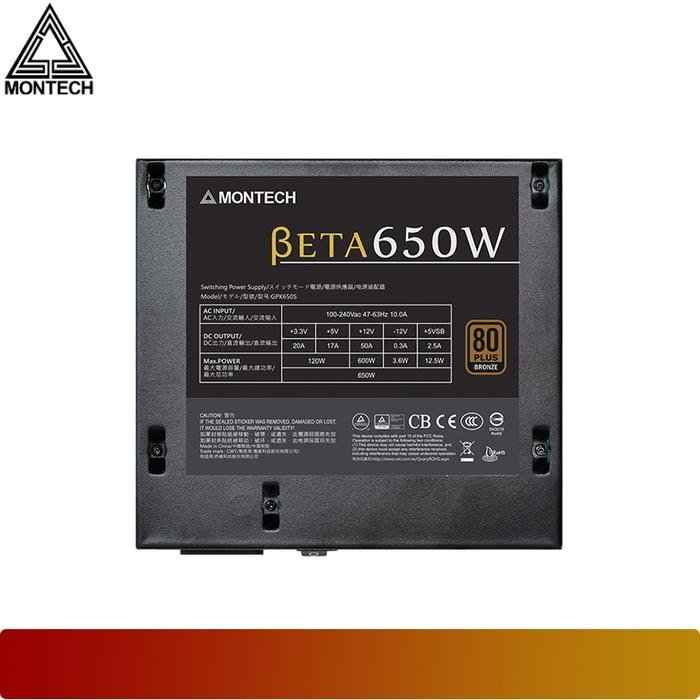

| AC Input / DC Output Details | |
| AC Input | 100-240Vac 47-63Hz 10.0A |
| DC Output | +3.3V | +5V | 12V | -12V | +5VSB |
| Max. Output Current | 20A | 17A | 50A | 0.3A | 2.5A |
| Max. Output Power | 120W | 600W | 3.6W | 12.5W |
| Total POWER | 650W |
$39.47
MONTECH BETA 650 BRONZE—
$39.47
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Product Name | BETA 650 |
| ATX Version | ATX12V |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240Vac |
| Input Current | 10A |
| Input Frequency | 47-63Hz |
| Dimensions (L*B*H) | 140*150*86mm |
| Fan Size | 120mm |
| Hold Up Time | 10msec (minimum) at 80% of full load at 230Vac input. |
| Efficiency | 83% Typically |
| MTBF | >100,000 Hours |
| Operating Temperature | 0-45°C |
| Protections | OVP / OPP / UVP / SCP |
| Regulatory | cTUVus / TUV / CB / CE / CCC / RoHS / FCC |
| Connectors | |
| M/B 20+4Pin | 1 |
| CPU 4+4Pin | 2 |
| PCIE 6+2 | 2 |
| SATA | 6 |
| Molex 4Pin | 2 |
| AC Input / DC Output Details | |
| AC Input | 100-240Vac 47-63Hz 10.0A |
| DC Output | +3.3V | +5V | 12V | -12V | +5VSB |
| Max. Output Current | 20A | 17A | 50A | 0.3A | 2.5A |
| Max. Output Power | 120W | 600W | 3.6W | 12.5W |
| Total POWER | 650W |
