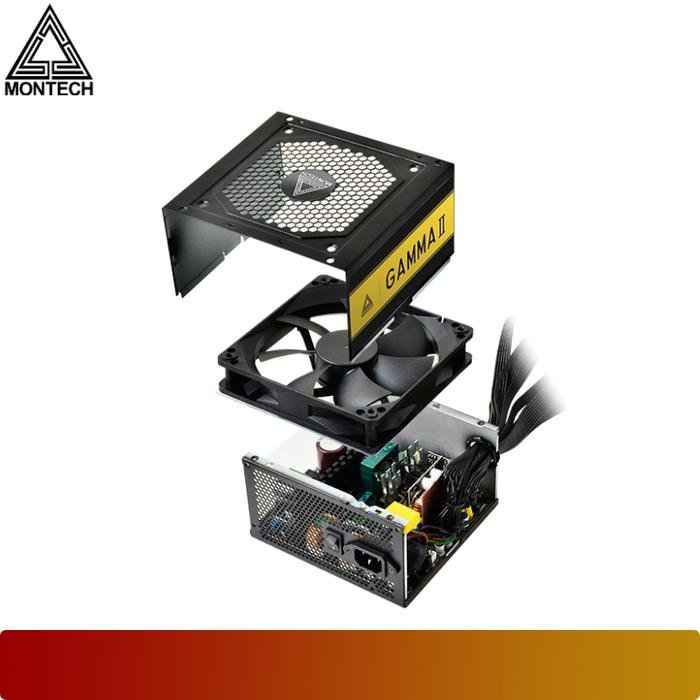

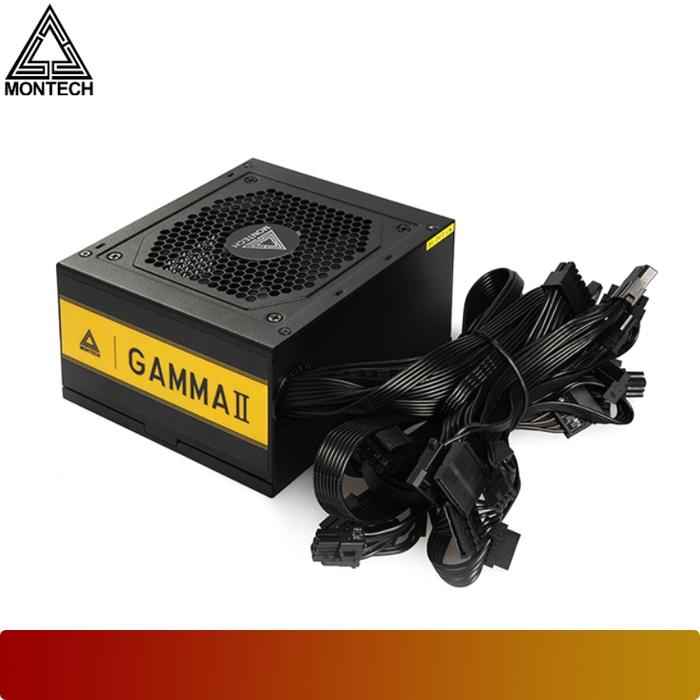

MONTECH GAMMA II 750 GOLD
| Product Name | GAMMA II 750 |
| ATX Version | ATX12V |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240Vac |
| Input Current | 10A |
| Input Frequency | 47-63Hz |
| Dimensions (L*B*H) | 140*150*86mm |
| Fan Size | 120mm |
| Hold Up Time | 10msec (minimum) at 80% of full load at 230Vac input. |
| Efficiency | 90% Typically |
| MTBF | >100,000 Hours |
| Operating Temperature | 0-45°C |
| Protections | OVP / OPP / UVP / SCP / OCP |
| Regulatory | cTUVus / TUV / CB / CE / RoHS / FCC |
| Connectors | |
| M/B 20+4Pin | 1 |
| CPU 4+4Pin | 2 |
| PCIE 6+2 | 4 |
| SATA | 8 |
| Molex 4Pin | 3 |
| FDD | 1 |
| AC Input / DC Output Details | |
| AC Input | 100-240Vac 47-63Hz 10.0A |
| DC Output | +3.3V | +5V | 12V | -12V | +5VSB |
| Max. Output Current | 22A | 22A | 62A | 0.3A | 2.5A |
| Max. Output Power | 120W | 744W | 3.6W | 12.5W |
| Total POWER | 750W |
$55.40
MONTECH GAMMA II 750 GOLD—
$55.40
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Product Name | GAMMA II 750 |
| ATX Version | ATX12V |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240Vac |
| Input Current | 10A |
| Input Frequency | 47-63Hz |
| Dimensions (L*B*H) | 140*150*86mm |
| Fan Size | 120mm |
| Hold Up Time | 10msec (minimum) at 80% of full load at 230Vac input. |
| Efficiency | 90% Typically |
| MTBF | >100,000 Hours |
| Operating Temperature | 0-45°C |
| Protections | OVP / OPP / UVP / SCP / OCP |
| Regulatory | cTUVus / TUV / CB / CE / RoHS / FCC |
| Connectors | |
| M/B 20+4Pin | 1 |
| CPU 4+4Pin | 2 |
| PCIE 6+2 | 4 |
| SATA | 8 |
| Molex 4Pin | 3 |
| FDD | 1 |
| AC Input / DC Output Details | |
| AC Input | 100-240Vac 47-63Hz 10.0A |
| DC Output | +3.3V | +5V | 12V | -12V | +5VSB |
| Max. Output Current | 22A | 22A | 62A | 0.3A | 2.5A |
| Max. Output Power | 120W | 744W | 3.6W | 12.5W |
| Total POWER | 750W |
