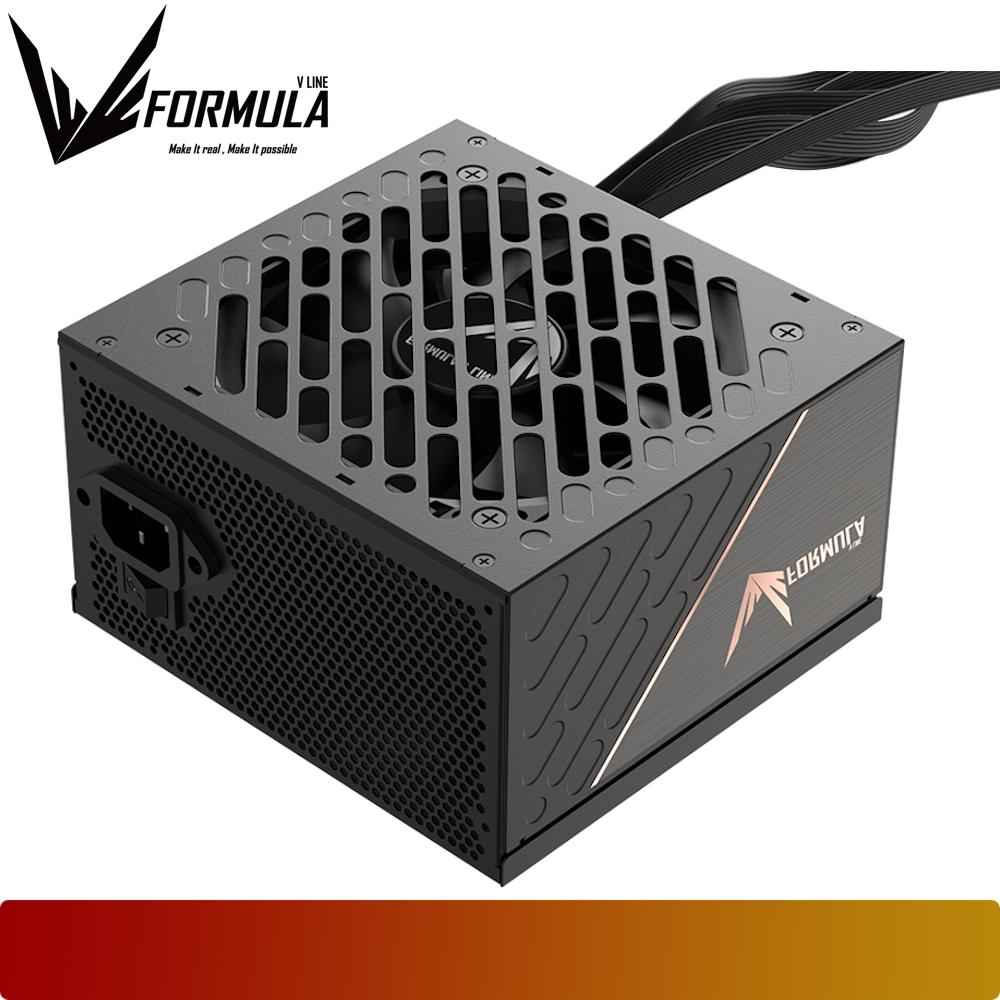

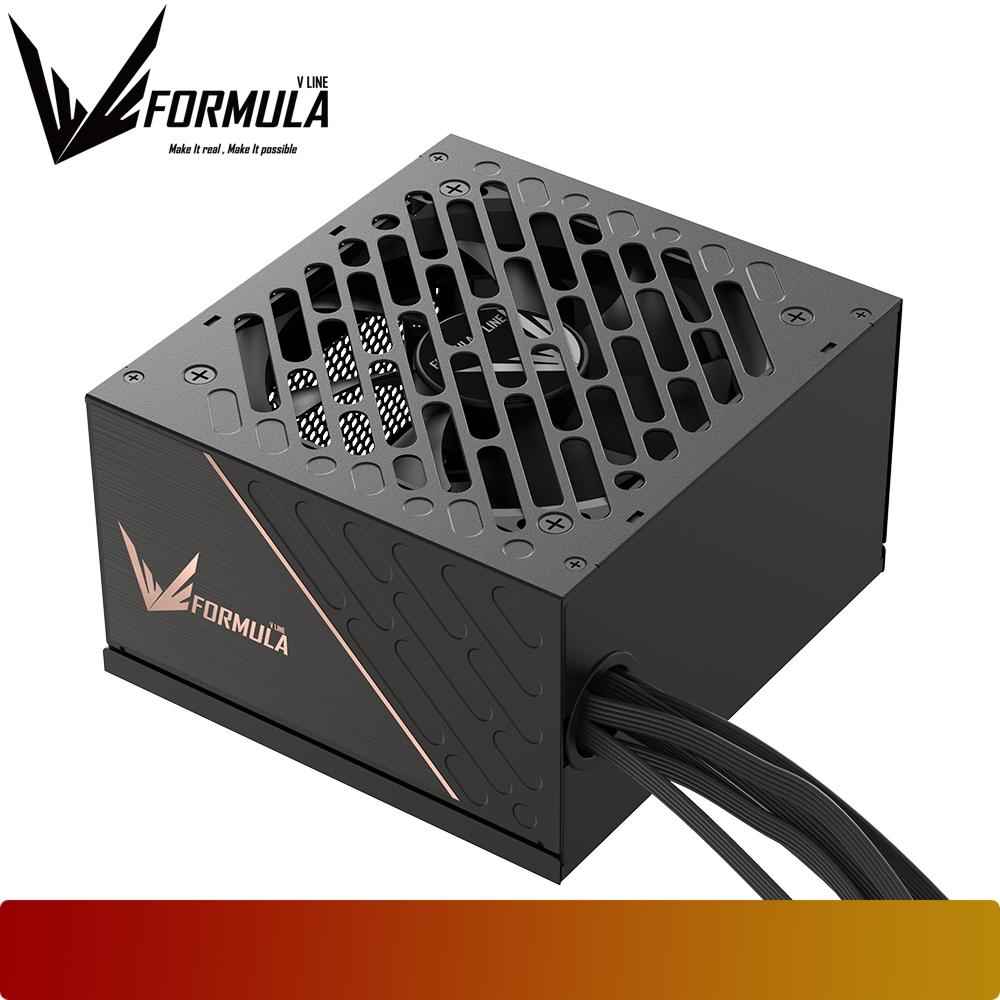

Product image 1

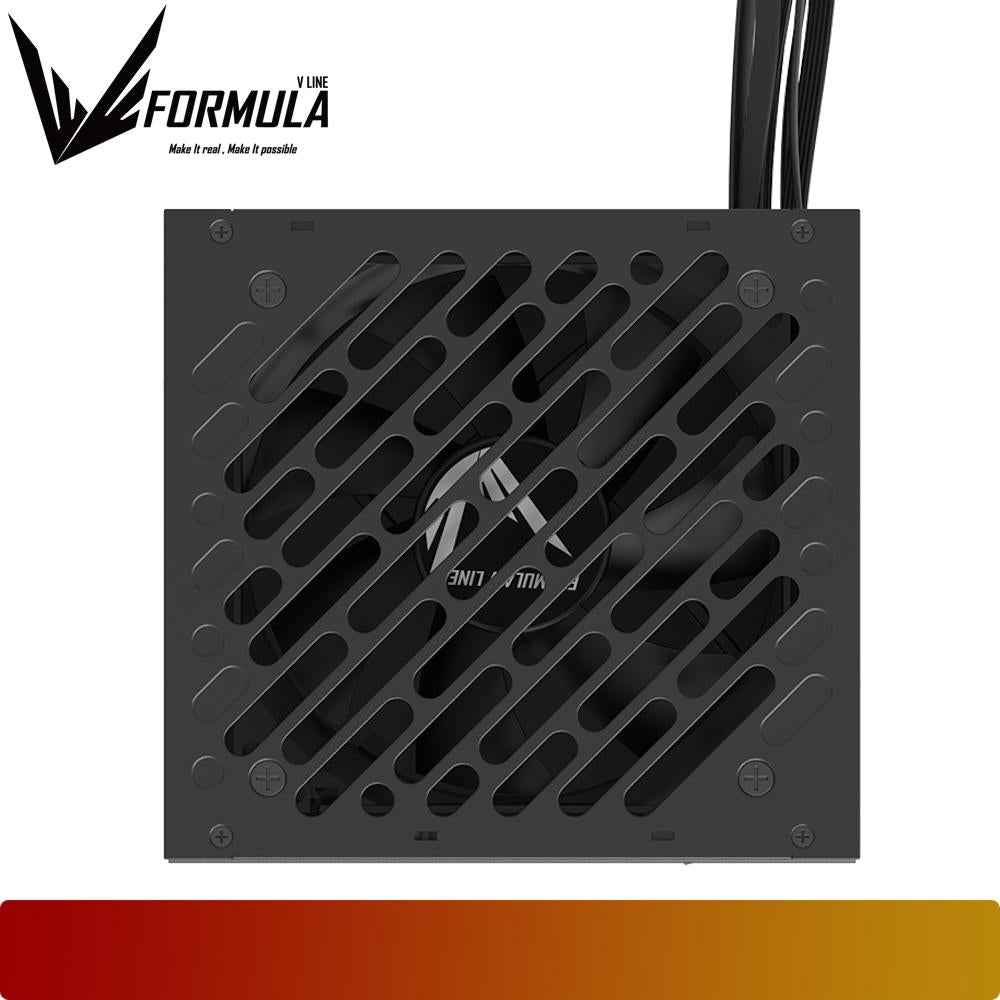

Product image 2

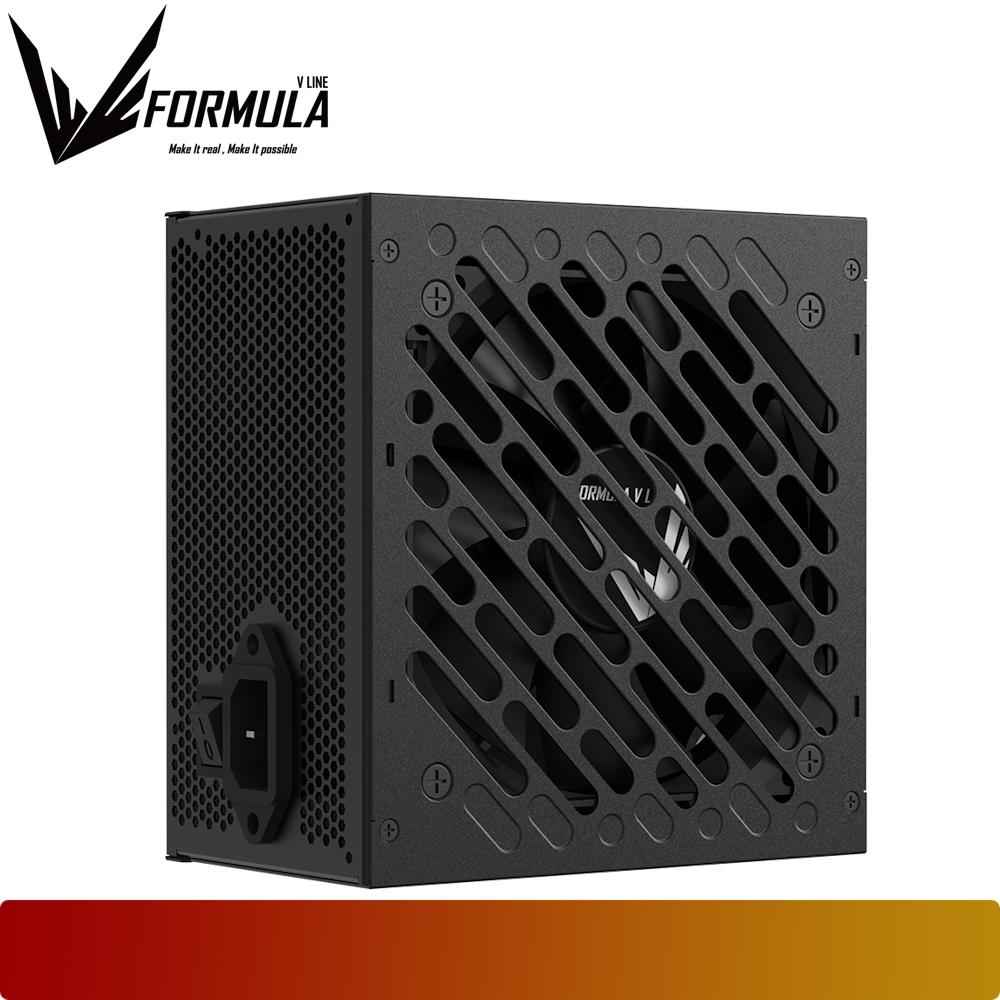

Product image 3
Product image 4
Product image 5

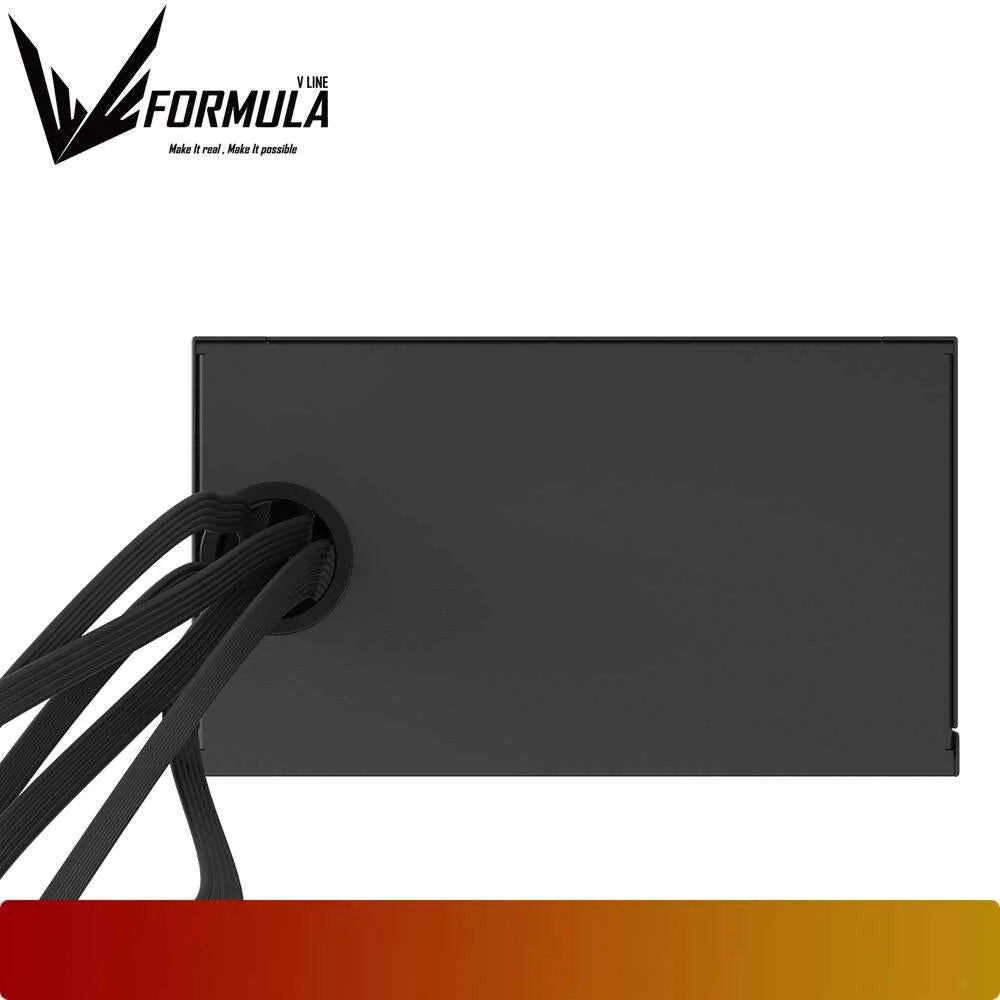

Product image 6

FORMULA V LINE FV-650BD

General
Model FV-650BD
Dimension 140 x 150 x 86mm
Real Watts 650W
Efficiency 80Plus Bronze
Input Voltage Full range
Type ATX3.1
Main Capacitor Japanese Capacitor
PFC APFC
Fan 120mm
Modular Direct Cable
AC Input
AC 100-240V~, 8A, 50-60Hz
DC Output
3.3V 20A
5V 20A
+12V 54.1A
-12V 0.3A
+5Vsb 3A
Total Power 650W
Cable SPEC
Mainboard 20+4P(550mm) x1
CPU P8(4+4)(600mm)to(P4+4)(150mm) x1
PCI-E P8(6+2)(500mm)to(6+2)(150mm) x1
SATA / IDE 1 SATA(400mm) / SATA(150mm) / SATA(150mm) / MOLEX(150mm) x1
SATA / IDE 2 SATA(400mm) / SATA(150mm) / MOLEX(150mm) / MOLEX(150mm) x1
$11.13

Original: $37.11

-70%
FORMULA V LINE FV-650BD—

$37.11

$11.13
