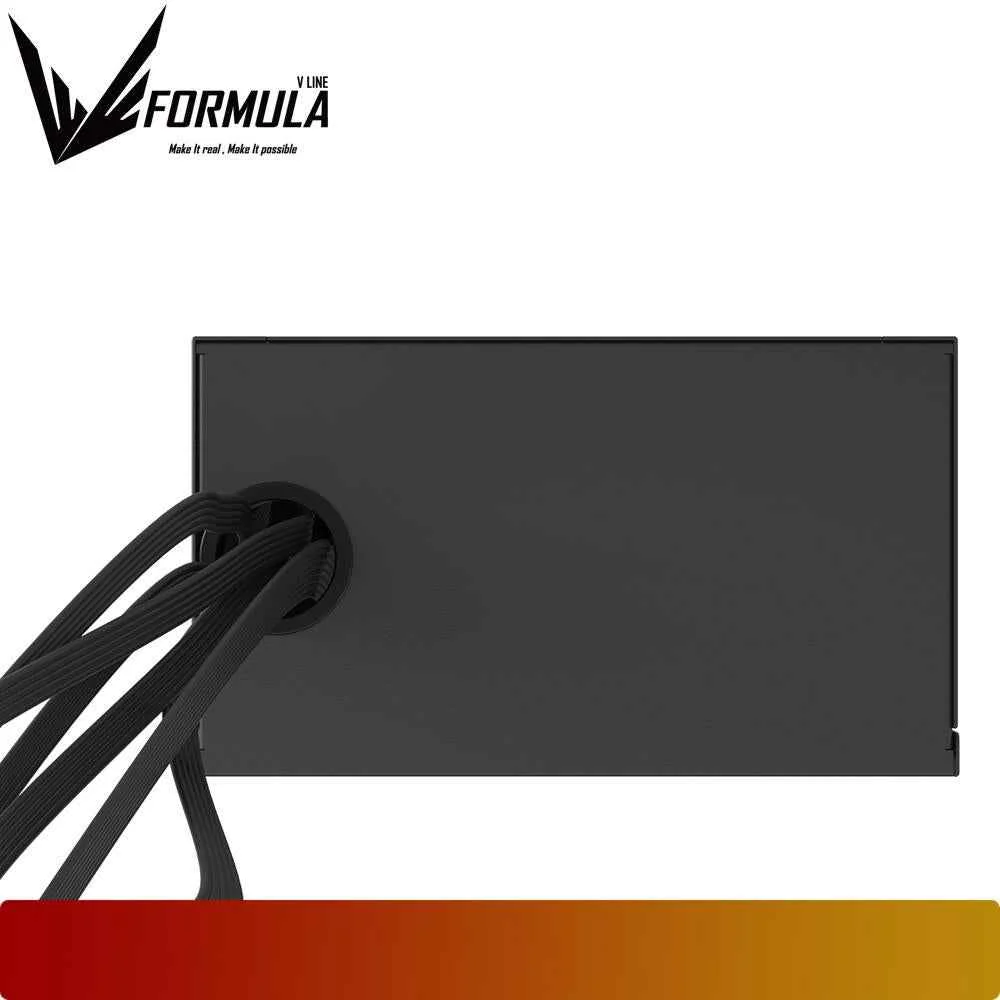

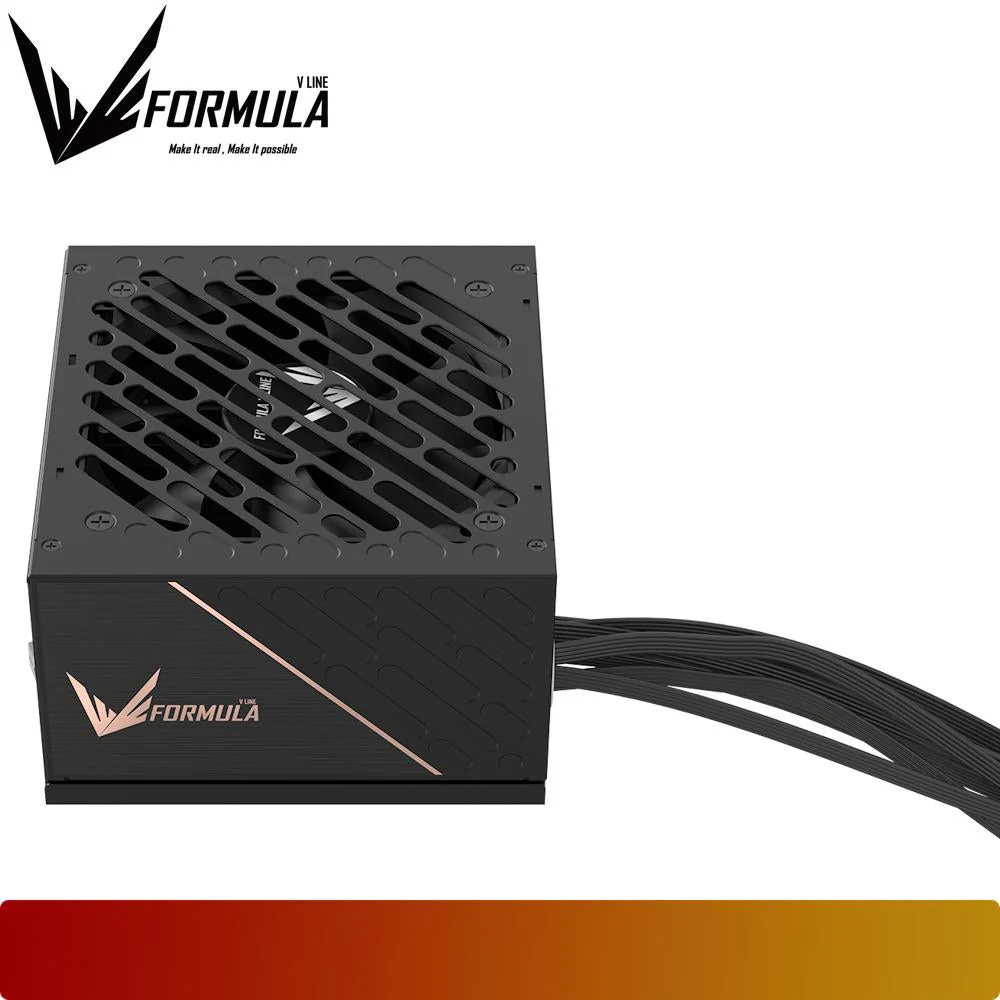

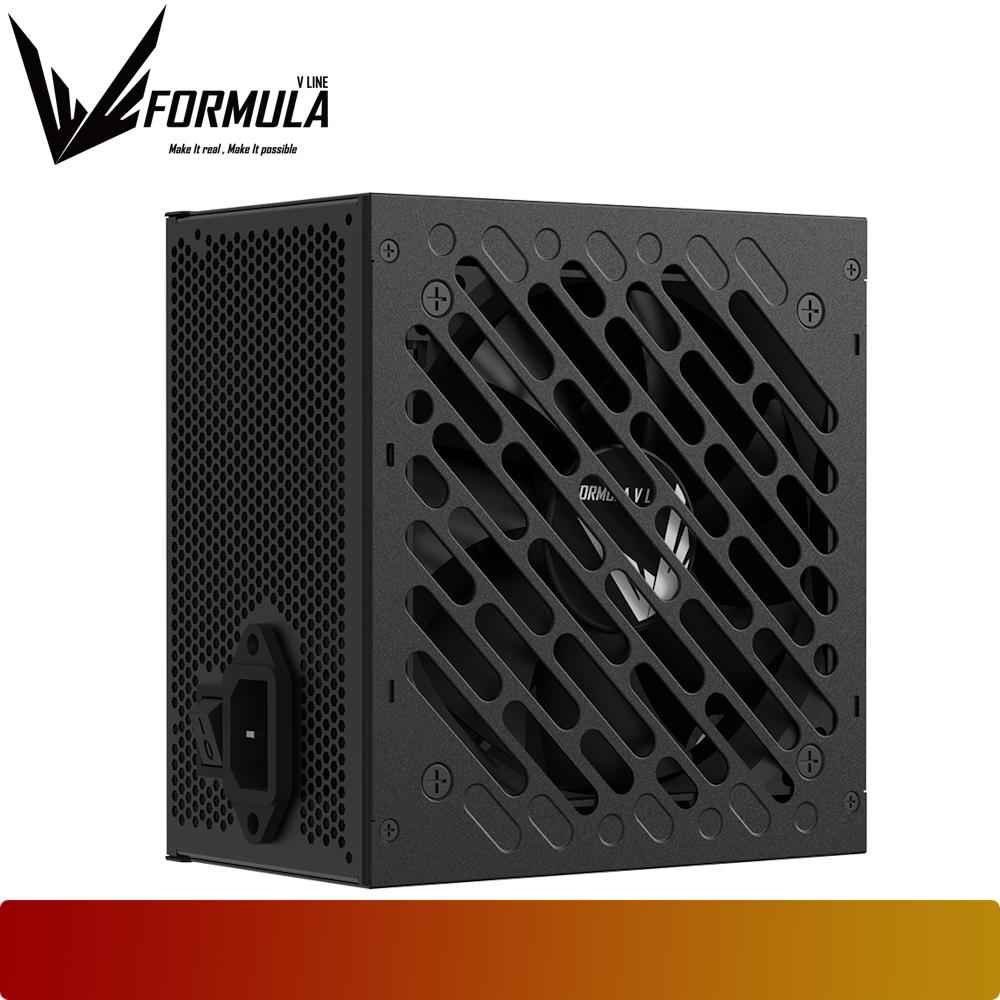

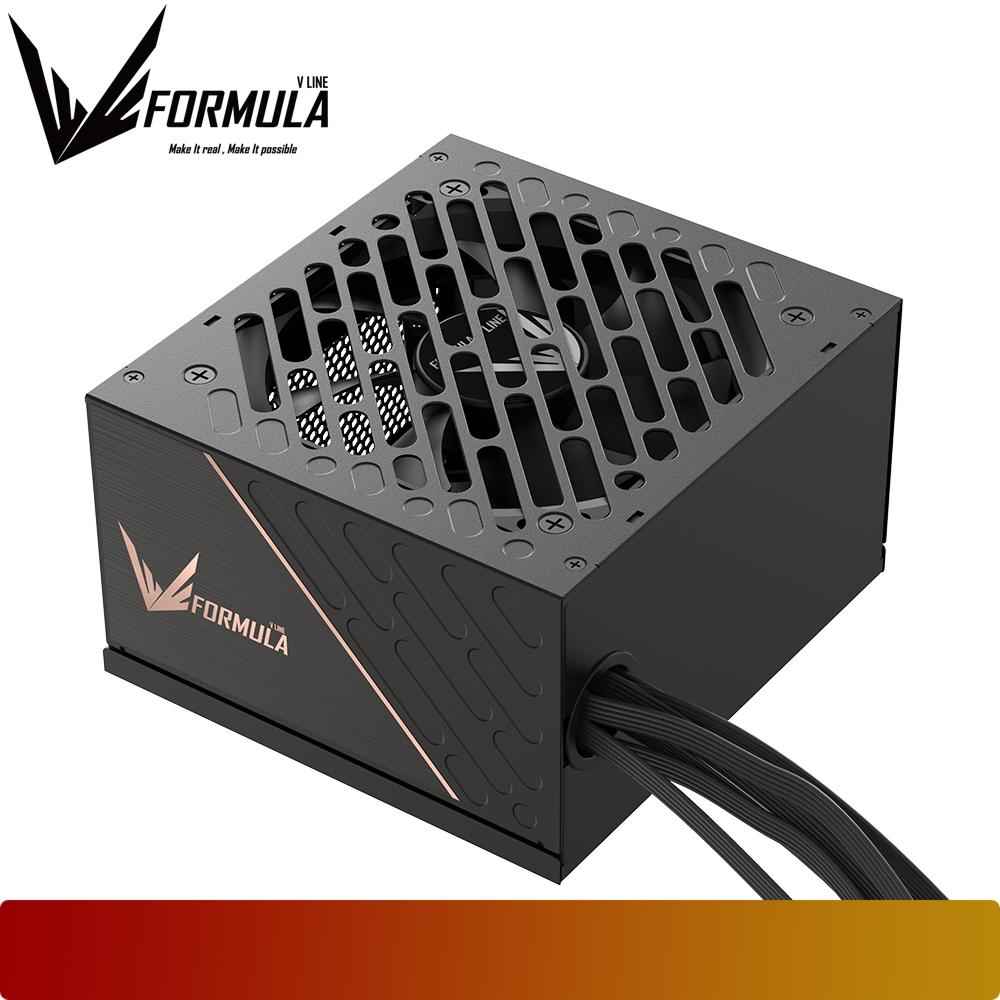

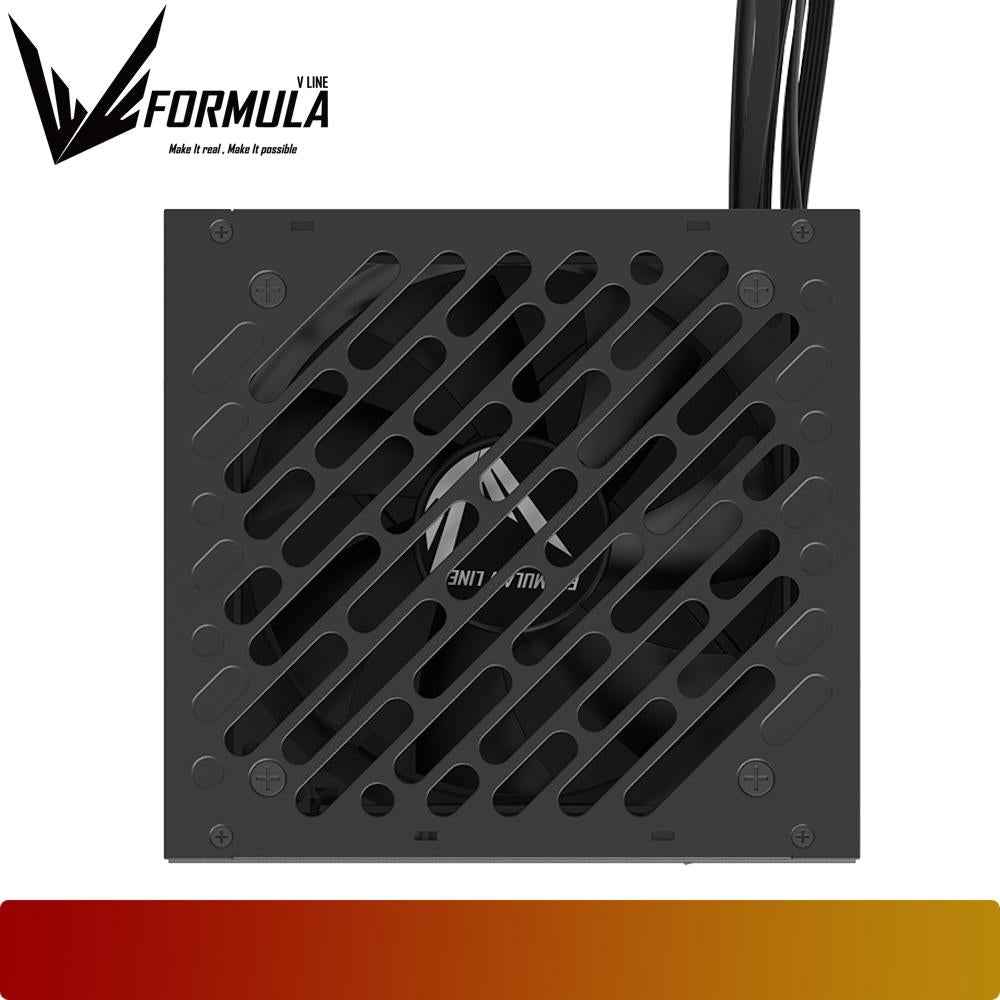

FORMULA V LINE FV-550BD

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6

FORMULA V LINE FV-550BD

General
Model FV-550BD
Dimension 140 x 150 x 86mm
Real Watts 550W
Efficiency 80Plus Bronze
Input Voltage Full range
Type ATX3.1
Main Capacitor Japanese Capacitor
PFC APFC
Fan 120mm
Modular Direct Cable
AC Input
AC 100-240V~, 8A, 50-60Hz
DC Output
3.3V 20A
5V 20A
+12V 48.5A
-12V 0.3A
+5Vsb 3A
Total Power 550W
Cable SPEC
Mainboard 20+4P(550mm) x1
CPU P8(4+4)(600mm)to(P4+4)(150mm) x1
PCI-E P8(6+2)(500mm) x1
SATA / IDE 1 SATA(400mm) / SATA(150mm) / SATA(150mm) / MOLEX(150mm) x1
SATA / IDE 2 SATA(400mm) / SATA(150mm) / MOLEX(150mm) / MOLEX(150mm) x1
$9.19

Original: $30.62

-70%
FORMULA V LINE FV-550BD—

$30.62

$9.19

Product Information

Shipping & Returns

Description

General
Model FV-550BD
Dimension 140 x 150 x 86mm
Real Watts 550W
Efficiency 80Plus Bronze
Input Voltage Full range
Type ATX3.1
Main Capacitor Japanese Capacitor
PFC APFC
Fan 120mm
Modular Direct Cable
AC Input
AC 100-240V~, 8A, 50-60Hz
DC Output
3.3V 20A
5V 20A
+12V 48.5A
-12V 0.3A
+5Vsb 3A
Total Power 550W
Cable SPEC
Mainboard 20+4P(550mm) x1
CPU P8(4+4)(600mm)to(P4+4)(150mm) x1
PCI-E P8(6+2)(500mm) x1
SATA / IDE 1 SATA(400mm) / SATA(150mm) / SATA(150mm) / MOLEX(150mm) x1
SATA / IDE 2 SATA(400mm) / SATA(150mm) / MOLEX(150mm) / MOLEX(150mm) x1
