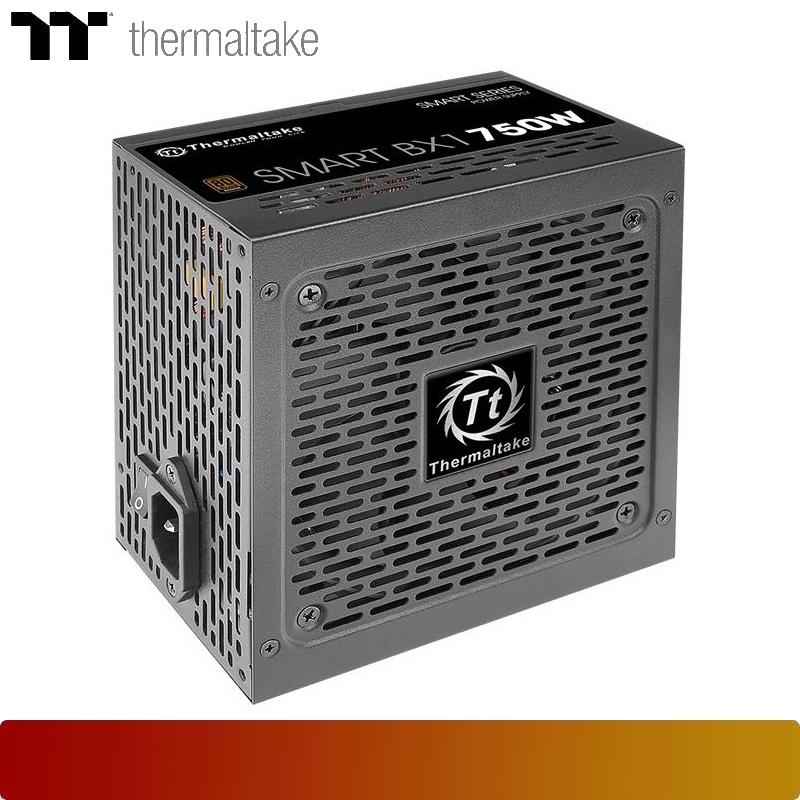

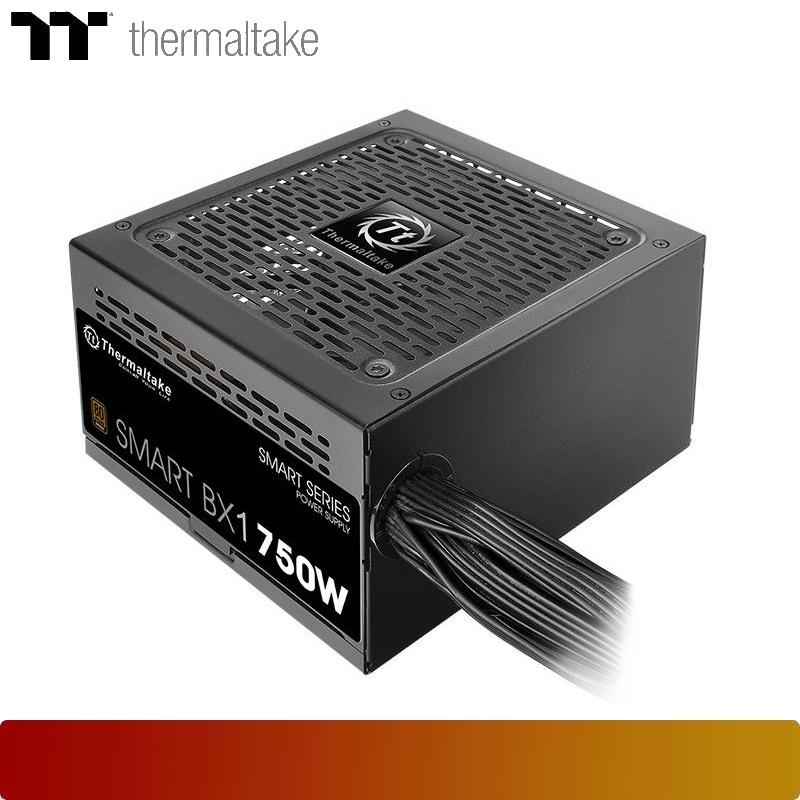

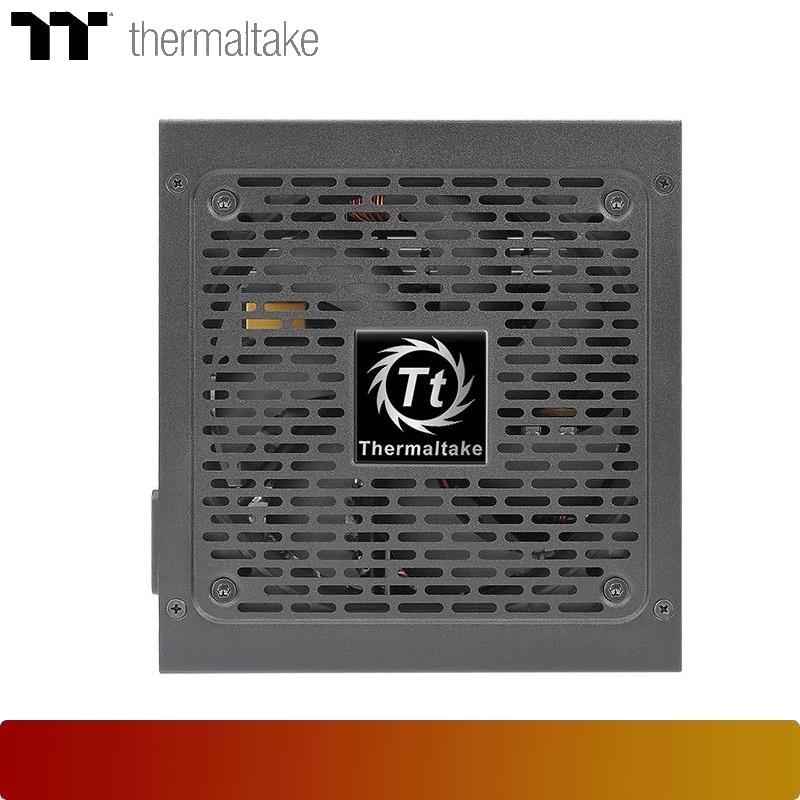

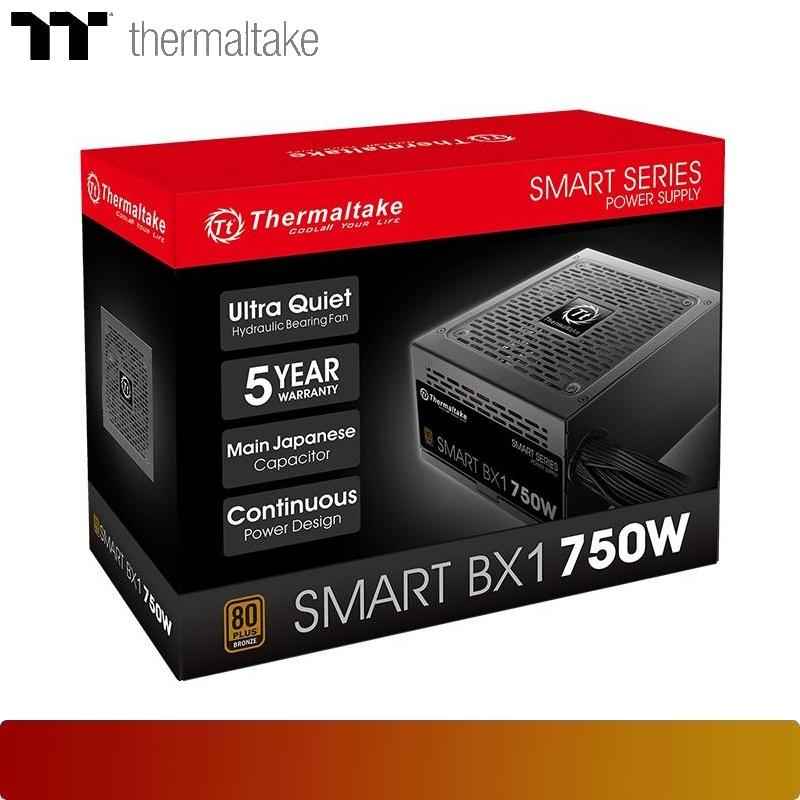

THERMALTAKE Smart BX1 750W | PSU 750W 80+ Bronze Non Modular

Specifications :

P/N
- PS-SPD-0750NNFABx-1

watts
- 750W

RGB Fan
- No

Form Factor
- ATX

Model
- SPD-750AH2NKB | SPD-750AH2NLB | SPD-750AH2NCB

Type
- ATX 12V v2.3 and EPS v2.92

Max. Output Capacity
- 750W

Color
- Black

Dimension ( W / H / D )
- 150mm(W) x 86mm(H) x 140mm(D)

PFC (Power Factor Correction)
- Active PFC

Power Good Signal
- 100-500 msec

Hold Up Time
- > 16msec at 70% of full load

Input Current
- 12A max. | 6 – 15A | 10A max.

Input Frequency Range
- 50Hz - 60Hz | 47Hz - 63Hz | 47Hz - 63Hz

Input Voltage
- 100V – 240V~

OPERATING TEMPERATURE
- 5°C to + 40°C | 5°C to + 40°C | 0°C to + 40°C

Operating Humidity
- 20% to 85%, non-condensing | 20% to 85%, non-condensing | 20% to 90%, non-condensing

Storage Temperature
- -40°C to + 55°C | -40°C to + 55°C | -40°C to + 70°C

Storage Humidity
- 10% to 95%, non-condensing | 10% to 95%, non-condensing | 5% to 95%, non-condensing

COOLING SYSTEM
- 12cm Hydraulic bearing fan

Efficiency
- Meet 80 PLUSBronze at 115Vac input.

MTBF
- 100,000 hrs minimum

Safety Approval
- CE/CB/TUV/ UL/ FCC/ BSMI

PCI-E 6+2pin
- 4
