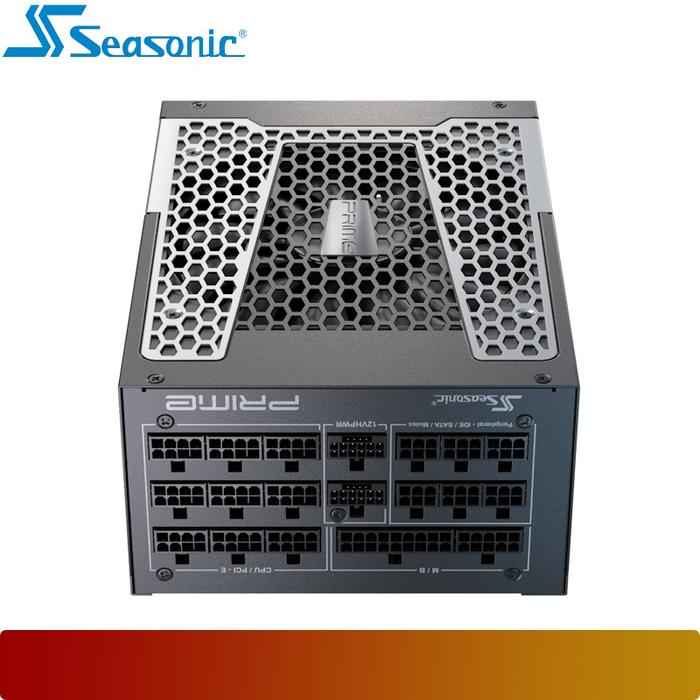

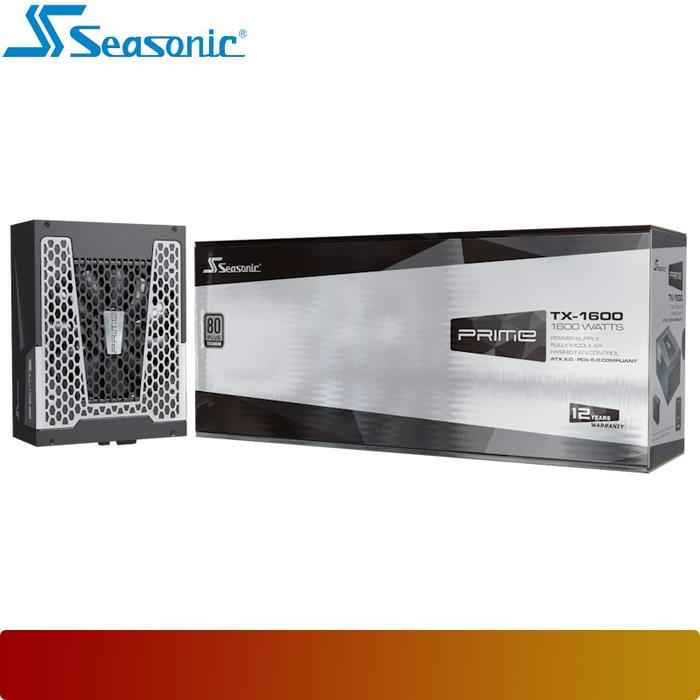

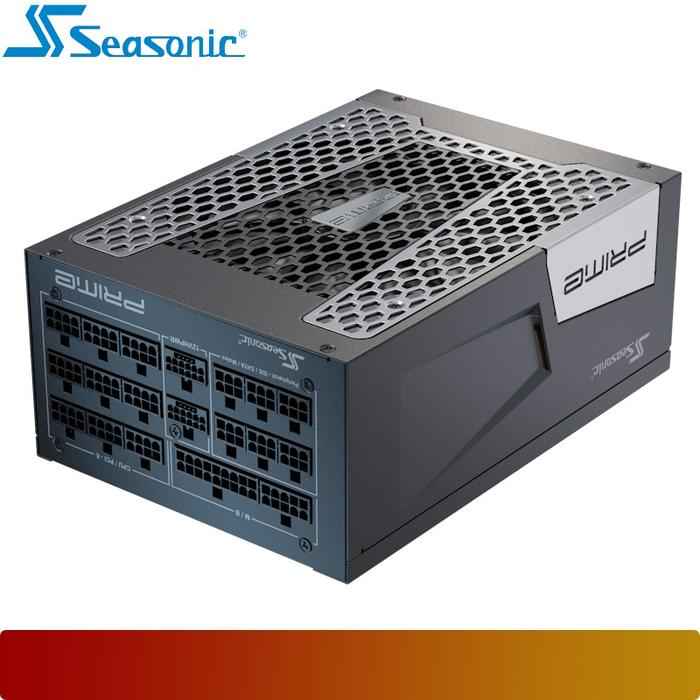

SEASONIC PRIME TX 1600 ATX 3.1 | PSU 1600W 80+ Titanium Cybenetics Titanium Fully Modular

𝗦𝗽𝗲𝗰𝗶𝗳𝗶𝗰𝗮𝘁𝗶𝗼𝗻𝘀 :

80PLUS®
- Titanium

Cybenetics Efficiency Level
- Titanium

Cybenetics Noise Level
- Lambda A

Form Factor
- Intel ATX 12 V

Dimensions
- 210 mm (L) x 150 mm (W) x 86 mm (H)

Fan Information
- Fan Size : 135 mm
- Fan Control : Digital Hybrid Fan Control
- Fan Bearing : Fluid Dynamic Bearing
- Life Expectancy : 50,000 hours at 40 °C, 15 % - 65 % RH

Cable Information
- Modularity : Fully Modular
- Cable type : Individual Black Cables with Braided Pattern

Electrical Features
- Operating Temperature : 0 - 50 °C
- MTBF @ 25 °C, excl. fan : 100,000 hours
- AC Input : Full Range
- Protection : OPP, OVP, UVP, OCP, OTP, SCP

Safety and Environmental
- Safety and EMC : cTUVus, TUV, CB, CCC, BSMI, EAC, CE
- Environmental Compliance : Energy Star, RoHS, WEEE, ErP Lot 6, REACH

Warranty
- 12 Years

AC Input
- Voltage: 100 V - 240 V
- Current: 15 - 8 A
- Frequency: 50 Hz - 60 Hz

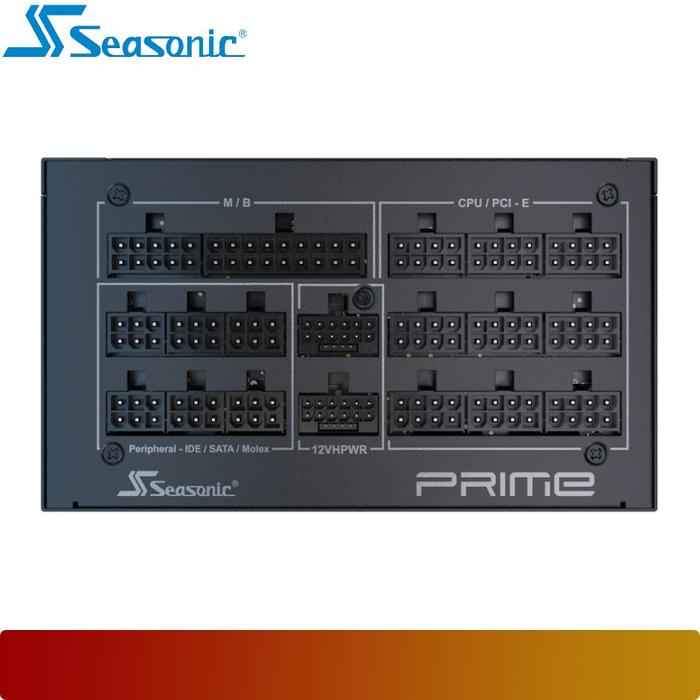

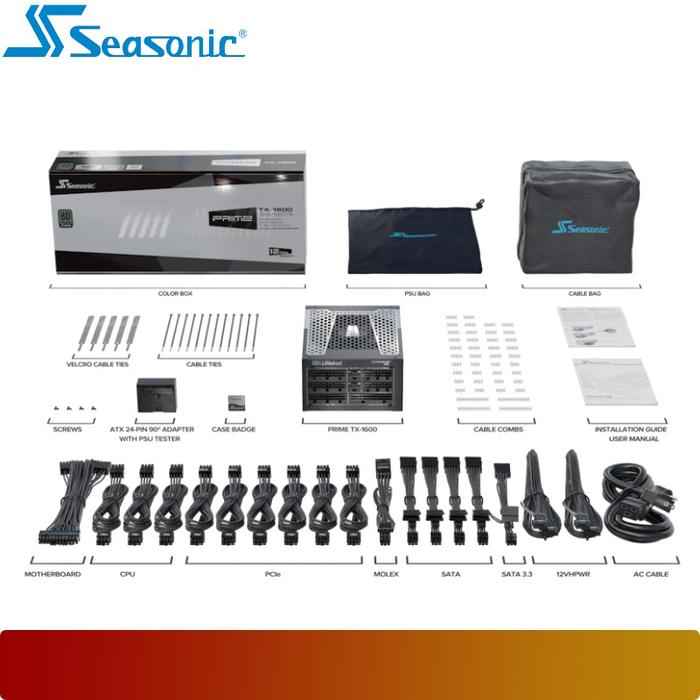

CABLES
MB (24/20 pins) : 1
CPU (8/4 pins) : 3
PCIe (8/6 pins) : 6
SATA : 18
Molex : 3
12VHPWR : 2
