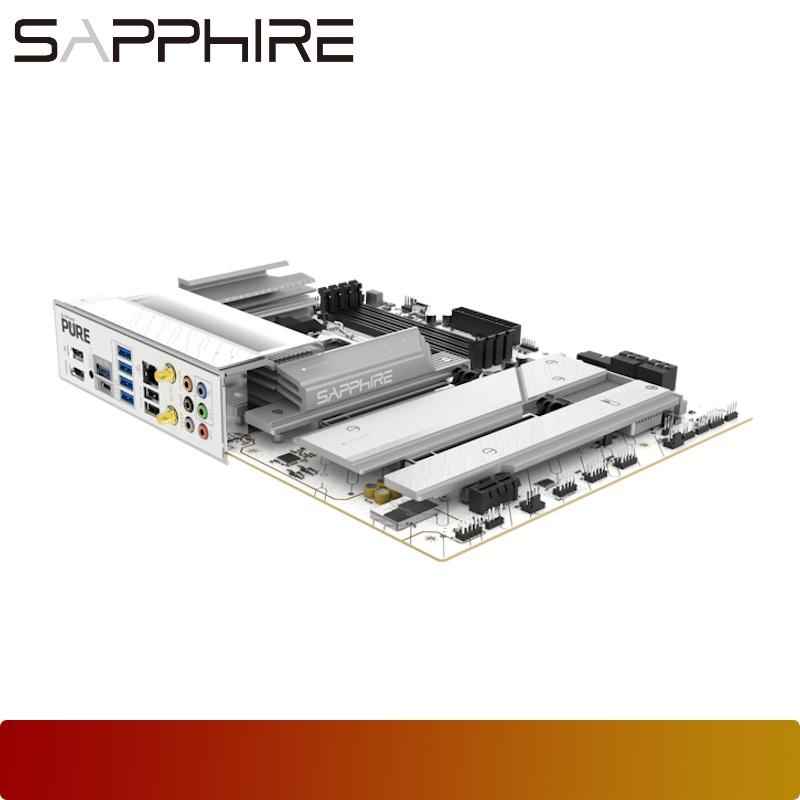

SAPPHIRE PURE X870A WIFI 7

Specification :

Chipset
- AMD X870

CPU Support
- Supports AMD Socket AM5 Processors including Ryzen 9000 / 8000 / 7000 Series Desktop Processors

Memory Support
- 4x DIMMS, Dual Channel DDR5, Maximum Memory Capacity 256GB (4x 64GB), up to 8400 MHz(OC)

PCI-E Expansion Slots
- 1x PCIe 5.0 x16, 1x PCIe 4.0 x4 in 16x slot, 1x PCIe 3.0 x1 in 1x slot

Display Connector
- DisplayPort x1, HDMI x1

Audio
- Realtek ALC897 HD Audio, 7.1 Channel

Network
- Realtek RTL8125BG 2.5 Gigabit Ethernet
- M.2 WiFi 7 Module, Support 802.11 a/b/g/n/ac/ax/be, 2.4 GHz / 5GHz / 6GHz band, Bluetooth 5.4 Support

Front USB Headers
- 1x USB 3.2 Gen2 (1 x Type-C), 1x USB 3.2 Gen1 (2 x Type-A), 2x USB 2.0 (4 x Type-A)

Rear Ports
- 1 × DisplayPort, 1 × HDMI , 1 × RJ45 LAN, 2 × Wi Fi Antenna
- One-click Flash BIOS Button, 2× USB 2.0, 4× USB 3.2 Gen1 Type-A
- 1× USB 3.2 Gen2 Type-A, 6× Audio Jacks
- 1x USB 4.0 40G (DisplayPort Alt mode & 15W PD) Type-C

Storage
- 1x PCIe 5.0 M.2, 2x PCIe 4.0 M.2, 4x SATA

Dimensions
- ATX, 305x245mm

Debug LED
- DRAM: Yellow, CPU: Red, GPU: White, Boot: Green
