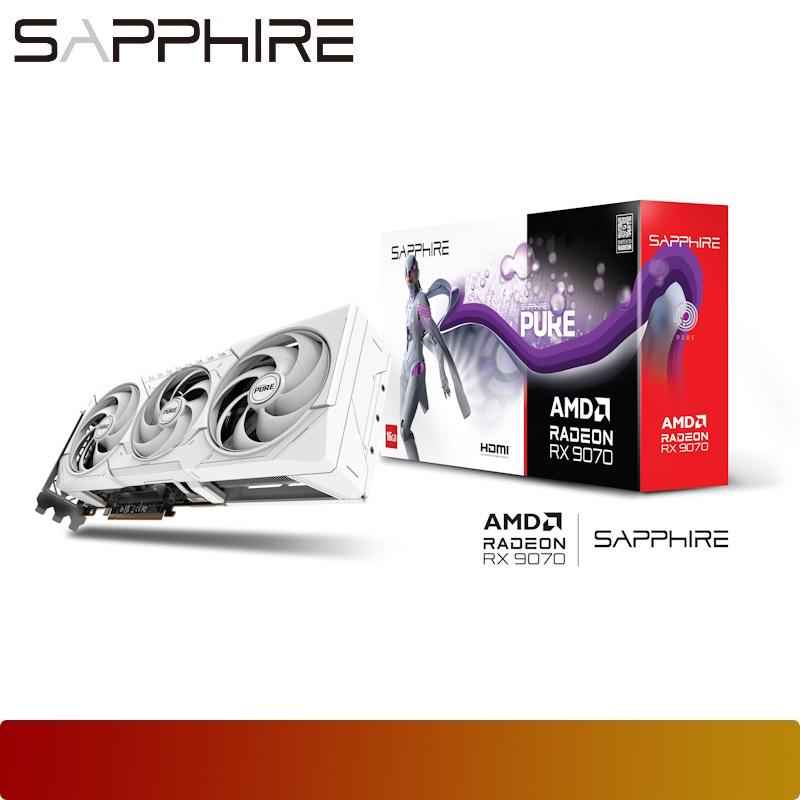

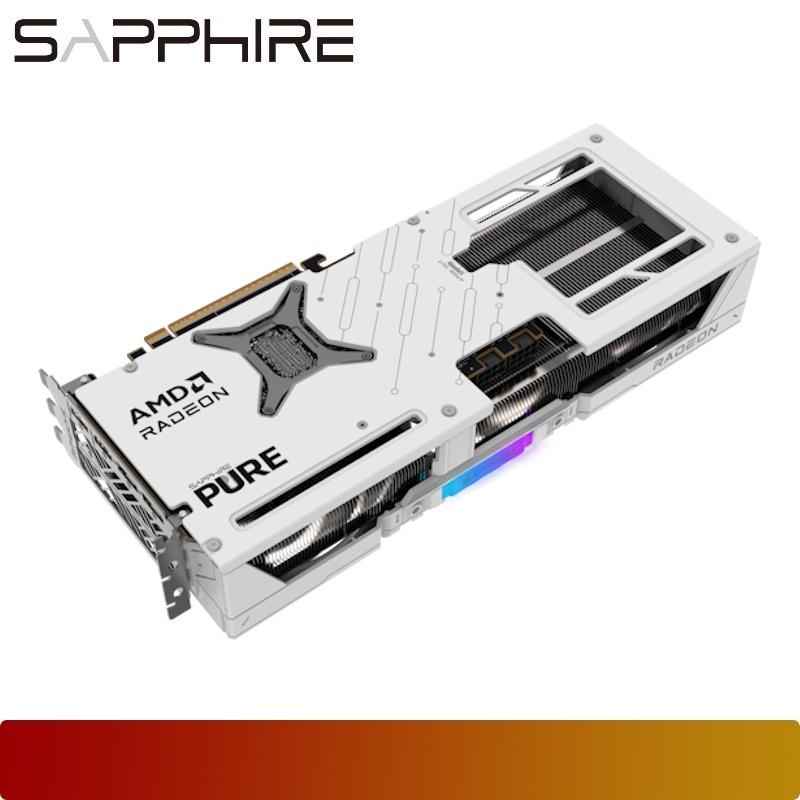

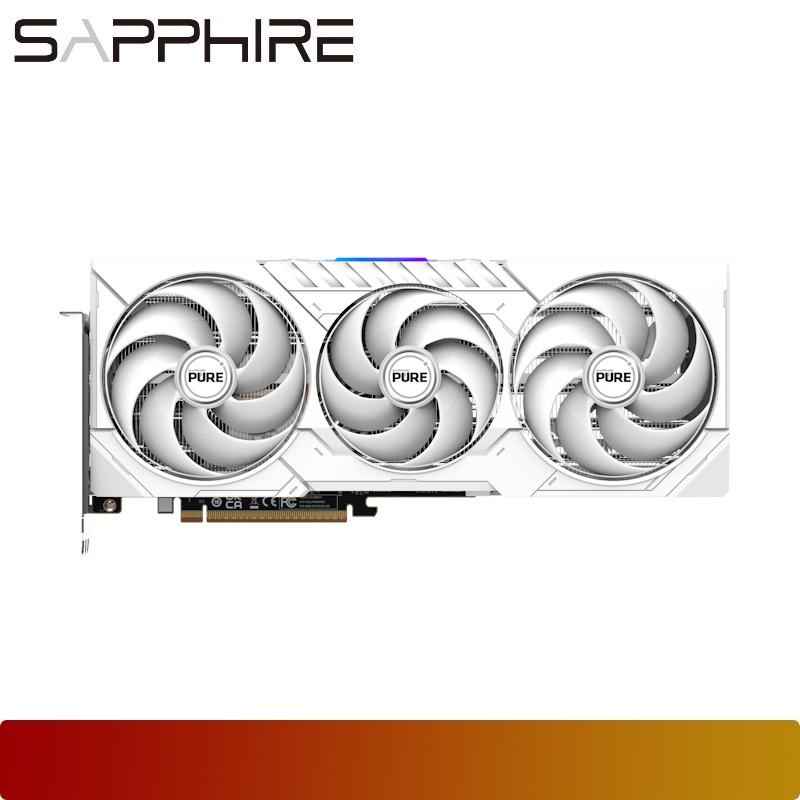

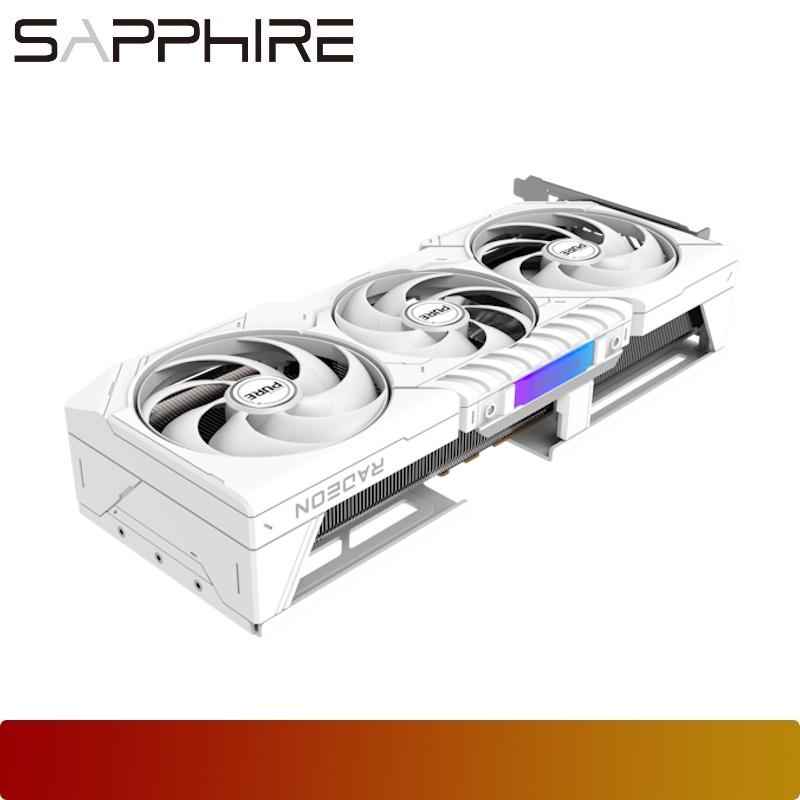

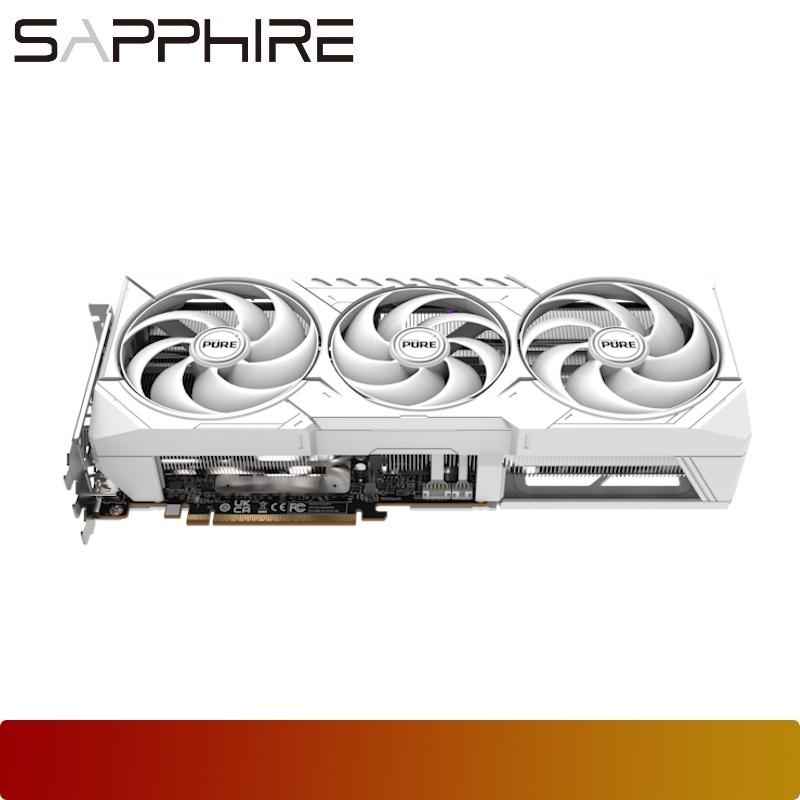

SAPPHIRE PURE AMD Radeon RX 9070 OC
| SKU | 11349-02-20G |
| GPU | Radeon™ RX 9070 Graphics Card RDNA™ 4 Architecture |
| Engine Clock | Boost Clock: Up to 2700 MHz Game Clock: Up to 2210 MHz |
| Stream Processors | 3584 |
| Compute Units | 56 CUs (3rd Gen RT + 2nd Gen AI Accelerators) |
| AI Accelerator | 112 |
| Ray Accelerators | 56 |
| Infinity Cache | 64MB |
| Memory Size/Bus | 16GB/256 bit GDDR6 |
| Memory Clock | 20 Gbps Effective |
| Displays | Maximum 4 Displays |
| Resolution (Max) | HDMI®: 7680×4320 DisplayPort™ 2.1a: 7680×4320 |
| Interface | PCI-Express 5.0 x16 |
| Output | 2x HDMI® 2x DisplayPort™ 2.1a |
| BIOS Support | UEFI |
| Game Index | 4K |
| Cooler Type | Tri-X Cooling AeroCurve Fan Blade Free Flow Integrated Cooling Module Optimized Composite Heatpipes Two-Ball Bearing |
| Form Factor / Slot | 3 slot, ATX |
| Dimension (L x W x H) | 320(L) X 120.25(W) X 61.6 (H) mm |
| Power Consumption (TBP) | 245W Typical Board Power |
| OS Support | Linux®, Windows® 10, and Windows 11. 64-bit operating system required. |
| System Requirement | Minimum 650 Watt Power Supply 2 x 8-pin Power Connector PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. Minimum 8GB of system memory. 16GB recommended. |
| Accessories Bundled | L-Shape Support Bracket 3pin 5V ARGB Cable |
$234.33
Original: $781.10
-70%SAPPHIRE PURE AMD Radeon RX 9070 OC—
$781.10
$234.33Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| SKU | 11349-02-20G |
| GPU | Radeon™ RX 9070 Graphics Card RDNA™ 4 Architecture |
| Engine Clock | Boost Clock: Up to 2700 MHz Game Clock: Up to 2210 MHz |
| Stream Processors | 3584 |
| Compute Units | 56 CUs (3rd Gen RT + 2nd Gen AI Accelerators) |
| AI Accelerator | 112 |
| Ray Accelerators | 56 |
| Infinity Cache | 64MB |
| Memory Size/Bus | 16GB/256 bit GDDR6 |
| Memory Clock | 20 Gbps Effective |
| Displays | Maximum 4 Displays |
| Resolution (Max) | HDMI®: 7680×4320 DisplayPort™ 2.1a: 7680×4320 |
| Interface | PCI-Express 5.0 x16 |
| Output | 2x HDMI® 2x DisplayPort™ 2.1a |
| BIOS Support | UEFI |
| Game Index | 4K |
| Cooler Type | Tri-X Cooling AeroCurve Fan Blade Free Flow Integrated Cooling Module Optimized Composite Heatpipes Two-Ball Bearing |
| Form Factor / Slot | 3 slot, ATX |
| Dimension (L x W x H) | 320(L) X 120.25(W) X 61.6 (H) mm |
| Power Consumption (TBP) | 245W Typical Board Power |
| OS Support | Linux®, Windows® 10, and Windows 11. 64-bit operating system required. |
| System Requirement | Minimum 650 Watt Power Supply 2 x 8-pin Power Connector PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. Minimum 8GB of system memory. 16GB recommended. |
| Accessories Bundled | L-Shape Support Bracket 3pin 5V ARGB Cable |
