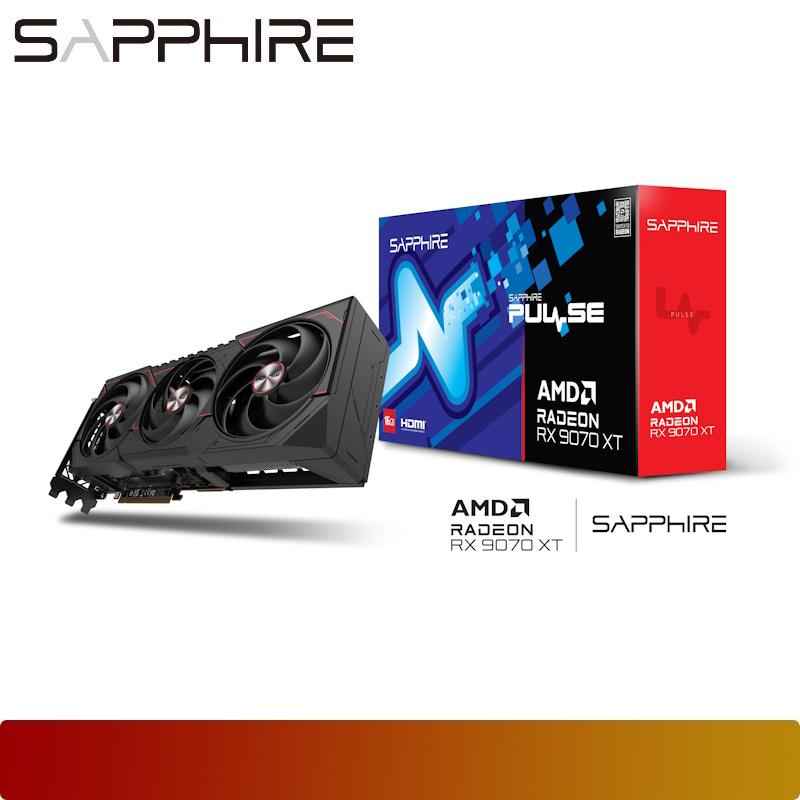

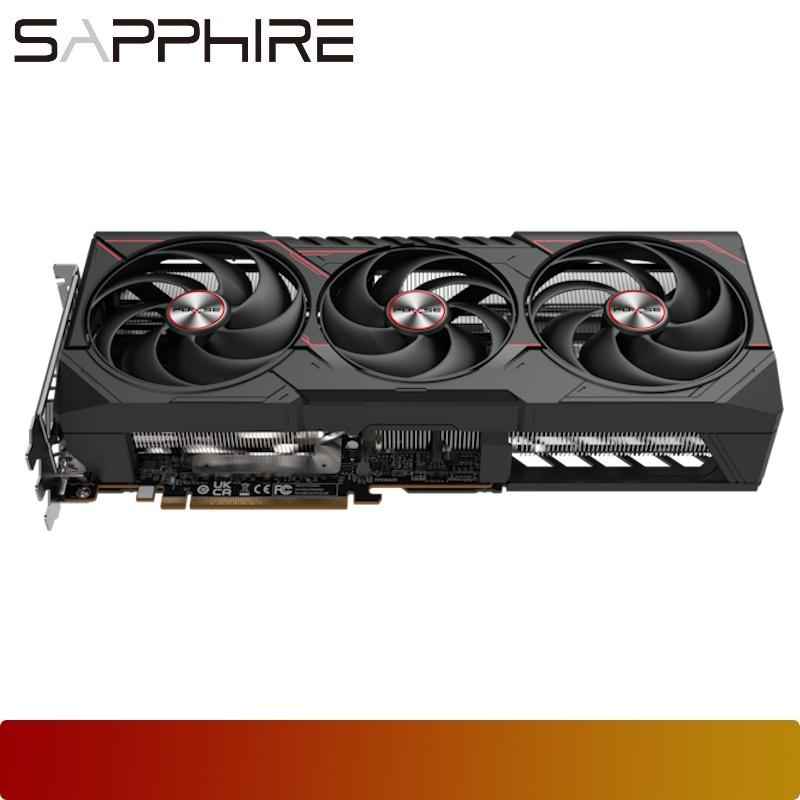

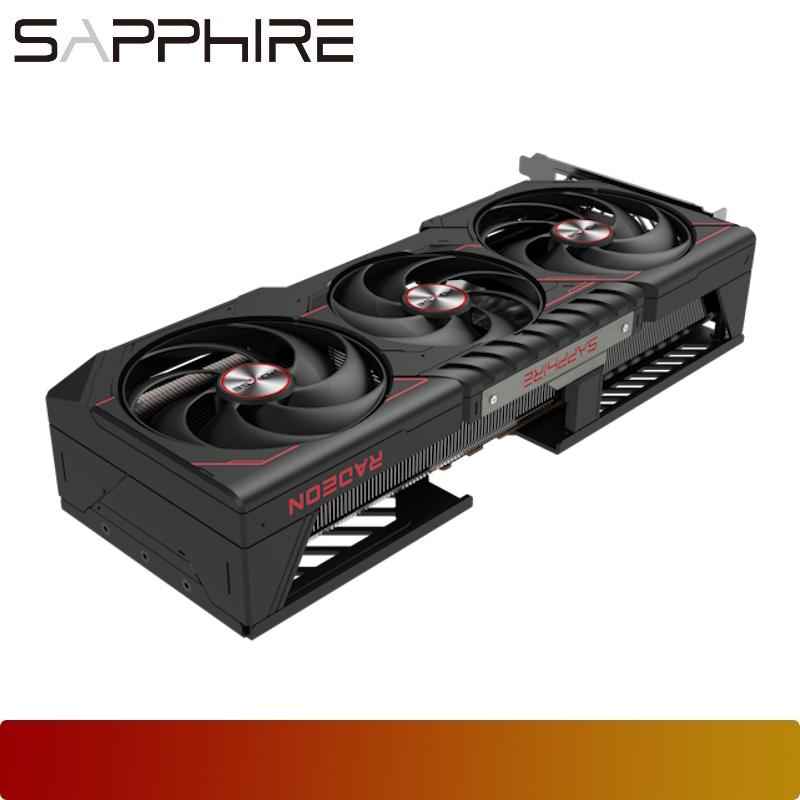

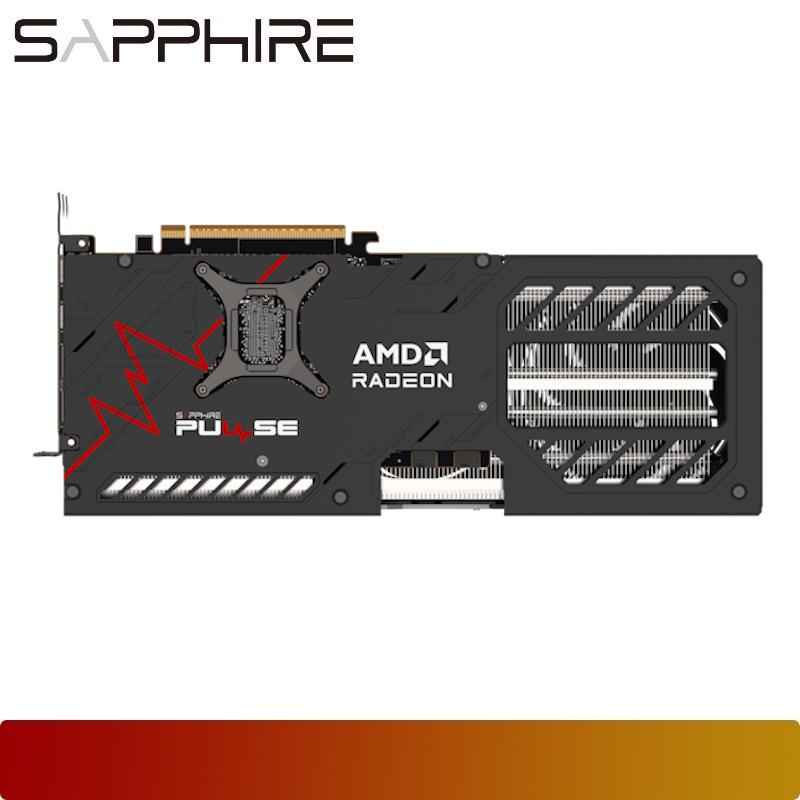

SAPPHIRE PULSE AMD Radeon RX 9070 XT
| SKU / Part Number | 11348-03-20G |
| GPU | AMD Radeon™ RX 9070 XT Graphics Card AMD RDNA™ 4 Architecture |
| Engine Clock | Boost Clock: Up to 2970 MHz Game Clock: Up to 2400 MHz |
| Stream Processors | 4096 |
| Compute Units | 64 CUs (3rd Gen RT + 2nd Gen AI Accelerators) |
| AI Accelerator | 128 |
| Ray Accelerators | 64 |
| Infinity Cache | 64MB |
| Memory Size/Bus | 16GB/256 bit GDDR6 |
| Memory Clock | 20 Gbps Effective |
| Displays | Maximum 4 Displays |
| Resolution (Max) | HDMI®: 7680×4320 DisplayPort™ 2.1a: 7680×4320 |
| Interface | PCI-Express 5.0 x16 |
| Output | 2x HDMI® 2x DisplayPort™ 2.1a |
| BIOS Support | UEFI |
| Game Index | 4K |
| Cooler Type | Tri-X Cooling (3 Fans) Two-Ball Bearing Fans High TG Copper PCB |
| Form Factor / Slot | 3 slot, ATX |
| Dimension (L x W x H) | 320(L) X 120.25(W) X 61.6 (H) mm |
| Power Consumption (TBP) | 304W Typical Board Power |
| OS Support | Linux®, Windows® 10, and Windows 11. 64-bit operating system required. |
| System Requirement | Minimum 750 Watt Power Supply (recommended) 2 x 8-pin Power Connector PCI Express based PC required with one X16 slot. |
| Accessories Bundled | L-Shape Support Bracket |
$256.63
Original: $855.44
-70%SAPPHIRE PULSE AMD Radeon RX 9070 XT—
$855.44
$256.63Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| SKU / Part Number | 11348-03-20G |
| GPU | AMD Radeon™ RX 9070 XT Graphics Card AMD RDNA™ 4 Architecture |
| Engine Clock | Boost Clock: Up to 2970 MHz Game Clock: Up to 2400 MHz |
| Stream Processors | 4096 |
| Compute Units | 64 CUs (3rd Gen RT + 2nd Gen AI Accelerators) |
| AI Accelerator | 128 |
| Ray Accelerators | 64 |
| Infinity Cache | 64MB |
| Memory Size/Bus | 16GB/256 bit GDDR6 |
| Memory Clock | 20 Gbps Effective |
| Displays | Maximum 4 Displays |
| Resolution (Max) | HDMI®: 7680×4320 DisplayPort™ 2.1a: 7680×4320 |
| Interface | PCI-Express 5.0 x16 |
| Output | 2x HDMI® 2x DisplayPort™ 2.1a |
| BIOS Support | UEFI |
| Game Index | 4K |
| Cooler Type | Tri-X Cooling (3 Fans) Two-Ball Bearing Fans High TG Copper PCB |
| Form Factor / Slot | 3 slot, ATX |
| Dimension (L x W x H) | 320(L) X 120.25(W) X 61.6 (H) mm |
| Power Consumption (TBP) | 304W Typical Board Power |
| OS Support | Linux®, Windows® 10, and Windows 11. 64-bit operating system required. |
| System Requirement | Minimum 750 Watt Power Supply (recommended) 2 x 8-pin Power Connector PCI Express based PC required with one X16 slot. |
| Accessories Bundled | L-Shape Support Bracket |
