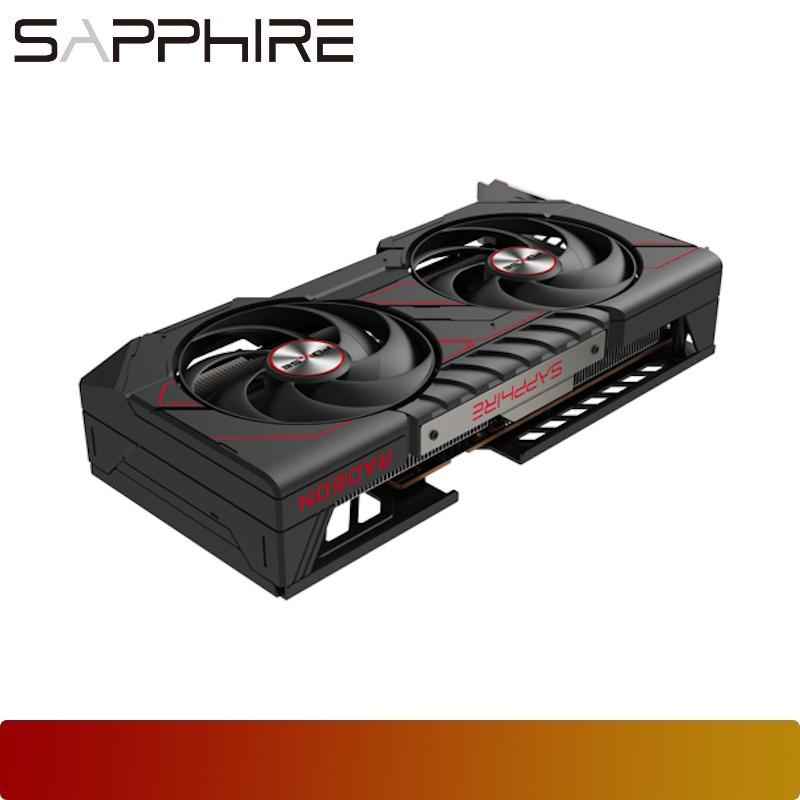

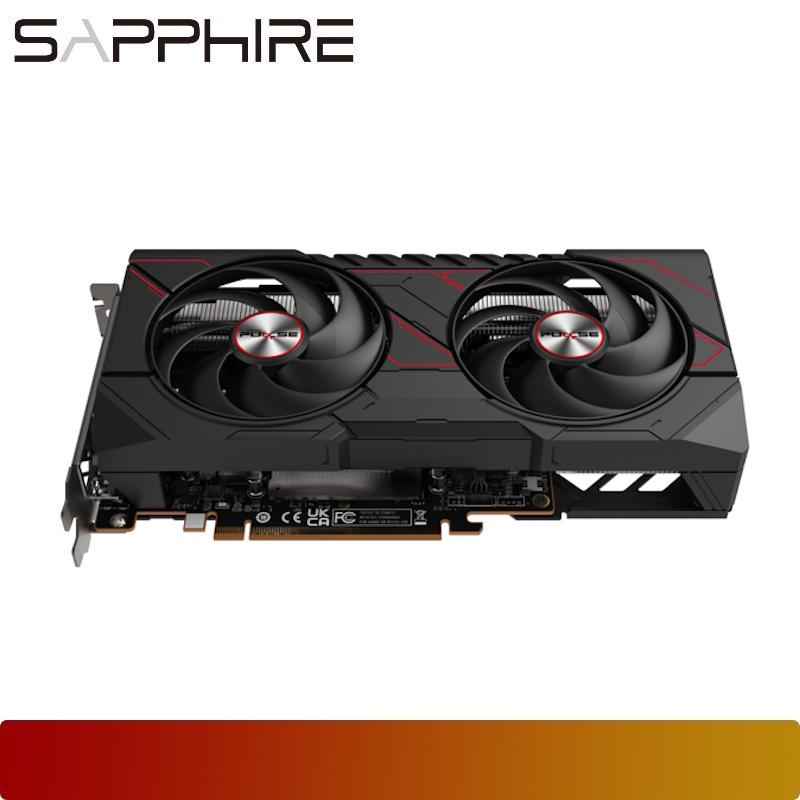

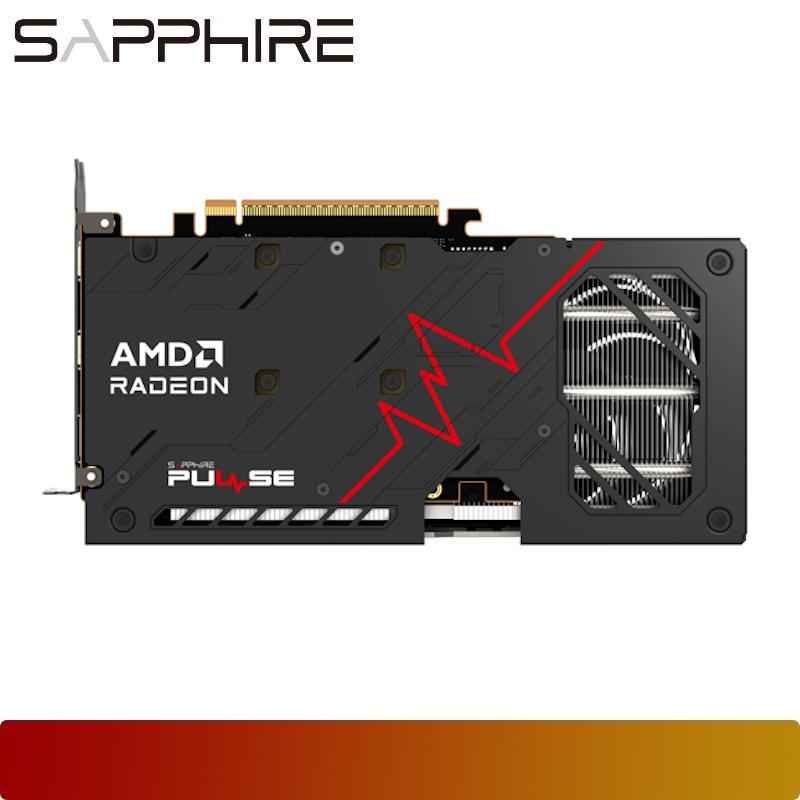

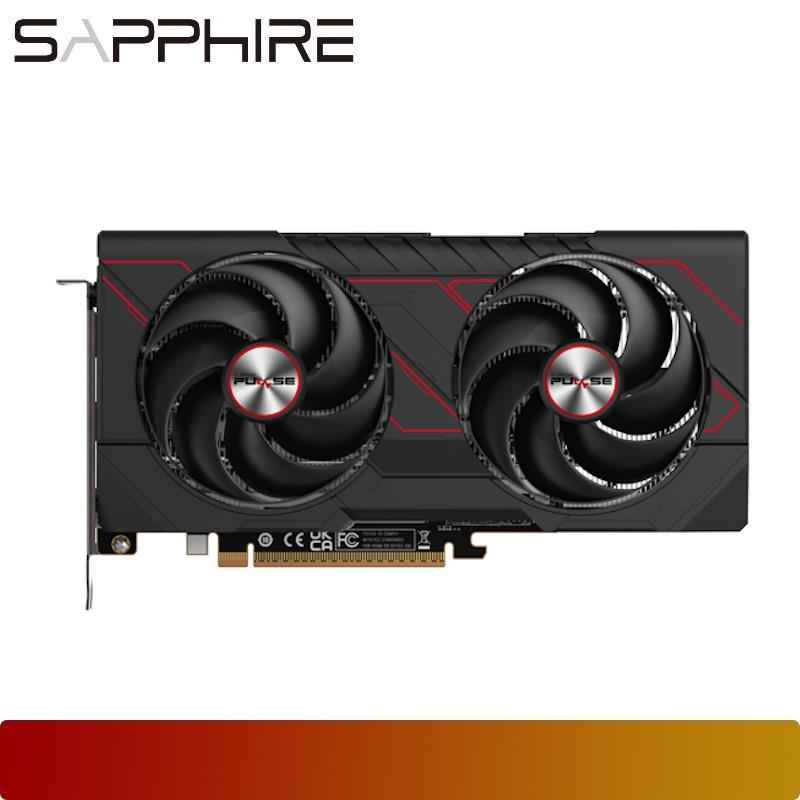

SAPPHIRE PULSE AMD Radeon RX 9060 XT OC 16GB
| SKU | 11350-03-20G |
| GPU | Radeon™ RX 9060 XT Graphics Card AMD RDNA™ 4 Architecture |
| Engine Clock | Boost Clock: Up to 3290 MHz Game Clock: Up to 2700 MHz |
| Stream Processors | 2048 |
| Compute Units | 32 CUs (3rd Gen RT + 2nd Gen AI Accelerators) |
| Infinity Cache | 32MB |
| Ray Accelerators | 32 |
| AI Accelerator | 64 |
| Memory Size/Bus | 16GB/128 bit GDDR6 |
| Memory Clock | 20 Gbps Effective |
| Displays | Maximum 3 Displays |
| Resolution (Max) | HDMI®: 7680×4320 DisplayPort™ 2.1a: 7680×4320 |
| Interface | PCI-Express 5.0 x16 |
| Output | 2x HDMI® 1x DisplayPort™ 2.1a |
| BIOS Support | UEFI |
| Game Index | 1440P |
| Cooler Type | Dual-X Cooling AeroCurve Fan Blade Free Flow Integrated Cooling Module High TG Copper PCB Optimized Composite Heatpipes Sleeve Bearing |
| Form Factor / Slot | 2.3 slot, ATX |
| Dimension (L x W x H) | 240(L)X 124(W)X 46.1 (H)mm |
| Power Consumption (TBP) | 170W Typical Board Power |
| OS Support | Linux®, Windows® 10, and Windows 11. 64-bit operating system required |
| System Requirement | Minimum 450 Watt Power Supply 1 x 8-pin Power Connector PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. Minimum 8GB of system memory. 16GB recommended. |
$138.93
Original: $463.09
-70%SAPPHIRE PULSE AMD Radeon RX 9060 XT OC 16GB—
$463.09
$138.93Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| SKU | 11350-03-20G |
| GPU | Radeon™ RX 9060 XT Graphics Card AMD RDNA™ 4 Architecture |
| Engine Clock | Boost Clock: Up to 3290 MHz Game Clock: Up to 2700 MHz |
| Stream Processors | 2048 |
| Compute Units | 32 CUs (3rd Gen RT + 2nd Gen AI Accelerators) |
| Infinity Cache | 32MB |
| Ray Accelerators | 32 |
| AI Accelerator | 64 |
| Memory Size/Bus | 16GB/128 bit GDDR6 |
| Memory Clock | 20 Gbps Effective |
| Displays | Maximum 3 Displays |
| Resolution (Max) | HDMI®: 7680×4320 DisplayPort™ 2.1a: 7680×4320 |
| Interface | PCI-Express 5.0 x16 |
| Output | 2x HDMI® 1x DisplayPort™ 2.1a |
| BIOS Support | UEFI |
| Game Index | 1440P |
| Cooler Type | Dual-X Cooling AeroCurve Fan Blade Free Flow Integrated Cooling Module High TG Copper PCB Optimized Composite Heatpipes Sleeve Bearing |
| Form Factor / Slot | 2.3 slot, ATX |
| Dimension (L x W x H) | 240(L)X 124(W)X 46.1 (H)mm |
| Power Consumption (TBP) | 170W Typical Board Power |
| OS Support | Linux®, Windows® 10, and Windows 11. 64-bit operating system required |
| System Requirement | Minimum 450 Watt Power Supply 1 x 8-pin Power Connector PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard. Minimum 8GB of system memory. 16GB recommended. |
