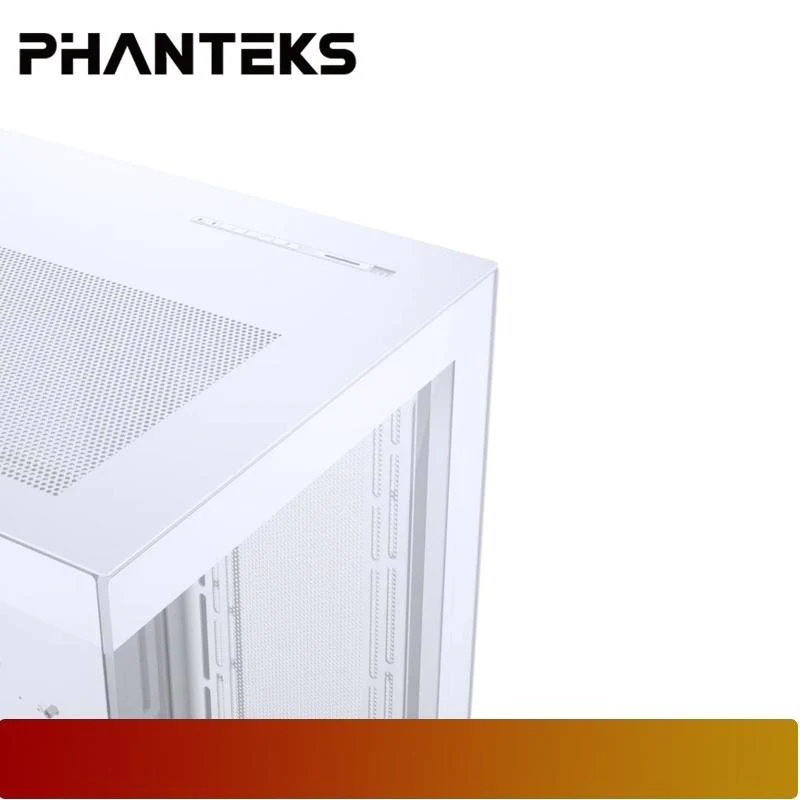

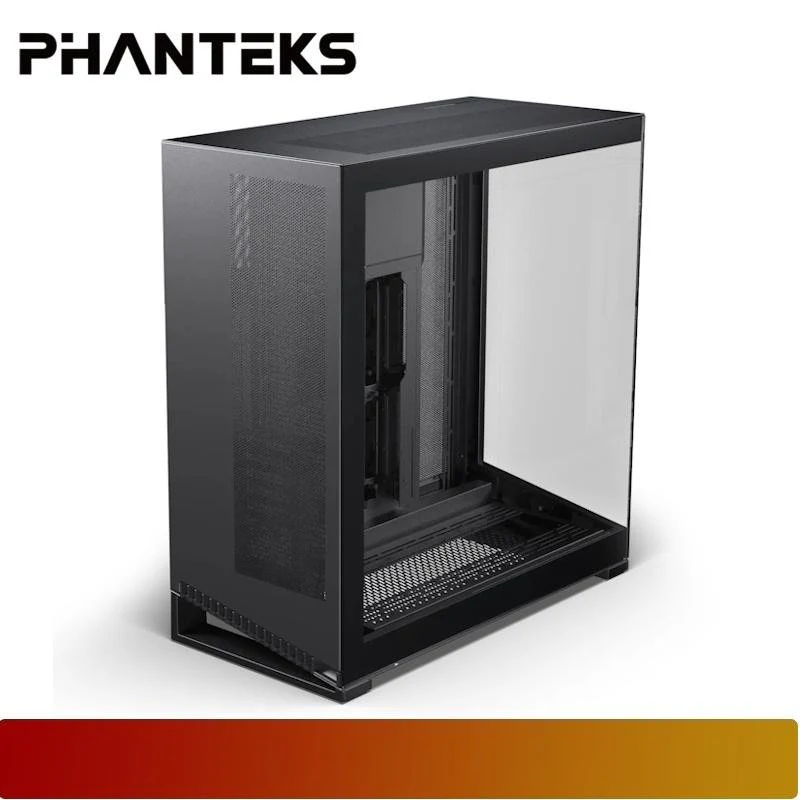

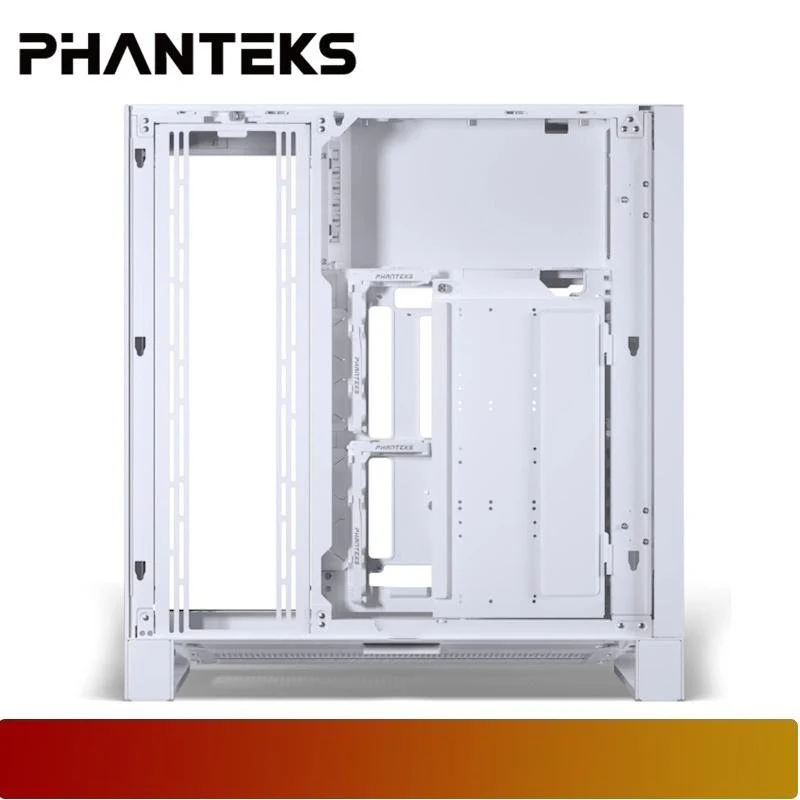

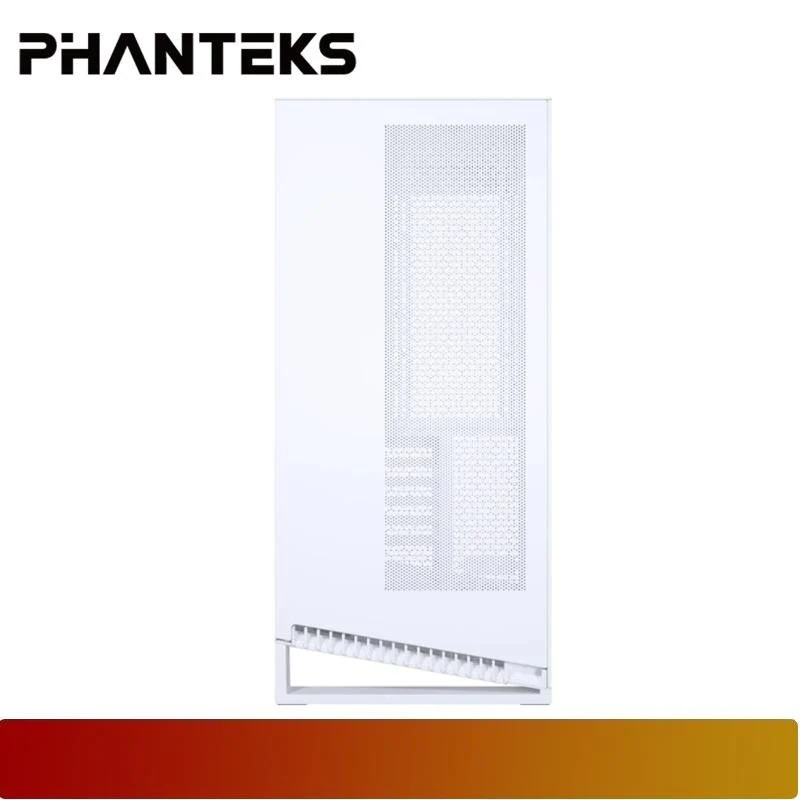

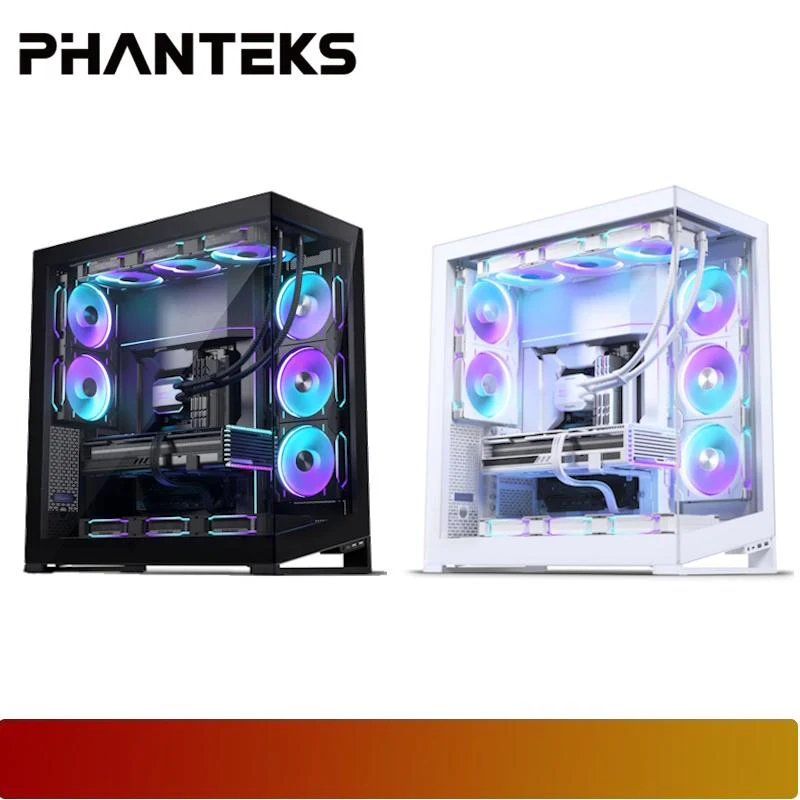

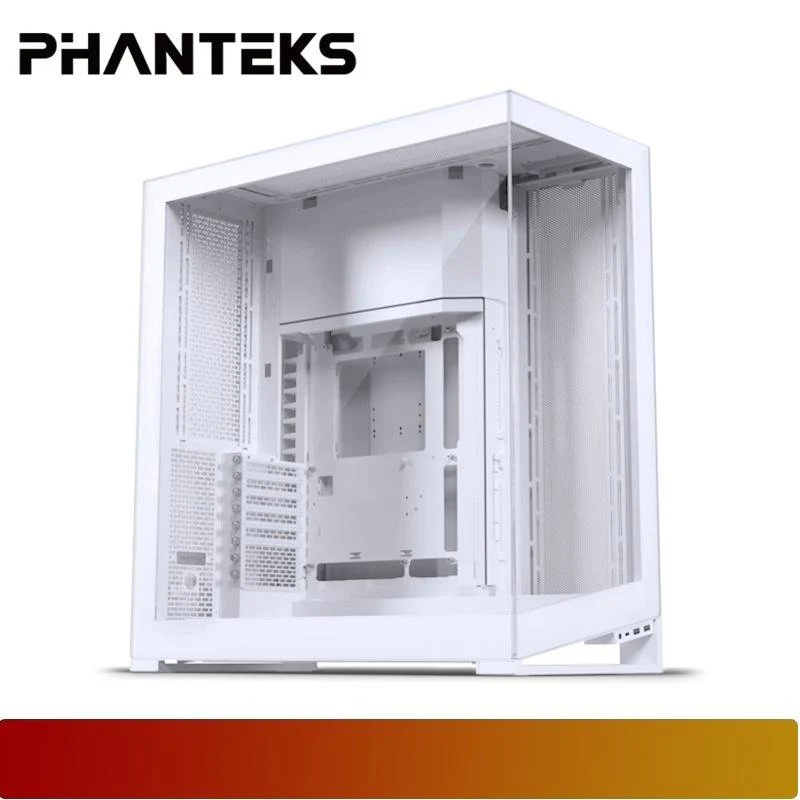

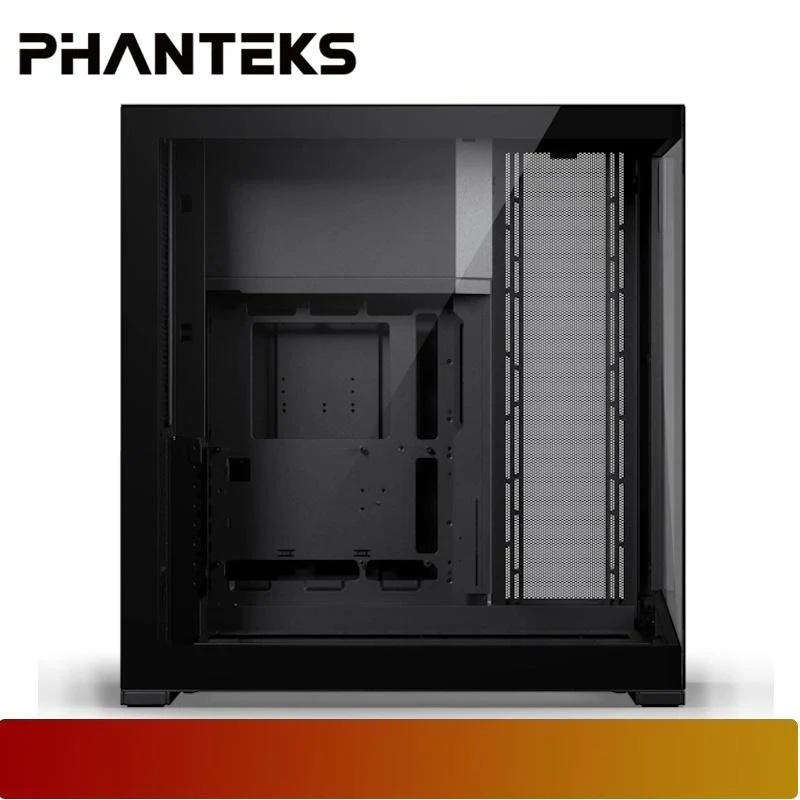

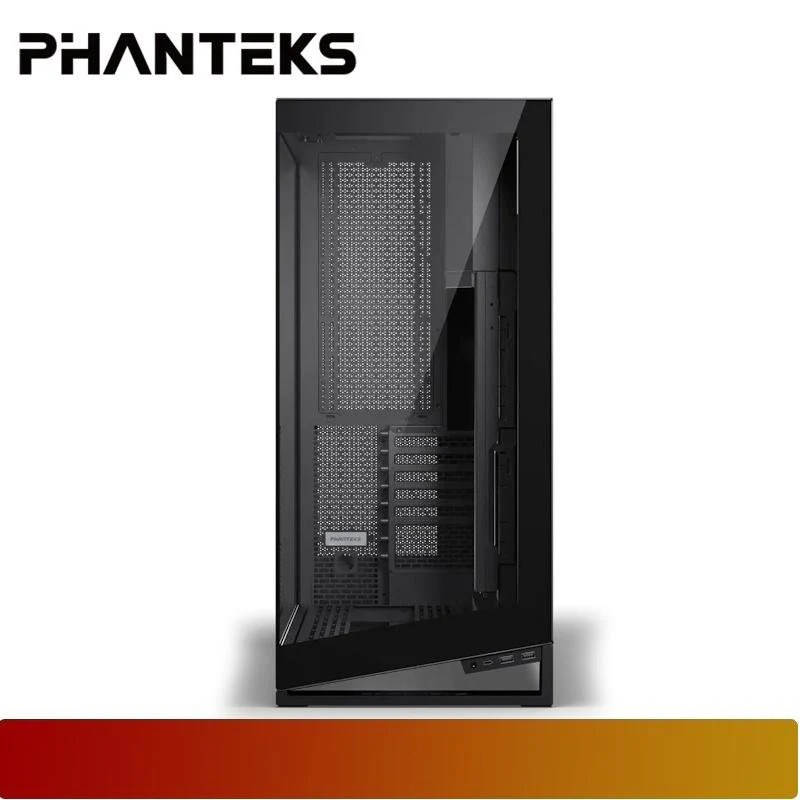

PHANTEKS NV9 MKII | D-RGB Full Tower Chassis
Specifications :
Part Number
- PH-NV923TG_DBK02 ( Black )
- PH-NV923TG_DMW02 ( White )
Dimension
- 575 x 280 x 615 mm / 22.63 x 11.02 x 24.21 in (DxWxH)
Form Factor
- Full Tower
Material(s)
- Steel Chassis, Tempered Glass
Motherboard Support
- ATX, micro-ATX, mini-ITX, SSI-CEB, E-ATX (up to 280mm wide) Reverse motherboard connectors, BTF, Project Zero
Front I/O
- 2x USB 3.0, USB-C 3.2 Gen2, Microphone/Headphone Combo, Power Button, D-RGB Mode, D-RGB Color, D-RGB Speed, D-RGB Channel
Connectors
- Power Switch, 2x D-RGB Channel A, 2x D-RGB Channel B, HD-audio, USB 3.0, 2x SATA Power, USB 3.2 GEN 2 Type-E, Power LED
Window
- Yes, Front and Side Tempered Glass
Expansion & Drive Bays
- Expansion slots : 8
- Vertical GPU support : Yes, with optional bracket PH-VGPUKT4.0_03R/PH-PGPUKT_01
- Internal 3.5”: Max 3* (3x included) (*Max 24mm HDD height when SSDs installed)
- Internal 2.5": Max 6 (6x included) (*2x if 3x HDD positions are used)
- D-RGB Controller output : 7A per Channel, 4A per port (Total 14 Watt)
Cooling
- 120mm fan : Side 4x | Top3x| Rear2x | Bottom 3x
- 140mm fan: Side 3x | Top3x| Rear2x | Bottom 3x
Liquid Cooling
- 120mm radiator: Side Up to 480 | Top Up to 360 | Rear Up to 240| Bottom Up to 360
- 140mm radiator: Side Up to 420 | Top Up to 420 | Rear Up to 280| Bottom Up to 420
Clearance
- Graphic card length : 490mm
- Graphic card width : 205mm
- CPU cooler height : 205mm
- PSU length : 210mm
- Side 360 Radiator : 525 x 154 mm
- Top 360 Radiator : 515 x 154 mm
- Rear 240 Radiator : 325 x 154 mm
Scope of deliveryNV9 Chassis
- Dual D-RGB Controller : 1x
- Top LED Cover : 1x
- Side LED Cover : 1x
- Front IO-Module : 1x
- Storage/Cable bracket : 1x
- Storage Bracket : 1x
Accessory Box
- GPU Support Bracket : 1x
- Airflow Covers : 2x
- Microfiber Cloth : 1x
- Zip ties : 6x
- Screw Assortment Box : 1x
- MB/SSD Screw : 34x
- Thumb Screw: 4x
- HDD Screw : 9x
- Standoff Removal Tool : 1x
- MB stand-off : 1x
- PSU Screw: 4x
- Extra R-Side Panel Screw : 1x
Original: $179.89
-70%$179.89
$53.97Product Information
