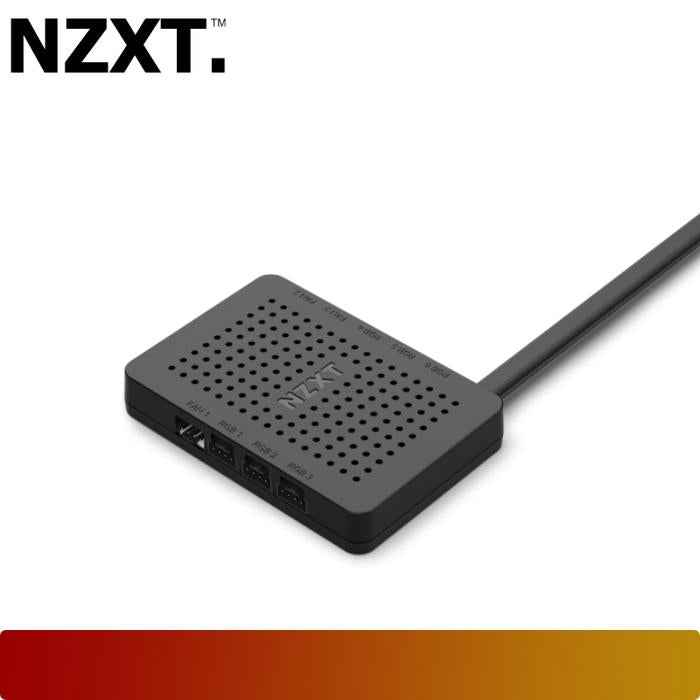

NZXT RGB & Fan Controller
Physical Dimensions
| Height | 100 mm |
| Width | 70 mm |
| Depth | 16 mm |
Output Channels & Support
| RGB Lighting Channels | 6 |
| Fan Channels | 3 |
| Max LED Support per Channel | Max 40 LED per channel |
| Total Max LED Support | Max 120 LED combined total for All 6 channels |
Input Power Specifications
| Input Power (Lighting) | 5 V DC, 4.5 A |
| Input Power (Fans) | 12 V DC, 3 A |
| Input Connector | SATA Power Cable (included) |
System Requirements & Connection Cables
| PC Requirements | PC with available internal USB 2.0 header |
| Operating System | Windows 11/10 |
| Software | CAM software |
| USB 2.0 Header Cable | 1 |
| SATA Power Cable | 1 |
| Fan Splitter Cables (1-to-3 split) | 3 |
