NZXT N7 B850
General & CPU Specifications
| Form Factor | ATX |
| Chipset | AMD B850 |
| CPU Socket | AMD Socket AM5 |
| Compatible Processors | AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors |
| Power Phase Design | 16+2+1 DrMOS with 80A Smart Power Stage |
| NZXT CAM Support | Yes (Digital Fan & RGB Control) |
| Warranty | 3 Years |
Memory Specifications (DDR5)
| DIMM Slots | 4 (DDR5 288-pin) |
| Memory Architecture | Dual-Channel |
| Max Memory Capacity | Up to 256 GB |
| Max OC Frequency | 8000+ MT/s (OC) Supported |
| Memory Profiles | Supports AMD EXPO and Intel XMP |
Expansion & Storage Slots
| PCIe 5.0 x16 Slot (x16 Mode) | 1 (via CPU) |
| PCIe 4.0 x16 Slots (x2 Mode) | 2 (via Chipset) |
| M.2 Slot (M-Key, NVMe) | 3 Total:
|
| M.2 Socket (Key E) | 1 (for Wi-Fi/BT PCIe module) |
| SATA 6Gb/s Ports | 4 |
| RAID Support | RAID 0/1/10 for SATA & NVMe storage |
Integrated Connectivity & Audio
| LAN | Realtek® Dragon RTL8125BG **2.5 Gigabit LAN** |
| Wireless | Dual-Band **Wi-Fi 6E** (802.11ax) |
| Bluetooth | v5.2 |
| Audio Codec | Realtek® ALC1220 |
| Integrated Graphics Output | 1x HDMI 2.1 (Requires supported AMD Ryzen CPU with integrated graphics) |

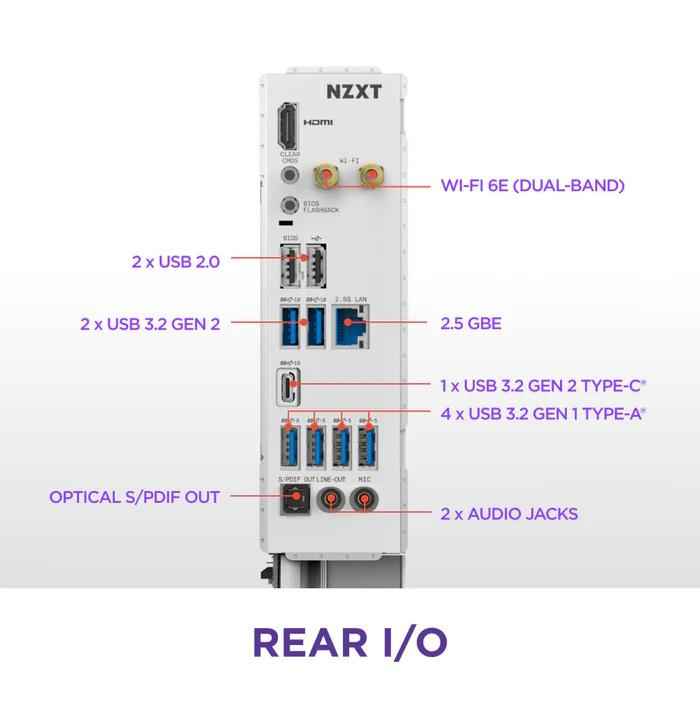

Rear I/O Ports
| USB 3.2 Gen 2 Type-C | 1 |
| USB 3.2 Gen 2 Type-A | 2 |
| USB 3.2 Gen 1 Type-A | 4 |
| USB 2.0 Type-A | 2 |
| Networking & Audio | 1x RJ45 (2.5G), 2x Wi-Fi Antenna Connectors, 2x Audio Jacks, 1x Optical S/PDIF Out |
| Buttons | Clear CMOS Button, BIOS Flashback Button |
Internal Headers
| Power Connectors | 1x 24-pin ATX, 2x 8-pin ATX 12V |

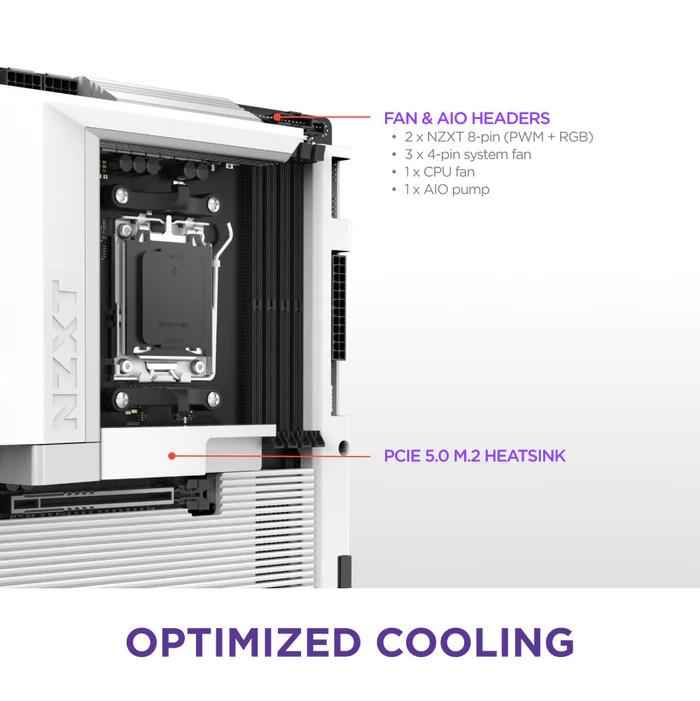

| Fan/Pump Headers (4-pin) | 1x CPU Fan, 1x AIO Pump, 3x System Fan |

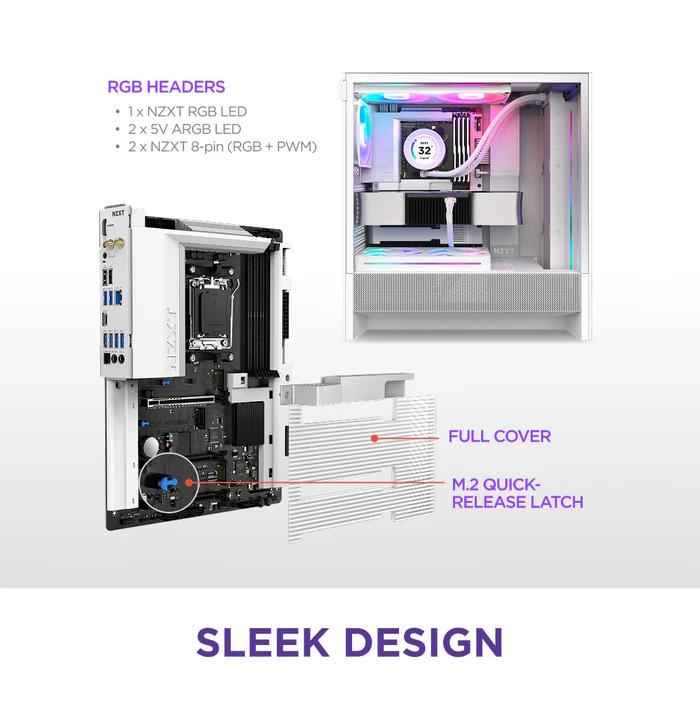

| NZXT/ARGB Headers | 1x NZXT RGB LED, 2x 5V ARGB LED, 2x NZXT 8-pin PWM Connectors (for combo headers) |

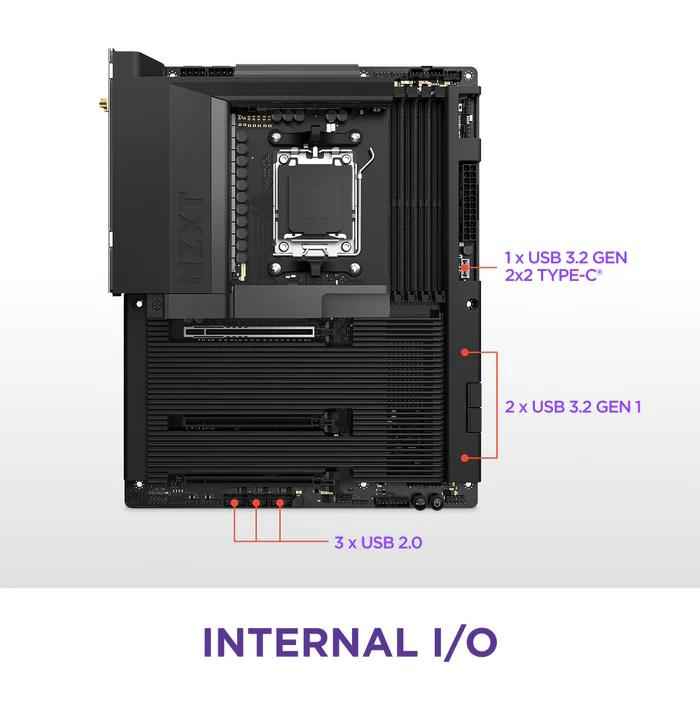

| USB Headers | 1x **USB 3.2 Gen2x2** Front Panel Header (Type-C) 2x USB 3.2 Gen1 Headers (Supports 4 ports) 3x USB 2.0 Headers (Supports 6 ports) |
| Other | Front Panel Audio, Power/Reset Buttons, POST LEDs |
