NZXT H9 Flow RGB

General Specifications and Dimensions (H9 Flow RGB)
Enclosure Type	Mid-tower (Large Dual Chamber)
Motherboard Support	E-ATX (Up to 277 mm), ATX, Micro-ATX, Mini-ITX
Rear-Connecting Motherboard Support (BTF, Project Zero)	Yes (ATX, Micro-ATX)
Case Material	SGCC Steel, Clear/Tinted Tempered Glass
Filters	Integrated High-Performance Mesh, Removable Magnetic Dust Filter (Bottom)

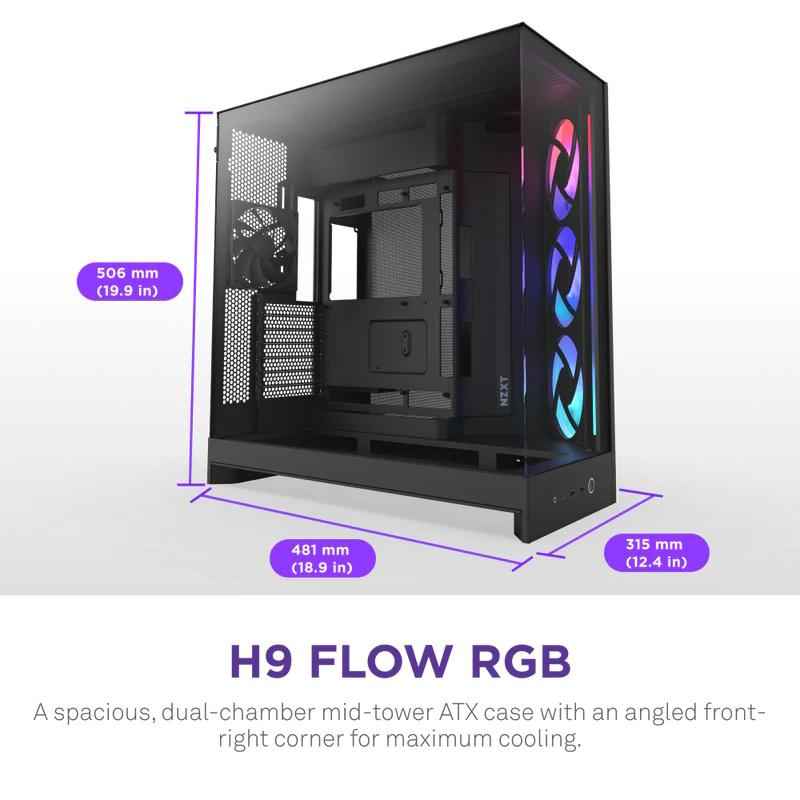

Height (with Feet)	506 mm (19.9 in)
Width	315 mm (12.4 in)
Depth	481 mm (18.9 in)
Volume	76.7 L
Weight	12.6 kg (27.78 lb)

Drive Bays and Front Connectivity (I/O)
2.5" Drive Bays	4 + 2
3.5" Drive Bays	2
Front I/O Ports (USB 3.2 Gen 1 Type-A)	2
Front I/O Ports (USB 3.2 Gen 2x2 Type-C, 20 Gbps)	1
Front I/O Ports (Headset Audio Jack)	1
Expansion Slots (Standard)	7

Component Clearance Limits
CPU Cooler Height	165 mm
GPU Length	Up to 459 mm (with <56 mm thickness fans installed at the front-right) / Up to 410 mm (with 56 mm thick 420 mm AIO and fans installed at the front-right)
PSU Length	200 mm
Top Radiator & Fan Combined Thickness	Up to 80 mm (360 mm radiator) / Up to 62 mm (420 mm radiator)
Cable Management Space	Up to 34.5 mm (1.36 in)

Cooling Support
Cooling Feature	Location	Max Size / Detail

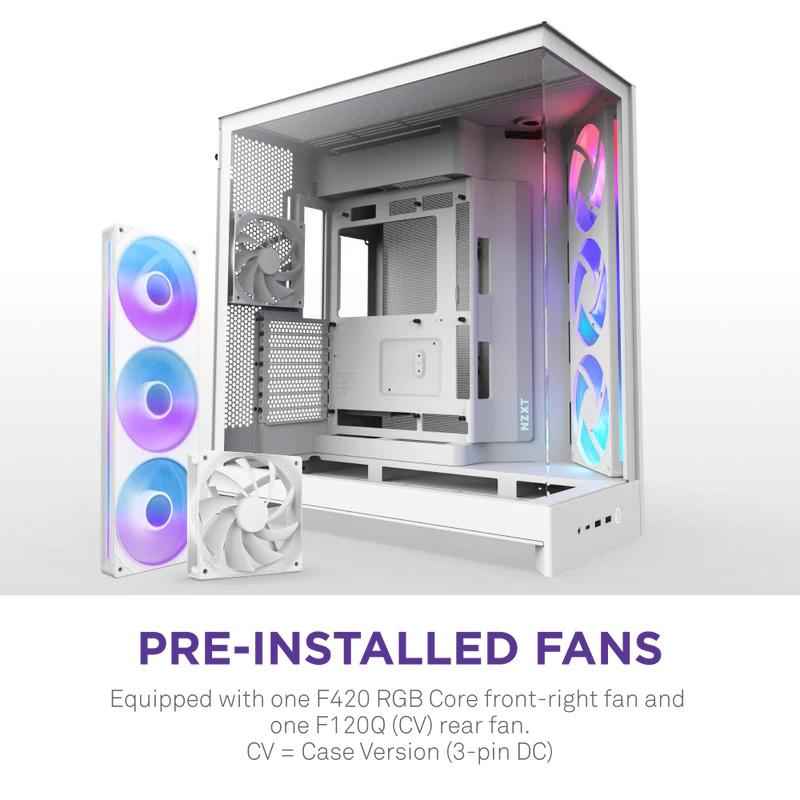

Fan Support & Pre-installed Fans
	Front-Right	3 x 120 mm / 3 x 140 mm (1 x F420 RGB Core included)
	Top	3 x 120 mm / 3 x 140 mm
	Bottom	3 x 120 mm / 3 x 140 mm
	Rear	1 x 120 mm (1 x F120Q (CV) included)
Radiator Support
	Front-Right	Up to 420 mm
	Top	Up to 420 mm
	Bottom	Up to 360 mm
	Rear	Up to 120 mm

Fan Specs - F420 RGB Core
Size	420 mm
Speed	2,000 ± 200 RPM
Airflow	98.61 CFM
Static Pressure	3.2 mm - H₂O
Noise	34.5 dBA
Fan Connector	8-pin w/ splitter

Fan Specs - F120Q Airflow Fan (Case Version)
Size	120 mm
Speed	1,350 ± 150 RPM
Airflow	60.2 CFM
Static Pressure	1.05 mm - H₂O
Noise	24.1 dBA
Fan Connector	3-pin
