NZXT H3 Flow
| Enclosure Type | Micro-ATX Case |

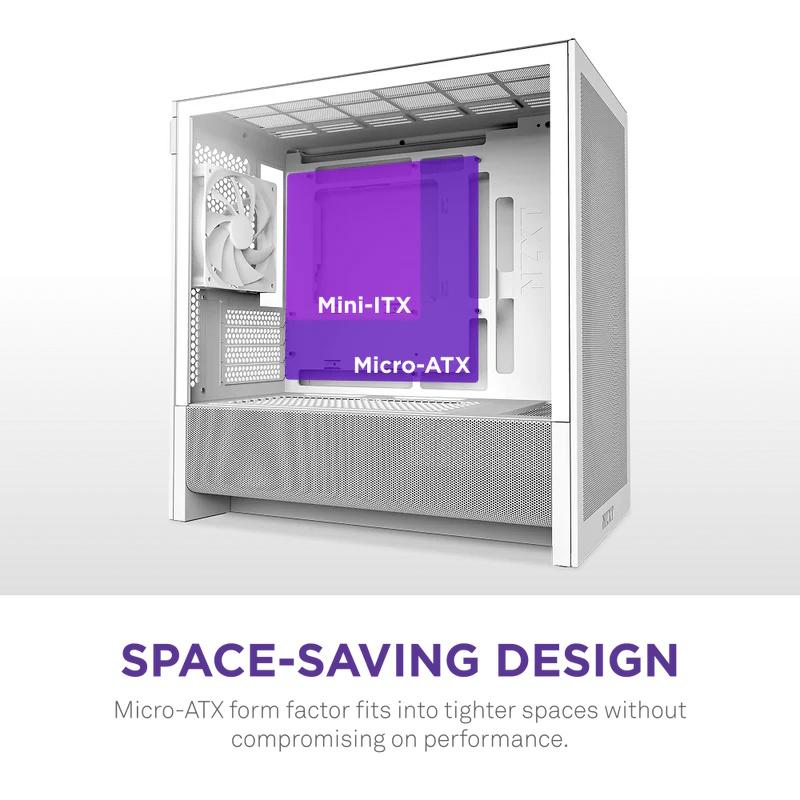

| Motherboard Compatibility | Micro-ATX, Mini-ITX |

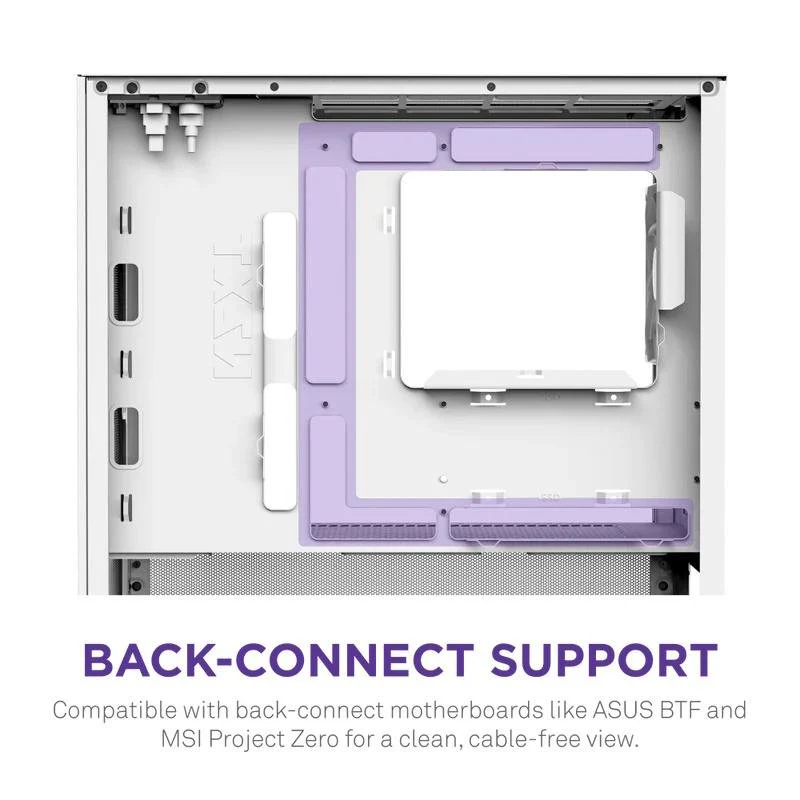

| Rear-Connecting Motherboard Support | Yes (Micro-ATX, e.g., ASUS BTF/MSI Project Zero) |
| Materials | SGCC steel, Clear Tempered Glass (white) / Tinted Tempered Glass (black) |
| Expansion Slots | 4 |
| Height (with feet) | 400 mm (15.75 in) |
| Width | 225 mm (8.86 in) |
| Depth | 389 mm (15.31 in) |
| Volume | 35.0 L |
| Weight | 4.8 kg (10.58 lb) |
| 2.5" Drive Bays | 1+2 |
| 3.5" Drive Bays | 1 |
| Front I/O Ports | 1x USB 3.2 Type-A, 1x USB 3.2 Gen2x2 Type-C, Headset Audio Jack |
| CPU Cooler Height Clearance | 170 mm |

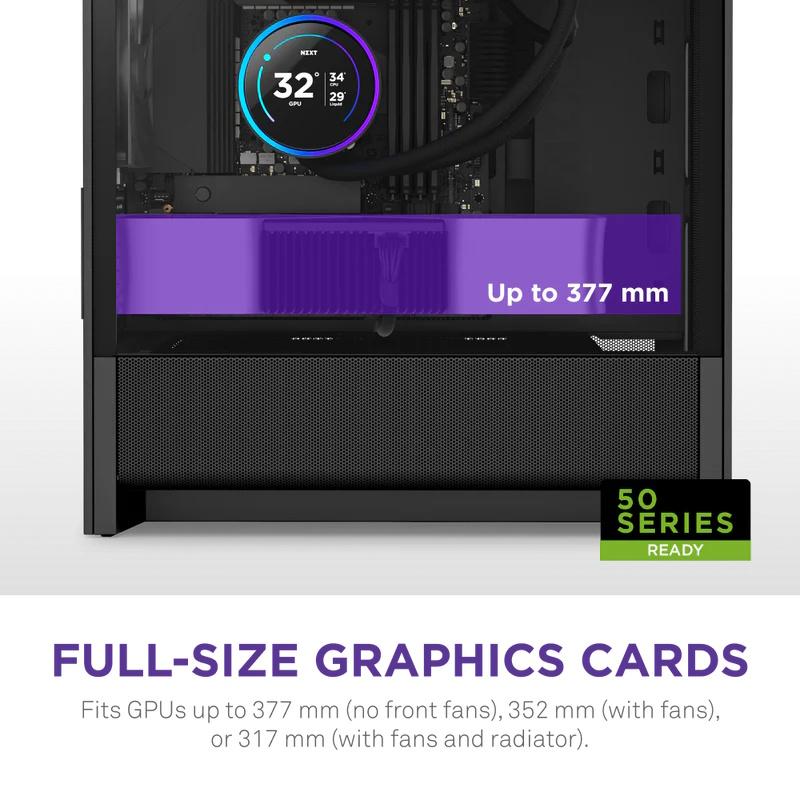

| GPU Length Clearance | Up to 377 mm (w/o front fans) / 352 mm (w/ front fans) / 317 mm (w/ front rad & fans) |
| PSU Length Clearance | Up to 185 mm |
| Cable Routing Space | Up to 31.5 mm |
| Front Radiator + Fan Thickness | Up to 63 mm |
| Top Radiator + Fan Thickness | Up to 70 mm |

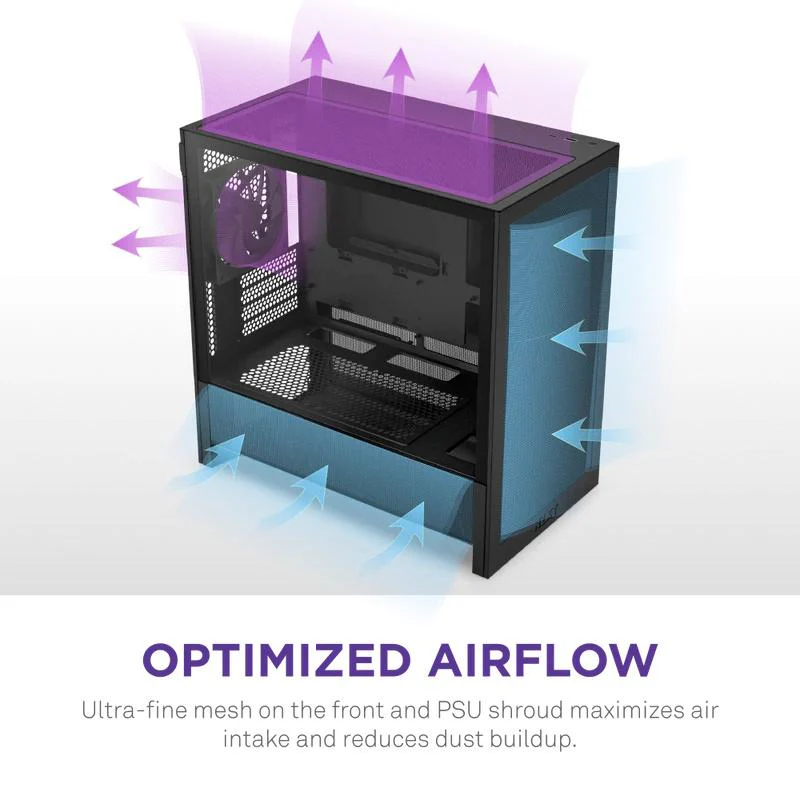

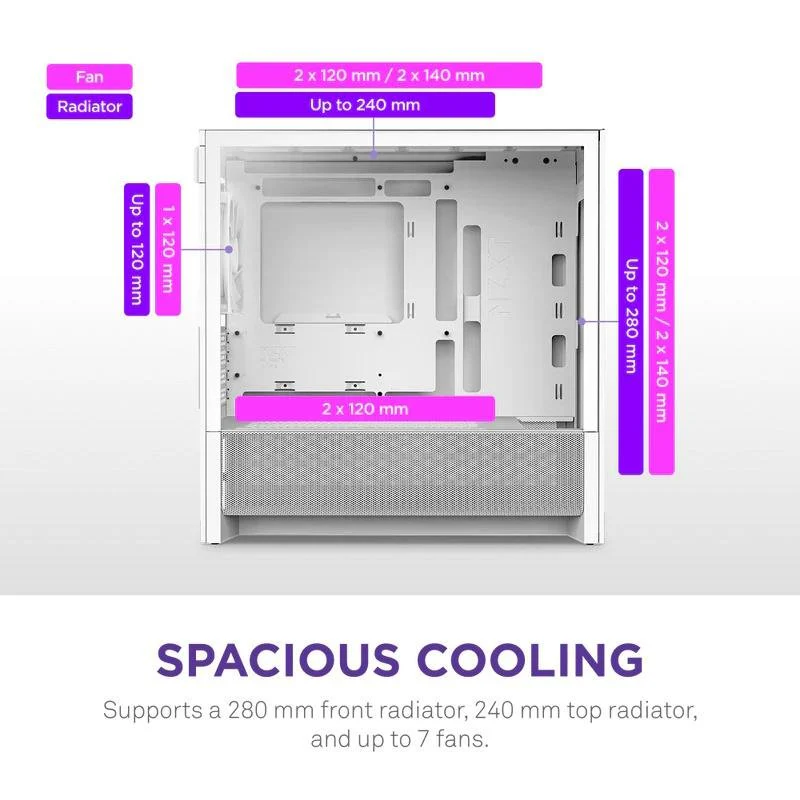

| Cooling Feature | Location | Max Size / Detail |
|---|---|---|
| Fan Support | ||
| Front | 2x 120 mm / 2x 140 mm | |
| Top | 2x 120 mm / 2x 140 mm | |
| Rear | 1x 120 mm | |
| Bottom | 2x 120 mm | |
| Pre-installed Fan | ||
| Rear | 1x F120Q (Case Version) 3-pin DC Fan | |
| Radiator Support | ||
| Front | Up to 280 mm | |
| Top | Up to 240 mm | |
| Rear | Up to 120 mm |
Select Color
From $56.58
NZXT H3 Flow—
$56.58
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Enclosure Type | Micro-ATX Case |
| Motherboard Compatibility | Micro-ATX, Mini-ITX |
| Rear-Connecting Motherboard Support | Yes (Micro-ATX, e.g., ASUS BTF/MSI Project Zero) |
| Materials | SGCC steel, Clear Tempered Glass (white) / Tinted Tempered Glass (black) |
| Expansion Slots | 4 |
| Height (with feet) | 400 mm (15.75 in) |
| Width | 225 mm (8.86 in) |
| Depth | 389 mm (15.31 in) |
| Volume | 35.0 L |
| Weight | 4.8 kg (10.58 lb) |
| 2.5" Drive Bays | 1+2 |
| 3.5" Drive Bays | 1 |
| Front I/O Ports | 1x USB 3.2 Type-A, 1x USB 3.2 Gen2x2 Type-C, Headset Audio Jack |
| CPU Cooler Height Clearance | 170 mm |
| GPU Length Clearance | Up to 377 mm (w/o front fans) / 352 mm (w/ front fans) / 317 mm (w/ front rad & fans) |
| PSU Length Clearance | Up to 185 mm |
| Cable Routing Space | Up to 31.5 mm |
| Front Radiator + Fan Thickness | Up to 63 mm |
| Top Radiator + Fan Thickness | Up to 70 mm |
| Cooling Feature | Location | Max Size / Detail |
|---|---|---|
| Fan Support | ||
| Front | 2x 120 mm / 2x 140 mm | |
| Top | 2x 120 mm / 2x 140 mm | |
| Rear | 1x 120 mm | |
| Bottom | 2x 120 mm | |
| Pre-installed Fan | ||
| Rear | 1x F120Q (Case Version) 3-pin DC Fan | |
| Radiator Support | ||
| Front | Up to 280 mm | |
| Top | Up to 240 mm | |
| Rear | Up to 120 mm |
