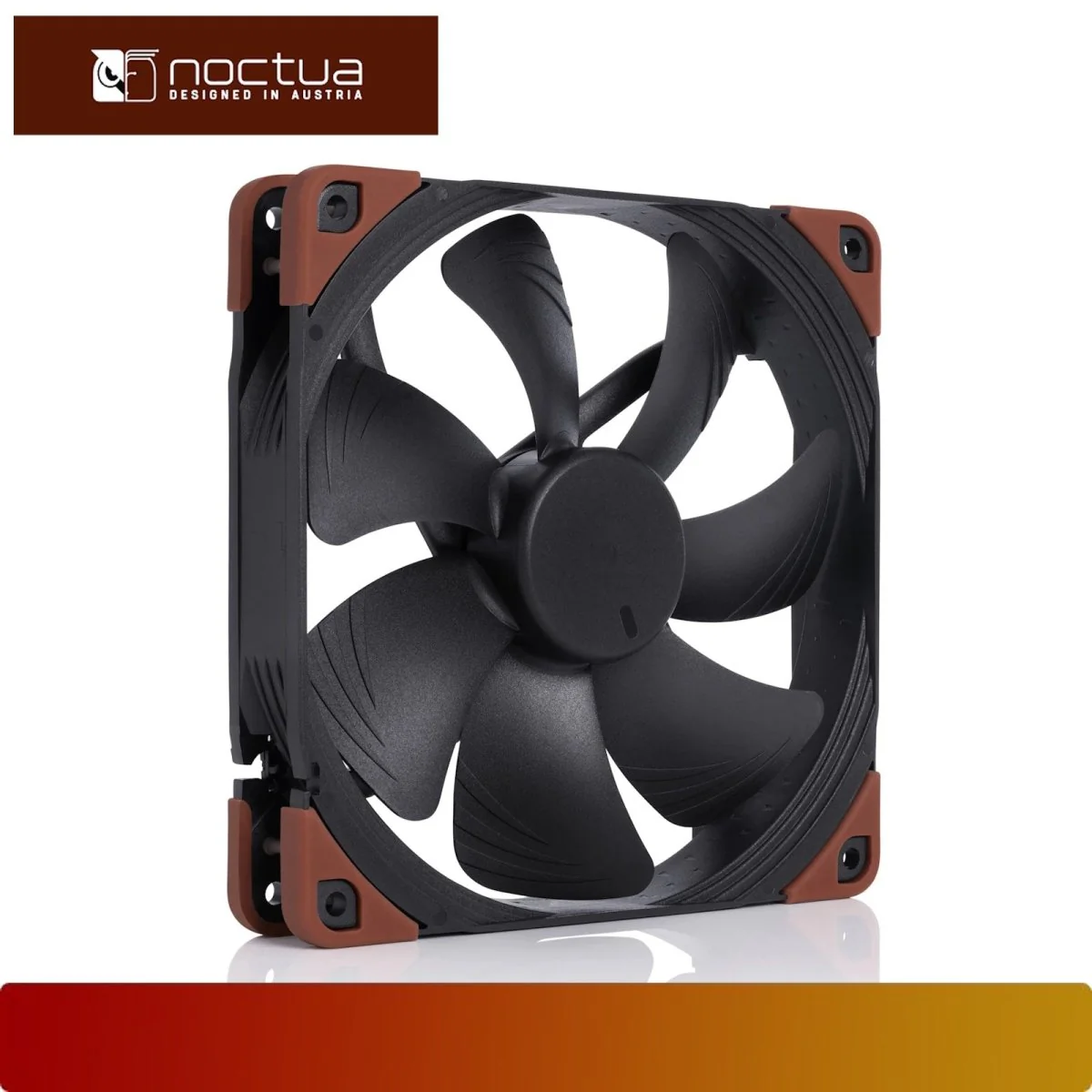

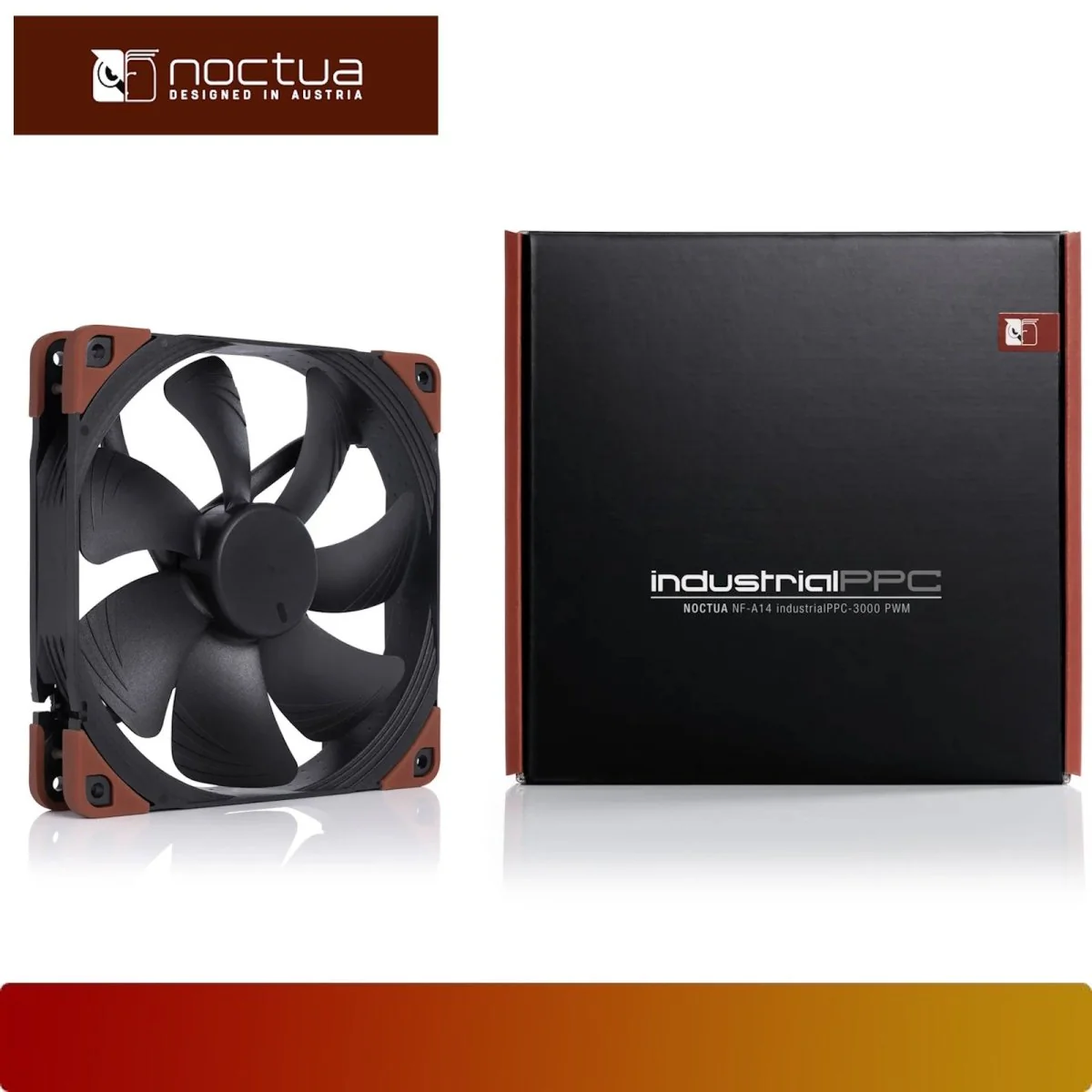

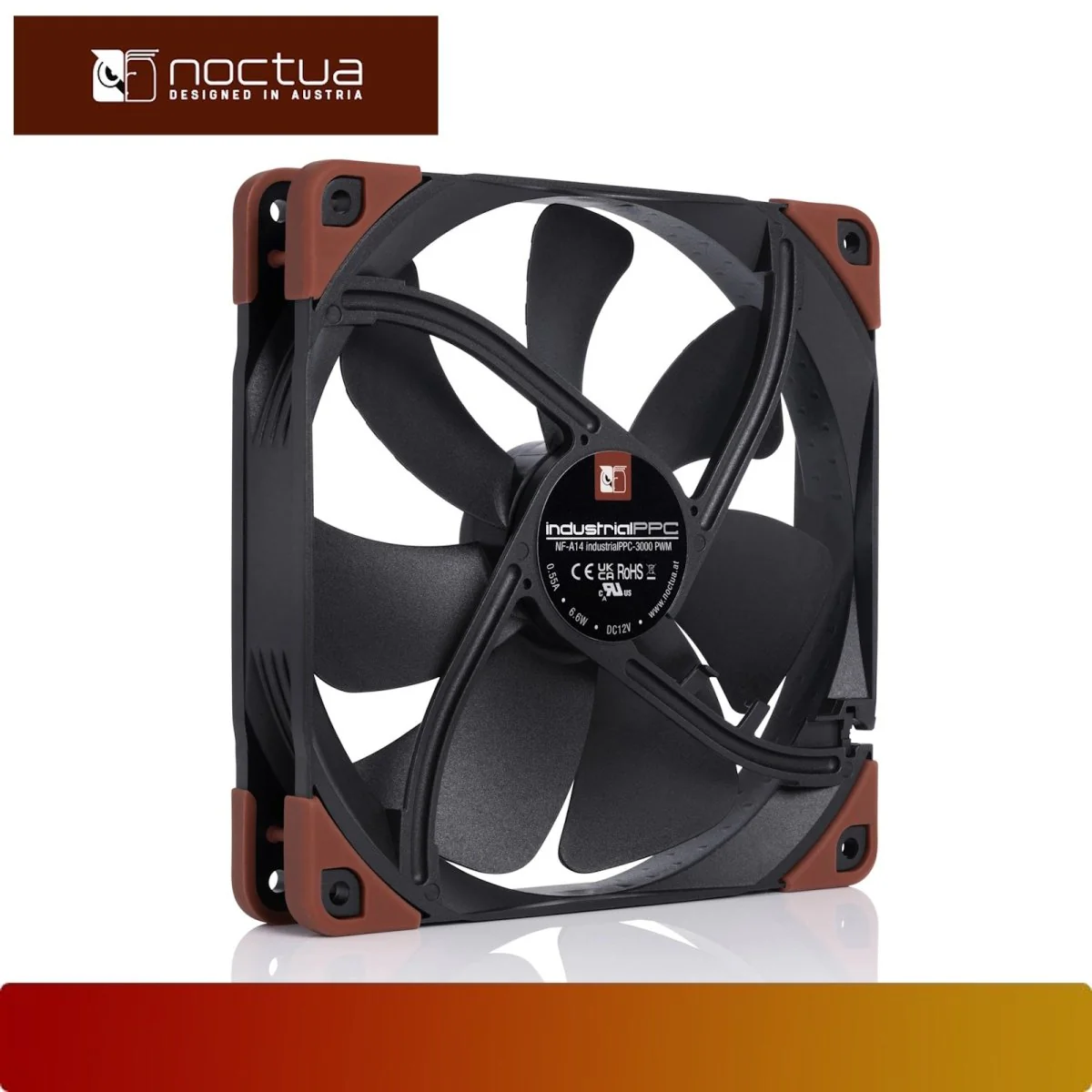

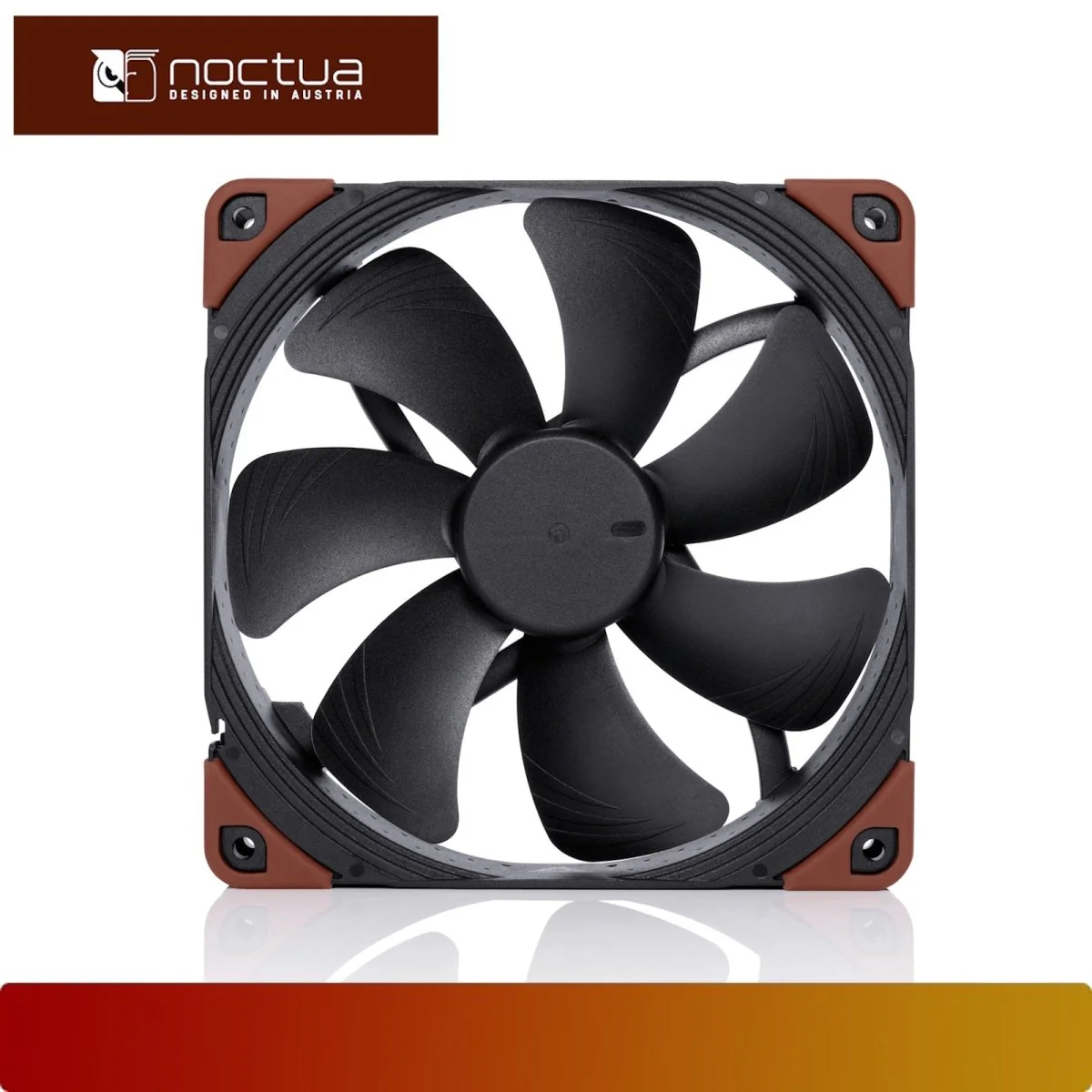

NOCTUA NF-A14 industrialPPC-3000 PWM
| Specifications : |
|
MODEL NAME - NOCTUA NF-A14 industrialPPC-3000 PWM |
|
COLOR - Black (Industrial Edition) |
|
FAN DIMENSIONS - 140 x 140 x 25 mm (Square Frame) |
|
MATERIAL - Fibre-glass reinforced polyamide |
|

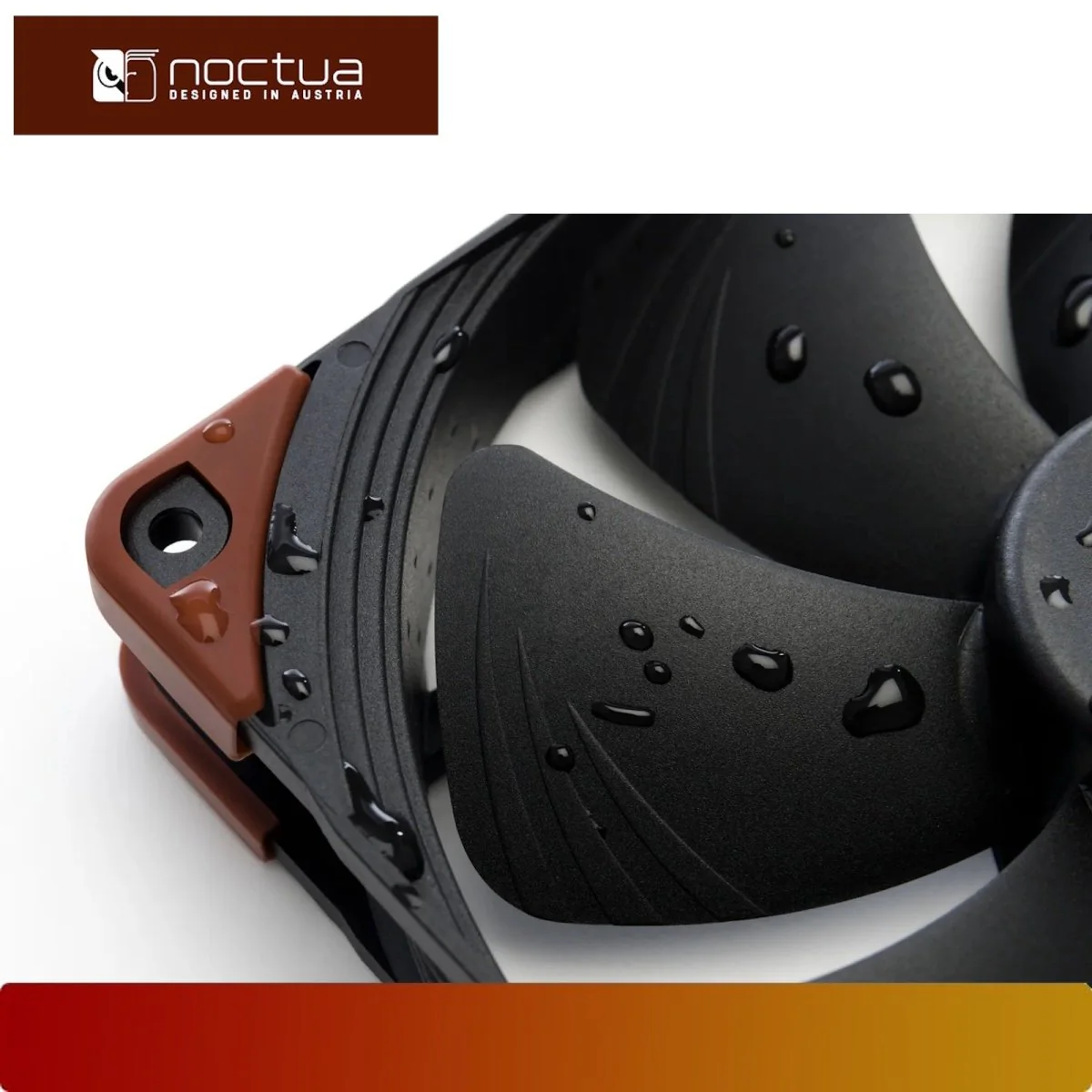

INGRESS PROTECTION - IP52 (Dust and Water Protected) |
|
FAN SPECIFICATIONS - Fan Speed: 800 - 3,000 ± 10% RPM - Airflow: 269.3 m³/h (158.5 CFM) - Static Pressure: 10.52 mm-H2O - Noise: 41.3 dBA - Bearing: SSO2 (Self-Stabilising Oil-Pressure) |
|
ELECTRICAL SPECIFICATIONS - Rated Voltage: 12V DC - Max. Input Current: 0.55A - Max. Input Power: 6.6W |
|
CONNECTOR & CABLES - 4-pin PWM - Cable Length: 40 cm |
|
SPECIAL FEATURES - Three-phase Motor Design (High Efficiency & Smoothness) - AAO (Advanced Acoustic Optimisation) Frame - Flow Acceleration Channels - 150,000+ hours MTTF |
|
WARRANTY - 6 years |
$7.59
Original: $25.31
-70%NOCTUA NF-A14 industrialPPC-3000 PWM—
$25.31
$7.59Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Specifications : |
|
MODEL NAME - NOCTUA NF-A14 industrialPPC-3000 PWM |
|
COLOR - Black (Industrial Edition) |
|
FAN DIMENSIONS - 140 x 140 x 25 mm (Square Frame) |
|
MATERIAL - Fibre-glass reinforced polyamide |
|
INGRESS PROTECTION - IP52 (Dust and Water Protected) |
|
FAN SPECIFICATIONS - Fan Speed: 800 - 3,000 ± 10% RPM - Airflow: 269.3 m³/h (158.5 CFM) - Static Pressure: 10.52 mm-H2O - Noise: 41.3 dBA - Bearing: SSO2 (Self-Stabilising Oil-Pressure) |
|
ELECTRICAL SPECIFICATIONS - Rated Voltage: 12V DC - Max. Input Current: 0.55A - Max. Input Power: 6.6W |
|
CONNECTOR & CABLES - 4-pin PWM - Cable Length: 40 cm |
|
SPECIAL FEATURES - Three-phase Motor Design (High Efficiency & Smoothness) - AAO (Advanced Acoustic Optimisation) Frame - Flow Acceleration Channels - 150,000+ hours MTTF |
|
WARRANTY - 6 years |
