MSI X670E GAMING PLUS WIFI

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5

MSI X670E GAMING PLUS WIFI



Chipset AMD X670E
CPU Socket Socket AM5 (Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors)
Form Factor ATX
Memory (DDR5)
  1. 4x DDR5 DIMMs, Maximum Memory Capacity 256GB
  2. Memory Speed Support: DDR5 up to 7800+(OC) MHz
  3. Max overclocking frequency:
    • 1) 1DPC 1R Max speed up to 7800+ MHz
    • 2) 1DPC 2R Max speed up to 6400+ MHz
    • 3) 2DPC 1R Max speed up to 6400+ MHz
    • 4) 2DPC 2R Max speed up to 5400+ MHz
  4. Supports Dual-Channel mode, non-ECC un-buffered memory, and AMD EXPO™
Onboard Graphics
  1. 1x HDMI™ (Supports HDMI™ 2.1 FRL, max resolution 4K 60Hz*)
  2. 1x DisplayPort 1.4 (max resolution 4K 60Hz*)

*Requires a processor with integrated graphics.
Expansion Slots
  1. 1x PCI-E x16 slot (PCI_E1 Gen **PCIe 5.0**, runs at x16 mode from CPU)
  2. 1x PCI-E x16 slot (PCI_E3 Gen PCIe 4.0, runs at x4 mode from Chipset)
  3. 1x PCI-E x1 slot (PCI_E2 Gen PCIe 3.0, runs at x1 mode from Chipset)
Audio Realtek® ALC4080 Codec, 7.1-Channel HD Audio with Audio Boost 5
Storage
  1. 4x M.2 slots (M.2\_1 and M.2\_3 support **PCIe 5.0** x4; M.2\_2 and M.2\_4 support PCIe 4.0 x4)
  2. 6x SATA 6G ports
Networking
  1. LAN: Realtek® RTL8125BG 2.5Gbps LAN
  2. Wireless/Bluetooth: AMD Wi-Fi 6E (pre-installed module) & Bluetooth® 5.3
RAID Support Supports RAID 0, RAID 1, and RAID 10 for SATA and RAID 0, RAID 1 for M.2 NVMe devices.
USB Ports

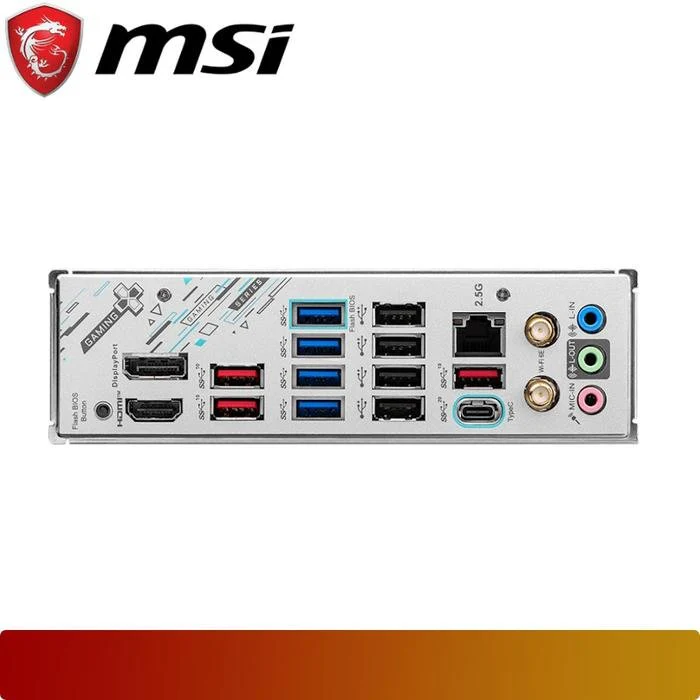

  1. Rear Panel Ports: 1x USB-C 20Gbps (USB 3.2 Gen 2x2), 3x USB-A 10Gbps, 4x USB-A 5Gbps, 2x USB 2.0.
  2. Front/Internal Headers: 1x USB-C 10Gbps header, 2x USB-A 5Gbps headers (supports 4 ports), 2x USB 2.0 headers (supports 4 ports).
LED Feature EZ Debug LED
Operating System Supports Windows® 11 64-bit, Windows® 10 64-bit
$90.43

Original: $301.43

-70%
MSI X670E GAMING PLUS WIFI—

$301.43

$90.43

Product Information

Shipping & Returns

Description



Chipset AMD X670E
CPU Socket Socket AM5 (Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors)
Form Factor ATX
Memory (DDR5)
  1. 4x DDR5 DIMMs, Maximum Memory Capacity 256GB
  2. Memory Speed Support: DDR5 up to 7800+(OC) MHz
  3. Max overclocking frequency:
    • 1) 1DPC 1R Max speed up to 7800+ MHz
    • 2) 1DPC 2R Max speed up to 6400+ MHz
    • 3) 2DPC 1R Max speed up to 6400+ MHz
    • 4) 2DPC 2R Max speed up to 5400+ MHz
  4. Supports Dual-Channel mode, non-ECC un-buffered memory, and AMD EXPO™
Onboard Graphics
  1. 1x HDMI™ (Supports HDMI™ 2.1 FRL, max resolution 4K 60Hz*)
  2. 1x DisplayPort 1.4 (max resolution 4K 60Hz*)

*Requires a processor with integrated graphics.
Expansion Slots
  1. 1x PCI-E x16 slot (PCI_E1 Gen **PCIe 5.0**, runs at x16 mode from CPU)
  2. 1x PCI-E x16 slot (PCI_E3 Gen PCIe 4.0, runs at x4 mode from Chipset)
  3. 1x PCI-E x1 slot (PCI_E2 Gen PCIe 3.0, runs at x1 mode from Chipset)
Audio Realtek® ALC4080 Codec, 7.1-Channel HD Audio with Audio Boost 5
Storage
  1. 4x M.2 slots (M.2\_1 and M.2\_3 support **PCIe 5.0** x4; M.2\_2 and M.2\_4 support PCIe 4.0 x4)
  2. 6x SATA 6G ports
Networking
  1. LAN: Realtek® RTL8125BG 2.5Gbps LAN
  2. Wireless/Bluetooth: AMD Wi-Fi 6E (pre-installed module) & Bluetooth® 5.3
RAID Support Supports RAID 0, RAID 1, and RAID 10 for SATA and RAID 0, RAID 1 for M.2 NVMe devices.
USB Ports
  1. Rear Panel Ports: 1x USB-C 20Gbps (USB 3.2 Gen 2x2), 3x USB-A 10Gbps, 4x USB-A 5Gbps, 2x USB 2.0.
  2. Front/Internal Headers: 1x USB-C 10Gbps header, 2x USB-A 5Gbps headers (supports 4 ports), 2x USB 2.0 headers (supports 4 ports).
LED Feature EZ Debug LED
Operating System Supports Windows® 11 64-bit, Windows® 10 64-bit
