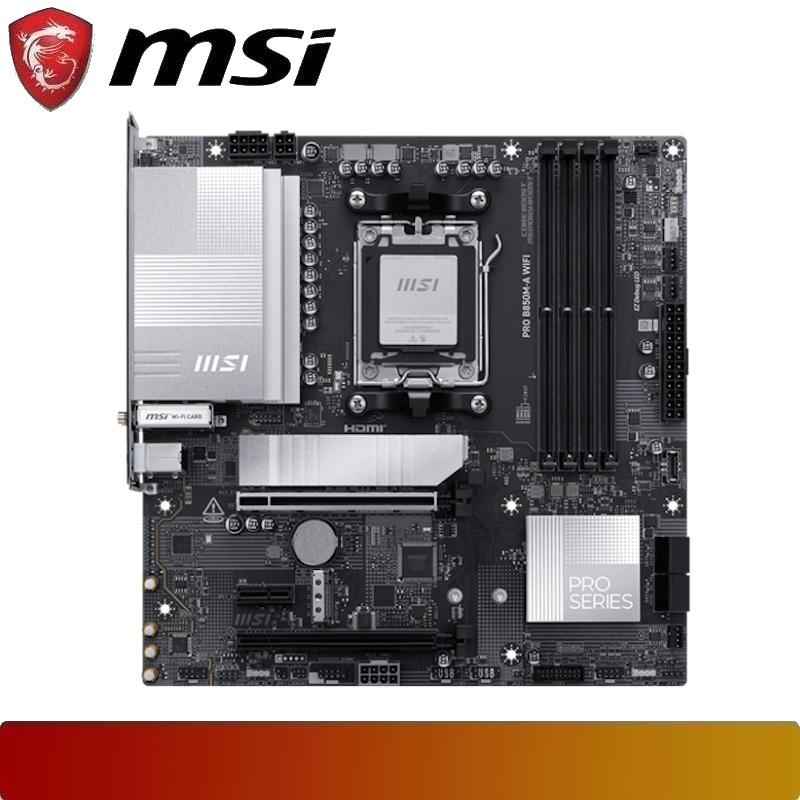

Product image 1
Product image 2

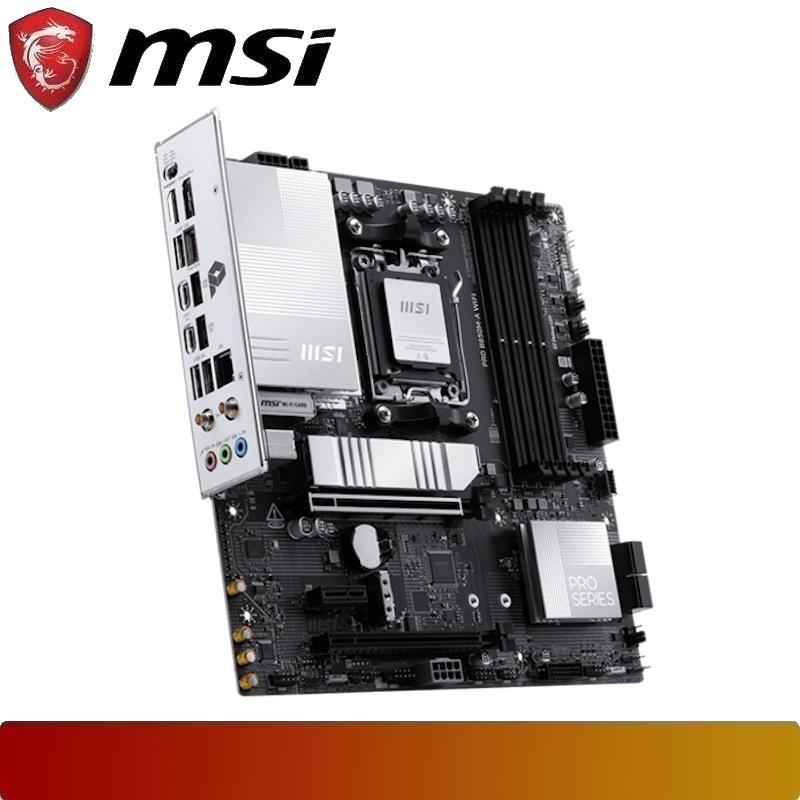

Product image 3

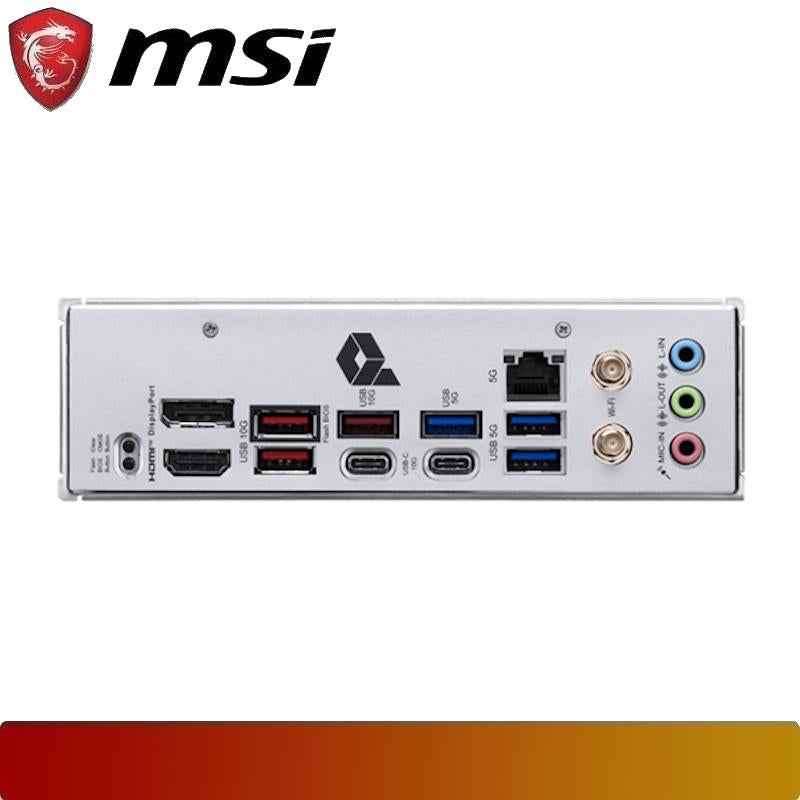

Product image 4

MSI PRO B850M-A WIFI



Chipset AMD B850
CPU Socket Socket AM5 (Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors)
Form Factor Micro-ATX (mATX)
Memory (DDR5)
  1. 4x DDR5 DIMMs, Maximum Memory Capacity 256GB
  2. Memory Speed Support: DDR5 up to 8200+(OC) MT/s
  3. Max overclocking frequency (Ryzen™ 9000 Series):
    • 1) 1DPC 1R Max speed up to 8200+ MT/s
    • 2) 1DPC 2R Max speed up to 6400+ MT/s
    • 3) 2DPC 1R Max speed up to 6400+ MT/s
    • 4) 2DPC 2R Max speed up to 6000+ MT/s
  4. Supports Dual-Channel mode, Non-ECC, Un-buffered memory, and AMD EXPO™
Onboard Graphics
  1. 1x HDMI™ (Supports HDMI™ 2.1, max resolution 4K 60Hz*)
  2. 1x DisplayPort 1.4 (max resolution 4K 60Hz*)

*Requires a processor with integrated graphics.
Expansion Slots
  1. 1x PCI-E x16 slot (PCI_E1 Gen **PCIe 5.0**, runs at x16 from CPU)
  2. 2x PCI-E x1 slots (PCIe 3.0, from Chipset)
Audio Realtek® ALC897 Codec, 7.1-Channel High Definition Audio
Storage
  1. 2x M.2 slots (M.2\_1: **PCIe 5.0** x4 from CPU; M.2\_2: PCIe 4.0 x4 from Chipset)
  2. 4x SATA 6G ports
Networking
  1. LAN: Realtek® 8126 5Gbps LAN
  2. Wireless/Bluetooth: Wi-Fi 7 Solution (pre-installed) & Bluetooth® 5.4
RAID Support Supports RAID 0, RAID 1, and RAID 10 for SATA and RAID 0, RAID 1 for M.2 NVMe devices.
USB Ports
  1. Rear Panel Ports: 1x USB-C 10Gbps, 1x USB-A 10Gbps, 2x USB-A 5Gbps, 4x USB 2.0.
  2. Front/Internal Headers: 1x USB-C 10Gbps header, 2x USB-A 5Gbps headers (supports 4 ports), 2x USB 2.0 headers (supports 4 ports).
LED Feature 4x EZ Debug LED, 1x EZ Memory Detection LED
Operating System Supports Windows® 11 64-bit
$55.38

Original: $184.61

-70%
MSI PRO B850M-A WIFI—

$184.61

$55.38
