MSI PRO B840M-B

Product image 1
Product image 2
Product image 3
Product image 4

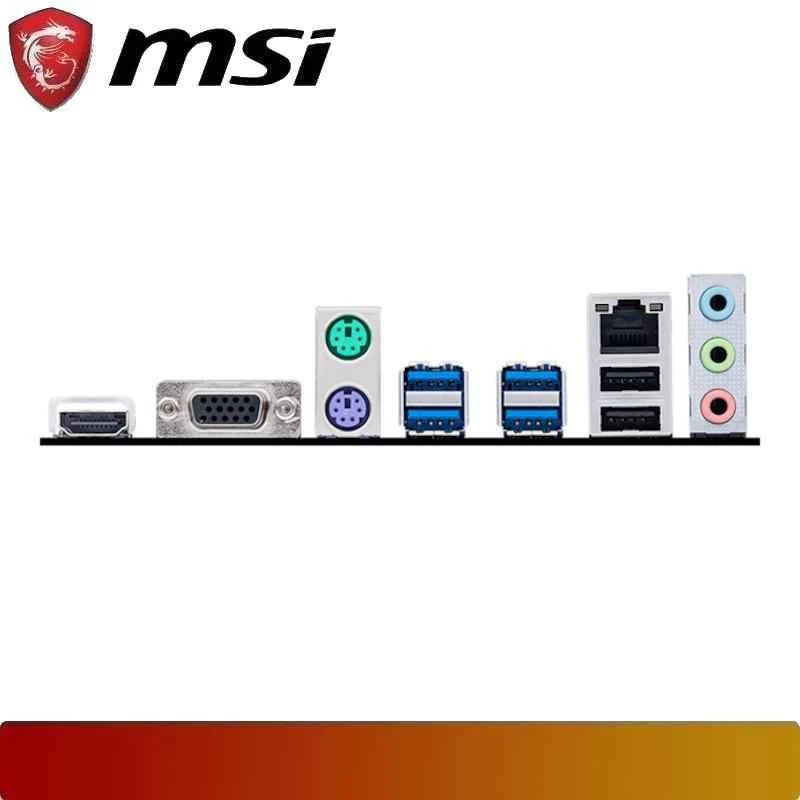

Product image 5

MSI PRO B840M-B



Chipset AMD B840
CPU Socket Socket AM5 (Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors)
Form Factor Micro-ATX (mATX)
Memory (DDR5)
  1. 2x DDR5 UDIMM slots, Maximum Memory Capacity 128GB
  2. Memory Speed Support: DDR5 up to 8000+(OC) MT/s / 5600 - 4800 (JEDEC) MT/s
  3. Max overclocking frequency for Ryzen™ 9000 Series Processors:
    • 1) 1DPC 1R Max speed up to 8000+ MT/s
    • 2) 1DPC 2R Max speed up to 7200+ MT/s
  4. Supports Dual-Channel mode, Non-ECC, Un-buffered memory, and AMD EXPO™
Onboard Graphics
  1. 1x HDMI™ (Supports HDMI™ 2.1, max resolution 4K 60Hz*)
  2. 1x VGA (Max resolution 2048x1536 50Hz*)

*Available only on processors featuring integrated graphics.
Expansion Slots
  1. 1x PCI-E x16 slot (PCIe 4.0, from CPU)
  2. 1x PCI-E x1 slot (PCIe 3.0, from Chipset)
Audio Realtek® ALC897 Codec, 7.1-Channel High Definition Audio
Storage
  1. 2x M.2 slots (Both support PCIe 4.0 x4)
  2. 4x SATA 6G ports
Networking (LAN) Realtek® 8125D 2.5G LAN
RAID Support
  1. Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices.
  2. Supports RAID 0 and RAID 1 for M.2 NVMe storage devices.
USB Ports
  1. Rear Panel Ports: 4x USB 5Gbps Type A, 2x USB 2.0.
  2. Front/Internal Headers: 4x USB 2.0 (via 2 headers), 2x USB 5Gbps Type A (via 1 header), 1x USB 5Gbps Type C (via 1 header).
LED Feature 4x EZ Debug LED, 1x EZ Memory Detection LED
Operating System Supports Windows® 11 64-bit
$30.07

Original: $100.24

-70%
MSI PRO B840M-B—

$100.24

$30.07

Product Information

Shipping & Returns

Description



Chipset AMD B840
CPU Socket Socket AM5 (Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors)
Form Factor Micro-ATX (mATX)
Memory (DDR5)
  1. 2x DDR5 UDIMM slots, Maximum Memory Capacity 128GB
  2. Memory Speed Support: DDR5 up to 8000+(OC) MT/s / 5600 - 4800 (JEDEC) MT/s
  3. Max overclocking frequency for Ryzen™ 9000 Series Processors:
    • 1) 1DPC 1R Max speed up to 8000+ MT/s
    • 2) 1DPC 2R Max speed up to 7200+ MT/s
  4. Supports Dual-Channel mode, Non-ECC, Un-buffered memory, and AMD EXPO™
Onboard Graphics
  1. 1x HDMI™ (Supports HDMI™ 2.1, max resolution 4K 60Hz*)
  2. 1x VGA (Max resolution 2048x1536 50Hz*)

*Available only on processors featuring integrated graphics.
Expansion Slots
  1. 1x PCI-E x16 slot (PCIe 4.0, from CPU)
  2. 1x PCI-E x1 slot (PCIe 3.0, from Chipset)
Audio Realtek® ALC897 Codec, 7.1-Channel High Definition Audio
Storage
  1. 2x M.2 slots (Both support PCIe 4.0 x4)
  2. 4x SATA 6G ports
Networking (LAN) Realtek® 8125D 2.5G LAN
RAID Support
  1. Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices.
  2. Supports RAID 0 and RAID 1 for M.2 NVMe storage devices.
USB Ports
  1. Rear Panel Ports: 4x USB 5Gbps Type A, 2x USB 2.0.
  2. Front/Internal Headers: 4x USB 2.0 (via 2 headers), 2x USB 5Gbps Type A (via 1 header), 1x USB 5Gbps Type C (via 1 header).
LED Feature 4x EZ Debug LED, 1x EZ Memory Detection LED
Operating System Supports Windows® 11 64-bit
