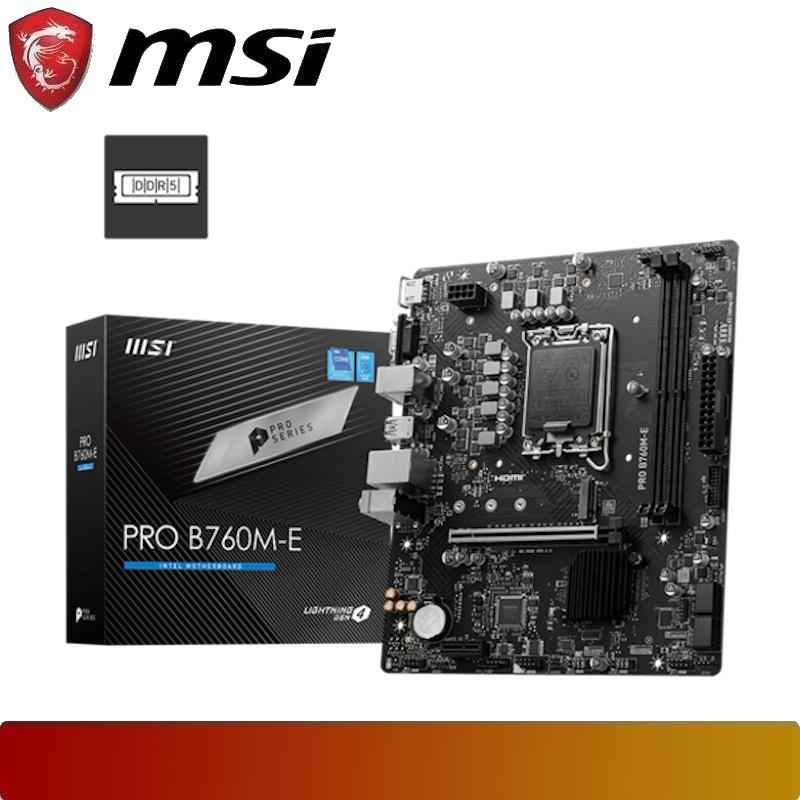

MSI PRO B760M-E DDR5 | Motherboard Intel B760 LGA 1700 DDR5 mATX

Specifications :

Chipset
- INTEL B760

CPU
- Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
- LGA 1700

Memory
- 2x DDR5, Maximum Memory Capacity 128GB
- Supports Dual-Controller Dual-Channel mode

Onboard Graphics
- 1x HDMI
Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz*
- 1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

Slot
- 1x PCI-E x16 slot
- 1x PCI-E x1 slot

Audio
- Realtek ALC897 Codec
- 7.1-Channel High Definition Audio

Storage
- 1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
- 4x SATA 6G

LAN
- Realtek RTL8111H Gigabit LAN

LED FEATURE
- 4x EZ Debug LED

OPERATING SYSTEM
- Support for Windows 11 64-bit, Windows 10 64-bit

PCB Info
- mATX
- 200mmx236.16mm
