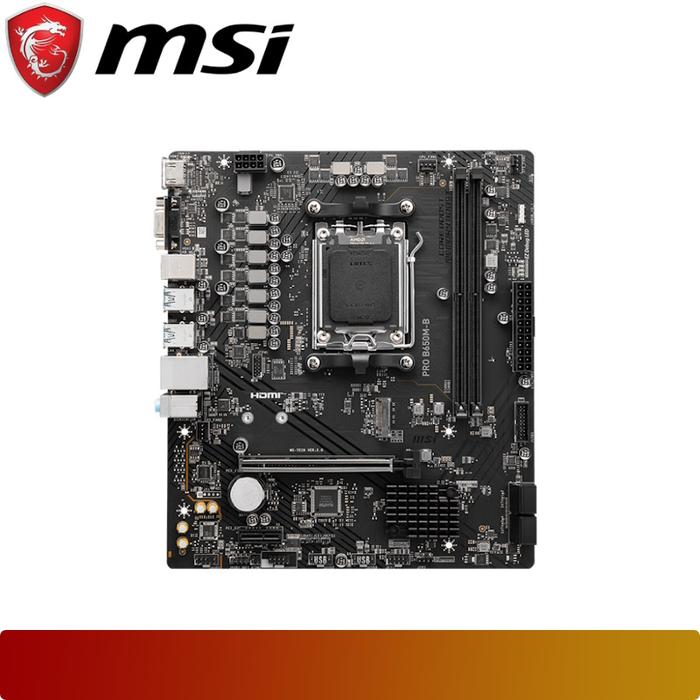

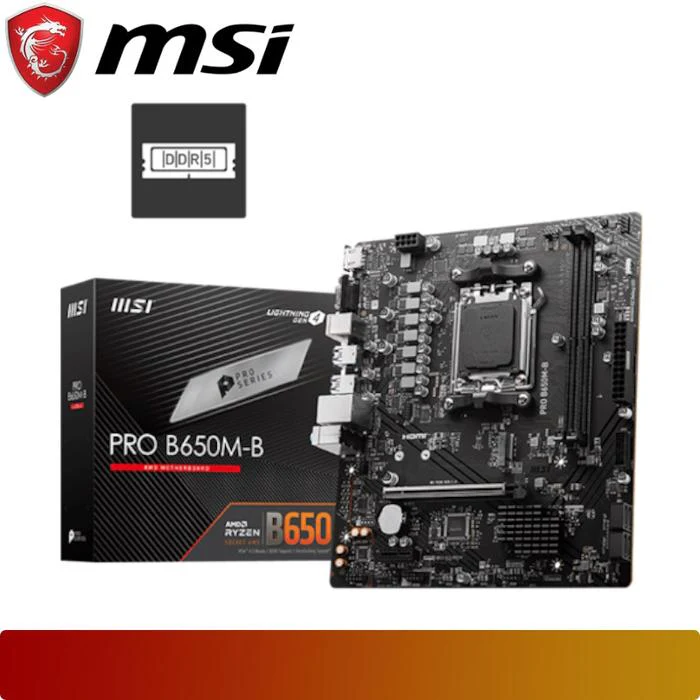

MSI PRO B650M-B
| SOCKET | AM5 |
| CHIPSET | AMD B650 |
| FORM FACTOR | mATX (215mm x 243.84mm) |
| CPU SUPPORT | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
| MEMORY SLOTS | 2x DDR5 DIMMs, Maximum Memory Capacity 128GB |
| MEMORY SUPPORT | DDR5 6800+(OC)/ 6600(OC)/ ... / 4800(JEDEC) MHz. Supports Dual-Channel, non-ECC, un-buffered memory, AMD EXPO. |
| PCI-E X16 SLOT | 1 (PCIe 4.0 from CPU, supports up to x16) |
| PCI-E X1 SLOT | 1 (PCIe 3.0 from Chipset) |
| M.2 SLOT | 1 (From CPU, supports up to PCIe 4.0 x4, supports 2280/2260 devices) |
| SATA 6G PORTS | 4 |
| RAID SUPPORT | RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| ONBOARD GRAPHICS PORTS | HDMI™ 2.1 x 1 (Max. 4K 60Hz) VGA x 1 (Max. 1920x1200 60Hz) *Available only on processors featuring integrated graphics. |
| AUDIO | Realtek® ALC897 Codec, 7.1-Channel High Definition Audio |
| LAN | Realtek® RTL8125BG 2.5G LAN |

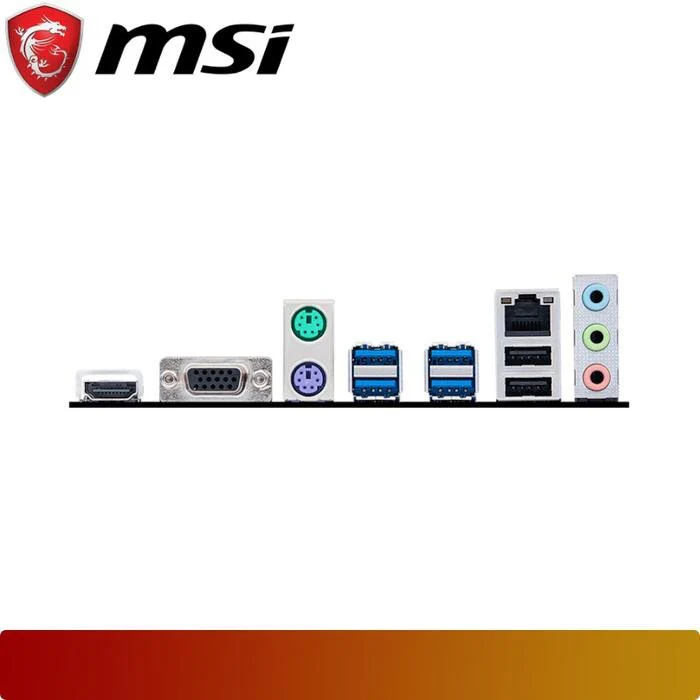

| REAR USB PORTS | 4x USB 5Gbps Type A (USB 3.2 Gen 1) 2x USB 2.0 |
| FRONT USB CONNECTORS | 2x USB 5Gbps Type A (supports 2 ports) 2x USB 2.0 connectors (supports 4 ports) |
| LED FEATURE | 4x EZ Debug LED |
| OPERATING SYSTEM SUPPORT | Windows® 11 64-bit, Windows® 10 64-bit |
$33.26
Original: $110.86
-70%MSI PRO B650M-B—
$110.86
$33.26Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| SOCKET | AM5 |
| CHIPSET | AMD B650 |
| FORM FACTOR | mATX (215mm x 243.84mm) |
| CPU SUPPORT | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors |
| MEMORY SLOTS | 2x DDR5 DIMMs, Maximum Memory Capacity 128GB |
| MEMORY SUPPORT | DDR5 6800+(OC)/ 6600(OC)/ ... / 4800(JEDEC) MHz. Supports Dual-Channel, non-ECC, un-buffered memory, AMD EXPO. |
| PCI-E X16 SLOT | 1 (PCIe 4.0 from CPU, supports up to x16) |
| PCI-E X1 SLOT | 1 (PCIe 3.0 from Chipset) |
| M.2 SLOT | 1 (From CPU, supports up to PCIe 4.0 x4, supports 2280/2260 devices) |
| SATA 6G PORTS | 4 |
| RAID SUPPORT | RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| ONBOARD GRAPHICS PORTS | HDMI™ 2.1 x 1 (Max. 4K 60Hz) VGA x 1 (Max. 1920x1200 60Hz) *Available only on processors featuring integrated graphics. |
| AUDIO | Realtek® ALC897 Codec, 7.1-Channel High Definition Audio |
| LAN | Realtek® RTL8125BG 2.5G LAN |
| REAR USB PORTS | 4x USB 5Gbps Type A (USB 3.2 Gen 1) 2x USB 2.0 |
| FRONT USB CONNECTORS | 2x USB 5Gbps Type A (supports 2 ports) 2x USB 2.0 connectors (supports 4 ports) |
| LED FEATURE | 4x EZ Debug LED |
| OPERATING SYSTEM SUPPORT | Windows® 11 64-bit, Windows® 10 64-bit |
